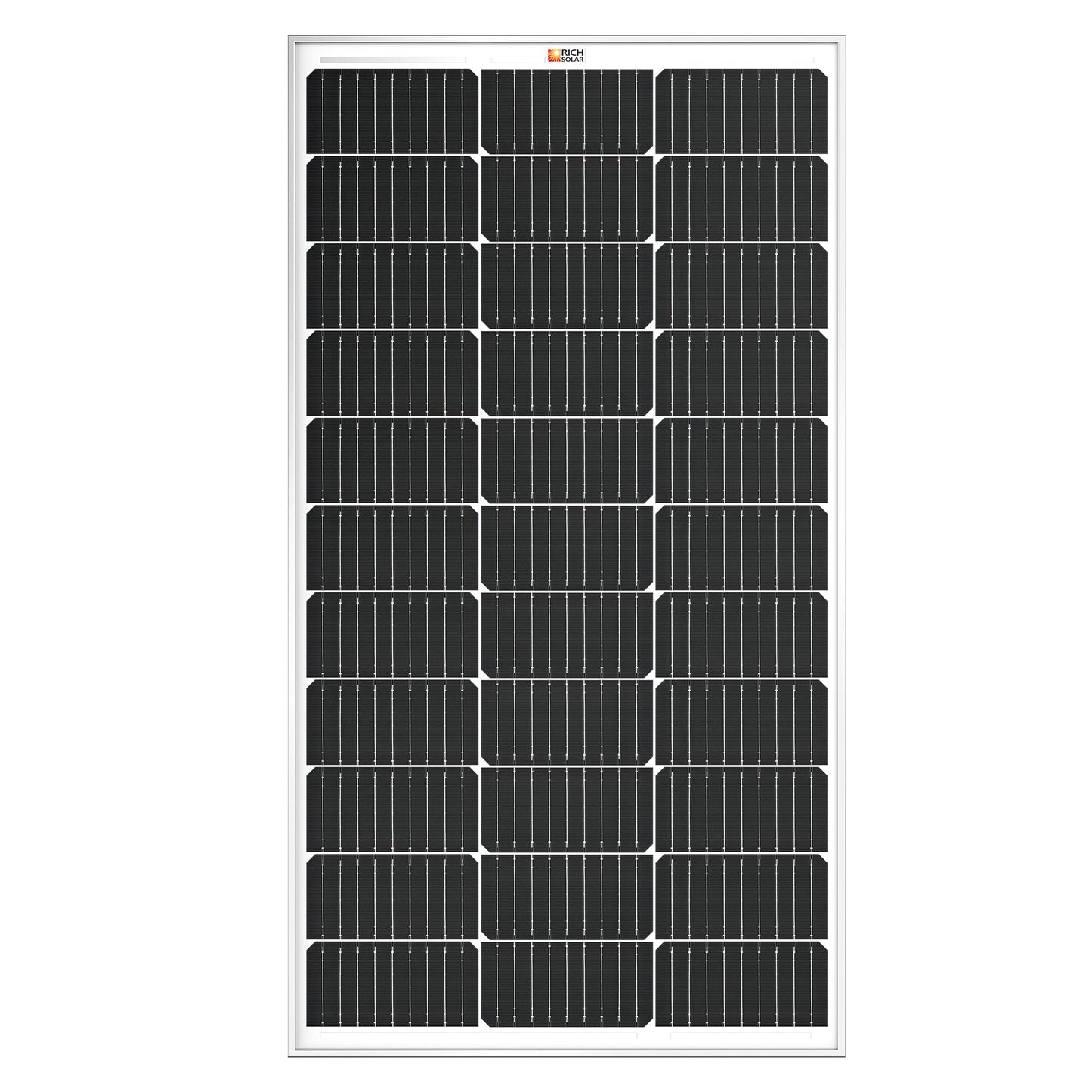

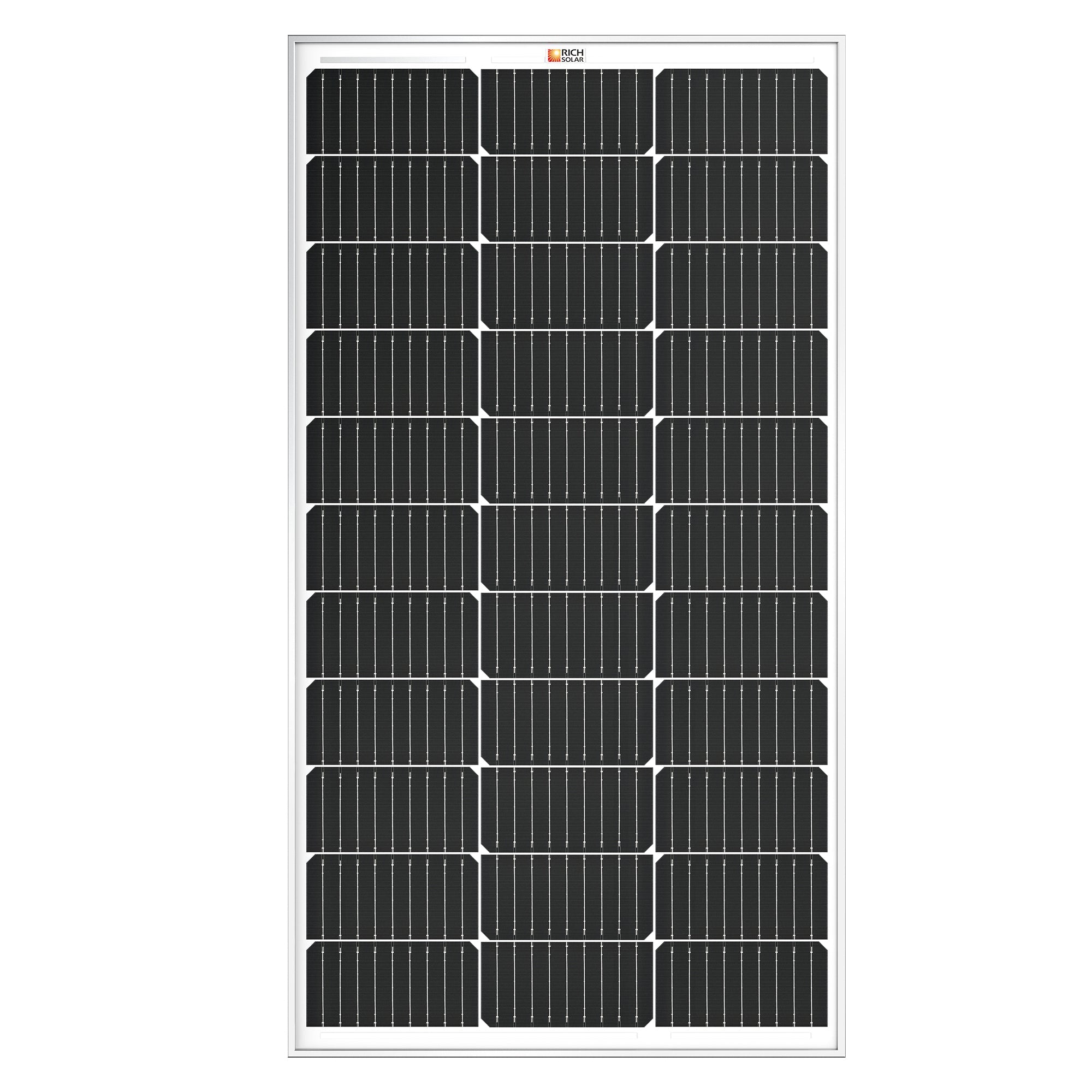

Rich Solar MEGA 100W 12V Off-Grid Monocrystalline Solar Panel
Rich Solar
- Regular price
- Price: $119.99
- Regular price
- List Price:
- Sale price
- Price: $119.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION

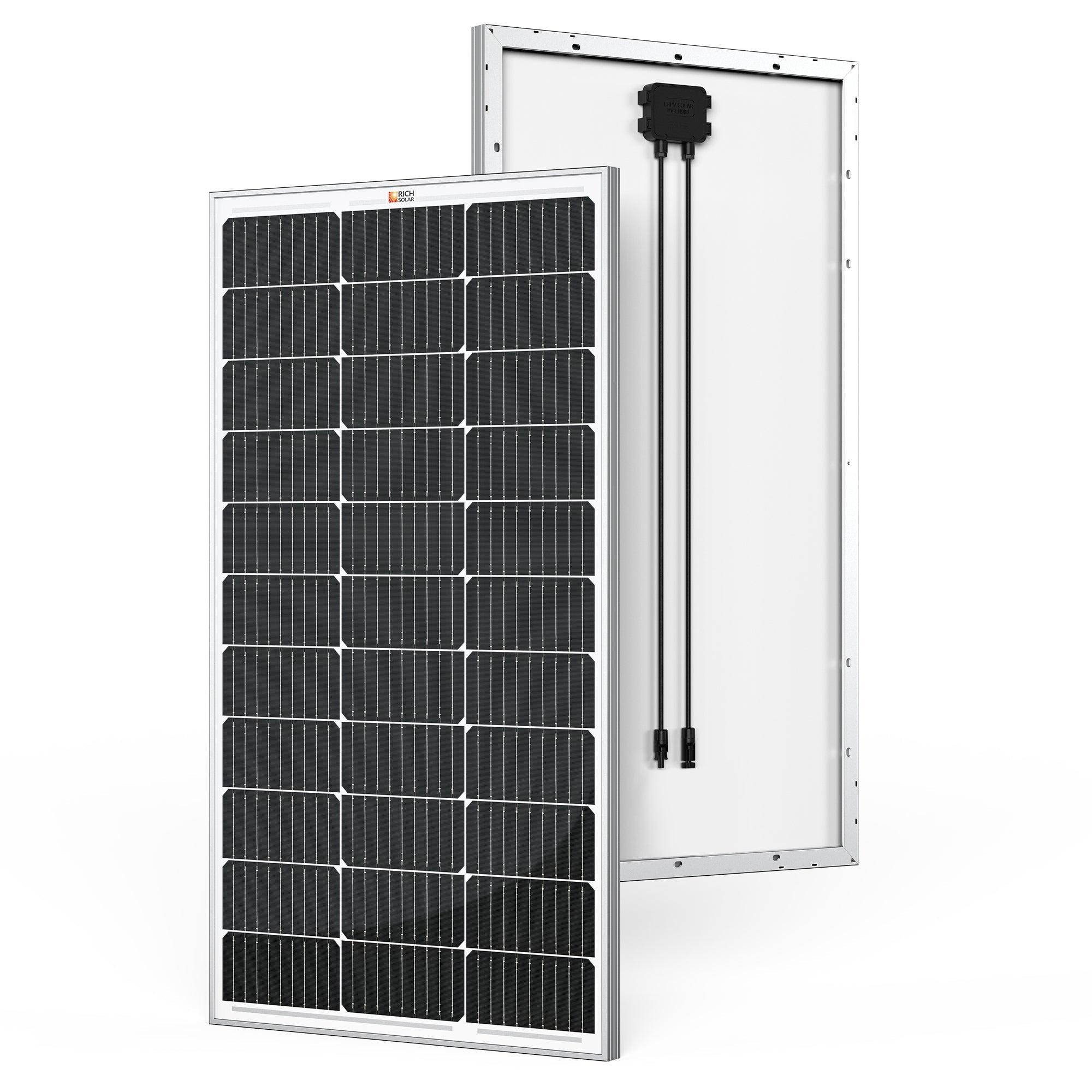

What is the Rich Solar MEGA 100? The Rich Solar MEGA 100 is a premium 100-watt, 12-volt monocrystalline off-grid solar panel engineered with ultra-high-efficiency Grade A+ cells (22.6% efficiency). Built for heavy-duty outdoor durability, it features an IP67 waterproof rating, built-in shading-resistant bypass diodes, and handles up to 5400 Pa of snow load. It is the perfect independent power solution for RVs, camper vans, marine vessels, remote cabins, and DIY backup power configurations.
High-Efficiency Off-Grid Solar Power Anywhere You Need It
Whether you are outfitting a remote garage, powering an overlanding rig, or securing an off-grid cabin backup system, the Rich Solar MEGA 100-Watt 12-Volt Solar Panel provides a rock-solid foundation for clean, reliable energy. Featuring an industry-leading 22.6% cell conversion efficiency rate, this compact monocrystalline module maximizes energy capture per square inch, ensuring your batteries stay charged even when installation space is highly constrained.
Engineered for Ultimate Outdoor Resilience

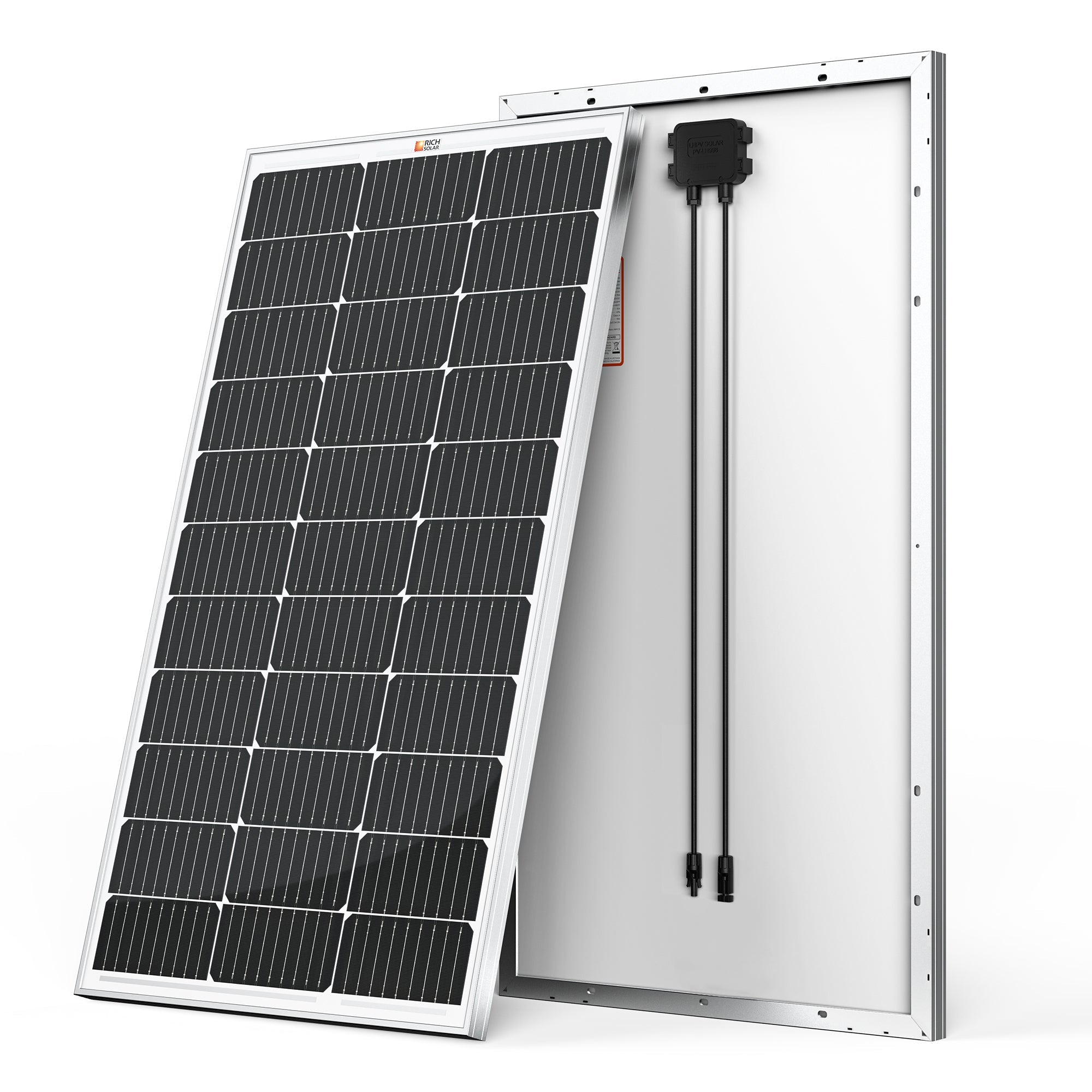

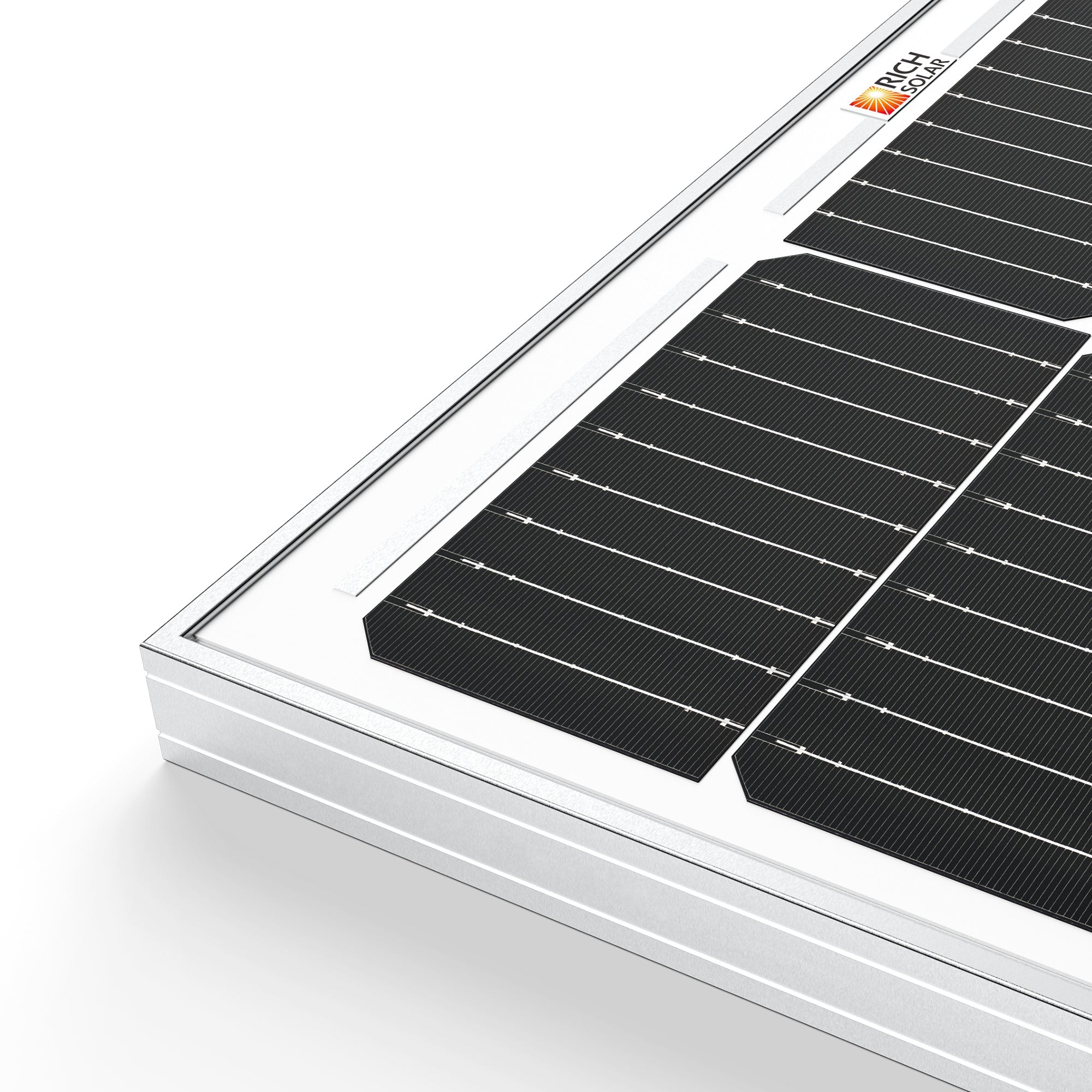

The MEGA 100 is explicitly built to withstand harsh, changing climates. Encased in a heavy-duty, corrosion-resistant anodized aluminum frame with anti-reflective (AR) coated tempered glass, this panel is certified to survive extreme environmental stress, including high winds up to 2400 Pa and heavy snow loads up to 5400 Pa. The back of the panel is fully protected by a multi-layered TPT backsheet to ensure smooth, continuous power performance across a staggering temperature range of -40°F to +185°F.
Key Performance Features
- Grade A+ Monocrystalline Cells: Premium quality solar cells ensure long-term power stability, a longer physical lifespan, and optimal power conversion.
- Advanced Low-Light Technology: Purpose-built to produce reliable, usable power during early mornings, late evenings, and heavily overcast days.
- Shading-Resistant Architecture: Integrated bypass diodes minimize the power drops caused by partial shade, fallen leaves, or debris covering parts of the panel.

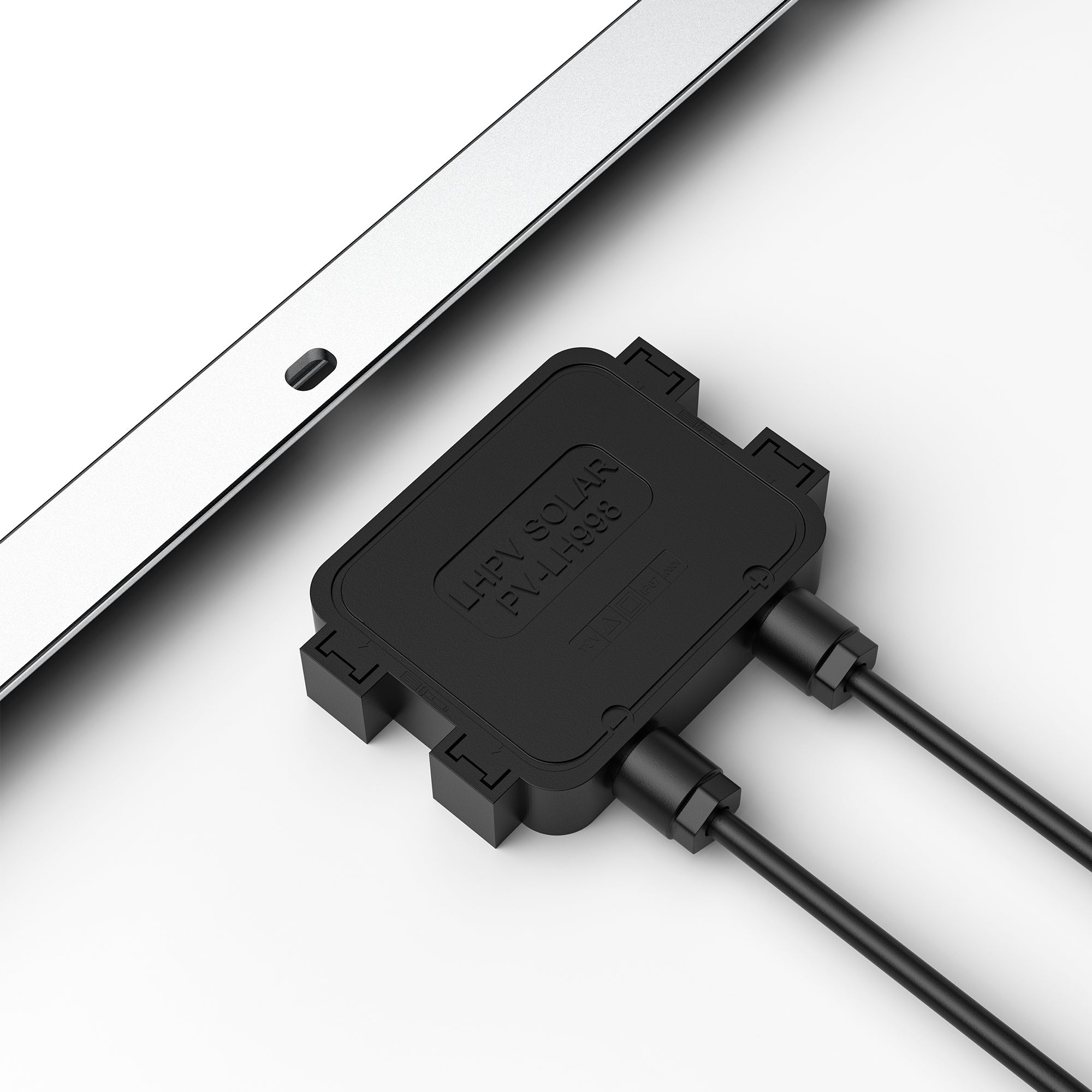

- Plug-and-Play Setup: Comes pre-equipped with an IP67-rated waterproof junction box and pre-attached MC4 connectors for quick, weatherproof, and secure system installation.

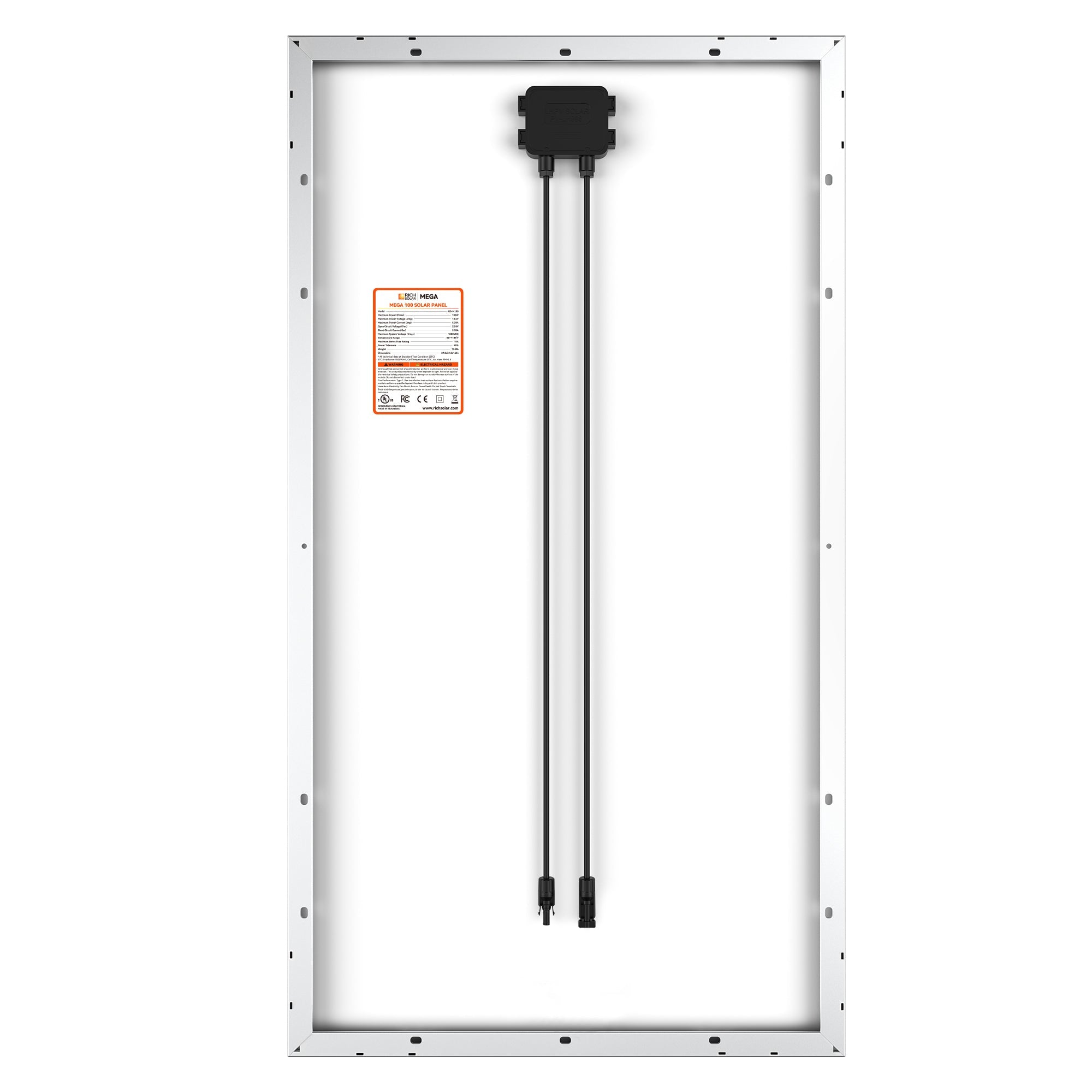

- Flexible Mounting: Lightweight 13.2 lb build complete with factory pre-drilled holes along the frame back for painless integration with Z-brackets, pole mounts, or tilt mounts.

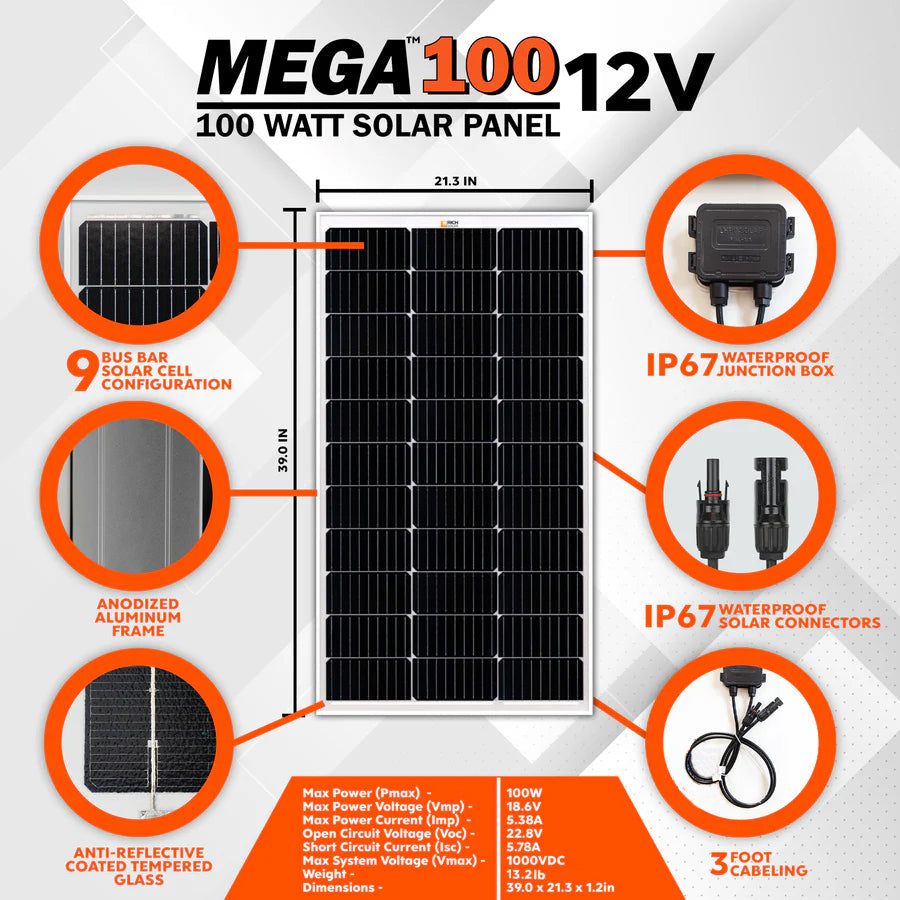

Rich Solar MEGA 100 Technical Specifications
| Specification Property | Value / Measurement |
|---|---|
| Maximum Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 18.6V |
| Maximum Power Current (Imp) | 5.38A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 5.78A |
| Maximum System Voltage | 1000V DC |
| Cell Configuration | 33 Monocrystalline Cells |
| Module Efficiency | 22.6% |
| Power Tolerance | 0 ~ ±5W Positive Tolerance |
| Waterproof Protection | IP67 Rated Junction Box & Connectors |
| Operating Temperature Range | -40°F to +185°F |
| Physical Weight | 13.2 lbs (6.0 kg) |

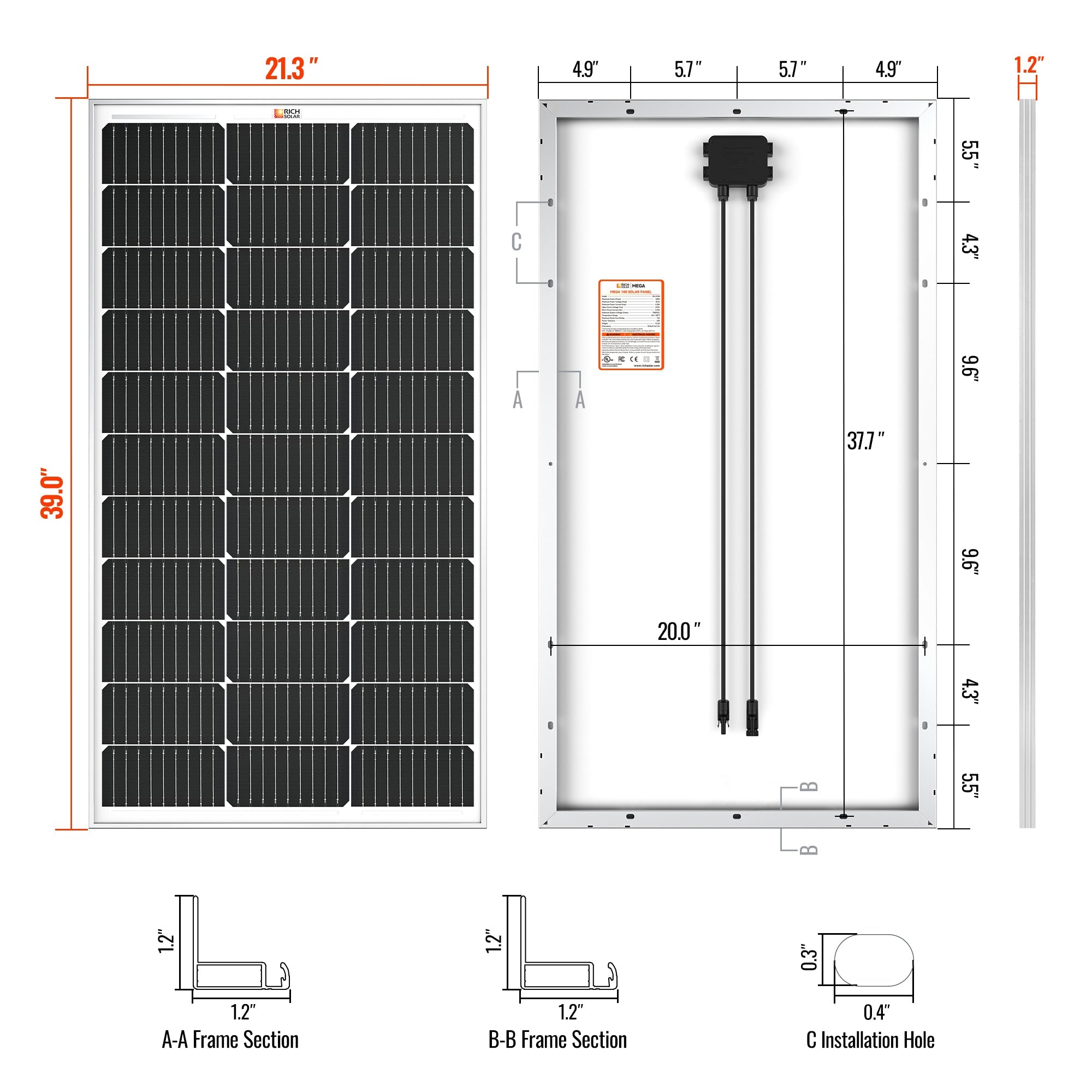

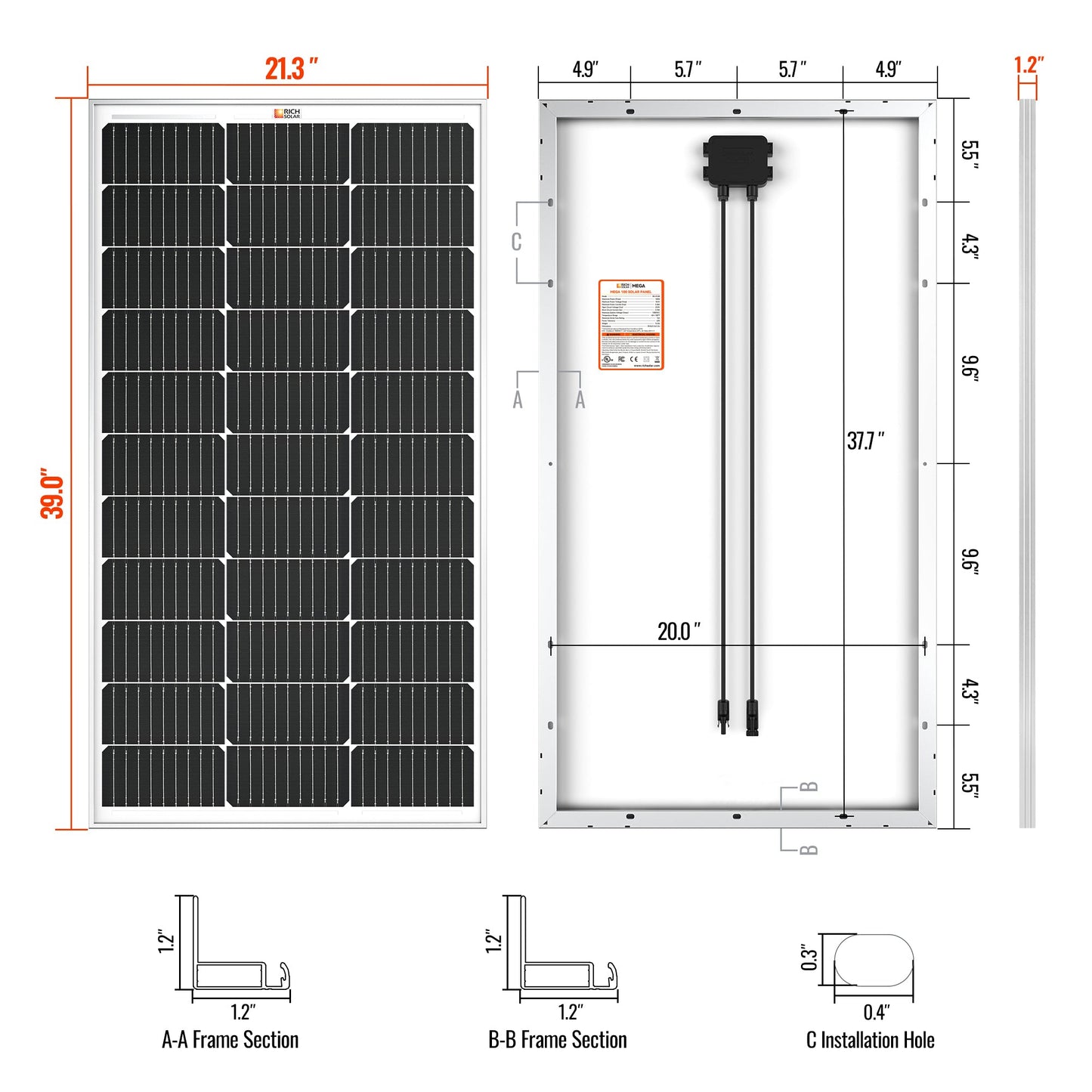

| Dimensions | 39.0 x 21.3 x 1.2 inches (991 x 541 x 30 mm) |
Frequently Asked Questions (FAQ)
Q: What can a Rich Solar 100W solar panel power?
A: Under ideal sunny conditions, a single Rich Solar MEGA 100W panel generates roughly 400 to 500 watt-hours (Wh) of energy per day. This is perfect for keeping 12V deep-cycle or lithium batteries charged to run small electronics, LED lighting setups, ventilation fans, water pumps, and portable fridges inside mobile rigs or storage sheds.
Q: Can I connect multiple MEGA 100 solar panels together?
A: Yes. You can easily scale your power bank by wiring multiple MEGA 100 panels together. Wire them in parallel to keep the system output at 12V while stacking the overall amperage, or connect them in a series configuration to scale up to 24V or 48V setups depending on your solar charge controller requirements.
Q: Does this 100W panel come with a charge controller or mounting brackets?

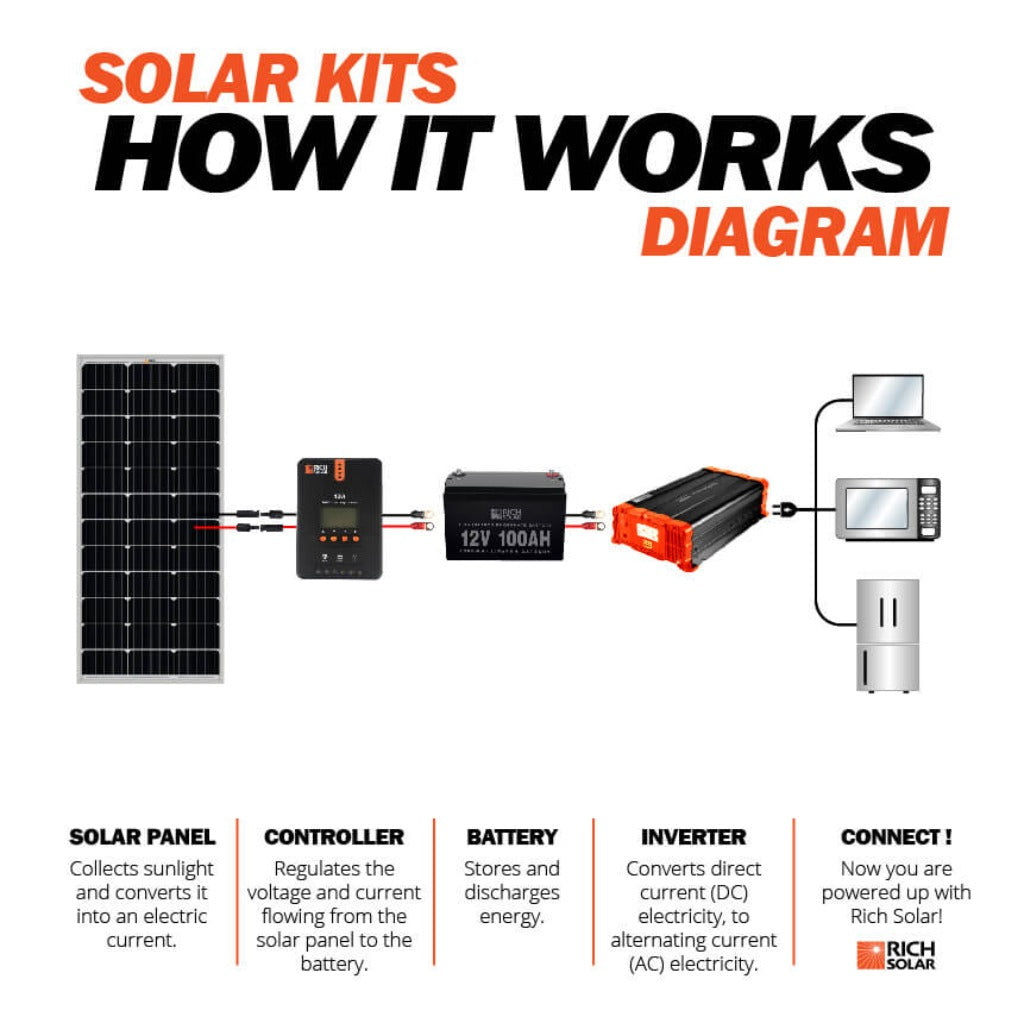

A: This item is a standalone high-efficiency solar module equipped with standard MC4 output leads. To construct a working power system, you will need a separate 12V/24V solar charge controller (PWM or MPPT), standard battery interconnect wires, and mounting brackets tailored to your specific roof or surface application.
Q: How does the panel perform under partial shadow or overcast skies?
A: The MEGA 100 is designed with integrated bypass diodes embedded inside the IP67 junction box. If a section of the solar cells gets blocked by moving shade or leaves, the diodes divert the active current stream around the blocked cells, preserving the overall power output of the rest of the module far better than traditional panels.
