Rich Solar 1200W 24V Off-Grid Solar Kit with 60A MPPT Controller

The Rich Solar 1200W 24V Off-Grid Solar Kit is engineered to deliver high-capacity, dependable mobile power for RVs, motorhomes, marine vessels, and off-grid tiny homes. This complete power solution integrates six high-efficiency 200W monocrystalline solar panels with a heavy-duty 60A MPPT solar charge controller. Designed for seamless system expansions, it provides premium low-light performance to ensure consistent energy harvest during early mornings, late evenings, and heavily overcast days.

Core System Highlights

• Total Power Output: 1200 Watts (6 x 200W Monocrystalline Panels)
• System Voltage: 24V Native Array Configurations
• Charge Controller: 60A MPPT (Automatically detects 12V/24V/36V/48V)
• Bouncy Energy Recovery: Peak MPPT conversion efficiency up to 98% with 99% tracking accuracy
• Applications: Overlanding, heavy-duty RVing, marine, workshops, and off-grid backup

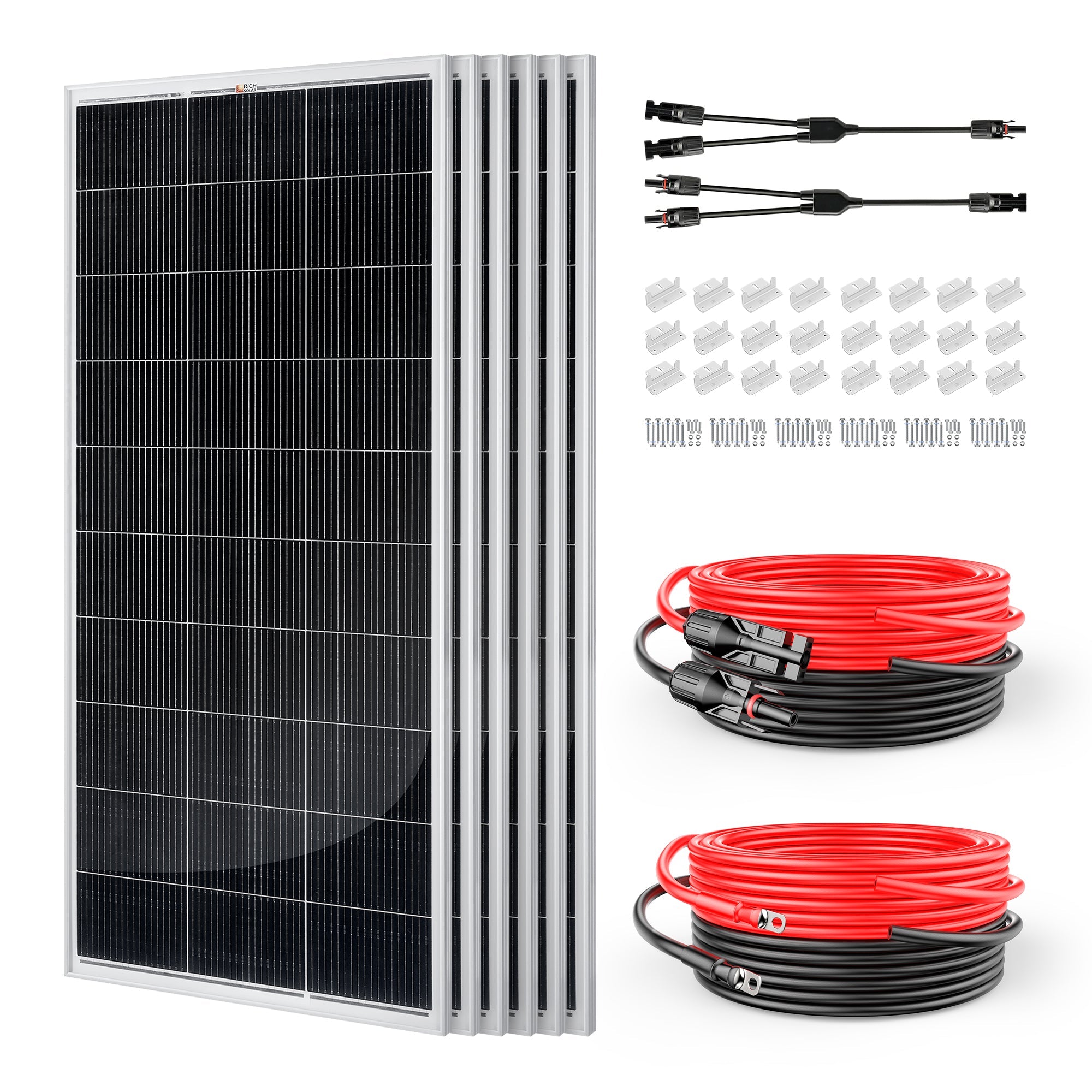

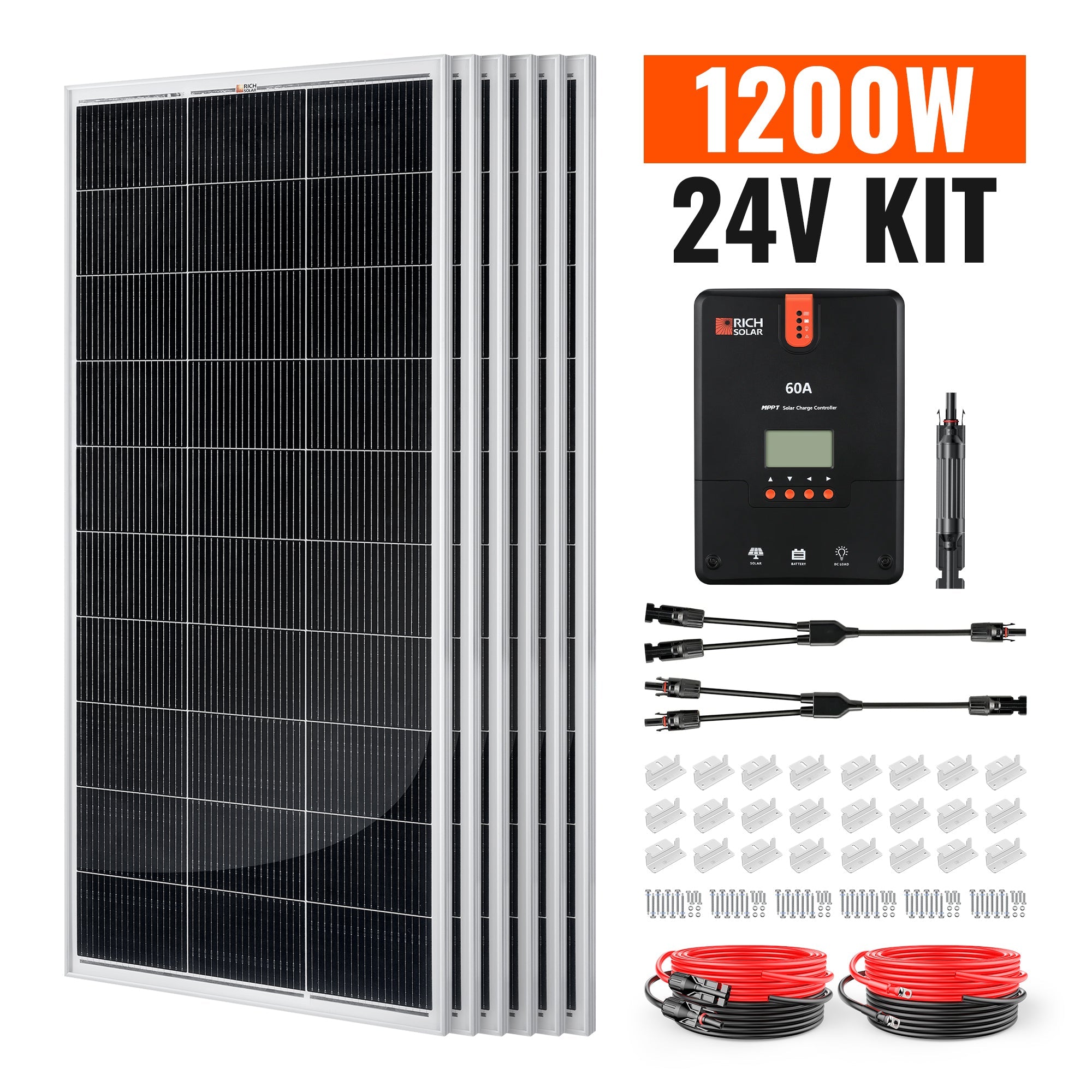

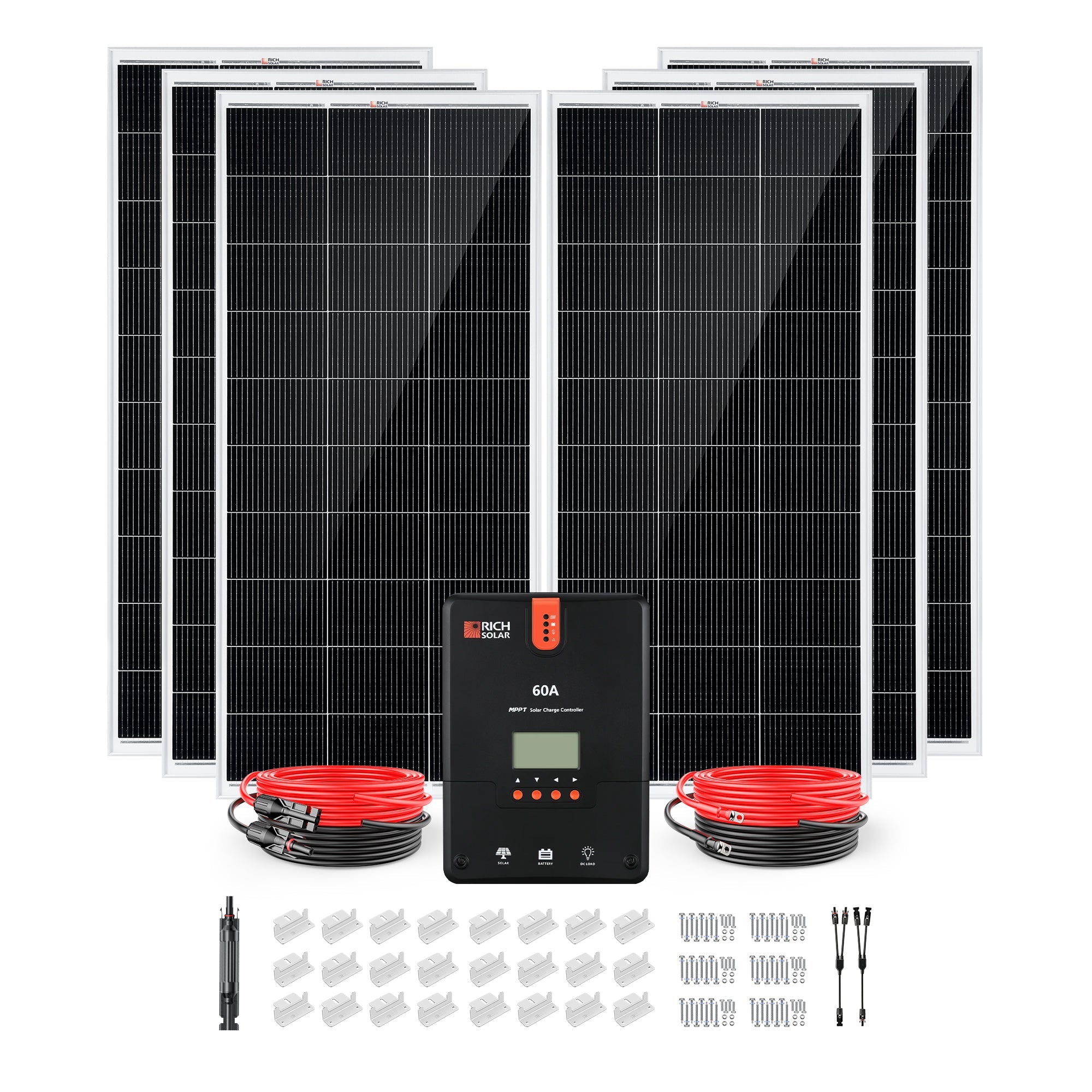

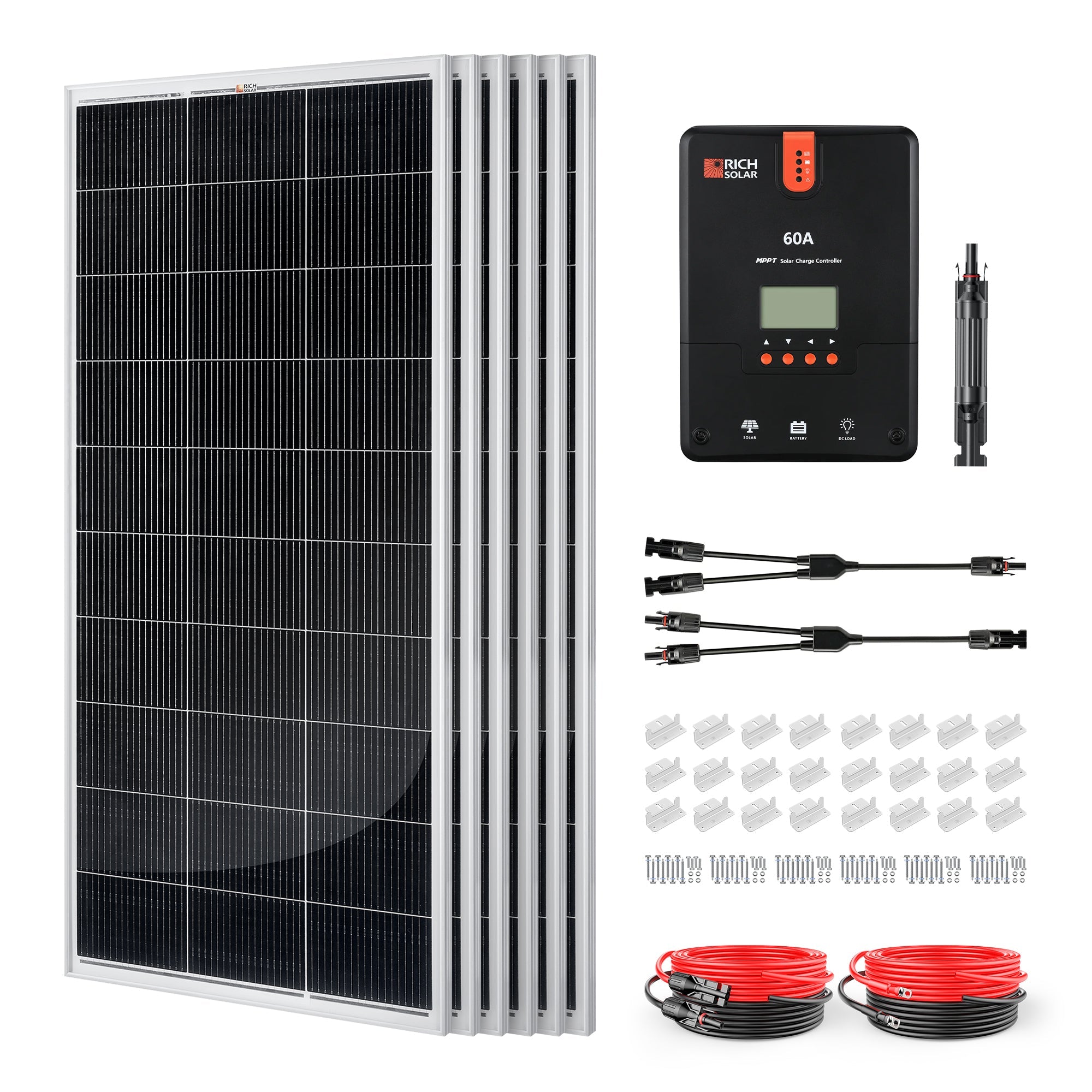

What is Included in the 1200W Master Solar Kit?

This master package includes all essential components required to build an efficient solar array, routing power safely from roof footprints to your deep-cycle battery bank:

• 6 x 200 Watt Monocrystalline Solar Panels (RS-M200): Equipped with 18 busbars for reduced electrical resistance and optimized output.
• 1 x 60A MPPT Solar Charge Controller (RS-MPPT60): Robust die-cast aluminum heat-dissipating housing with built-in multi-stage protection.
• Solar-to-Controller Cables: 20-foot #10 AWG cables (1 Red, 1 Black) with pre-assembled weather-sealed connectors.
• Controller-to-Battery Cables: 10-foot #8 AWG battery connection lines (1 Red, 1 Black) for low-voltage safety.
• Mounting Hardware: 6 complete sets of heavy-duty anodized aluminum Mounting Z-Brackets (4 per set).
• Circuit Safety Equipment: 1 x 30A Inline Fuse Holder accompanied by a matching safety fuse.
• Array Multipliers: 1 Set of high-conductivity Y-Branch Parallel Adapters.

Technical Specifications & Component Comparison

Review the comprehensive electrical performance metrics for the individual primary components included in this heavy-duty off-grid setup:

Advanced Engineering for Off-Grid Performance

• Premium Tempered Glass Construction: Built using highly transparent, anti-reflective coated tempered glass combined with a rigid anodized aluminum frame to withstand heavy snow loads and intense wind pressures.
• Smart Battery Profiles: The controller natively features charging algorithms optimized for diverse deep-cycle battery chemistry varieties, including Sealed, Gel, Flooded, and Lithium-iron phosphate (LiFePO4) options.
• Full Electronic Safety Suites: Automated circuitry protects your electrical systems from damage caused by reverse polarity connection mistakes, overcharging safety thresholds, over-discharging states, unexpected short circuits, and reverse current leaks.
• Fast System Installation: Each individual 200W panel comes outfitted with 14 factory pre-drilled holes, making them instantly compatible with ground tilt mounts, side-of-pole structures, or standard roof Z-Brackets.
