400 Watt Solar Panel Kit for Portable Power Stations & Generators
Rich Solar
- Regular price
- Price: $579.99
- Regular price
- List Price:
- Sale price
- Price: $579.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Power Your Off-Grid Freedom with the 400W Monocrystalline Solar Generator Kit
Never worry about running out of power when you are off the grid. The 400 Watt Monocrystalline Solar Panel Kit is specifically engineered to pair seamlessly with portable power stations and solar generators. Whether you are running backup power in your workshop, setting up an off-grid garage station, or hitting the road in an RV, this plug-and-play solar kit ensures a continuous supply of clean, reliable energy.
By leveraging high-efficiency monocrystalline cells coated with an advanced anti-reflective layer, this kit maximizes light absorption even during low-light days, turning sunlight into stored power faster than standard panels.
Why This 400W Solar Kit Wins for Portable Power:
- Maximum Light Absorption: Anti-reflective treated premium monocrystalline cells deliver optimal daily output.
- True Plug-and-Play Setup: Includes a pre-assembled 30-foot 10 AWG wiring harness—no complex crimping tools or electrical expertise required.
- Built for Scale: 100% compatible across the brand ecosystem, making future expansion simple as your energy needs grow.
- Commercial-Grade Durability: Backed by an industry-leading 25-year output warranty to ensure your long-term energy independence.

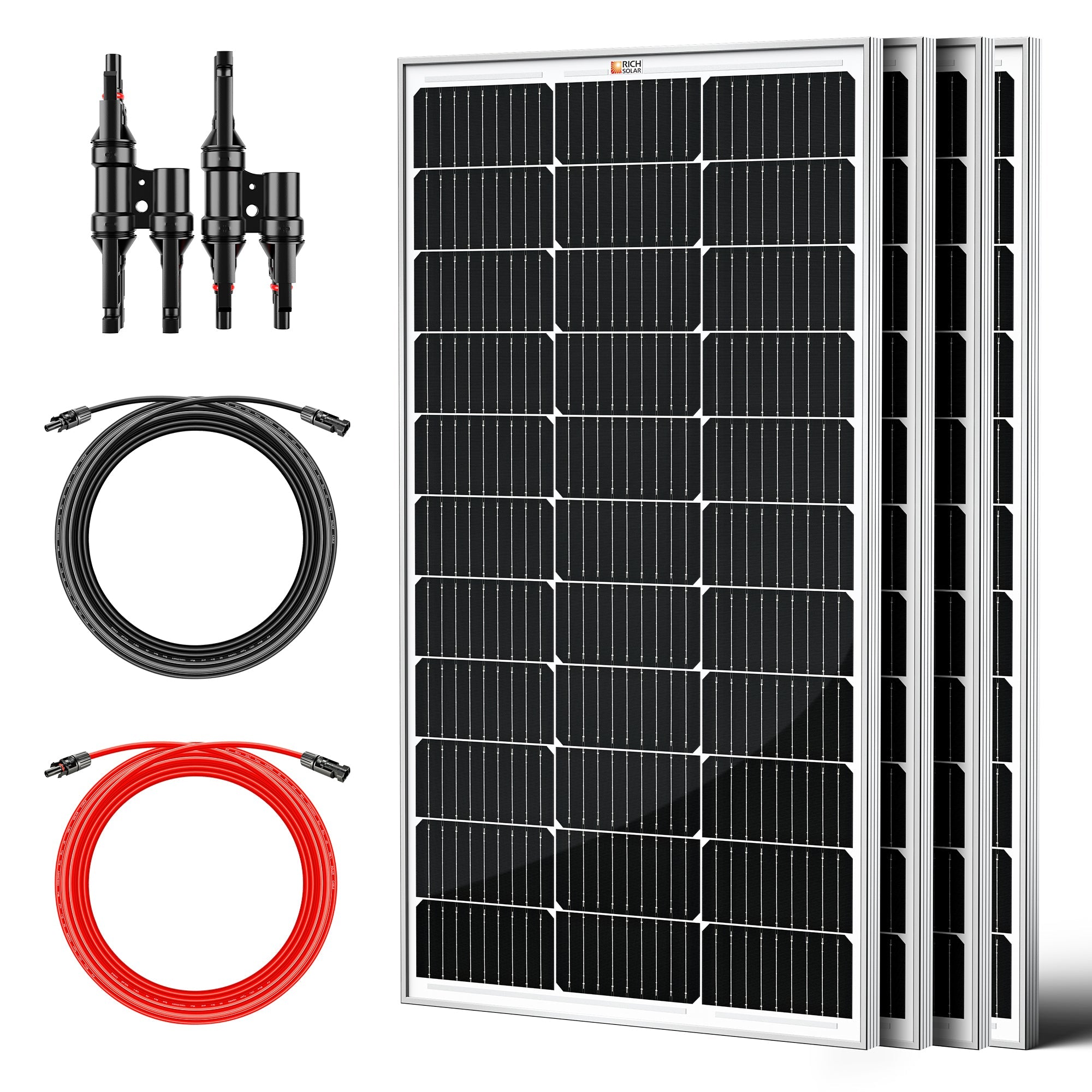

What’s Included in the Complete Box
- 4 x 100 Watt High-Efficiency Monocrystalline Solar Panels
- 1 x 30' #10 Gauge Solar Extension Cable (Red) with Pre-assembled Female & Male Connectors
- 1 x 30' #10 Gauge Solar Extension Cable (Black) with Pre-assembled Male & Female Connectors
- 1 x Parallel Connectors (One Pair, 2-to-1 Configuration)
Technical Specifications
| Specification Parameter | Value (Per 100W Panel) |
|---|---|
| Maximum Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 18.6V |
| Maximum Power Current (Imp) | 5.38A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 5.78A |
| Weight | 13.2 lbs |
| Dimensions (L × W × H) | 39.0 × 21.3 × 1.2 inches |
| Warranty Coverage | 25-Year Performance Output Warranty |
Frequently Asked Questions
Is this 400W solar kit compatible with my portable power station?
Yes. This kit is explicitly designed for portable solar generators and power stations. The included 30-foot 10 AWG extension cables use standard solar connectors. You simply need to verify your specific power station's input connector type (e.g., XT60, Anderson, or DC8mm) and max voltage capacity to connect perfectly.
What are the advantages of monocrystalline solar panels over polycrystalline?
Monocrystalline panels are crafted from a single, pure silicon crystal structure, allowing electrons more room to move. This results in significantly higher energy efficiency and a smaller physical footprint compared to polycrystalline panels, making them optimal for space-constrained RV, van, and residential backup setups.
Can I expand this 400W solar system in the future?
Absolutely. The component ecosystem is fully brand-compatible. The included 2-to-1 parallel connectors facilitate quick integration, allowing you to easily add more panels or upgrade your system whenever your power requirements increase.
Do I need an electrician or specialized crimping tools to install this kit?
No special skills or tools are required. The wiring harness is 100% pre-assembled and pre-terminated. It relies on intuitive, weather-sealed snap-together links, delivering a true plug-and-play user experience safely right out of the box.
What's included in this 400W kit?
This kit includes the solar panel(s) totaling 400W, an MPPT or PWM charge controller, and the connecting cables needed to wire the panels to the controller. It does not include a battery bank or inverter — check the product images and specifications above for the full parts list.
Does this kit include a battery?
No — this is a panel-and-controller kit, not a complete power system. It's designed to charge a battery bank you already own (or purchase separately). If you want panels, battery, and inverter bundled together, look at Rich Solar's Complete or Hybrid kits instead.
What size battery bank can this 400W kit charge?
A 400W kit can maintain or slowly charge a range of battery bank sizes depending on your daily sun hours and power draw. As a starting point, size your battery bank so its daily charge need doesn't exceed roughly 400 watts x 4-5 peak sun hours per day; for larger banks, consider pairing multiple kits or a higher-wattage kit.
Can I expand this kit later by adding more panels?
Yes, in most cases. An MPPT or PWM charge controller typically has headroom beyond the 400W included, so you can add more Rich Solar panels of the same voltage later — check the controller's maximum rated input in the specifications above before adding panels.
What do I still need to actually power something?
A battery bank to store what the panels generate, and an inverter if the load is mains-voltage. This kit supplies the generation and charge-regulation half of that chain. DC appliances can be run directly from the battery without an inverter.
Can I leave this installed outside year-round?
The panel side is built for it: sealed junction box, weather-rated connectors, corrosion-resistant frame. The electronics are the part to plan around — controllers and inverters normally need shelter. Treat it as an outdoor array feeding indoor equipment.
