Rich Solar 1600W 24V Off-Grid Complete Solar Kit with Lithium Batteries

Harness the power of the sun and achieve true energy independence with the Rich Solar 1600 Watt 24V Complete Off-Grid Solar Kit. Purpose-built for heavy-duty setups like off-grid cabins, travel trailers, large RVs, tiny homes, and remote workshops, this heavy-duty, commercial-grade solar array delivers all the infrastructure required to generate, manage, and store clean power anywhere.

This master off-grid setup features eight premium 200W monocrystalline solar panels, an intelligent 60A MPPT charge controller, a massive 3000W pure sine wave inverter, and two advanced, self-heating ALPHA 4 Lithium (LiFePO4) batteries. Stop worrying about grid failures or noisy gas generators—launch your clean energy autonomy today.

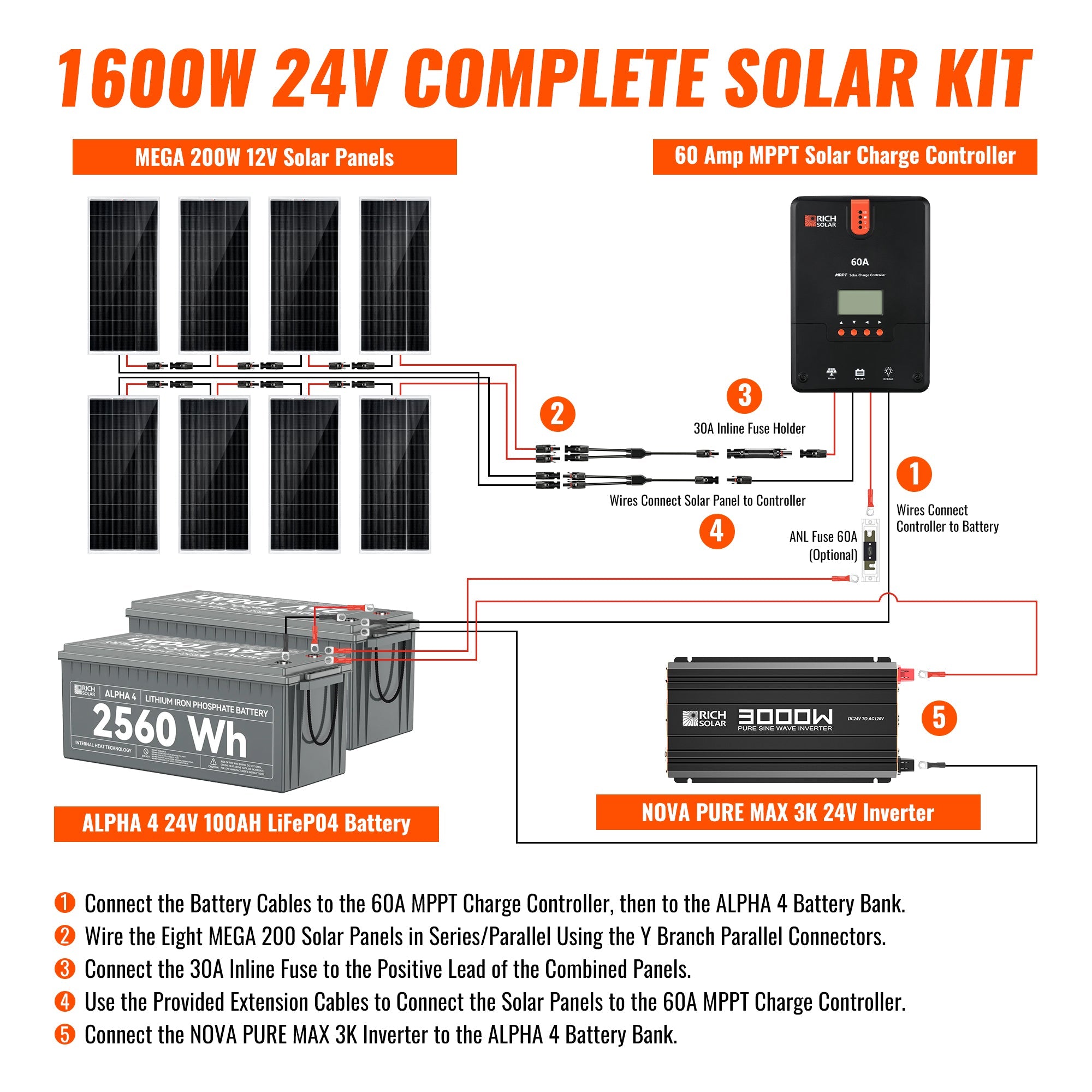

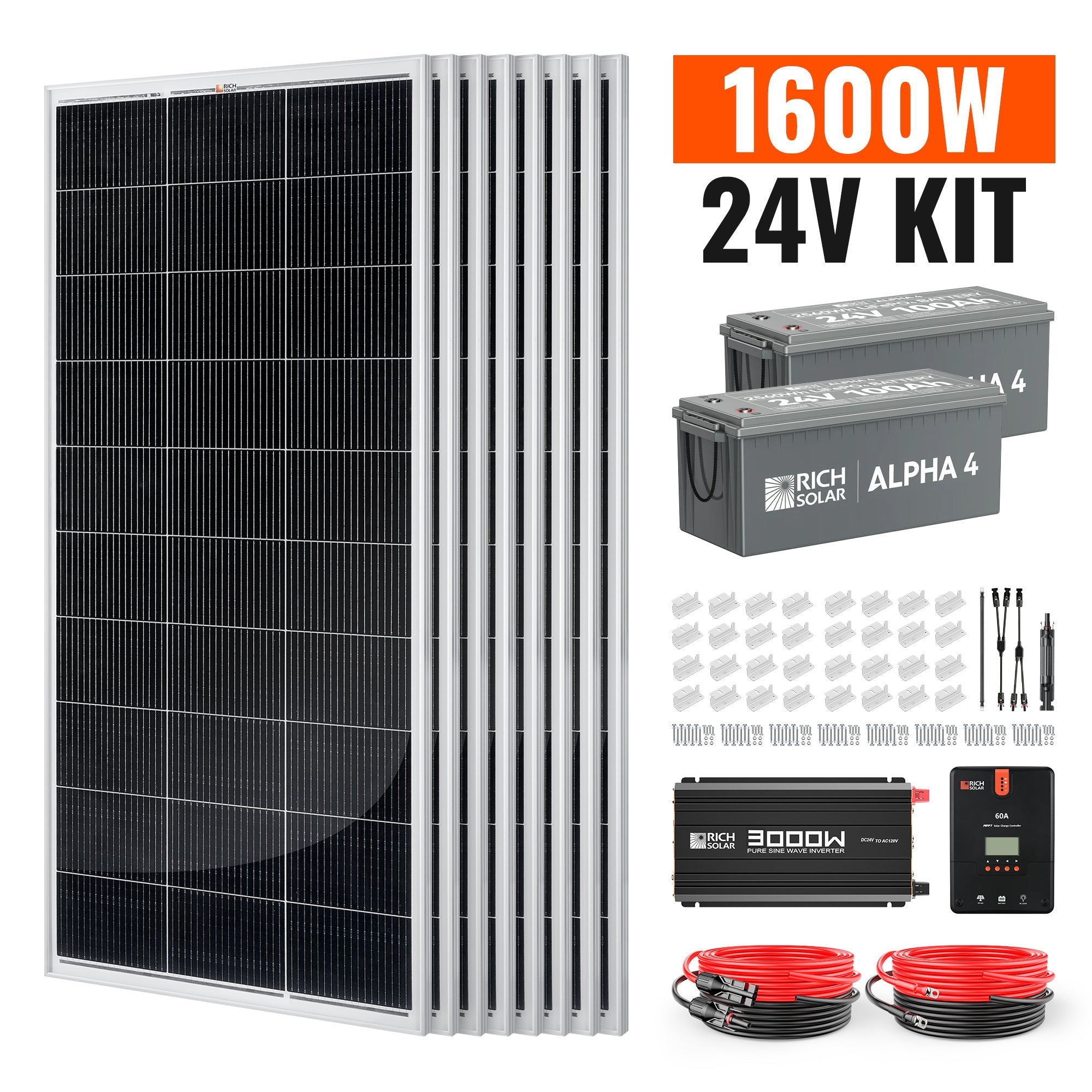

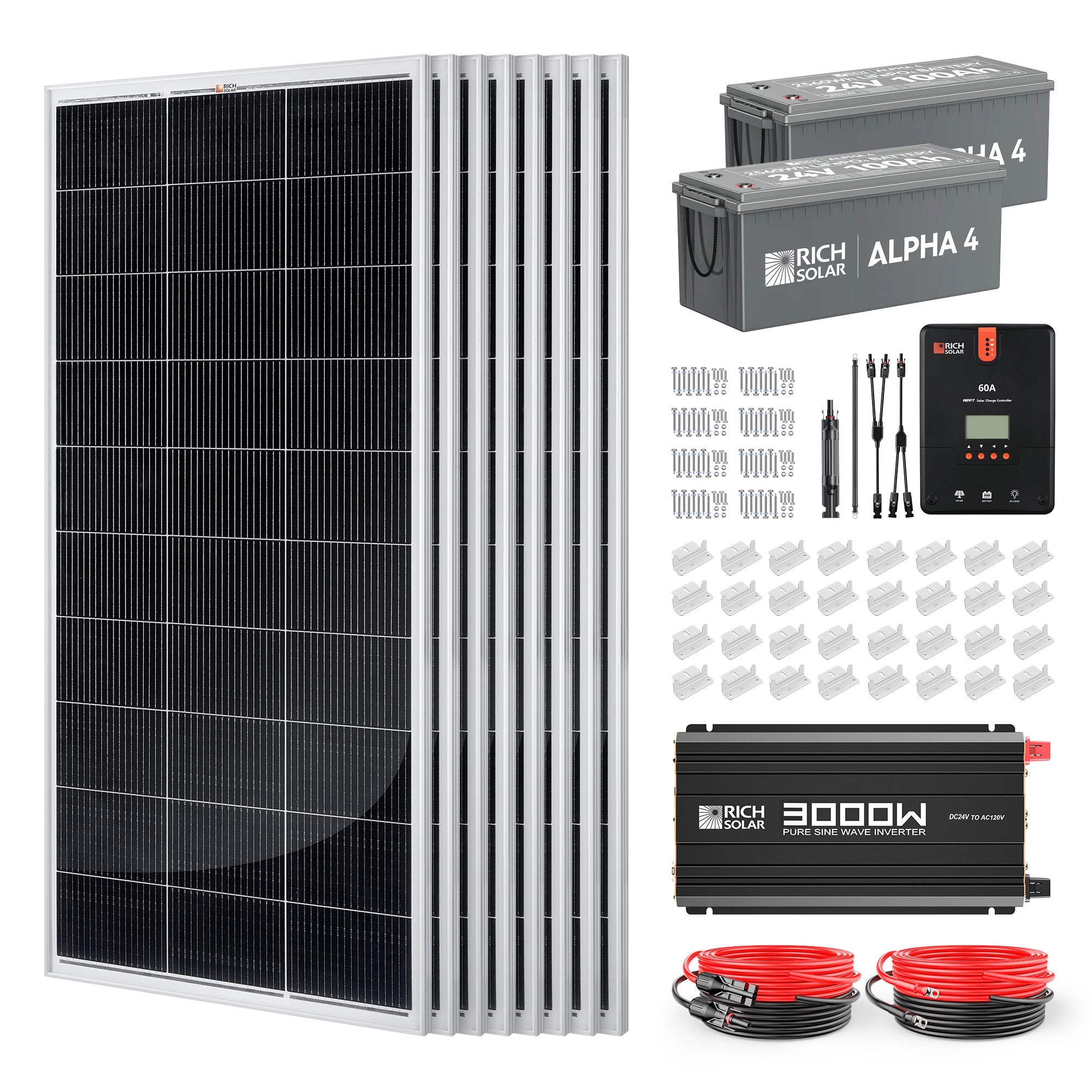

What is Included in the 1600W 24V Master Solar Kit?

Unlike piece-rate setups that leave you hunting for compatible components, this kit arrives as a complete, fully engineered system including all high-output components, protective fusing, and thick-gauge wiring:

• 8 x MEGA 200W 12V Monocrystalline Solar Panels (Model: RS-M200)
• 2 x ALPHA 4 24V 100Ah Lithium LiFePO4 Batteries (Model: RS-B241S)
• 1 x NOVA Pure Max 3000W 24V Pure Sine Wave Inverter (Model: RS-V3P24)
• 1 x 60A MPPT Intelligent Charge Controller (Model: RS-MPPT60)
• 8 x Heavy-Duty Z-Bracket Mount Sets (Model: RS-ZB4C)
• 1 x 30A Inline Safety Fuse Holder (Model: RS-SC30F)
• 1 x Y-Branch Parallel Adapter Set (Model: RS-Y2)
• Professional-Grade Wiring Loom:
  • 1 x 2 AWG 1 FT Red Inverter-to-Battery Cable (RS-C21R)
  • 1 x 2 AWG 1 FT Black Inverter-to-Battery Cable (RS-C21B)
  • 1 x 30-Foot 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10-Foot 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8-Foot 4 AWG Inter-Battery Connecting Cable Set (RS-C48R & RS-C48B)

Core Component Breakdown & Performance Features

1. Rich Solar MEGA 200W Monocrystalline Panels

Engineered for maximum power generation in restricted spaces, these panels feature multi-layered sheet laminations to maximize cell efficiency and longevity.

• High Current Production: Generates 10.9 Amps of power per panel, optimized for charging high-capacity battery banks quickly.
• Low-Light Optimization: Advanced anti-reflective coated tempered glass ensures excellent yield during early mornings, evenings, and overcast winter conditions.
• Rugged Construction: Encased in an anodized aluminum frame to withstand heavy snow loads and high wind speeds. Comes equipped with 14 pre-drilled holes for rapid mounting.
• Industry-Leading Protection: Backed by a 25-year limited power output warranty and a 10-year craftsmanship warranty.

2. ALPHA 4 24V 100Ah LiFePO4 Lithium Batteries (Self-Heating)

Get reliable off-grid storage with lithium technology designed to survive extreme environments.

• Advanced Internal Heating: Smart internal heaters kick on automatically when temps drop below 41°F (5°C), allowing safe charging down to -4°F.
• Wireless Health Tracking: Integrated Bluetooth lets you monitor battery temperature, state-of-charge (SOC), voltage, and cycle life right from your smartphone.
• Unmatched Longevity: Rated for over 5,000 deep discharge cycles with premium UL94 V-0 flame-retardant casing and IP65 dust and waterproof protection.

3. NOVA 3000W 24V Pure Sine Wave Inverter

Transform your stored DC power into clean, stable AC residential power to safely run sensitive appliances like medical equipment, computers, microwaves, and power tools.

• Power Performance: Delivers 3,000 Watts of continuous clean power with an impressive 6,000 Watt peak surge threshold to easily handle heavy motorized starting loads.
• Built-In Fail-Safes: Multi-point automatic protection covers electronic overloads, short-circuits, over-temperatures, and low-battery voltage drops.

4. 60 Amp Intelligent MPPT Charge Controller

The brains of your solar array, capturing maximum available energy with up to 99% tracking efficiency.

• Multi-Voltage Flexibility: Automatically detects 12V, 24V, 36V, and 48V DC systems.
• Comprehensive Tracking: Advanced Maximum Power Point Tracking (MPPT) delivers up to 10-30% more energy to your batteries compared to standard PWM controllers.

System Technical Specifications Table

Frequently Asked Questions

What can a 1600W off-grid solar kit run?

A 1,600-watt solar array paired with 5,120Wh of lithium battery storage and a 3,000W pure sine wave inverter can easily handle essential off-grid electronics. It can simultaneously power residential refrigerators, high-efficiency mini-split air conditioners, water pumps, power tools, laptops, lighting setups, and kitchen appliances like coffee makers or microwaves within its 3,000W continuous output boundary.

Can this solar kit work in freezing temperatures?

Yes. Traditional lithium batteries degrade quickly or refuse to take a charge if frozen. The premium Rich Solar ALPHA 4 batteries included in this kit feature internal self-heating technology. When external temperatures dip below 41°F, the battery uses a tiny portion of power to heat itself up to optimal operational levels, guaranteeing reliable winter performance down to -4°F.

How long does it take to charge the lithium batteries fully?

Under optimal, peak daylight conditions, the 1,600-watt solar array can produce around 1,100 to 1,300 watts of real-world power per hour through the 99% efficient MPPT controller. Because the total capacity of the dual battery bank is 5,120Wh, the system can charge from 0% to a full 100% capacity in approximately 4 to 5 hours of clear direct sunlight.

Is this complete solar kit expandable?

Absolutely. The 60 Amp MPPT charge controller is capable of handling up to 1,600 Watts of solar input when configured in a 24V system, meaning your current panels fully maximize the charge controller's solar input ceiling. However, you can effortlessly add more ALPHA 4 lithium batteries in parallel to increase your total amp-hour storage capacity if your off-grid energy storage needs grow.
