RICH SOLAR 4000W Off-Grid Solar Kit | 48V 6500W All-In-One Energy Storage System

The RICH SOLAR 4000 Watt 48V Off-Grid Solar Kit is a commercial-grade, pre-engineered power ecosystem built to deliver independent, clean 120V electricity anywhere. By combining premium solar generation with an integrated all-in-one backup battery management setup, this kit eliminates the guesswork of custom system building, making it perfect for off-grid homes, remote workshops, or emergency backup power.

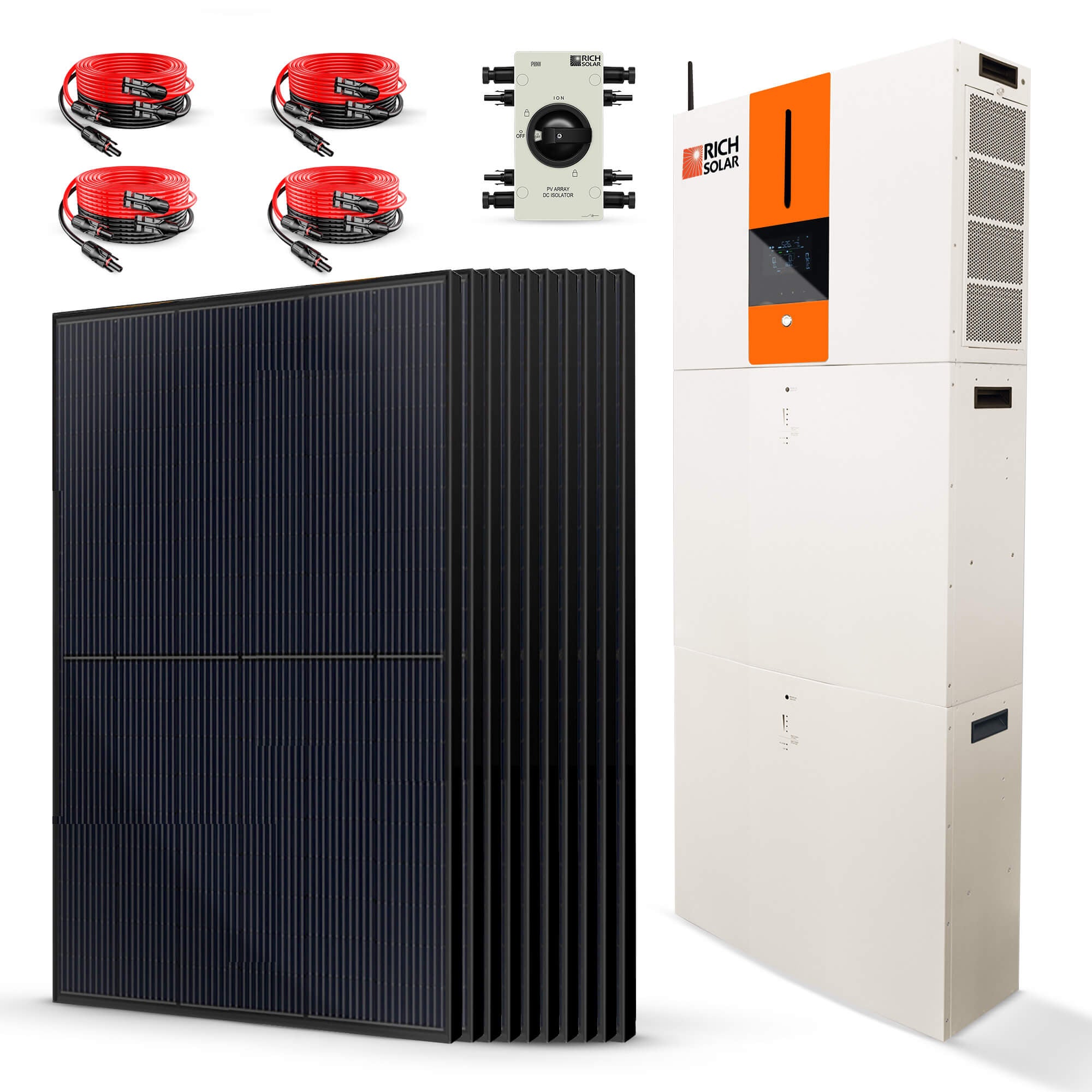

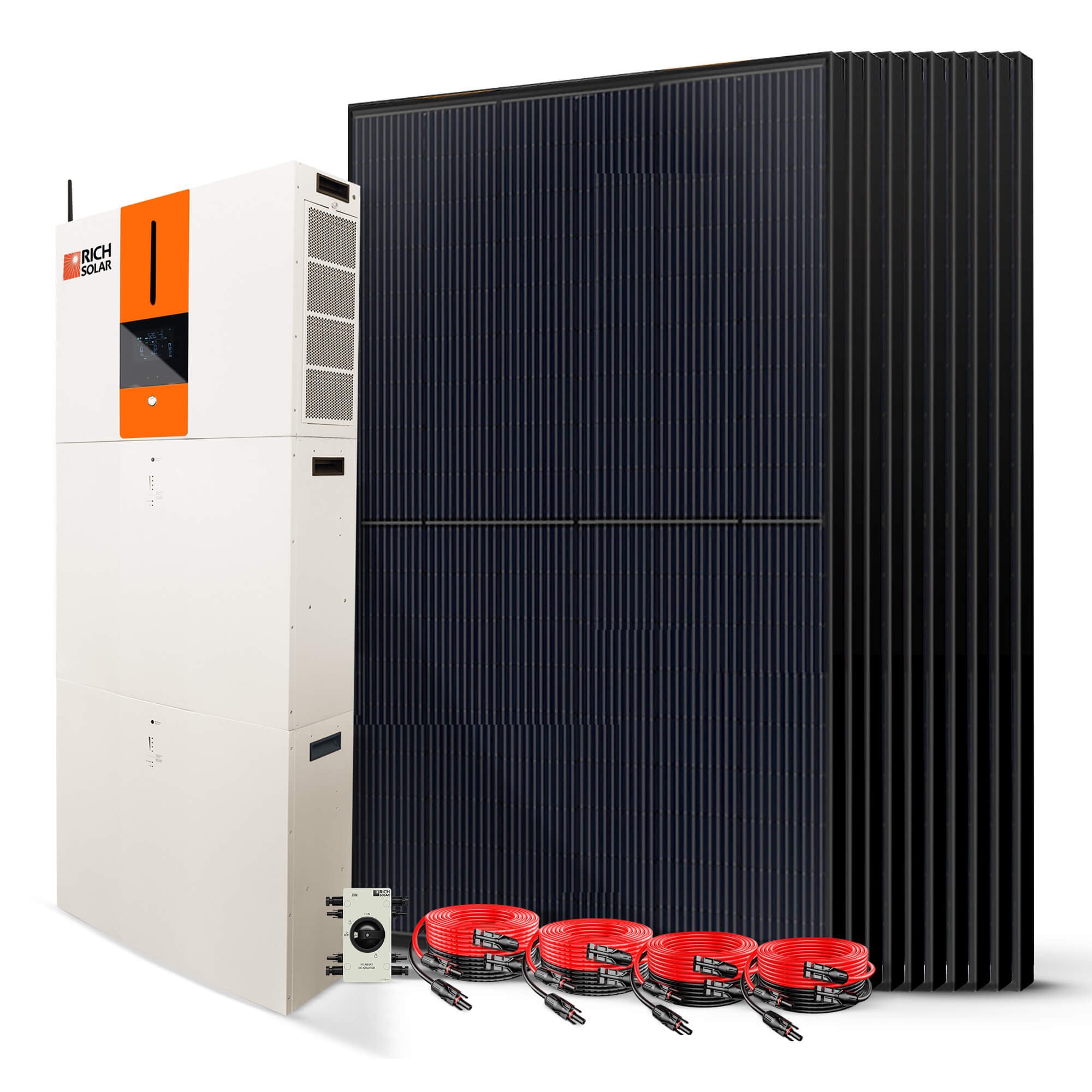

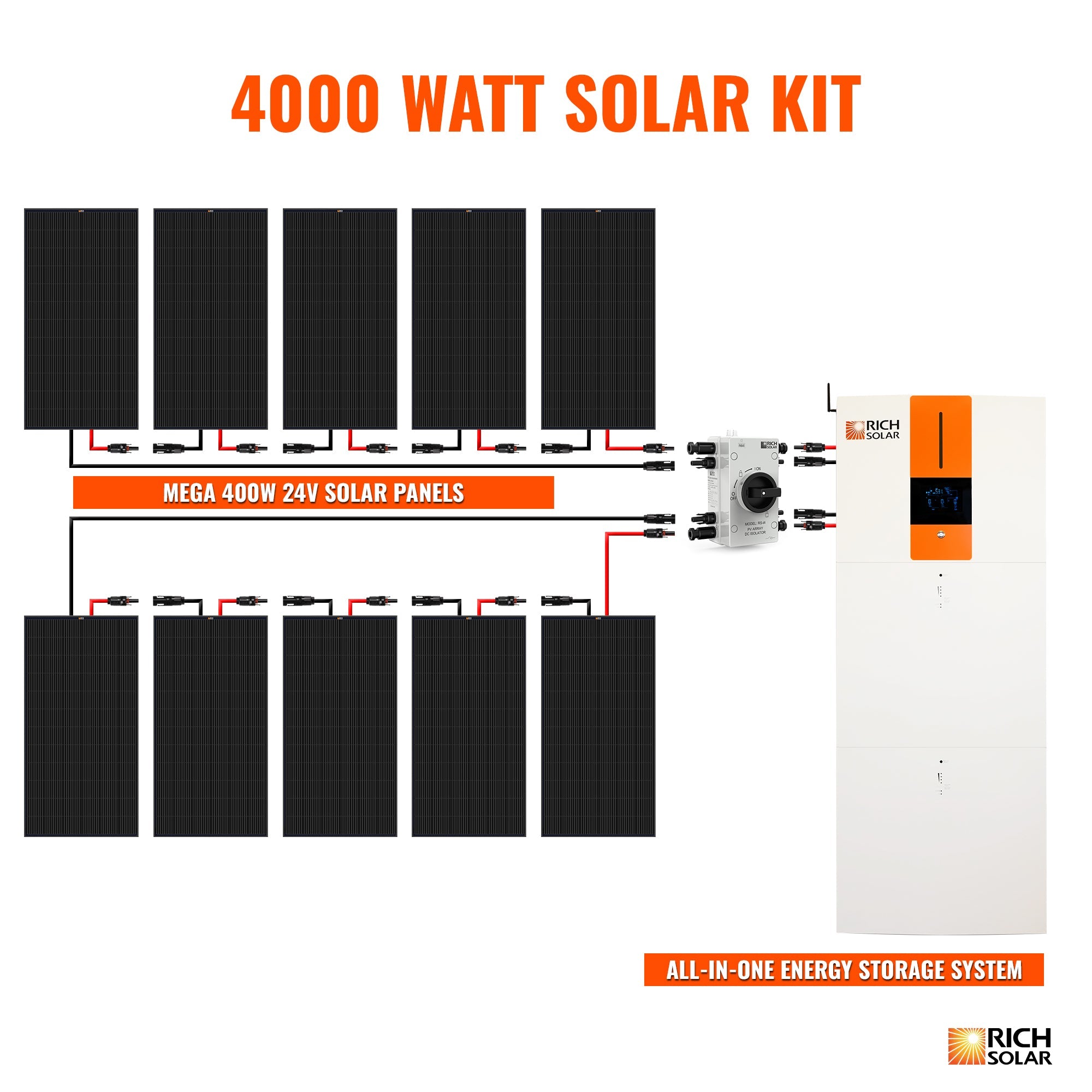

The Complete Power Ecosystem: What's Included

• 1x All-in-One Energy Storage System: A central cabinet integrating a 6500W pure sine wave inverter, dual MPPT charge controllers, and 5120Wh of lithium storage.
• 10x MEGA 400W Monocrystalline Solar Panels: High-efficiency Mono PERC panels featuring a rugged 10-busbar configuration for maximum low-light performance.
• 1x Solar PV DC Quick Disconnect Switch: Essential inline safety hardware for manual array isolation.
• Complete Heavy-Duty Cabling: 2x 10-gauge solar panel extension cables (male/female connectors) and 2x 10-gauge inverter connection cables.

Core Performance Specifications

Key Advantages & Architectural Features

1. Modular All-in-One Cabinet (RS-A10 Engine)

The heart of this system is an industrial-grade enclosure that consolidates your power inverter, battery storage, and smart switching into a single 19.7" x 26" x 49.2" unit. It operates completely battery-independent if needed and features an easily accessible smart BMS (Battery Management System) alongside integrated circuit breaker protection. The hardware fully complies with key safety certifications including UL 1741, IEC 62619, and CSA C22.2.

2. Smart Power Priority & Expansion

Program your primary energy paths dynamically. Route incoming power directly from your PV array, your stored battery bank, or an external AC utility grid/diesel generator. If your storage needs grow, the system supports seamless, scalable Li-ion battery expansion modules to expand your total watt-hour reserve over time.

3. High-Density MEGA 400W Panels

Engineered using advanced Monocrystalline PERC technology, each 49.4 lb solar panel is built to extract high yields from small spaces. The premium 10-busbar cell design guarantees stable energy transfer even during morning haze, evening drop-offs, or overcast seasonal days. Encased in an anodized aluminum frame with anti-reflective coated tempered glass, the array features a 25-year limited power output warranty.

4. Connected Remote Monitoring

Keep precise control over your system parameters using integrated USB, RS232, Modbus, Wi-Fi, or GPRS communication paths. The dedicated Android and iOS monitoring app delivers real-time diagnostic feeds, current power generation statistics, and hardware adjustments directly to your smartphone.

Detailed Component Specifications

MEGA 400W Solar Panel Technical Parameters

• Dimensions: 67.9 x 44.6 x 1.2 in
• Maximum Power Voltage (Vmp): 30.9V
• Maximum Power Current (Imp): 12.9A
• Open Circuit Voltage (Voc): 37.1V
• Short Circuit Current (Isc): 13.7A
• Maximum System Voltage: 1500VDC
• Temperature Operating Range: -40°F to +185°F

Inverter & Storage Cabinet Parameters

• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Acceptable AC Input Voltage: 90-140 VAC (UPS/Computer) | 80-140 VAC (Appliances)
• Max AC Input Current: 60A
• Nominal Battery Bank Voltage: 51.2VDC (Full Charge: 56V / Full Discharge: 42V)
• Max Continuous Discharge Current: 120A (Peak Surge: 192A for up to 1 minute)

Frequently Asked Questions

Can I use a generator with this RICH SOLAR kit?
Yes. The All-in-One Energy Storage System features a dedicated AC input block that integrates seamlessly with standard utility power grids or fuel-powered emergency backup generators.

Can this system be expanded later?
Absolutely. The system features a scalable architecture allowing you to connect additional lithium-ion battery modules to increase your runtime capacity, and the inverter accepts up to 8000W of total solar input power.

What appliances can a 6500W pure sine wave inverter run?
A 6500W heavy-duty pure sine wave inverter handles high-draw 120V equipment including well pumps, power tools, shop compressors, refrigerators, air conditioners, and sensitive electronics without clipping or power drops.
