Rich Solar 50W 12V Monocrystalline Solar Kit with 20A MPPT Charge Controller

The Rich Solar 50 Watt 12V Monocrystalline Solar Kit is a premium, heavy-duty off-grid power solution engineered for RVs, trailers, camping setups, and remote garage power backups. By pairing a high-efficiency 50W monocrystalline panel with a commercial-grade 20A MPPT (Maximum Power Point Tracking) charge controller, this complete DIY kit maximizes solar energy absorption to charge your deep-cycle batteries faster and safer than traditional systems.

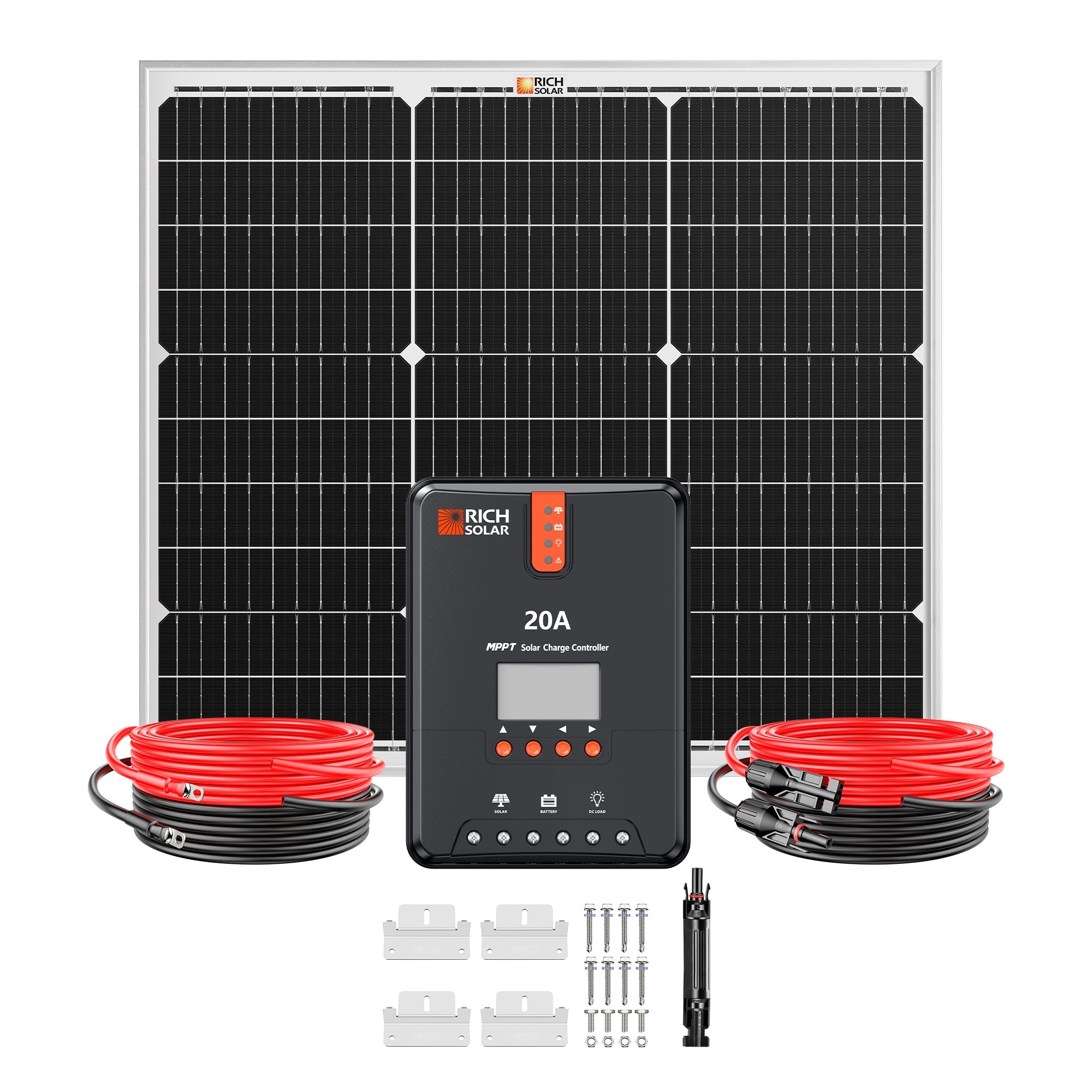

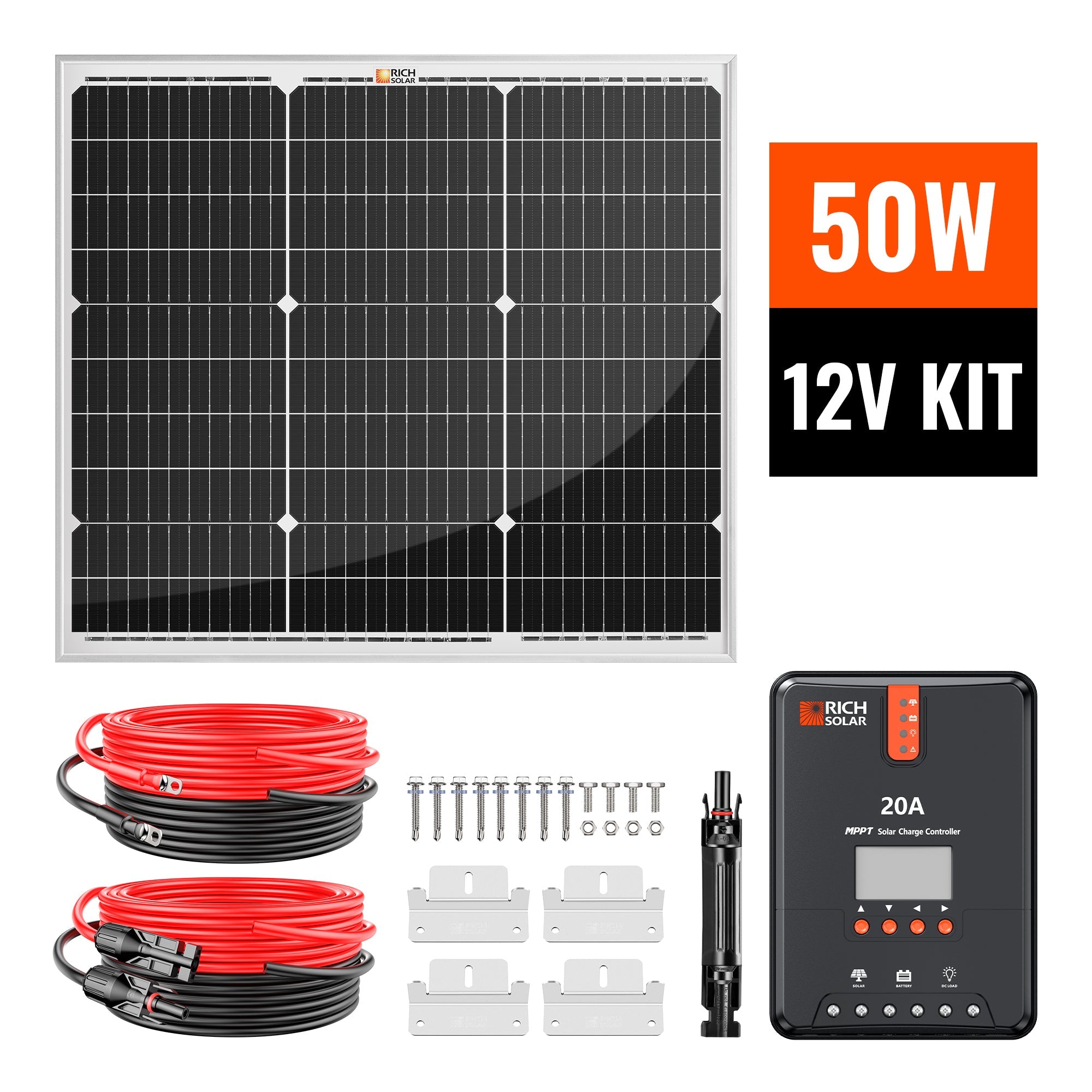

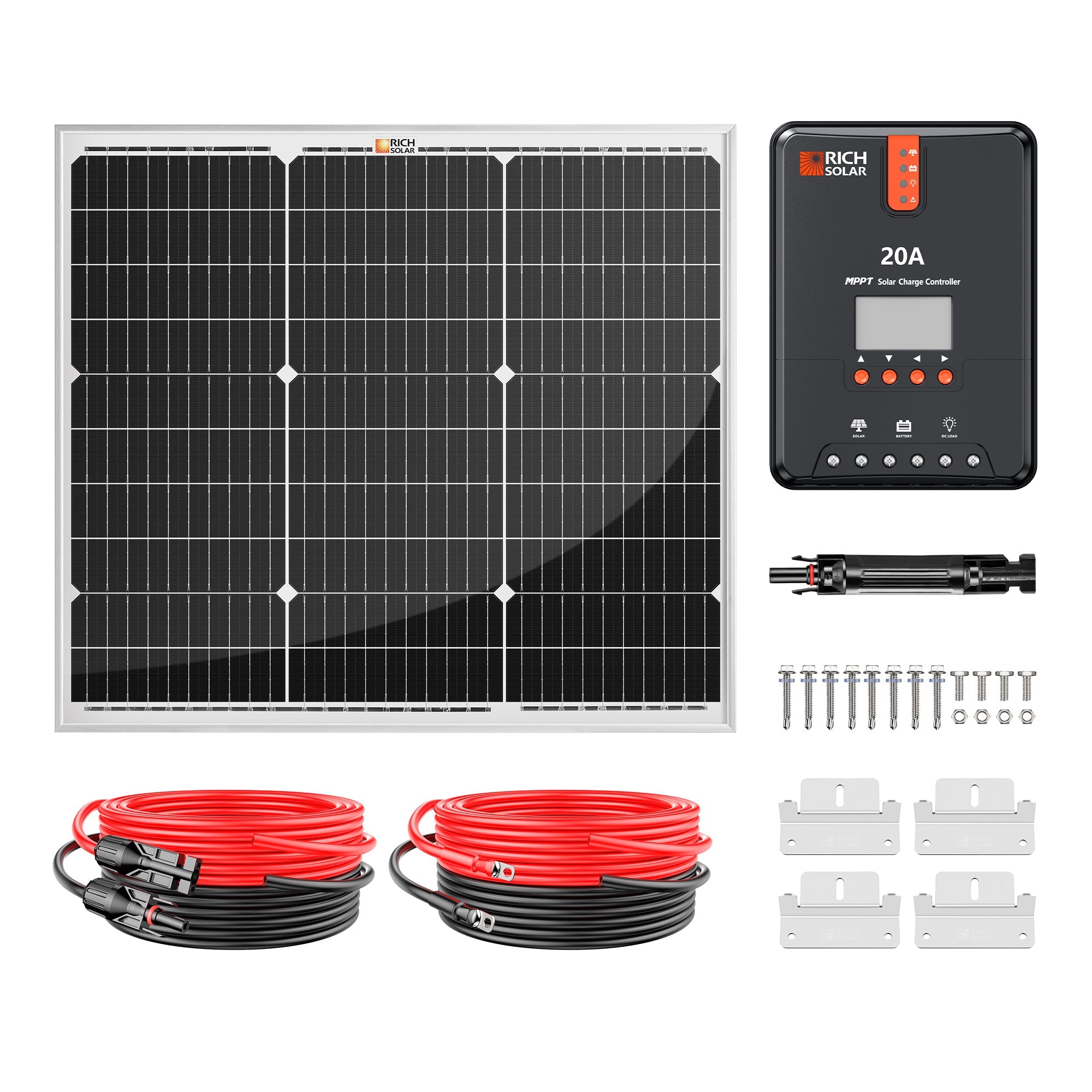

Complete DIY Kit Components

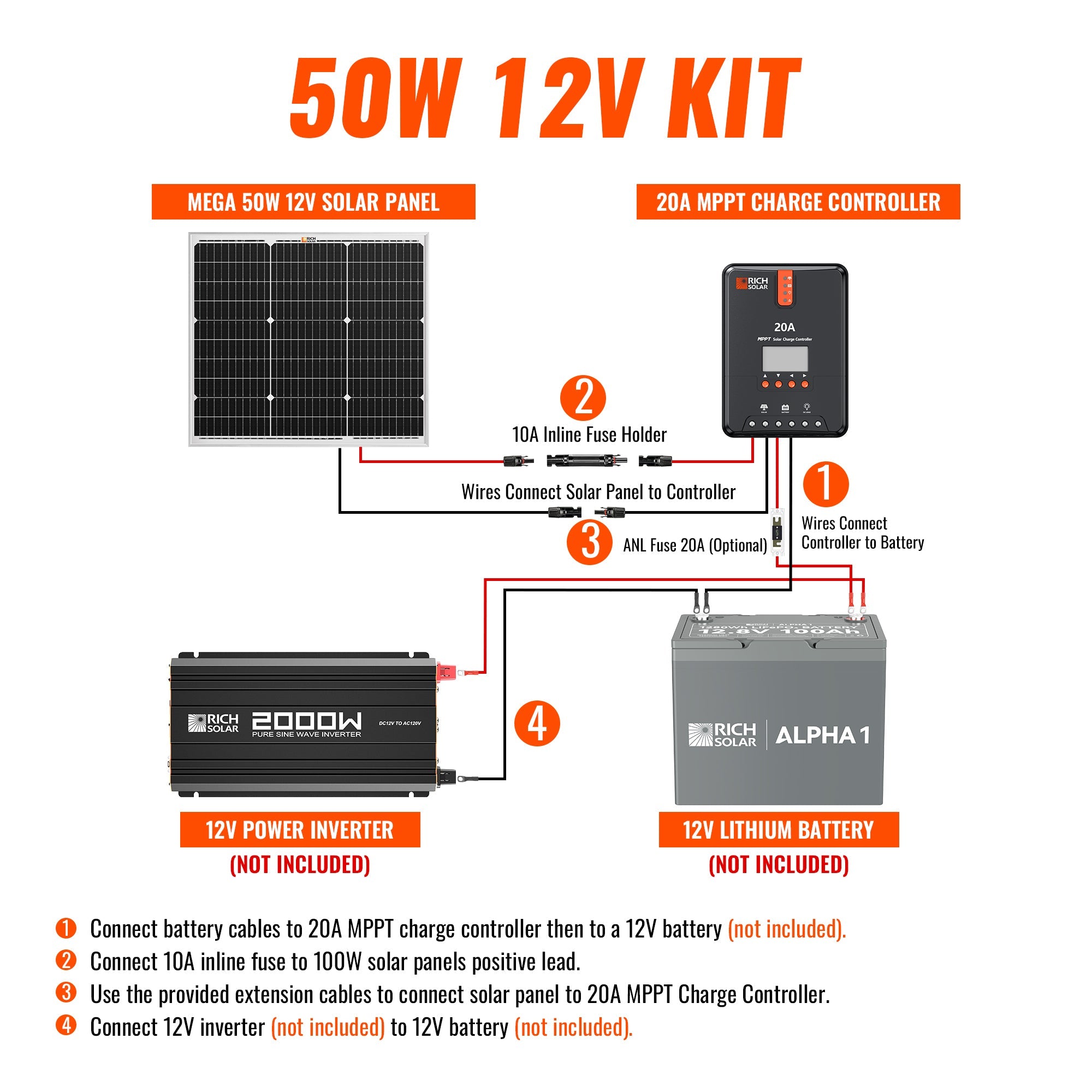

This off-grid solar package includes everything needed to connect your solar array to your battery bank (battery not included):

• 1 x MEGA 50: 50 Watt 12V Monocrystalline Solar Panel
• 1 x Premium Controller: 20A MPPT Solar Charge Controller with LCD Display
• PV-to-Controller Wires: 20-foot #10 Gauge Solar Cables (1 Red, 1 Black)
• Controller-to-Battery Wires: 10-foot #10 Gauge Battery Cables (1 Red, 1 Black)
• Mounting Hardware: 1 Set of Heavy-Duty Aluminum Z-Brackets
• Circuit Safety: 1 x 10A Inline Fuse Holder with Fuse

Core Technical Component Breakdowns

1. MEGA 50W 12V Monocrystalline Solar Panel

Built to endure harsh outdoor environments, the entry-level heavy-weight solar panel offers dependable performance year after year.

• Robust Build: Constructed with high-transmission anti-reflective tempered glass and a corrosion-resistant anodized aluminum frame.
• Weather Protection: IP67-rated waterproof junction box ensures total protection against dust penetration and low-pressure water jets.
• Simple Mount Setup: Pre-drilled holes on the back allow for quick, secure integration with ground mounts, Z-brackets, pole mounts, or tilt brackets.
• Industry-Leading Warranty: Backed by a 25-year power output warranty and a 10-year workmanship warranty.

2. 20 Amp MPPT Solar Charge Controller

The intelligent brains of your solar setup, protecting your investment while optimizing daily energy harvesting.

• Smart Detection: Automatically detects 12V or 24V DC system configurations.
• Multi-Chemistry Support: Programmed to perfectly profile Sealed, Gel, Flooded, and Lithium deep-cycle batteries.
• Peak Efficiency: Advanced MPPT technology ensures a 99% tracking efficiency and 98% peak conversion efficiency.
• Advanced Safety Suite: Built-in multi-stage electronic protection guards against reverse polarity, overcharging, over-discharging, overloads, and short circuits.
• Interactive Monitoring: Backlit LCD screen displays real-time operational status, customizable system parameters, and system error diagnostic codes.

Technical Specifications Comparison

Review the exact electronic and physical profiles of the key items included in your kit:

Frequently Asked Questions About the Rich Solar 50W Kit

What types of batteries can this solar kit charge?

The included 20A MPPT controller is fully compatible with most 12V or 24V deep-cycle battery banks, including traditional Lead-Acid (Flooded), Sealed (AGM), Gel, and modern Lithium-Iron Phosphate (LiFePO4) batteries. It even features dedicated engineering to revive over-discharged lithium battery cells safely.

What is the benefit of the included MPPT controller versus a PWM controller?

MPPT (Maximum Power Point Tracking) technology actively tracks the optimal voltage and current of your solar array in real-time. This yields up to an additional 20% to 30% power conversion compared to a standard PWM controller, which is particularly beneficial during cloudy winter days or variable lighting changes outside your garage or campsite.

Can I expand this kit with more solar panels later?

Yes. The included commercial-grade 20 Amp MPPT controller provides significant room for growth. While it manages a single 50W panel beautifully, it can handle up to 260 Watts of solar input on a 12V system, or up to 520 Watts on a 24V system layout, allowing you to add more panels easily as your off-grid energy storage demands grow.
