Adding electricity to a detached garage, backyard workshop, or remote storage shed changes everything. It turns a dark storage space into a functional, climate-controlled workspace where you can run power tools, charge gear, and operate continuous security systems.
However, many property owners make the costly mistake of looking into trenching traditional grid utility lines across their property. Between excavation costs, permit fees, and electrician labor, running a grid line to a detached structure often costs thousands of dollars.

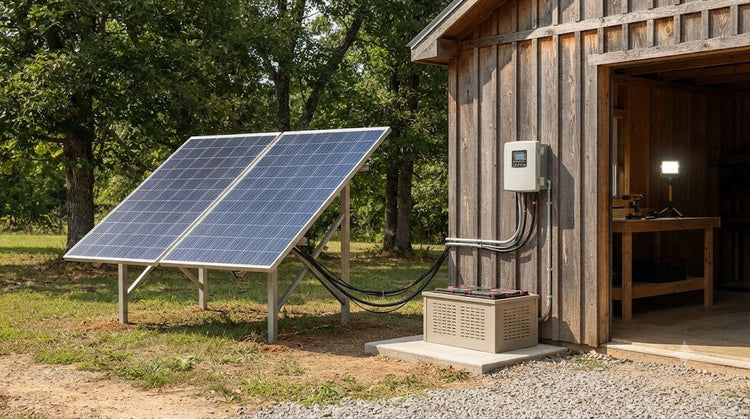

An off-grid shed solar system is not just an eco-friendly alternative—it is frequently the most cost-effective, immediate solution available. By choosing a pre-engineered, complete system, you can skip the engineering guesswork and have operational power in a single weekend. Here is the definitive guide on how to power a workshop with solar and choose the right kit for your space.
Why a Complete Solar Panel Kit is Better Than DIY Piece-by-Piece Sizing
When searching for a solar setup, it is tempting to purchase panels from one brand, an inverter from another, and a battery bank from a discount supplier. In off-grid engineering, this is the fastest path to system failure.
As covered in our Complete Guide to Off-Grid Living, individual components must be precisely balanced. If your solar panel array voltage exceeds your charge controller’s maximum input threshold, you risk frying your electronics. Conversely, if your inverter’s continuous wattage rating is mismatched with your battery bank’s maximum discharge current, the system will safety-fault and leave you in the dark the second you turn on a circular saw.
Investing in a plug-and-play solar panel kit for a shed eliminates these structural bottlenecks:
- Component Compatibility: The panels, MPPT charge controllers, fuses, pure sine wave inverters, and cable gauges are pre-matched to work safely together.
- Streamlined Installation: Designed for straightforward DIY mounting, saving you thousands in specialized electrician labor.
- System Balancing: Built to ensure your panels harvest enough daily energy to properly maintain and protect your battery cells from premature degradation.
Step 1: Calculate Your Remote Workshop Power Load
To find the correct kit size, you must determine how much power your tools and electronics will pull. Unlike a standard home, a workshop is driven by intermittent, high-draw inductive loads (devices with electric motors) rather than low, continuous household drains.
The Surge Wattage Rule: Power tools like table saws, air compressors, and dust collectors draw up to three times their running wattage just to start their motors. Your inverter must be sized to handle this initial startup surge.
Common Outbuilding Electrical Profiles
| Workshop Equipment Class | Average Running Draw | Estimated Daily Use | Recommended Setup Size |
|---|---|---|---|
|
The Basic Storage Shed (LED Lights, Security Camera, Device Chargers) |
50W – 150W | 1 – 2 kWh / day | Small Entry Kit (400W–600W Panels) |
|
The Active Handyman Workshop (Drill Press, Bench Grinder, Battery Chargers, Radio) |
500W – 1,200W | 3 – 5 kWh / day | Mid-Tier Kit (800W–1200W Panels) |
|
The Heavy Fabrication Garage (Table Saw, Compressor, Dust Extractor, AC Unit) |
1,500W – 3,000W+ | 6 – 10+ kWh / day | Premium Whole-Building Storage Kit |
Step 2: Accounting for Seasonal Winter Drops
When planning a complete solar kit for a detached garage or shed, always design around your local Winter Peak Sun Hours rather than summer averages.
In midwestern or northern climates, winter sunlight drops drastically to around 1.5 to 2 hours per day. Because snow coverage and low-hanging clouds reduce performance, an array that fully charges your system by noon in July might struggle to hit 30% capacity in December.
If you run security cameras or automatic gates 24/7 from that building, ensure your kit includes high-efficiency LiFePO4 Lithium Batteries. Lithium maintains stable voltage output in freezing weather and can handle deep discharges down to 0% without sustaining the structural cell damage common in cheaper lead-acid batteries.
Step 3: Installation & Physical Placement Blueprint
Once you select your kit, maximizing its efficiency relies entirely on proper positioning and structural safety.
1. Optimizing Roof Orientation and Tilt
- The Southern Exposure Standard: If you are mounting panels directly to your shed's roof, ensure they face true South. Facing panels East or West can cut your overall winter power harvest by up to 20–30%.
- Angle Clearances: Set your panel tilt angle equal to your local latitude plus 15 degrees if you want to optimize specifically for winter performance. This steeper angle helps shed heavy snow loads automatically, keeping your cells exposed to light.
2. Housing the Core Component Electronics
While solar panels thrive in direct sunlight, your charge controller, inverter, and lithium batteries must be kept protected inside a clean, dry structural environment.
- Mount your inverter and controller to a dedicated interior plywood backer board near your battery location.
- Ensure adequate ventilation around your inverter; high-draw power tool usage causes cooling fans to run, requiring clean airflow to prevent thermal shutdowns.
Find the Perfect Match for Your Build
Ready to bring independent power to your detached structure? Matching your physical space to the correct kit ensures you get immediate utility without overpaying for unneeded capacity:
- If you are powering an independent backyard office, equipment shed, or detached outbuilding, explore our pre-engineered Shed & Outbuilding Solar Kits for perfectly balanced component configurations.
- For large detached garages, multi-room workshop setups, or properties requiring emergency backup options, see our high-capacity Whole-Home Backup Kits to sustain large appliances and high-surge electric motors.
By shifting your detached building onto an independent solar framework, you protect your main property from grid failures, eliminate ongoing utility costs, and create a fully autonomous workspace ready for any project.
