Quick answer: A motorized overhead storage lift bolts to your garage ceiling and raises heavy gear up and out of the way at the push of a button. Most lifts hold 200 to 500 pounds, and the Garage Gator lifts we carry are rated at 220 pounds. A platform version is best for bins and boxes, while a bike or hook-bar version stores up to 8 bikes, plus kayaks and canoes. You need a flat ceiling and solid joists to mount it.
Kayaks, bikes, and totes have a way of taking over a garage floor. A motorized overhead lift fixes that by using the one space you are not using: the ceiling. Load your gear at ground level, press a button, and it rises up and out of the way, no ladder and no heavy lifting over your head. This guide covers how these lifts work, how much they hold, what your ceiling needs, and how to choose the right one.
What is a motorized overhead storage lift, and how does it work?
A motorized overhead lift is a ceiling-mounted system that raises and lowers a platform or a hook bar with an electric motor. You load your gear at floor level, then a push-button controller lifts it to the ceiling on cables. It plugs into a standard outlet, and a keyed controller keeps kids from operating it.
Unlike a fixed ceiling rack that you load from a ladder, a motorized lift comes down to you. The motor does the work, so there is no hoisting heavy gear overhead by hand. A good lift also has an automatic brake that holds the load in place if the power goes out, so your storage stays put during an outage.
How much weight can a motorized overhead lift hold?
It depends on the model, but most motorized lifts hold 200 to 500 pounds. The key rule is that the lift's rated capacity is your real limit, not your ceiling. Because the lift hangs everything from a few joists, you mount it into solid framing and never go over the rating. Always spread the load evenly.
For example, the Garage Gator lifts we carry are rated at 220 pounds. On the platform version, the platform itself weighs about 50 pounds, so your usable load is around 170 pounds. On the bike and kayak version, the full 220 pounds goes to your gear on the hook bar. Heavier-duty platform lifts from other makers can reach 300 to 500 pounds. Whatever you choose, spread the weight evenly, since an off-center load can overload one side of the lift.
Lift types compared: platform vs bike and kayak lifts
There are two main styles. A platform lift raises a flat deck, which is ideal for bins, totes, and boxes. A bike or hook-bar lift raises a bar with hooks, made for bikes, kayaks, canoes, and other long gear. Pick the style that matches what you need to store overhead.
|
Lift Type |
Typical Capacity |
Stores |
Best For |
|
Platform lift |
About 170 to 500 lbs (varies by model) |
Bins, totes, boxes, seasonal gear |
Bulk boxed storage on a flat deck |
|
Bike or hook-bar lift |
Up to about 220 lbs |
Up to 8 bikes, or mixed gear |
Bikes and long gear on hooks |
|
Kayak or canoe lift |
Up to about 220 lbs |
Kayaks, canoes, paddleboards |
Long watercraft on straps |

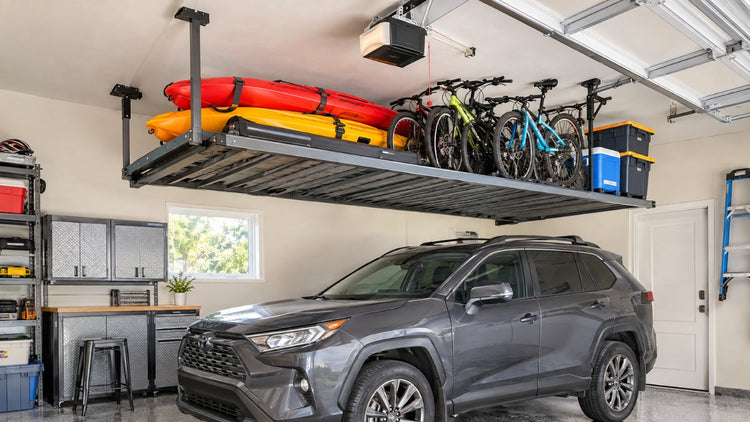

Storing kayaks, canoes, and bikes overhead
Yes, you can store all three overhead with the right lift. A hook-bar lift like the Garage Gator bike lift holds up to 8 bikes, or a mix of kayaks, canoes, and paddleboards, up to about 220 pounds. Use straps or cradles so long hulls are supported and cannot slip while they hang.
For bikes, hang them by the frame or wheels on the bar's hooks and balance the load across the bar. For kayaks and canoes, support the hull with wide straps so the weight is spread, not resting on a single point. Load the heaviest items toward the center, and double-check that everything is secure before you lift.
What your garage ceiling needs for a motorized lift
A motorized lift needs a flat ceiling and solid framing to bolt into. Sloped ceilings can make the platform tilt as it lowers, so avoid them unless the lift supports slopes. You also need height: most lifts raise gear about 12 feet, which suits ceilings up to around 15 feet. The joists matter more than the drywall.
Because the lift concentrates the whole load on a few ceiling joists, the framing and your mounting hardware are what hold the weight, not the ceiling panels. Bolt into solid joists using the included hardware, and never exceed the lift’s rating. If you are not sure your ceiling can take the load, read our companion guide on how much weight your garage ceiling can hold before you install.
How to choose the right motorized lift
Match the lift to four things: what you store, how much it weighs, your ceiling, and safety. Choose a platform for boxed storage or a hook bar for bikes and watercraft. Confirm the rated capacity covers your load with room to spare, check your ceiling height and type, and look for solid safety features.
● What you store. Bins and boxes point to a platform lift. Bikes, kayaks, and canoes point to a hook-bar lift.
● Weight. Add up what you plan to store and pick a lift rated comfortably above it. Do not run at the very top of the rating.
● Ceiling. Confirm you have a flat ceiling, solid joists, and enough height. Most lifts need ceilings up to around 15 feet to raise gear about 12 feet.
● Safety features. Look for an automatic brake that holds the load during a power loss, a keyed push-button controller, and clear, evenly spread loading.
● Installation. These are DIY-friendly, include mounting hardware, and plug into a standard 120V outlet. Follow the instructions and mount into framing.
Frequently Asked Questions
How much weight can a motorized garage lift hold?
Most hold 200 to 500 pounds, depending on the model. The Garage Gator lifts we carry are rated at 220 pounds. Always follow the rating on your specific lift, and spread the load evenly across the platform or bar.
Can you store kayaks and canoes on a garage ceiling lift?
Yes. A hook-bar lift like the Garage Gator bike lift holds kayaks, canoes, and paddleboards, up to about 220 pounds. Use straps or cradles so the hull is supported and secure while it hangs.
Do motorized lifts work with a sloped or low ceiling?
They need a flat ceiling and solid joists to bolt into. Sloped ceilings can make the platform tilt. Most lifts raise gear about 12 feet, so they suit ceilings up to around 15 feet.
Are overhead motorized lifts safe?
Yes, when installed and loaded correctly. Look for an automatic brake that holds the load if the power cuts out, a keyed controller, and mount into solid framing. Never exceed the rated capacity or stand under a moving load.
What is the difference between a platform lift and a bike lift?
A platform lift raises a flat deck for bins and boxes. A bike or hook-bar lift raises a bar with hooks for bikes, kayaks, and long gear. Pick the one that matches what you store overhead.
The Bottom Line: Clear Your Floor, One Button at a Time
A motorized overhead lift turns wasted ceiling space into easy, push-button storage for the bulky gear that eats your garage floor. Match the lift to what you store and your ceiling, load it evenly, and you get your floor back without hauling heavy kayaks and bikes up a ladder.
