Quick answer: There is no single number, because it depends on your framing. The safe rule is simple: never hang weight from drywall, always anchor into the ceiling joists, and spread heavy loads across several of them. A standard garage ceiling is built to hold the ceiling plus a limited amount of storage, not unlimited weight. For heavy loads, confirm your framing or ask a structural engineer.
Overhead is the smartest storage space in your garage. It is also the one place where guessing can get someone hurt. Before you mount a rack or a lift, it helps to understand what is actually holding that ceiling up and how much more it can safely take.
How much weight can a garage ceiling hold?
It depends entirely on how your garage is built, so anyone who gives you one flat number is guessing. Your safe capacity comes down to the size of your ceiling joists, how far they span, how far apart they sit, the wood they are made from, and whether there is a room or attic above. The only honest answer is to check your specific framing.
What you can count on is this. Standard ceiling framing is engineered to carry the ceiling itself plus a limited amount of stored weight. It was not designed to hold heavy racks full of tools with no thought to how the load is spread. Treat your ceiling as having a real limit, respect it, and you will store overhead safely for years.
What decides how much your ceiling can hold?
Five things decide your ceiling's real strength: joist size, span, spacing, the wood type and grade, and what sits above the ceiling. Miss any one of them and a number you found online means nothing for your garage. Bigger joists, shorter spans, and tighter spacing all add strength, and an attic or room above changes the picture entirely.
● Joist size. A 2x10 joist carries far more than a 2x6. Bigger boards, more strength.
● Span. The longer a joist runs without support, the less weight it can safely hold in the middle.
● Spacing. Joists 16 inches apart give you more support than joists 24 inches apart.
● Wood type and grade. Not all lumber is equal, and engineered joists behave differently than solid wood.
● What is above. A ceiling with only a roof above it is a different situation than one with a floor, attic, or room on top.
Ceiling joists vs roof trusses: why it matters
This is the most important check you can make. If your garage roof is built from roof trusses, those triangular webbed frames, do not hang heavy loads from them and never cut or drill them. Trusses are engineered as one balanced system. Solid ceiling joists, the straight boards under an attic, are the better candidate for overhead storage.
|
|
Ceiling Joists |
Roof Trusses |
|
What they look like |
Straight parallel boards, often with attic space above |
Triangular frames with angled webs and metal plates |
|
Built to hold storage? |
Yes, within limits |
No, engineered as one system |
|
Can you load or cut them? |
Load within limits, never cut |
Never load heavily or cut without an engineer |
|
Best for overhead storage |
The better candidate |
Only with a structural engineer's approval |
If you look up and see angled webs and metal plates, that is a truss roof, and any real weight needs a structural engineer's sign-off. If you see simple parallel boards with usable attic space above, you likely have more room to work with.
Where should you attach overhead storage?

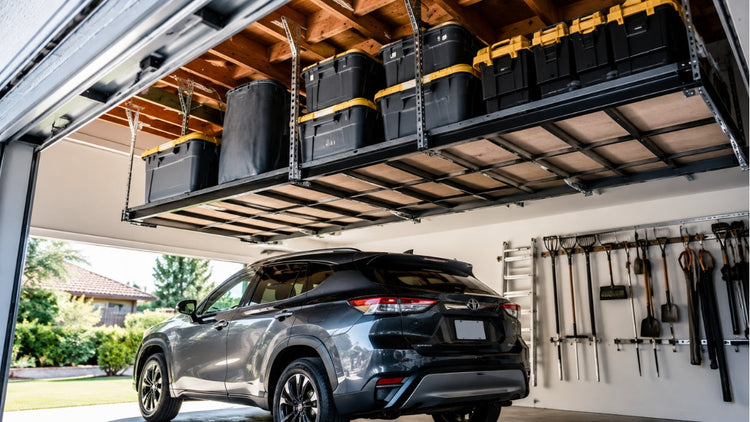

Always into the joists, never into the drywall. Drywall alone holds almost nothing overhead, and screwing a loaded rack into it is how ceilings come down. Find your joists, mark them, and bolt your hardware directly into that solid framing with proper lag bolts, not short drywall screws. Then spread the load across several joists.
Spreading the load is what makes a system safe. A heavy rack or lift anchored across several joists shares the weight, so no single board takes the whole strain. This is exactly why a well-built overhead system beats a handful of random hooks. It is engineered to carry weight the safe way, across multiple mounting points instead of one weak spot.
Does the weight of the rack or lift itself count?
Yes, all of it counts. Your ceiling does not know the difference between the storage bin, the platform holding it, and the hardware bolted overhead. The total load is everything combined. So when you check a product's weight limit, remember your ceiling has its own separate limit, and the lower of the two is the one that matters.
This is where a motorized lift has a real advantage. A quality overhead storage lift mounts across your framing and spreads its load through several anchor points, rather than dangling a heavy pile from one hook. You still respect both the product's rating and your ceiling's limit, but the load is shared the way it should be.
How do you store heavy items overhead safely?
Stay well under the limit, spread the weight, and balance the load. Do not load a rack to its exact maximum, keep the heaviest items centered and even, and never exceed the rated capacity of the product or your framing, whichever is lower. When in doubt, store the heavy stuff low and keep the light, bulky things up high.
● Anchor into joists with proper hardware, never drywall.
● Spread heavy loads across several joists.
● Keep well below both the product limit and your ceiling limit.
● Put light, bulky items overhead and save the floor or low shelves for the heaviest gear.
● Check your setup now and then for any sag, cracks, or loosened bolts.
When should you call a structural engineer?
Call one any time the load is heavy, the framing is a truss system, or you simply are not sure. A structural engineer can look at your exact garage and give you a real, safe number, which is worth far more than any guess. It is a small cost next to the price of a failed ceiling or a damaged car underneath.
Watch for warning signs too. If your ceiling already shows sagging, cracks along the drywall seams, or bolts that have worked loose, take the weight down and get it checked before you add more. Overhead storage should feel rock solid. If it does not, something is wrong.
Frequently Asked Questions
Can I hang storage from my garage ceiling drywall?
No. Drywall cannot hold weight overhead. All hardware must anchor into the joists behind it.
Are roof trusses strong enough for overhead storage?
Not for heavy loads. Trusses are engineered as a system and should never be loaded or cut without a structural engineer's approval.
How much weight can a 2x6 vs a 2x8 joist hold?
It varies with span, spacing, and wood grade, so there is no single number. Bigger joists hold more, but the only safe way to know your limit is to check your specific framing or ask a structural engineer.
How do I find my ceiling joists?
Use a stud finder, or look for the lines of fasteners in the drywall. Confirm you have hit solid wood before mounting anything.
Is a motorized lift safer than a fixed rack?
It can be, because it spreads its load across several anchor points. You still must stay within both the lift's rating and your ceiling's limit.
