Maximize secure storage capacity for multi-register retail setups, commercial offices, and high-turnover businesses with the Hayman CashVault CV-20D-C Extra-Deep Money Chest Safe. Featuring an expanded 20 1/2" x 20 1/2" x 22" footprint and a massive 7,390 cubic inches of internal volume, this extra-deep "B" rated commercial safe easily holds multiple cash till trays, coin boxes, and daily deposit bags while fitting under standard height counters.
Key Features & Performance Highlights
- Extra-Deep Commercial Capacity: Designed with expanded 22-inch exterior depth and 7,390 cubic inches of internal capacity, offering ample room for multi-till cash register inserts and oversized deposit binders.
- "B" Rated Solid Steel Body: Built with high-strength formed steel and a solid 1/2-inch thick steel door engineered to prevent prying, leverage attacks, and structural distortion.
- UL Listed Security Lock: Equipped standard with a high-precision UL Listed mechanical combination dial lock (electronic keypad upgrade optional).
- Hardplate & Re-Locker Defense: A drill-resistant hardened plate guards the main lock, backed by a spring-loaded internal re-locker that automatically deadlocks the boltwork if a drilling or torch attack occurs.
- Quad 1-Inch Active Bolts: Features four 1-inch diameter solid steel active locking bolts paired with heavy-duty exterior hinges to resist frame spreading and prying.
- Spring-Loaded Auto-Detent: Drives the active locking bolts shut automatically as soon as the door closes, preventing accidental un-locked operation by staff.
- Heavy-Duty Anchoring: Pre-drilled with 4 factory 1/2-inch floor mounting holes, allowing the 140 lb unit to be securely anchored to concrete or solid subflooring.
Technical Specifications
| Brand / Series | Hayman Safe Company / CashVault Series |
| Model Number | CV-20D-C |
| Safe Type | Extra-Deep Commercial Money Chest / Burglary Safe |
| Burglary Rating | "B" Rated Steel Construction |
| Exterior Dimensions (H x W x D) | 20 1/2" x 20 1/2" x 22" |
| Interior Dimensions (H x W x D) | 20 1/4" x 20 1/4" x 18 3/4" |
| Clear Door Opening (H x W) | 16 3/4" x 16 3/4" |
| Capacity | 7,390 Cubic Inches (4.27 cu. ft.) |
| Weight | 140 lbs |
| Door Construction | 1/2" Solid Steel Door |
| Locking Mechanism | UL Listed Combination Dial (Keypad Optional) |
| Locking Bolts | 4 Active Bolts (1" Diameter) |

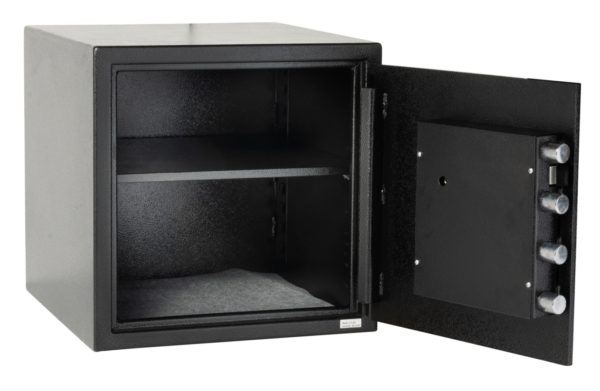

| Interior Storage | 1 Adjustable Shelf |
| Finish | Durable Black Powder Coat |
| Warranty | 1-Year Parts & Labor / Lifetime Burglary Guarantee |
Frequently Asked Questions
What makes the Hayman CV-20D-C different from the standard CV-20-C?
The "D" in CV-20D-C stands for "Deep Body." While the standard CV-20-C offers 3,159 cubic inches of space, the CV-20D-C expands both depth and width to deliver 7,390 cubic inches of capacity—more than double the volume. This extra depth is specifically engineered to accommodate full-sized cash register till trays without tipping them sideways.
Can standard register till trays fit flat inside the Hayman CV-20D-C?
Yes. With an interior width of 20 1/4" and depth of 18 3/4", typical commercial till trays and currency inserts fit flat on the shelf and bottom floor, making end-of-day register drawer reconciliation fast and organized.
Is the Hayman CV-20D-C equipped with a drop slot or hopper?
No, the CV-20D-C is a full-door money chest safe intended for secure batch storage rather than continuous employee drops. If your business requires continuous envelope drops without opening the main door, consider Hayman’s CashVault front-loading depository safe models (such as the CV-F20 or CV-14-C).
Can I upgrade the dial combination lock to an electronic digital keypad?
Yes. While the standard CV-20D-C includes a UL Listed mechanical dial lock, an optional electronic keypad can be installed for rapid PIN access and streamlined multi-employee management.
What stops the door of the CV-20D-C being levered open?
Three things working together: 4 Active Bolts (1" Diameter) driving into the frame, a 1/2" Solid Steel Door, and a reinforced body that resists the frame spreading. Prying works by opening a gap at the door edge, and each of those makes that gap harder to create.
Is the CV-20D-C covered if something goes wrong?
Yes. Hayman backs it with a 1-Year Parts & Labor / Lifetime Burglary Guarantee.
Does the CV-20D-C need to be anchored, or is it fine free-standing?
Anchor it. Removal, not cutting, is how safes in this class are usually defeated, and the base is pre-drilled for exactly this. Bolting also stops the safe being tipped, which exposes the weaker rear panel and gives an attacker leverage on the door.
What are the interior dimensions of the CV-20D-C?
The usable interior measures 20 1/4" x 20 1/4" x 18 3/4" (H x W x D). That gives 7,390 Cubic Inches (4.27 cu. ft.) of usable volume. 1 Adjustable Shelf is included. Note that this is meaningfully smaller than the exterior figure, because the door and walls take up their own thickness.
Is the CV-20D-C heavy enough to deter theft on its own?
It weighs 140 lbs. That helps, but weight alone is not the defense. Below a few hundred pounds a safe can be moved by two people with a hand truck, which is why anchoring it matters more than its mass.
How much space do I need to install the CV-20D-C?

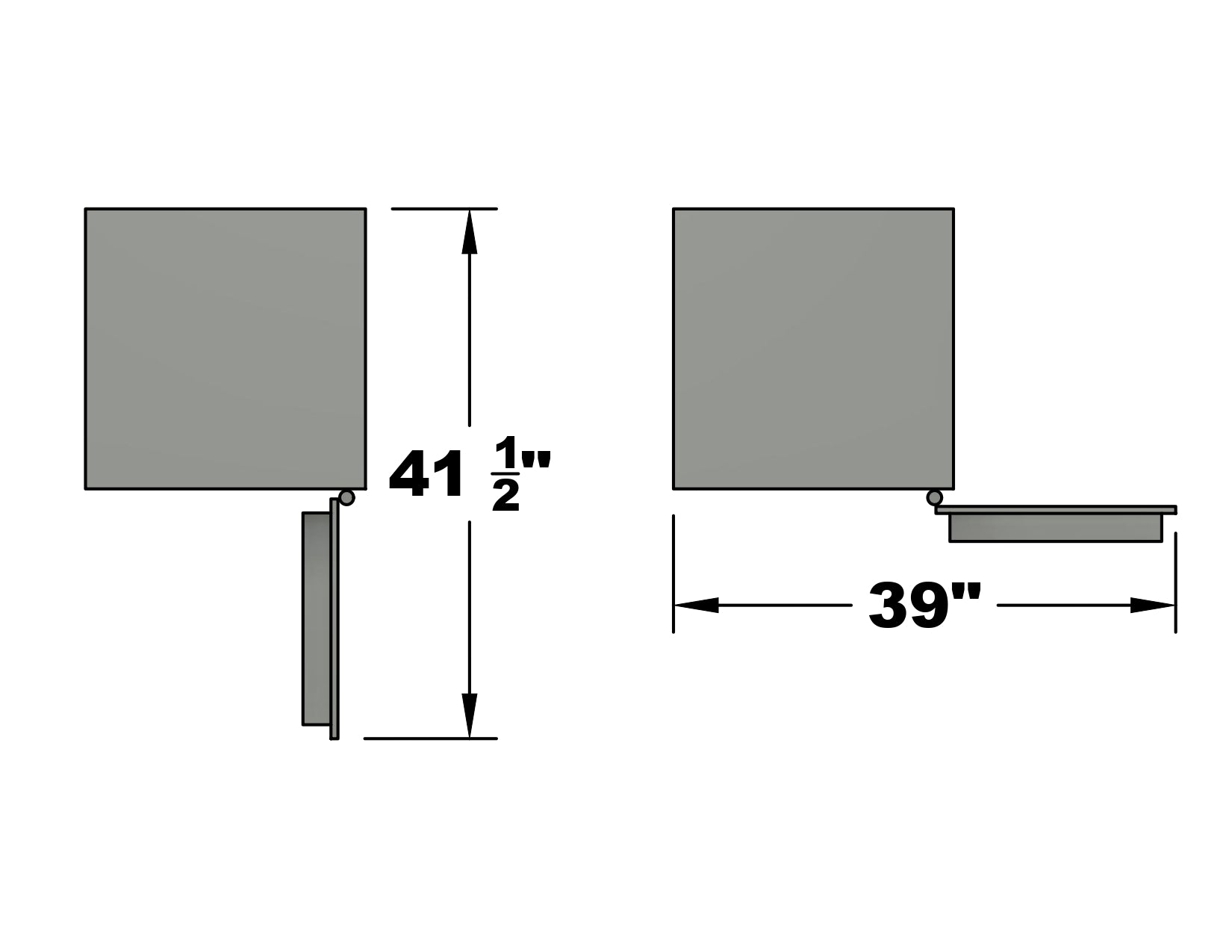

Allow for a footprint of 20 1/2" x 20 1/2" x 22" (H x W x D), plus swing room for the door and clearance at the face for the lock and handle. If it is going under a counter, measure the opening height before ordering rather than after.
