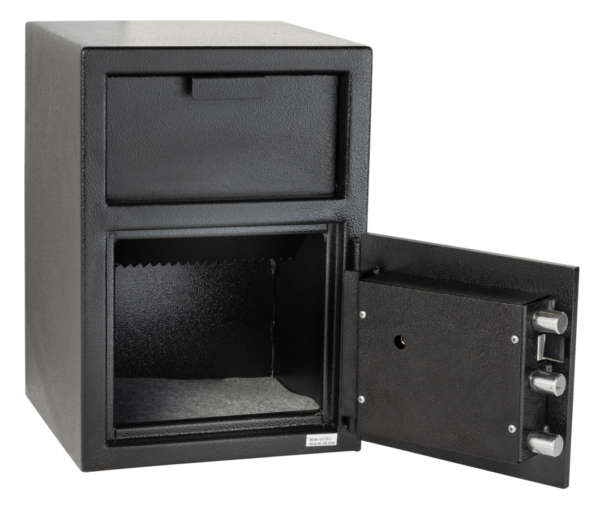

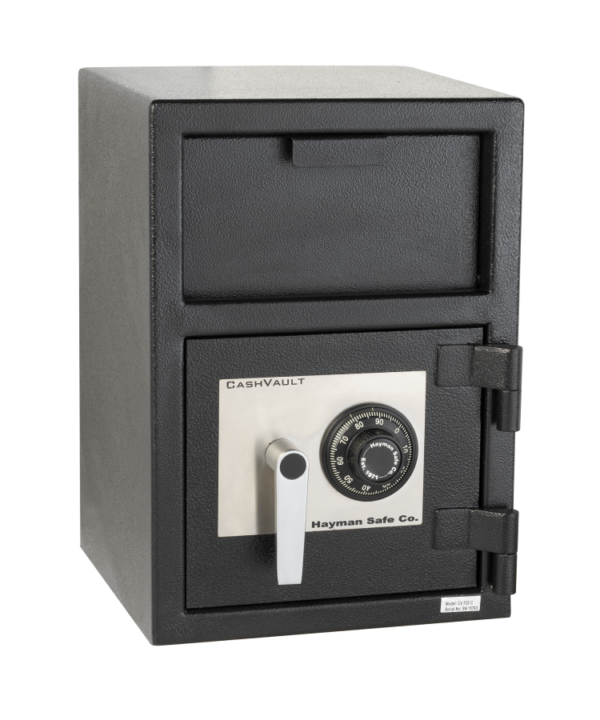

Streamline daily register cash control and protect interim deposits with the Hayman CashVault CV-F20-C Front Loading Depository Safe. Specifically engineered for high-volume retail stores, convenience locations, and commercial cash-handling operations, this heavy-duty "B" rated drop safe allows team members to make secure envelope or bank bag deposits instantly without gaining access to the main safe cavity.
Key Features & Performance Highlights
- Recessed Front-Loading Hopper: Large front-loading hopper accepts deposit bags and cash envelopes up to 3" H x 10 1/4" W x 6" D without opening the main compartment.
- Sawtooth "Anti-Fish" Baffles: Engineered with saw-tooth internal baffling designed to catch and block physical tools, wires, or tape from fishing contents back out through the drop chute.
- "B" Rated Solid Steel Security: Features a solid 1/2-inch thick steel door and a heavy-duty formed steel body with a reinforced frame to prevent pry attacks and structural spread.
- UL Listed Combination Lock: Comes standard with a high-accuracy UL Listed mechanical combination dial lock (optional electronic digital keypad upgrade available).
- Hardplate & Internal Re-Locker: A hardened drill-resistant plate shields the lock mechanism, backed by a spring-loaded internal re-locker that automatically freezes the boltwork if physical drill or torch attacks occur.
- Automatic Spring-Loaded Detent: Drives four solid active locking bolts closed automatically as soon as the safe door is shut, eliminating accidental human oversight.
- Under-Counter Compact Footprint: Stands 20 inches high, fitting under standard retail counter heights. Features 4 pre-drilled 1/2-inch mounting holes for solid floor or shelf anchoring.
Technical Specifications
| Brand / Series | Hayman Safe Company / CashVault Series |
| Model Number | CV-F20-C |
| Safe Type | Front Loading Cash Depository / Drop Safe |
| Burglary Rating | "B" Rated Steel Construction |
| Exterior Dimensions (H x W x D) | 20" x 14" x 14" |
| Interior Dimensions (H x W x D) | 8 1/4" x 13 5/8" x 10 3/4" (Below Drop Chute) |
| Clear Door Opening (H x W) | 10 1/4" x 7 7/8" |
| Depository Hopper Opening (H x W x D) | 3" x 10 1/4" x 6" |
| Capacity | 1,213 Cubic Inches |
| Weight | 90 lbs |
| Door Construction | 1/2" Solid Steel Door |
| Locking Mechanism | UL Listed Combination Dial (Keypad Optional) |
| Locking Bolts | 4 Active Bolts (1" Diameter) |
| Finish | Durable Black Powder Coat |
| Warranty | 1-Year Parts & Labor / Lifetime Burglary Guarantee |
Frequently Asked Questions
What size deposit bags fit into the Hayman CV-F20-C front loader?
The recessed front-loading hopper accepts commercial cash deposit bags, envelopes, and till drops up to 3 inches high, 10 1/4 inches wide, and 6 inches deep.
Can items be "fished" back out through the drop door?
No. The Hayman CV-F20-C is equipped with sawtooth anti-fish baffles inside the drop hopper channel that trap and prevent hooks, wires, or adhesive tools from retrieving deposited money.
What is the difference between the Hayman CV-20-C and CV-F20-C?
The CV-20-C is a full-open money chest without a deposit drop. The CV-F20-C includes a front-loading drop hopper, allowing non-keyholders or cashiers to drop money into the internal compartment while keeping the main door locked.
Can I upgrade the dial combination lock to an electronic digital keypad?
Yes. While the standard unit ships with a UL Listed mechanical dial lock, an electronic keypad option can be retrofitted or selected for faster PIN access and simple multi-user access management.
What does Hayman guarantee on the CV-F20-C?
A 1-Year Parts & Labor / Lifetime Burglary Guarantee. Keep your proof of purchase and the lock serial details somewhere other than inside the safe itself.
How is the door on the CV-F20-C constructed?
It uses a 1/2" Solid Steel Door carrying 4 Active Bolts (1" Diameter). The door is where almost every attack starts, so that is where the material and the boltwork are concentrated.
How much protection does B-rate construction actually give?
Enough for the attack it is designed against. The overwhelming majority of commercial break-ins involve hand tools and a few minutes, and a 1/2" Solid Steel Door with 4 Active Bolts (1" Diameter) defeats that. What it is not built for is a sustained attack with grinders or carbide drills, which is what UL TL-rated safes are tested against.
Will the CV-F20-C fit under a standard retail counter?
Its exterior is 20" x 14" x 14" (H x W x D). Standard commercial counters run around 36 inches, so measure your actual under-counter opening against that height, and remember the door needs room to swing clear once it is in place.
What does the CV-F20-C weigh, and will I need help moving it?
It weighs 90 lbs. Plan the route from the delivery point to the final position in advance, and check that any surface it crosses or sits on can take a concentrated load of that size.
How is the CV-F20-C secured in place?
Through pre-drilled mounting holes in the base, into a slab, subfloor or fixed shelving. It is worth doing even where the safe sits out of sight: a safe that cannot be removed has to be attacked on your premises, in your time frame, making noise.
