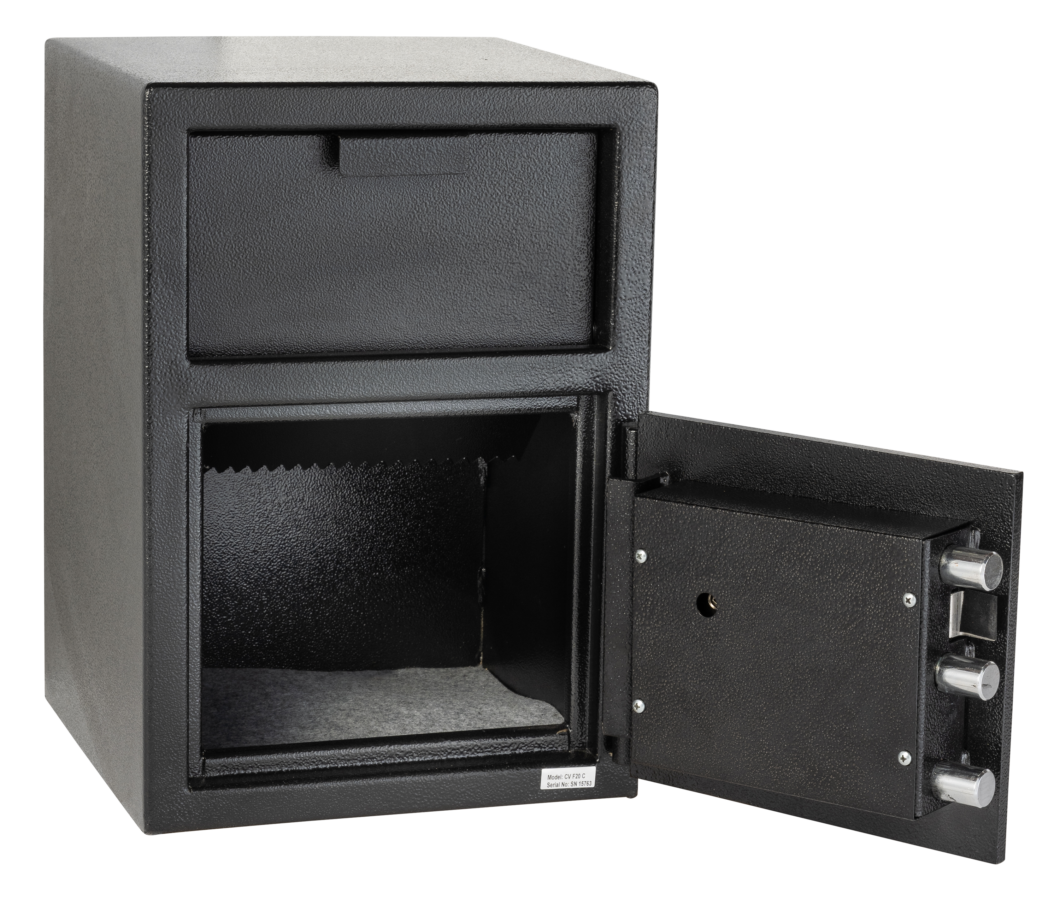

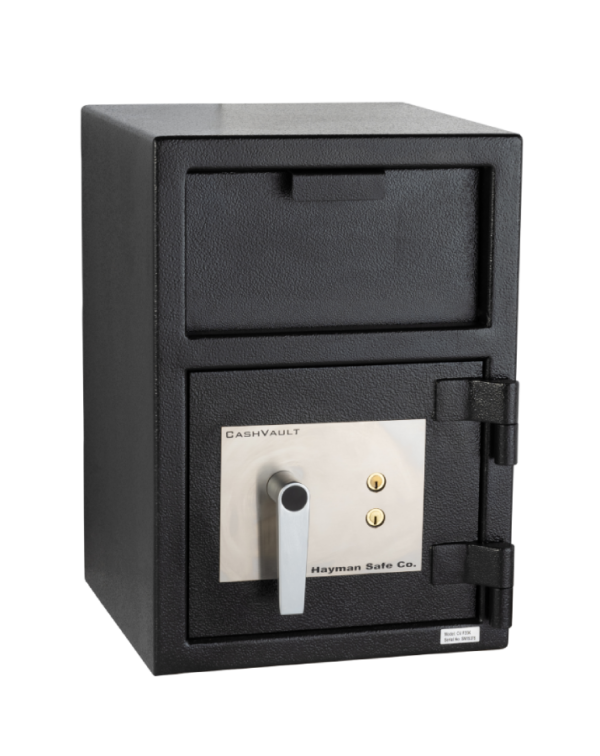

Maintain dual-custody control over daily cash drops and register transfers with the Hayman CashVault CV-F20-K Front Loading Depository Safe. Featuring a heavy-duty dual key control lock mechanism, this "B" rated commercial drop safe requires two separate keys to open—making it ideal for retail stores, managers, armored transport pickups, and multi-employee cash operations where strict joint custody is required.
Key Features & Performance Highlights
- Dual Key Control Locking System: Main access door requires two distinct keys (Guard Key and User Key) to open, enforcing dual-custody protocol and eliminating unauthorized single-user access.
- Recessed Front-Loading Hopper: Large front hopper accepts cash envelopes, deposit bags, and register drops up to 3" H x 10 1/4" W x 6" D without unlocking the safe.
- Sawtooth "Anti-Fish" Baffles: Features internal saw-tooth baffle plates designed to prevent unauthorized retrieval of deposited cash via wires, hooks, or physical tools.
- "B" Rated Solid Steel Security: Constructed with a 1/2-inch thick solid steel door and a formed steel body engineered to withstand prying, leverage, and mechanical entry attempts.
- Quad 1-Inch Active Locking Bolts: Four solid active steel bolts secure the door firmly into the reinforced frame alongside heavy-duty hinges.
- Spring-Loaded Auto-Detent: Automatically extends the active locking bolts shut the moment the door is closed, ensuring the safe is never accidentally left unbolted.
- Under-Counter Compact Footprint: Standing 20 inches tall, it fits conveniently under standard store counters. Includes 4 pre-drilled 1/2-inch floor mounting holes for permanent anchoring.
Technical Specifications
| Brand / Series | Hayman Safe Company / CashVault Series |
| Model Number | CV-F20-K |
| Safe Type | Front Loading Cash Depository / Drop Safe |
| Burglary Rating | "B" Rated Steel Construction |
| Lock Mechanism | Dual Key Control Lock (Requires 2 Keys) |
| Exterior Dimensions (H x W x D) | 20" x 14" x 14" |
| Interior Dimensions (H x W x D) | 8 1/4" x 13 5/8" x 10 3/4" (Below Drop Chute) |
| Clear Door Opening (H x W) | 10 1/4" x 7 7/8" |
| Depository Hopper Opening (H x W x D) | 3" x 10 1/4" x 6" |
| Capacity | 1,213 Cubic Inches |
| Weight | 90 lbs |
| Door Construction | 1/2" Solid Steel Door |
| Locking Bolts | 4 Active Bolts (1" Diameter) |
| Finish | Durable Black Powder Coat |
| Warranty | 1-Year Parts & Labor / Lifetime Burglary Guarantee |
Frequently Asked Questions
How does the dual key control lock on the Hayman CV-F20-K work?
The dual key mechanism requires two different keys to operate the lock. One key is typically kept by a store manager or supervisor, while the second key is held by a manager, armored carrier, or second supervisor. The safe main door cannot be opened unless both keys are inserted and turned simultaneously, enforcing strict dual-custody access control.
What is the difference between the Hayman CV-F20-C and CV-F20-K?
While both models share the same 20" x 14" x 14" dimensions and front-loading drop hopper, the CV-F20-C uses a UL Listed mechanical combination dial lock, whereas the CV-F20-K features a dual key control lock for businesses requiring two-key authority.
Can employees make cash drops without having any keys?
Yes. Any employee or cashier can drop envelopes or deposit bags into the front-loading hopper at any time without needing keys or opening the main safe door.
Are dropped contents protected against fishing attempts?
Yes. The front-loading drop chute contains internal saw-tooth anti-fish baffles that prevent fishing tools, hooks, or tape from pulling deposited items back out of the hopper.
What size deposit bag fits through the drop opening on the CV-F20-K?
The hopper opening measures 3" x 10 1/4" x 6" (H x W x D), which takes standard bank deposit envelopes, zippered cash bags and folded till drops. Check any oversized or rigid bag against those figures before standardizing on it.
Will the CV-F20-K hold up in a stockroom or back office?
Yes. The durable black powder coat is baked on and stands up well to knocks and scuffing in a working environment. Keep it indoors, though: this is not a weather-rated enclosure and damp will eventually find bare steel at the edges.
How much protection does B-rate construction actually give?
Enough for the attack it is designed against. The overwhelming majority of commercial break-ins involve hand tools and a few minutes, and a 1/2" Solid Steel Door with 4 Active Bolts (1" Diameter) defeats that. What it is not built for is a sustained attack with grinders or carbide drills, which is what UL TL-rated safes are tested against.
How is the door on the CV-F20-K constructed?
It uses a 1/2" Solid Steel Door carrying 4 Active Bolts (1" Diameter). The door is where almost every attack starts, so that is where the material and the boltwork are concentrated.
What does Hayman guarantee on the CV-F20-K?
A 1-Year Parts & Labor / Lifetime Burglary Guarantee. Keep your proof of purchase and the lock serial details somewhere other than inside the safe itself.
How is the CV-F20-K secured in place?
Through pre-drilled mounting holes in the base, into a slab, subfloor or fixed shelving. It is worth doing even where the safe sits out of sight: a safe that cannot be removed has to be attacked on your premises, in your time frame, making noise.
