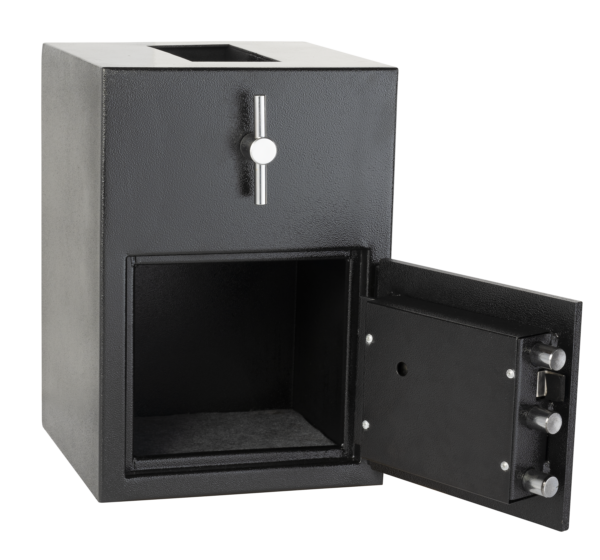

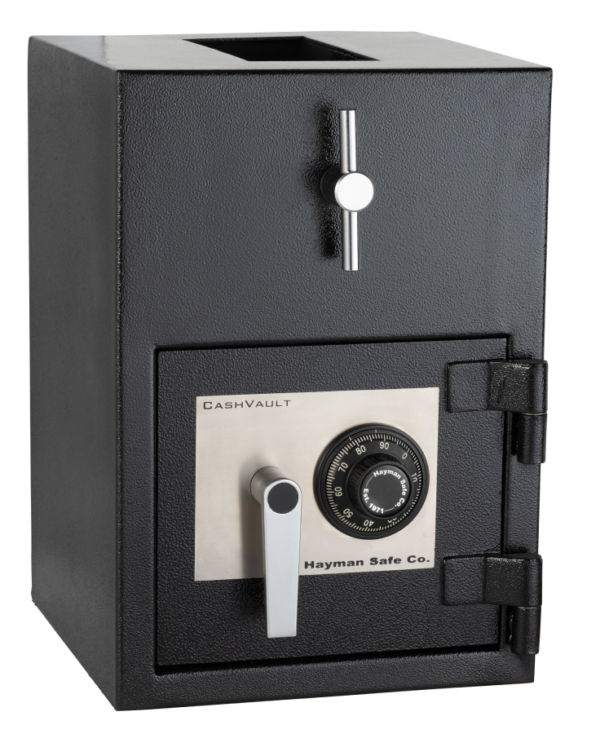

Protect daily cash deposits, register drops, and till receipts with the Hayman CashVault CV-H20-C Top Loading Depository Safe. Designed for retail checkouts, convenience stores, and commercial cash handling, this tall "B" rated steel drop safe features a top deposit slot equipped with an internal sawtooth anti-fish baffle and a UL Listed mechanical combination dial lock for uncompromising security.
Key Features & Performance Highlights
- Top Loading Deposit Slot: Top-mounted slot allows staff to quickly drop cash envelopes, checks, and till receipts into the vault without opening the main access door.
- Sawtooth "Anti-Fish" Baffle: Internal saw-tooth steel baffles block wires, hooks, and adhesive tape from fishing dropped items back out through the deposit slot.
- "B" Rated Solid Steel Security: Constructed with a 1/2-inch thick solid steel door and a heavy formed steel body engineered to withstand leverage, pry bars, and mechanical impact attacks.
- UL Listed Combination Lock: Comes standard with a high-accuracy UL Listed mechanical combination dial lock (optional electronic digital keypad upgrade available).
- Hardplate & Internal Re-Locker Defense: A drill-resistant hardened steel plate shields the lock mechanism, backed by an internal spring-loaded re-locker that automatically deadlocks the boltwork if physical drill or torch attacks occur.
- Quad 1-Inch Active Bolts: Four solid active steel bolts extend tightly into the frame, supported by heavy-duty exterior hinges with replaceable bearing washers.
- Automatic Spring-Loaded Detent: Automatically drives the active locking bolts shut the moment the door is closed, preventing accidental un-locked operation.
- Compact Under-Counter Footprint: Standing 20 inches tall with a 14" x 14" footprint, it fits conveniently beneath standard retail counters. Includes 4 factory pre-drilled 1/2-inch mounting holes for solid floor anchoring.
Technical Specifications
| Brand / Series | Hayman Safe Company / CashVault Series |
| Model Number | CV-H20-C |
| Safe Type | Top Loading Cash Depository / Drop Safe |
| Burglary Rating | "B" Rated Steel Construction |
| Exterior Dimensions (H x W x D) | 20" x 14" x 14" |
| Interior Dimensions (H x W x D) | 19 3/4" x 13 5/8" x 10 3/4" |
| Door Thickness | 1/2" Solid Steel Door |
| Locking Mechanism | UL Listed Combination Dial (Keypad Optional) |
| Locking Bolts | 4 Active Bolts (1" Diameter) |
| Capacity | 2,893 Cubic Inches |
| Weight | 78 lbs |
| Finish | Durable Black Powder Coat |
| Warranty | 1-Year Parts & Labor / Lifetime Burglary Guarantee |
Frequently Asked Questions
What is the difference between top loading (CV-H20-C) and front loading (CV-F20-C) depository safes?
Top loading safes like the CV-H20-C feature a top slot for direct insertion of envelopes and thin deposit bags, making them compact and economical for under-counter use. Front-loading models feature a pull-down hopper drawer that accepts larger, bulkier cash bags and till envelopes.
Can dropped cash be retrieved or "fished" out through the top slot?
No. The Hayman CV-H20-C is equipped with internal sawtooth anti-fish baffles that catch and deflect wires, hooks, or physical tools, preventing dropped cash from being extracted back out through the drop opening.
Do employees need the combination to drop cash into the safe?
No. Cashiers and staff members can drop cash envelopes and deposit receipts into the top slot at any time without needing the lock combination or opening the main vault door.
Can the mechanical combination lock be upgraded to an electronic digital keypad?
Yes. While the standard unit ships with a UL Listed mechanical dial lock, an electronic keypad option can be retrofitted or ordered for faster PIN access and simple multi-user access management.
What kind of business is the CV-H20-C designed for?
Retail floors, restaurants, convenience stores and small offices that accumulate cash through the day. At 20" x 14" x 14" and 78 lbs it is sized to live where the money is handled rather than in a separate secure room.
What finish does the Hayman CV-H20-C have?
A durable black powder coat. Powder coat is baked on rather than sprayed, so it resists the scuffing a safe picks up under a counter or beside a register. It is an indoor finish, not a weatherproof one.
What does the "B" rate designation on the CV-H20-C mean?
A B-rate safe is defined by its steel: a body of at least 1/4-inch plate and a door of at least 1/2-inch plate. The CV-H20-C meets that with a 1/2" Solid Steel Door. It describes how much material an attack has to get through, not a timed laboratory test.
How many locking bolts secure the Hayman CV-H20-C?
The door is secured by 4 Active Bolts (1" Diameter), backed by a 1/2" Solid Steel Door and a reinforced formed-steel body built to resist frame spread under a pry attack.
What warranty comes with the Hayman CV-H20-C?
The CV-H20-C is covered by a 1-Year Parts & Labor / Lifetime Burglary Guarantee from Hayman Safe Company.
Can the Hayman CV-H20-C be bolted down?
Yes. The CV-H20-C has pre-drilled base holes for anchoring into a concrete slab, a wooden floor or heavy shelving. Anchoring is the single most effective deterrent on a safe this size, because an unbolted cash safe can be carried out and opened somewhere else.
