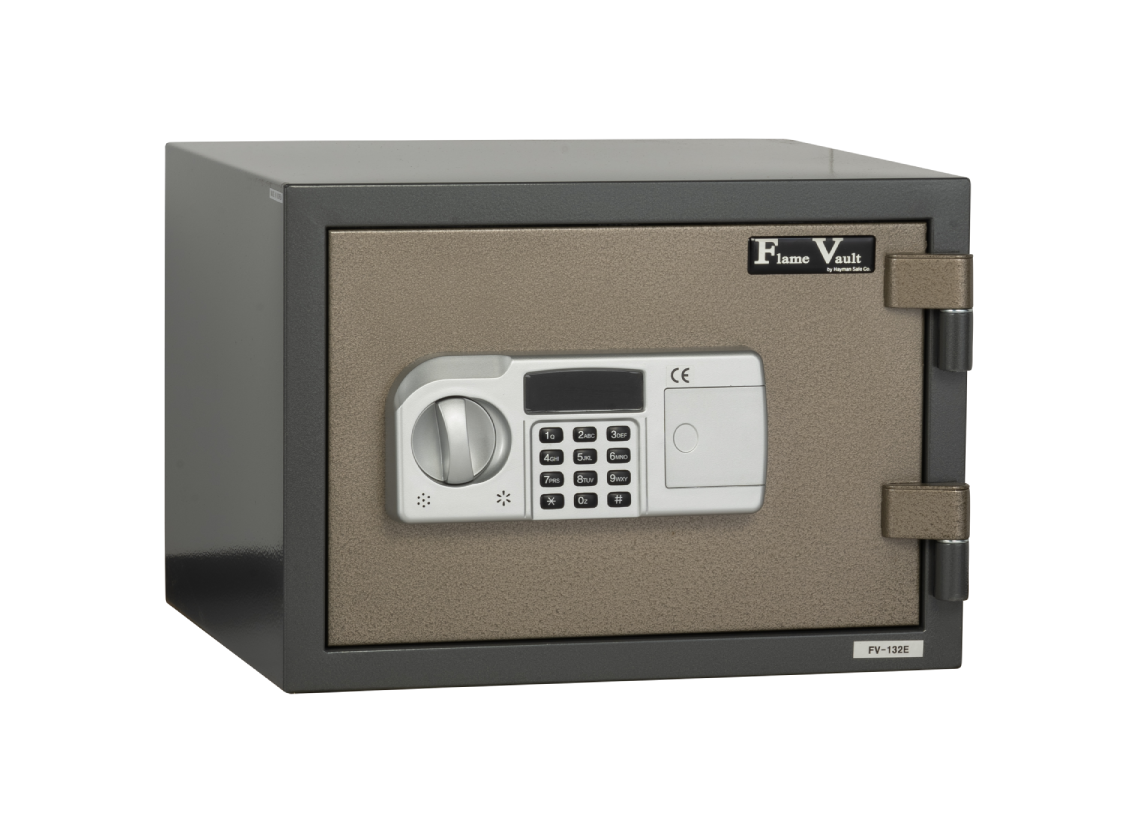

Protect vital business records, cash reserves, handguns, and legal document binders against severe fire damage and forced burglary attempts with the Hayman FlameVault FV-137-E Electronic Fire and Burglary Safe. Built with a medium 1.18 cubic foot capacity, this dual-hazard security vault combines certified 1-hour 1750°F thermal insulation with a heavy-duty "B" rated solid steel door and a rapid-access electronic digital keypad for instant, push-button protection.
Key Features & Performance Highlights
- 1-Hour Certified Fire Protection: Engineered and tested to withstand intense fire temperatures up to 1750°F for 60 minutes while maintaining safe internal temperatures for paper records and documents.
- Rapid Access Electronic Digital Lock: Features a high-security commercial electronic keypad allowing quick PIN entry with customizable multi-user codes, eliminating the hassle of dialing combination wheels.
- Dual Hazard Security (Fire & Burglary): Combines thick composite fire insulation walling with a solid steel "B" rated door construction to resist prying, impact tools, and extreme heat exposure.
- Hardplate & Internal Re-Locker Defense: A hardened drill-resistant steel plate shields the lock mechanism, supported by a spring-loaded internal re-locker that deadlocks the boltwork if physical drill attacks occur.
- Heavy-Duty Active Locking Bolts & Deadbolts: Active solid steel locking bolts extend deep into the reinforced frame, complemented by fixed hinge-side deadbolts to prevent door removal during prying attempts.

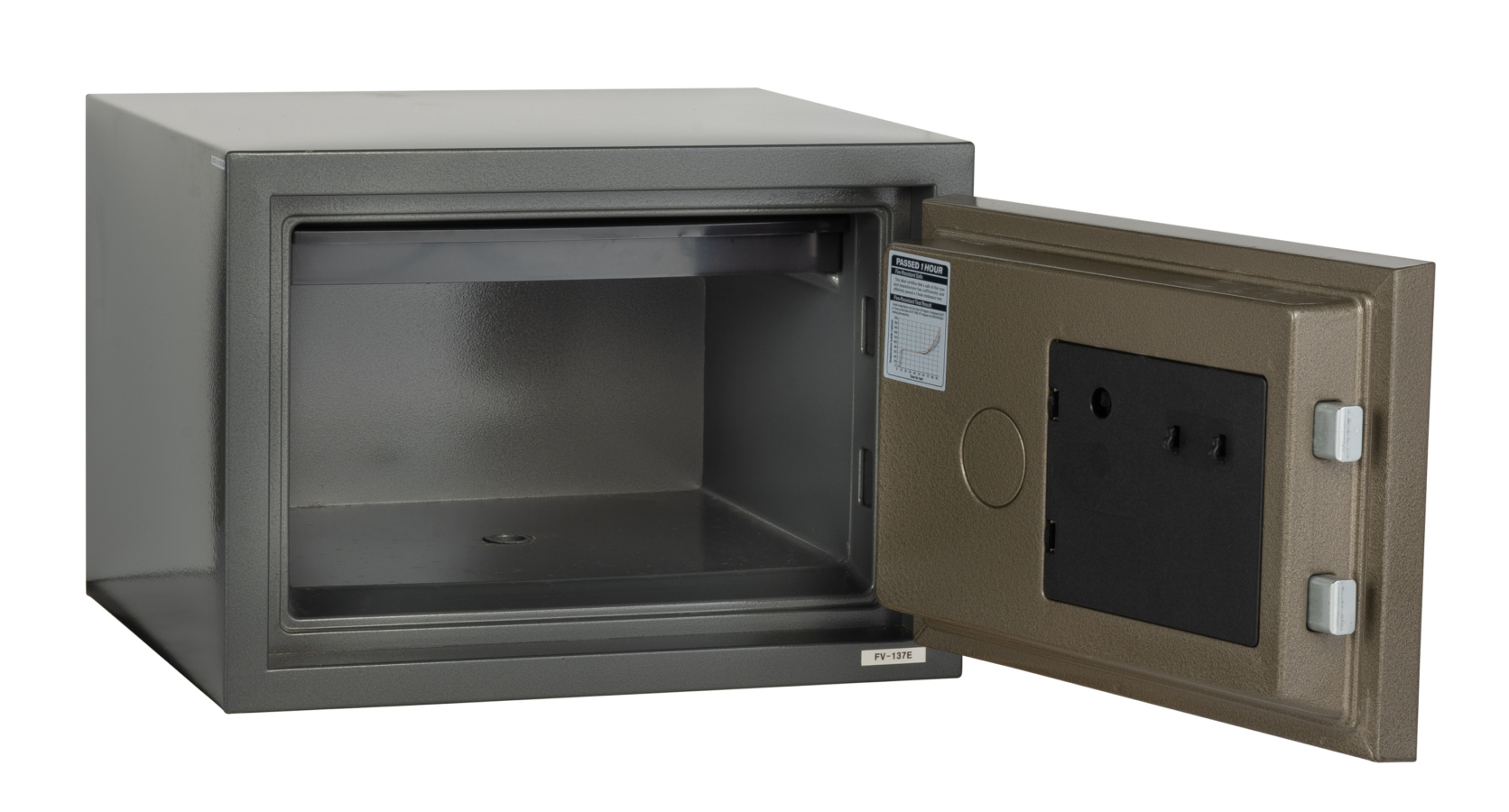

- Adjustable Interior Shelving: Includes adjustable and removable interior shelving to maximize organized storage for passport wallets, legal folders, and cash boxes.
- Anchor Bolt Down Ready: Features a factory pre-drilled anchor mounting hole in the floor of the safe body to secure the unit firmly to wood subflooring or concrete slab foundations.
Technical Specifications
| Brand / Series | Hayman Safe Company / FlameVault Series |
| Model Number | FV-137-E |
| Safe Type | Medium Dual Fire & Burglary Protection Safe |
| Fire Rating | 1 Hour @ 1750°F |
| Burglary Rating | "B" Rated Construction (Solid Steel Door) |
| Lock Mechanism | Electronic Digital Keypad (PIN Code) |
| Exterior Dimensions (H x W x D) | 21 1/2" x 17 1/2" x 17 1/2" |
| Interior Dimensions (H x W x D) | 15 1/2" x 11 1/2" x 11 1/2" |
| Capacity | 1.18 Cu. Ft. (2,050 Cubic Inches) |
| Weight | 150 lbs |
| Finish | Durable Black Powder Coat |
| Warranty | 1-Year Parts & Labor / Free Replacement Lifetime Fire Guarantee |
Frequently Asked Questions
What is the main difference between the Hayman FlameVault FV-137-C and FV-137-E?
Both models feature identical dimensions (21.5" x 17.5" x 17.5") and dual-hazard protection (1-hour fire insulation and B-rate steel door). The primary difference is the lock type: the FV-137-C uses a mechanical combination dial, while the FV-137-E features a digital electronic keypad for faster, PIN-code access.
What happens if the electronic keypad battery dies on the FV-137-E?
Your saved PIN code remains stored in non-volatile memory even when power is lost. The battery compartment is located on the exterior faceplate of the keypad assembly, making battery replacement quick and simple without unlocking the door.
Can this safe be anchored to concrete or wood floors?
Yes. The safe includes a factory pre-drilled mounting hole in the bottom of the body, allowing you to anchor the 150 lb unit securely into wood subfloors or concrete slabs using heavy-duty anchor bolts.
What protection does Hayman offer under their Lifetime Fire Guarantee?
If your Hayman FlameVault safe is ever subjected to a home or business fire, Hayman Safe Company will replace the damaged unit free of charge under their lifetime fire replacement warranty.
Is the FV-137-E suitable for anything other than documents?
It is rated for paper, so documents, cash, certificates and deeds come through a fire intact. Anything electronic or photographic is more heat-sensitive than paper and needs a media-rated insert inside the safe rather than a shelf in it.
Where should the Hayman FV-137-E be positioned?
Ground floor or basement where practical, against a load-bearing wall. Heat rises, so a safe low in the building sees a cooler fire, and the structure there is better able to carry 150 lbs and to survive a collapse from above.
What does the 1 Hour @ 1750°F rating on the FV-137-E actually guarantee?
That in a standardised furnace test the interior stayed below roughly 350°F for that duration. 350°F is the point at which paper begins to char, so the rating is a promise about documents specifically, not about everything you might put inside.
Can the Hayman FV-137-E be anchored to the floor?
Yes, and it is worth doing. Anchoring through the base into concrete or a wooden subfloor stops the safe being tipped, which is a common attack on top-hinged doors, and keeps it in place if the structure around it gives way during a fire.
Does the FV-137-E defend against break-ins, or only fire?
Both. It combines a 1 Hour @ 1750°F fire rating with "B" Rated Construction (Solid Steel Door). The two are handled by different parts of the construction: the composite fill handles heat, while the steel door and boltwork handle force.
Can the Hayman FV-137-E be used again after a fire?
No. A fire rating is a one-time rating. The insulation works by releasing its moisture as steam to hold the interior below 350°F, and once that has happened the protection is spent even if the safe still looks sound. Hayman's 1-Year Parts & Labor / Free Replacement Lifetime Fire Guarantee covers exactly this: a unit exposed to a genuine fire is replaced, not reused.
