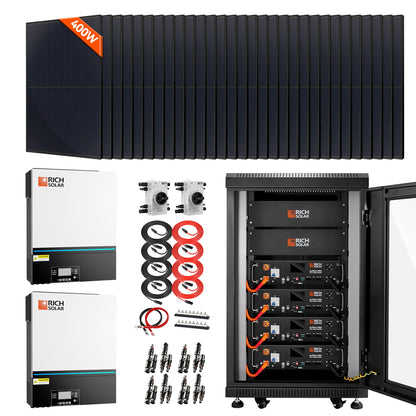

Rich Solar 13,000W 48VDC Off-Grid Solar Kit, 120V/240V Output
Rich Solar
- Regular price
- Price: $17,039.99
- Regular price
- List Price:
- Sale price
- Price: $17,039.99
- Unit price
- per
Couldn't load pickup availability
Secure checkout · 30-day returns · Questions? Email info@garagetoolsstorage.com or text us — we answer every one.
Share
PRODUCT DESCRIPTION
Take complete control of your power with the Rich Solar 13,000W 48VDC Complete Off-Grid Solar Kit. Engineered specifically to run high-demand appliances, power tools, home workshops, and off-grid residencies, this heavy-duty system delivers seamless, reliable true-split-phase 120V/240V power completely independent of the utility grid.
All-in-One Off-Grid Power Solution
This master kit includes everything needed to build a fully functional, industrial-grade solar power plant. Centered around a high-efficiency 48VDC architecture, the system combines dual 6,500W pure sine wave hybrid inverters with a massive 20.48kWh Lithium Iron Phosphate (LiFePO4) battery bank to easily handle heavy surge loads up to 26,000 watts.
This 13,000W off-grid solar kit is capable of outputting simultaneous 120V and 240V electricity. It is designed to power large 240V equipment like well pumps, air compressors, table saws, EV chargers, and central air conditioning systems without requiring external transformers.
Choose Your Solar Panel Variation
To fit your specific roof footprint, ground space, or mounting requirements, this kit is available in four distinct configurations. All solar panel options utilize premium monocrystalline cells designed for exceptional low-light and early-morning performance.
| Kit Configuration | Panel Count & Model | Total Array Output | Footprint / Mount Best For |
|---|---|---|---|
| MEGA 335 Kit | 38 x MEGA 335W Monocrystalline | 12,730 Watts (12.7kW) | Maximum modularity for varied roof pitches |
| MEGA 400 Kit | 32 x MEGA 400W Monocrystalline | 12,800 Watts (12.8kW) | High-density power; fewer panels to install |
| MEGA 410 Kit | 30 x MEGA 410W Monocrystalline | 12,300 Watts (12.3kW) | Compact footprint for limited roof spacing |
| No Panel Kit | None (Inverters, Batteries & Components Only) | 0 Watts | Upgrading existing arrays or custom ground mounts |
Core System Component Breakdowns
1. Dual NOVA 6548 Off-Grid Hybrid Inverters (13,000W Continuous)
The beating heart of this system is a synchronized pair of NOVA 6,500W 48V hybrid inverters. Stacked together in parallel, they output true 120V/240V split-phase power.
- Pure Sine Wave Output: Provides clean, utility-grade power that protects sensitive electronics, computers, and variable-speed motors.
- Dual Integrated MPPT Charge Controllers: Features a wide 90V to 450VDC operating range with support for up to 8,000W of PV input per inverter.
- Advanced Monitoring: Built-in Wi-Fi and detachable LCD control modules let you monitor system metrics, configure charging priorities, and track efficiency via mobile apps.
- Safety & Compliance: Certified to UL 1741 standards by TUV.
2. 20.48kWh ALPHA 5 PRO LiFePO4 Battery Bank & Rack
Energy storage is handled by four premium ALPHA 5 PRO 51.2V 100Ah server rack batteries, giving you a baseline of 20,480 watt-hours of dependable backup capacity.
- Long-Term Durability: Engineered for over 7,000 deep cycles at an expected 10-year lifespan.
- Certified Safety Architecture: Fully tested and certified to UL 1973 and UL 9540A tier-one safety standards.
- Smart BMS Control: Internal Battery Management System protects against overcharging, deep discharging, short circuits, and extreme temperature variables.
- Scalable Design: Includes a heavy-duty storage server rack. The system expands effortlessly up to 15 batteries in parallel for future storage upgrades.
3. Complete Wiring, Safety, & Connection Package
Avoid sourcing missing components mid-installation. This kit provides all essential heavy-gauge cables and safety isolation switches:
- 2 x Solar PV DC Quick Disconnect Isolation Switches
- 2 x Heavy-Duty 600 AMP Busbars
- 4 x 4-Foot 2/0 AWG Battery Interconnection Cables (3/8" lugs)
- 8 x 10 AWG 50-Foot Solar Extension Cables
- 4 x 10 AWG 30-Foot Solar Extension Cables
Frequently Asked Questions
What can a 13,000W off-grid solar kit run simultaneously?
With a continuous 13,000-watt output and 26,000-watt surge capacity, this kit can comfortably run a 3-ton central AC unit, a 240V deep well pump, kitchen appliances (refrigerator, microwave, stove), clothes dryers, and heavy workshop tools like table saws or welders at the same time.
Can this system connect to a backup generator or utility power?
Yes. The NOVA 6548 hybrid inverters feature built-in AC inputs. You can program the system via the LCD panel to automatically shift to utility mains or trigger a standby auto-start generator if your battery bank drops below a specific voltage during extended periods of low sunlight.
What is the benefit of a 48VDC system over a 24V or 12V system?
At 13,000 watts, a 48V architecture significantly reduces current amperage running through the system wires compared to 12V or 24V setups. Lower amperage allows the use of safer, thinner, and less expensive copper wiring while dramatically cutting down on system efficiency losses due to heat.
What's included in this 13,000W complete kit?
This kit bundles Rich Solar solar panels totaling 13,000W, a LiFePO4 battery bank (see capacity in the specifications above), an MPPT charge controller, and a pure sine wave inverter for 120V output — check the specifications and product images above for the exact component list and quantities.
How do I work out runtime for my own setup?
Take the battery's watt-hours from the specifications above, then divide by the total wattage you intend to run at once. That gives hours at full draw. In practice most people run intermittent loads, so real-world runtime lands well above that figure, and solar recharging during the day extends it further.
Is this system expandable?
In most cases. Check two numbers before committing to an expansion: the charge controller's maximum rated input, and the battery's supported bank configuration. Exceeding either is how people damage a controller. Both figures are listed in the specifications above.
Is professional installation required?
Not for the DC portion, which is designed to be assembled without special tools. It becomes a job for a licensed electrician the moment you tie AC output into a building's wiring, which is a permitting and code question as much as a technical one.
Can I check the system from my phone?
On models that include it, yes — monitoring is built into the battery or inverter rather than added as a separate accessory, and reports state of charge, current draw and fault status. Confirm against the specifications above, as coverage varies across the range.
Which part of this system is likely to need replacing first?
Statistically the inverter or the charge controller, since they are the active electronics; panels routinely outlast their 25-year output warranty, and LiFePO4 banks are rated in thousands of cycles. That is worth knowing when you plan the install: leave the electronics accessible.
