RICH SOLAR MEGA 130 Slim 12V Mono Solar Panel (Onyx Black & Silver)
Rich Solar
- Regular price
- Price: $169.99
- Regular price
- List Price:
- Sale price
- Price: $169.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Maximize your mobile solar footprint with the RICH SOLAR MEGA 130 Slim 12V Monocrystalline Solar Panel. Specifically engineered for tight spaces, narrow roof profiles, and off-grid builds, this high-efficiency 130-watt panel delivers exceptional power without sacrificing valuable real estate. Whether you are outfitting an overland camper van, an RV roof edge, a marine vessel, or a remote workspace, the MEGA 130 Slim provides a premium, rugged energy solution.
This master listing combines both style variations to match your aesthetic seamlessly:

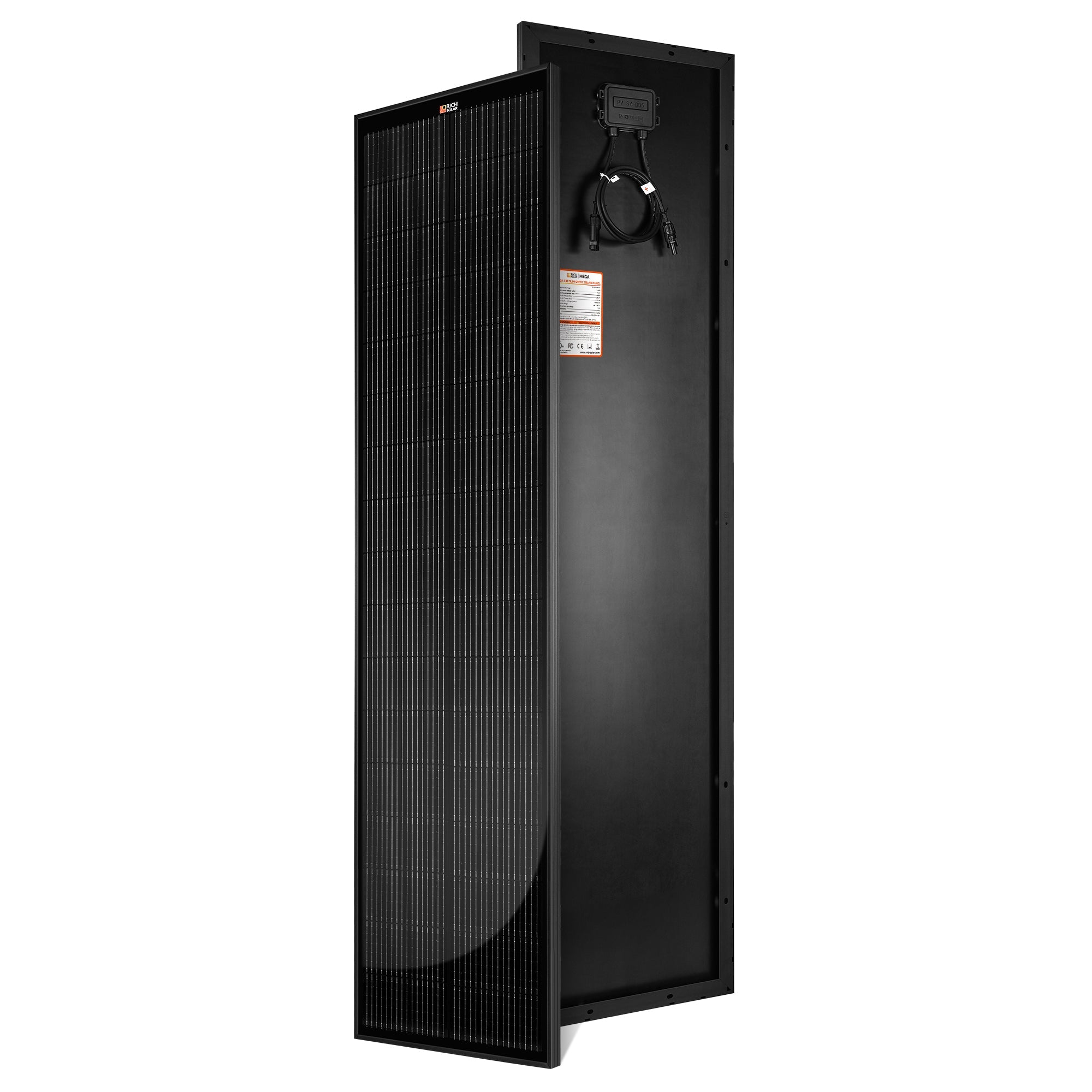

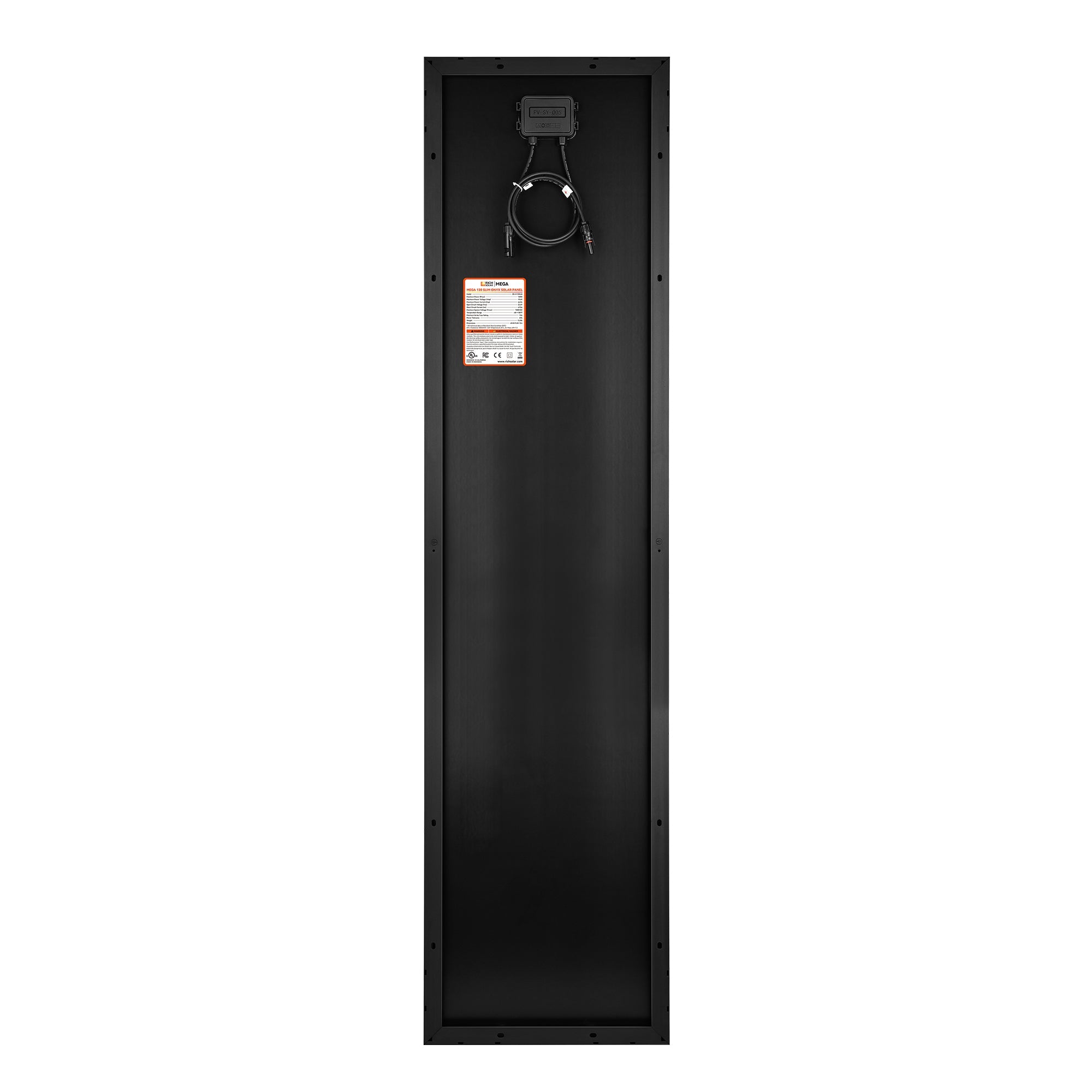

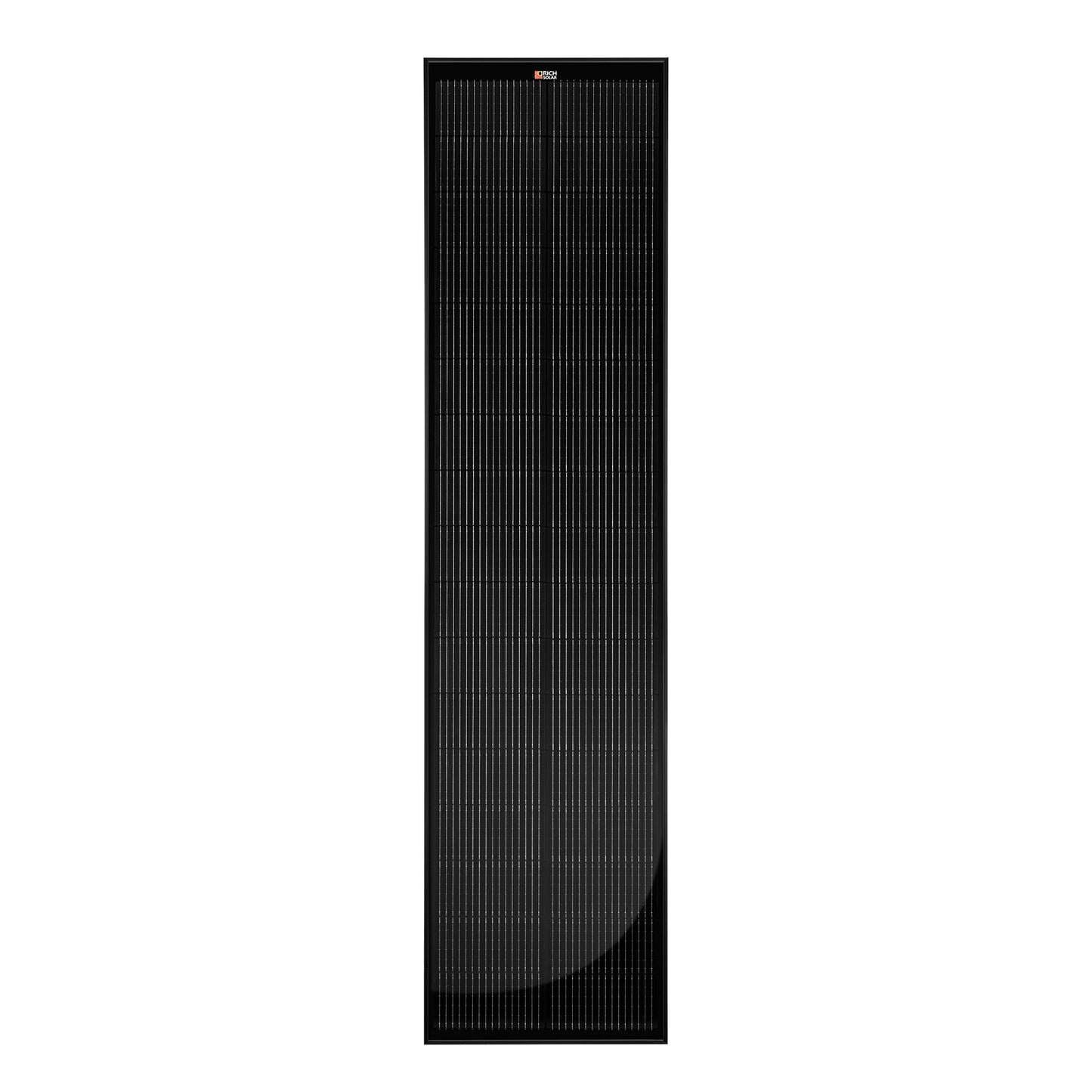

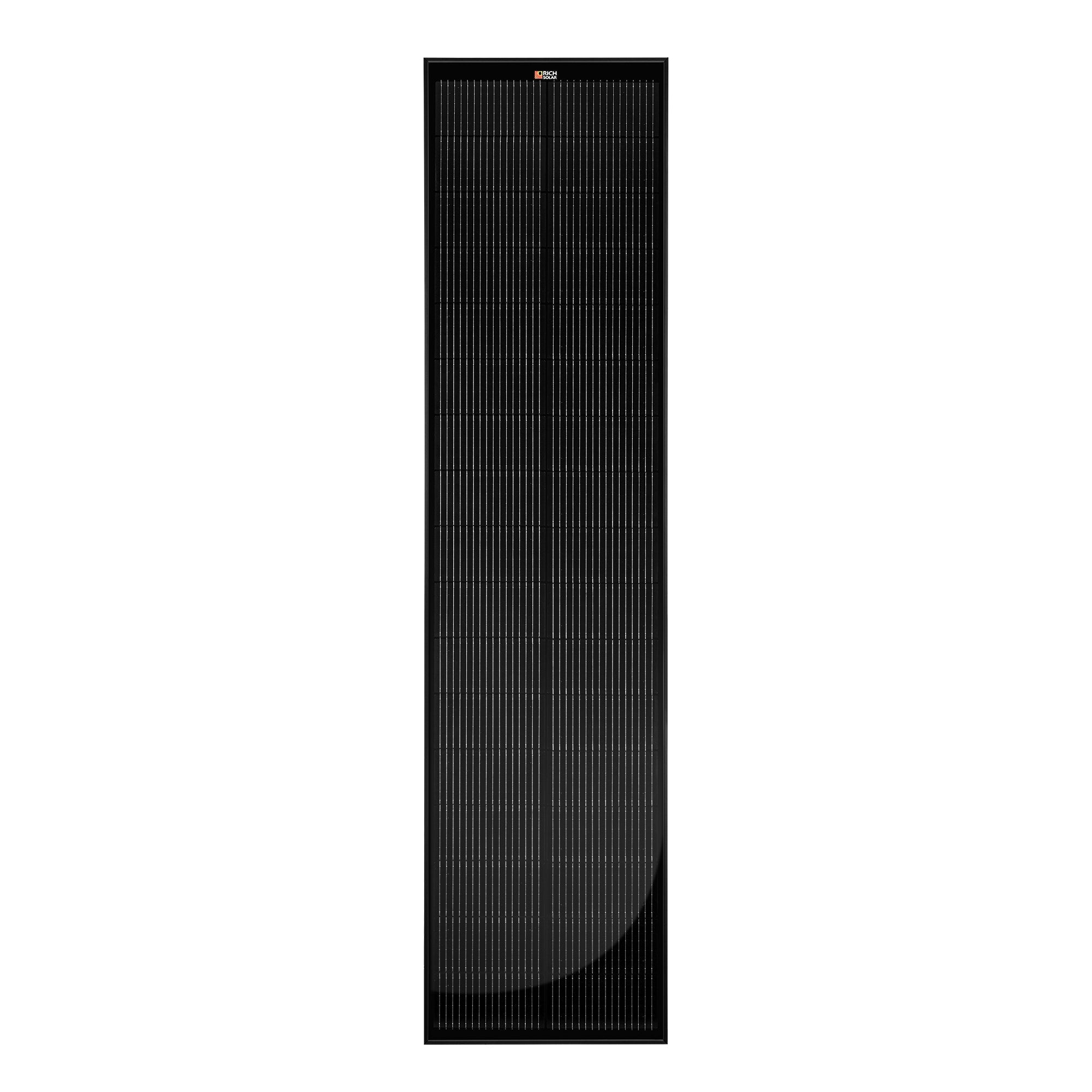

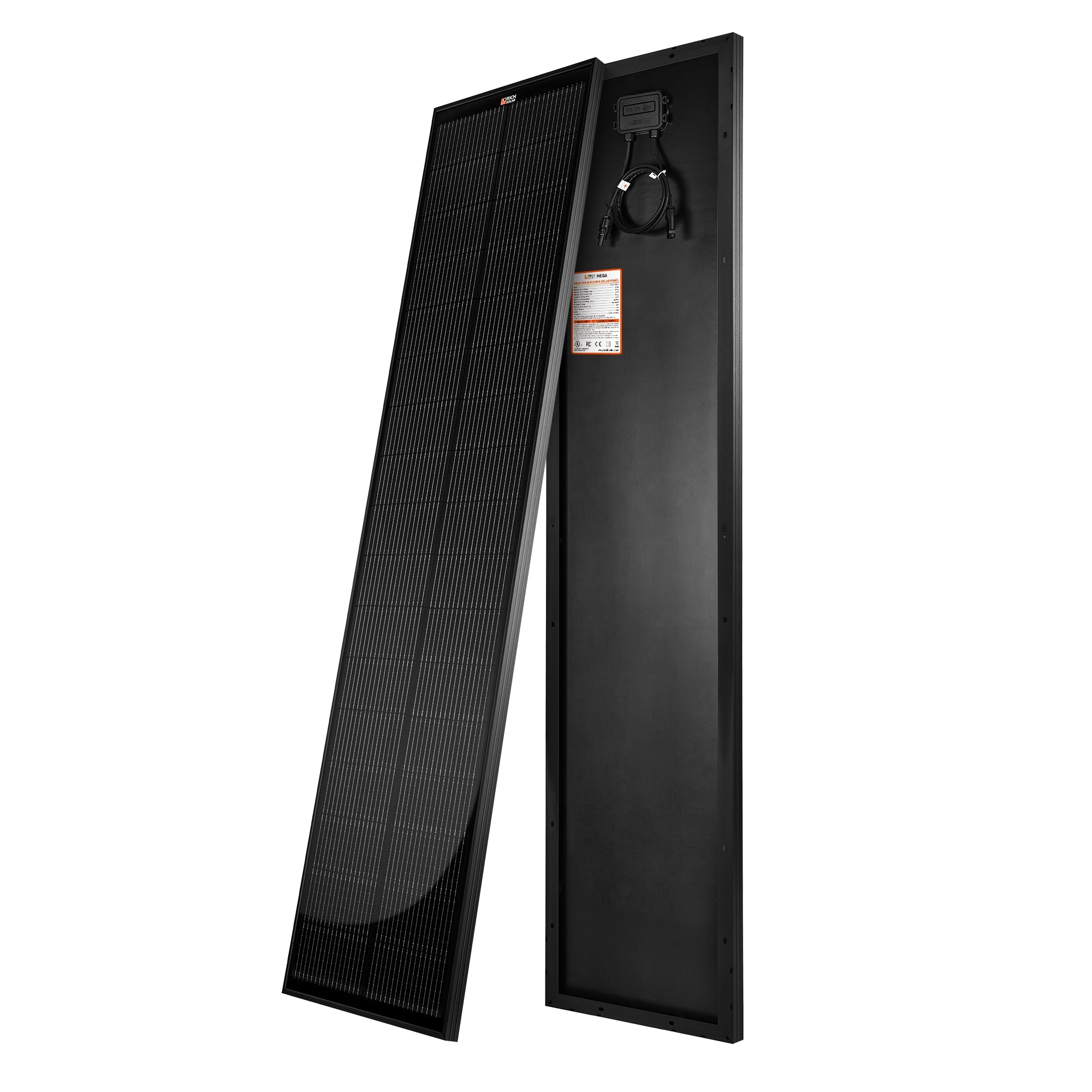

- MEGA 130 Slim Onyx: Features a sleek, all-black frame and cell architecture for a stealthy, premium look.

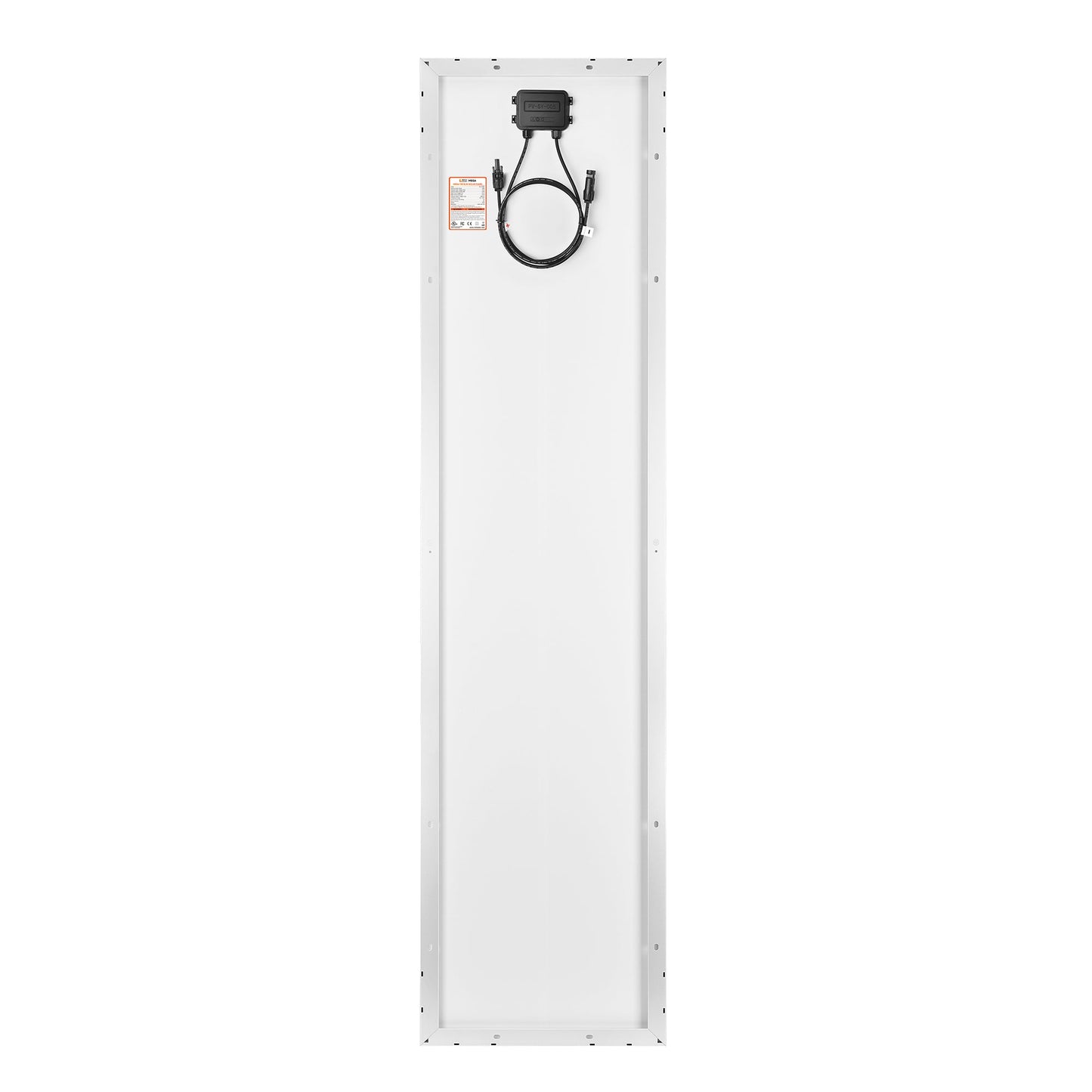

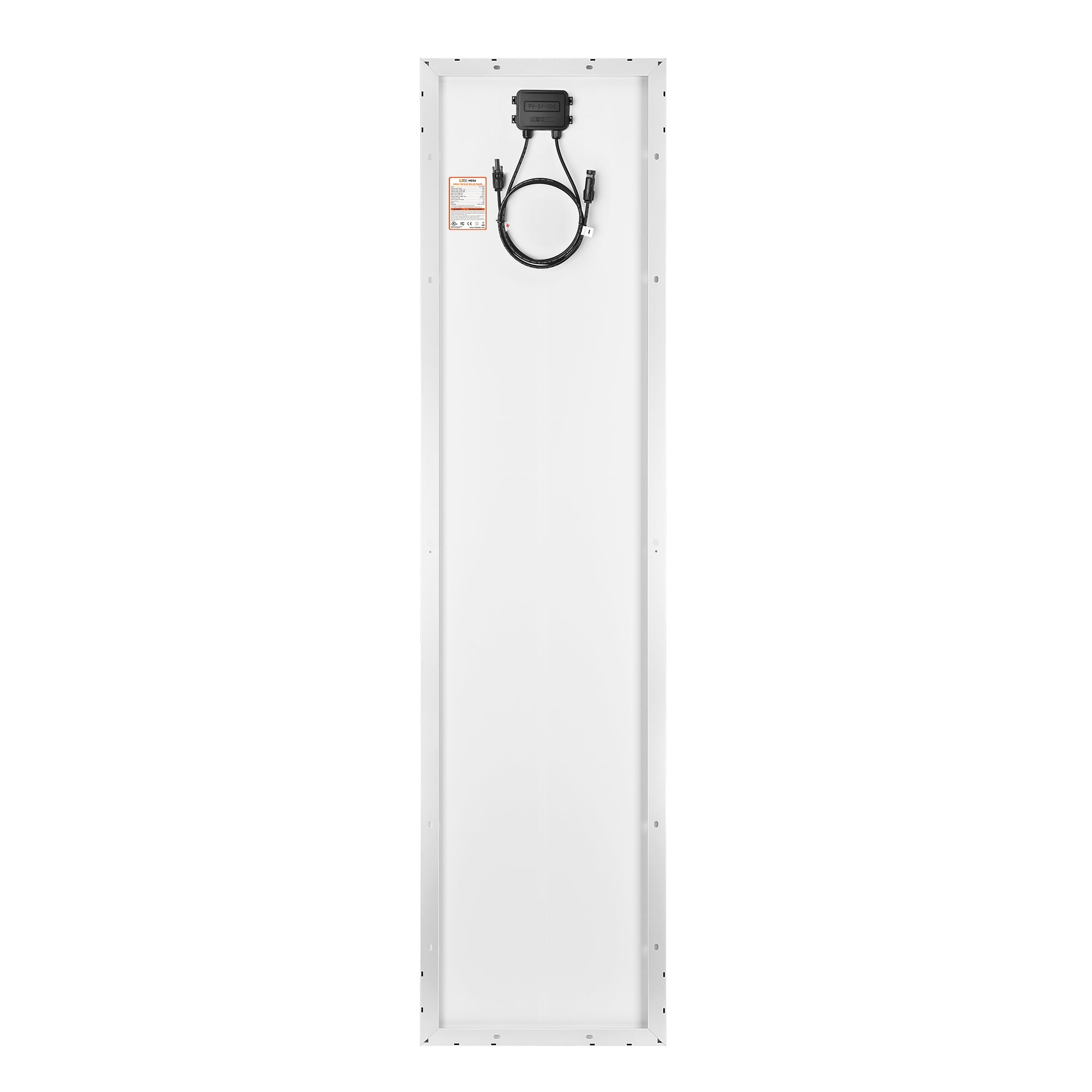

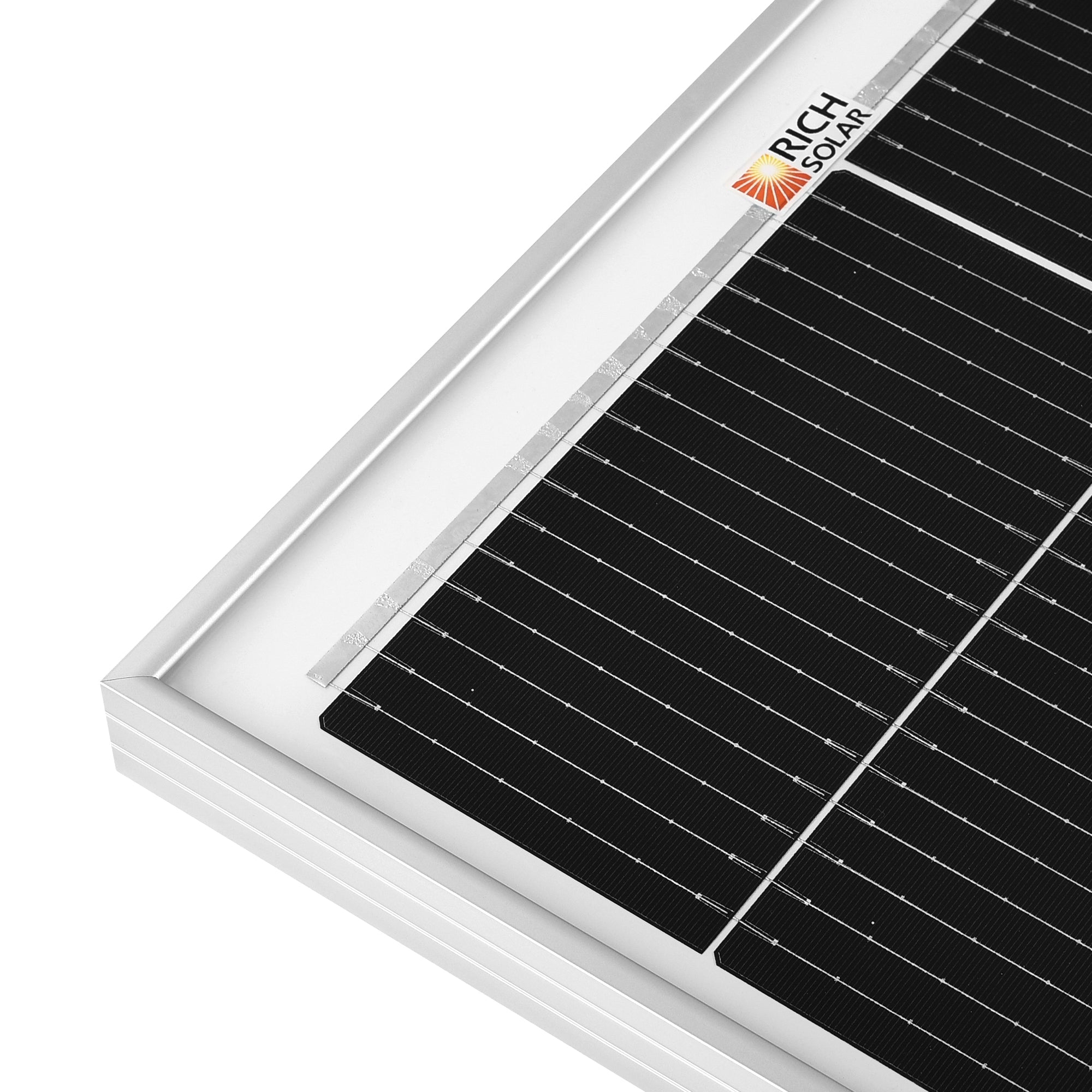

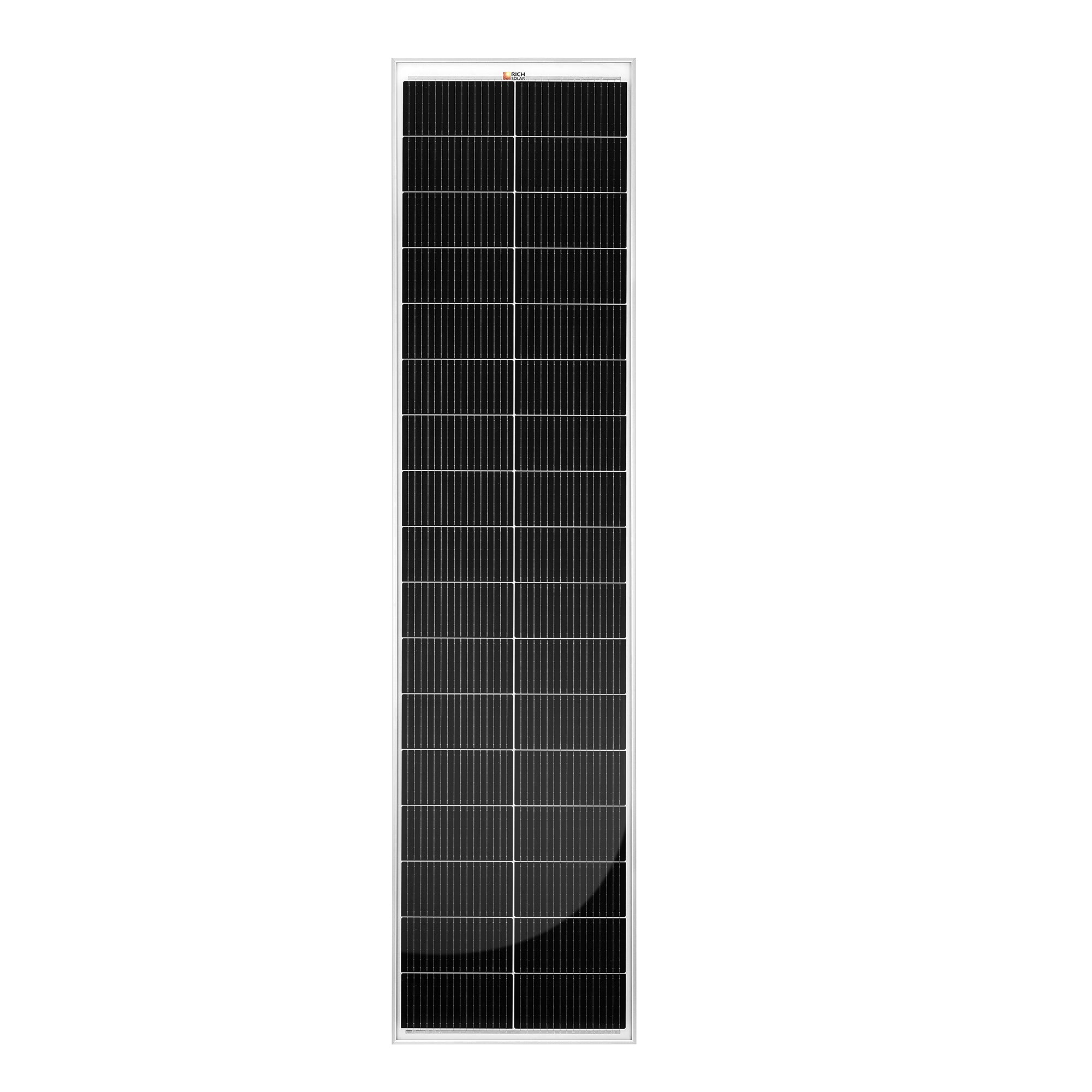

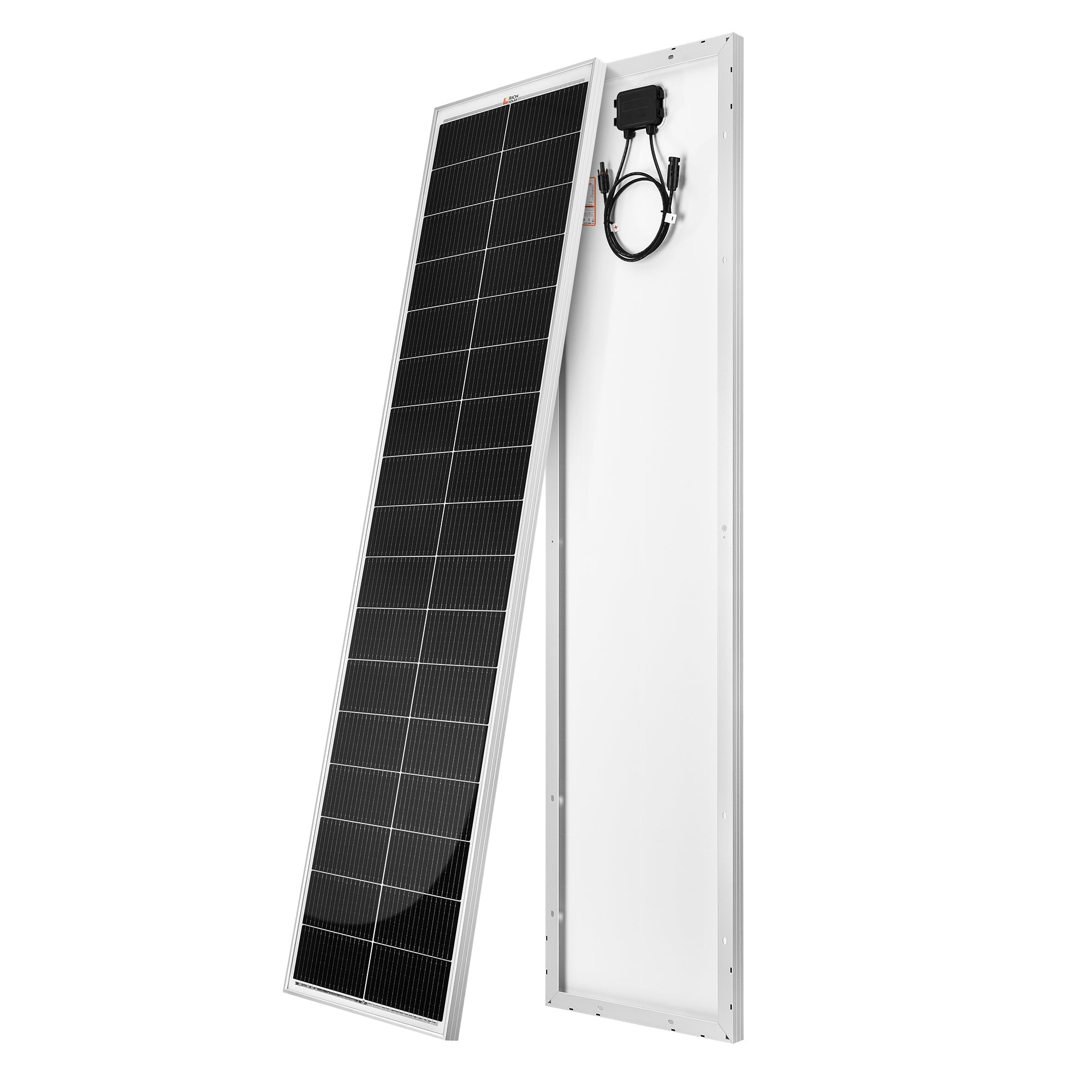

- MEGA 130 Slim Classic: Features a robust, silver anodized aluminum frame for traditional durability.
Key Features & Performance Benefits

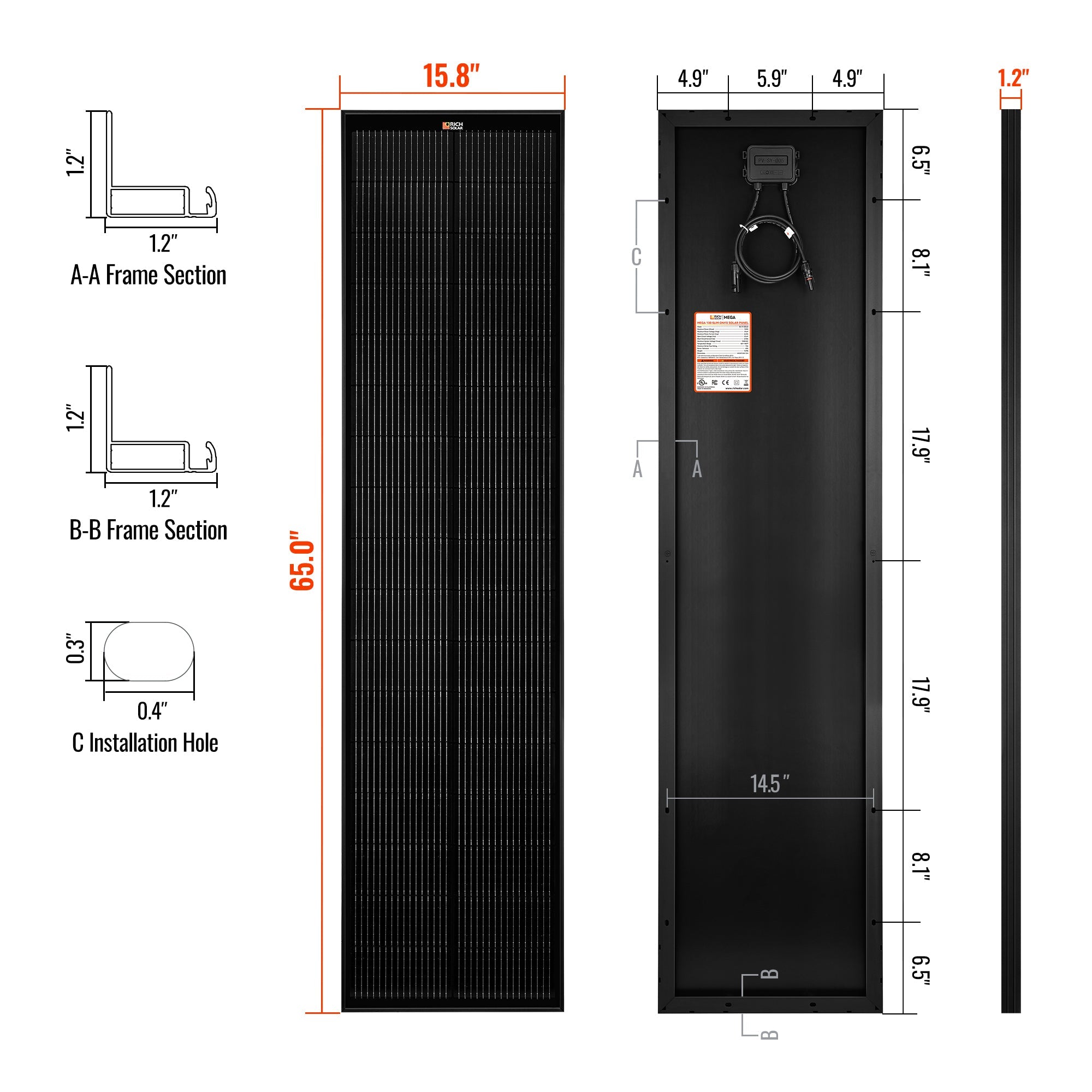

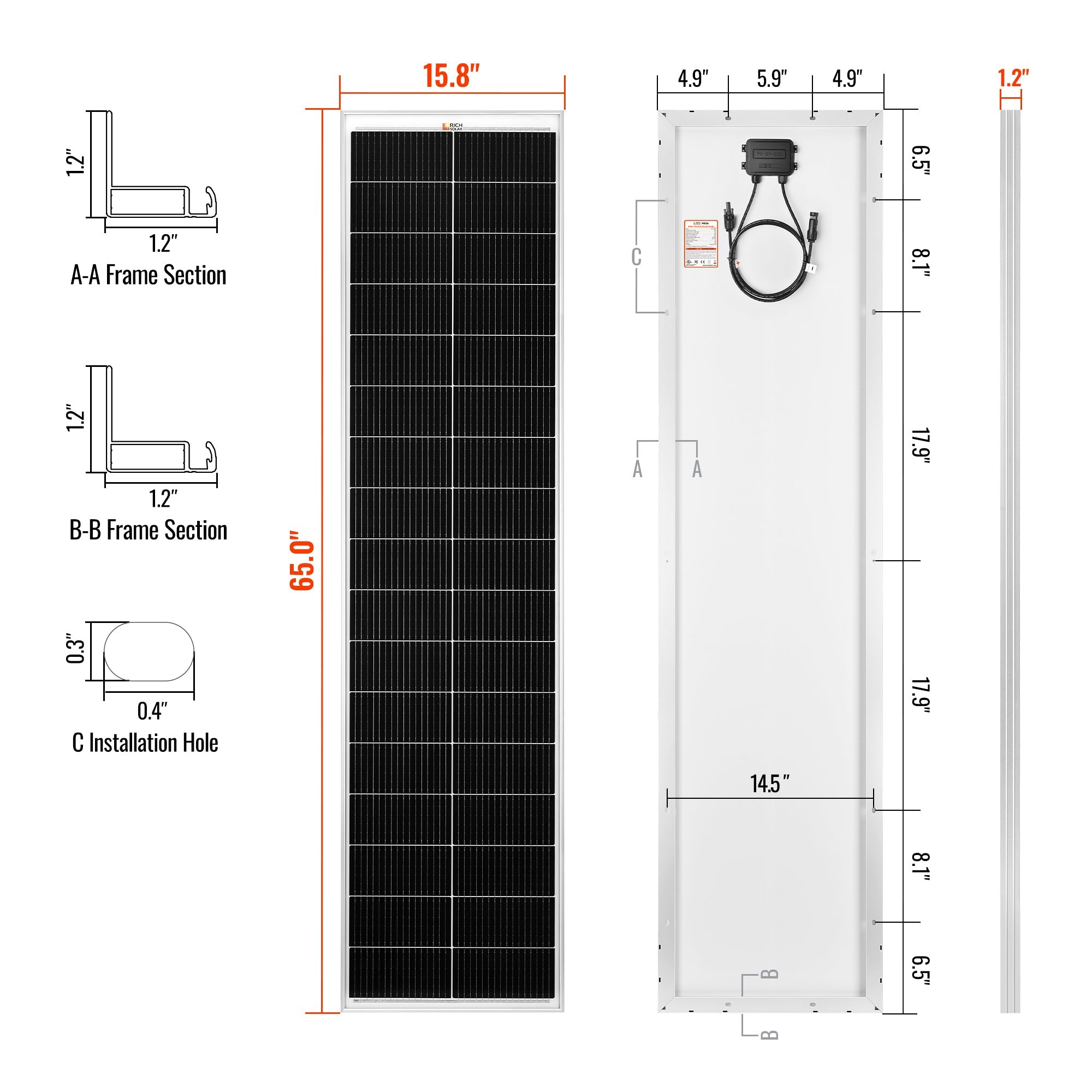

- Ultra-Narrow, High-Density Profile: Measuring just 65.0 x 15.8 inches, this long and narrow footprint fits perfectly along RV roof rails, camper van roof rack gaps, and narrow marine surfaces where standard square panels cannot sit.

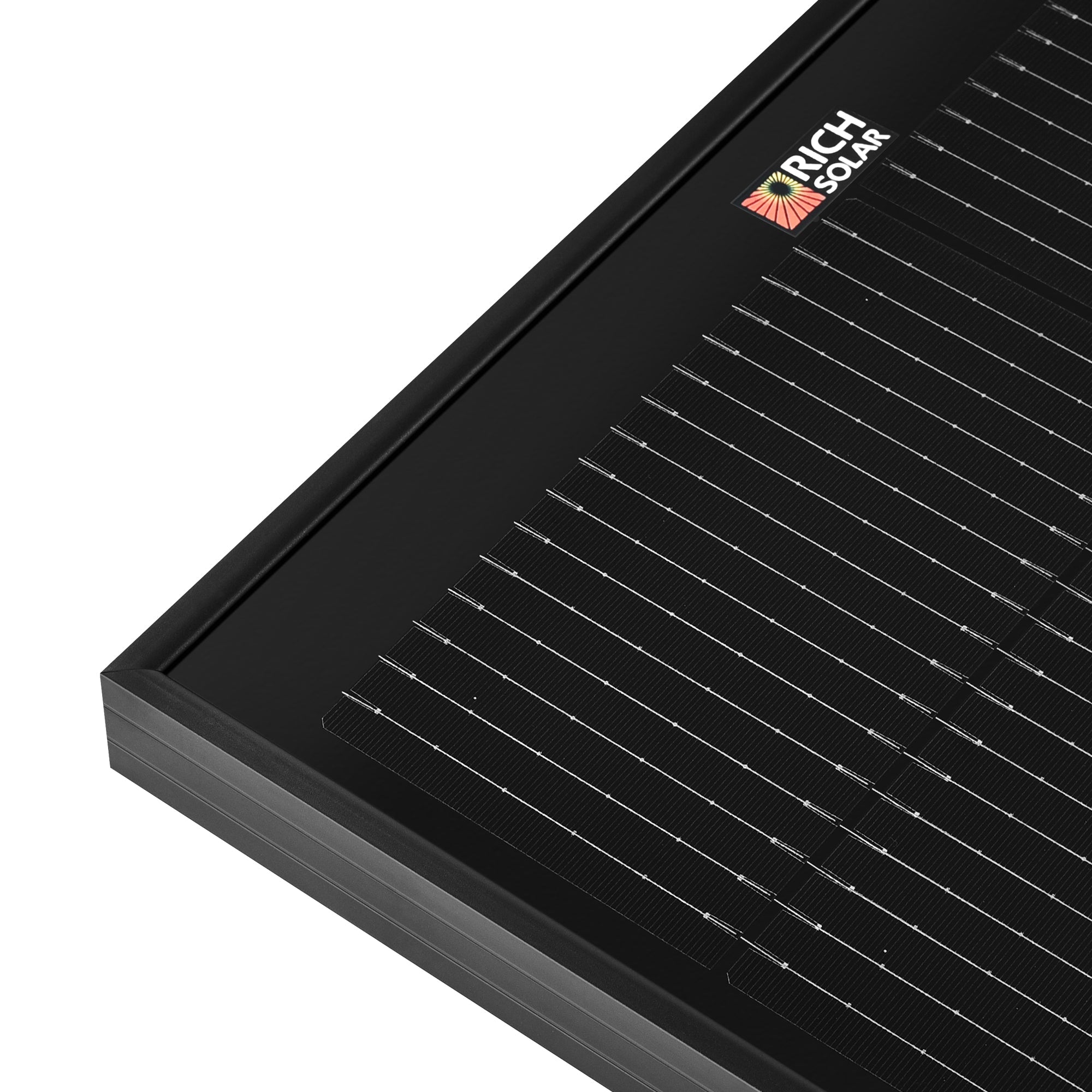

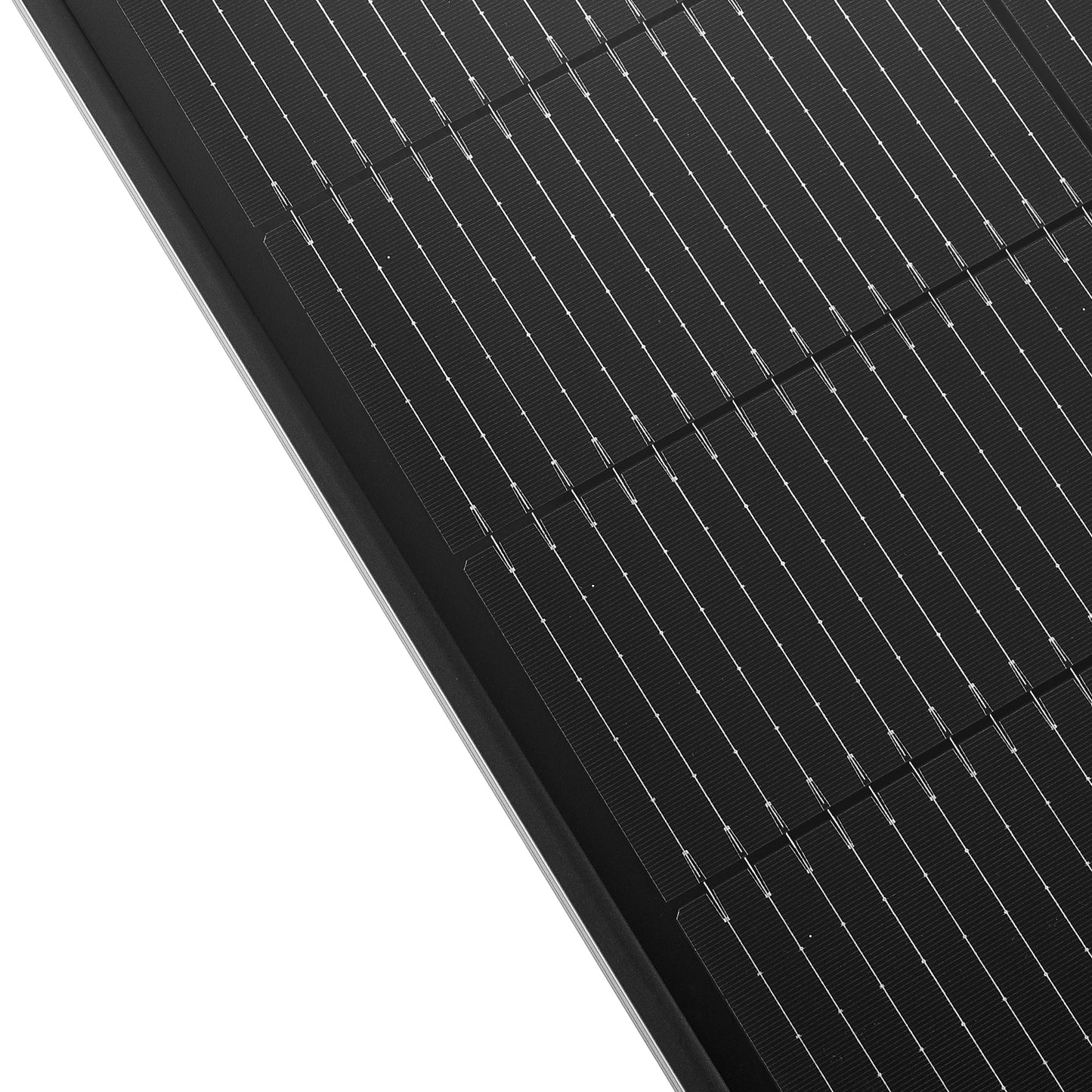

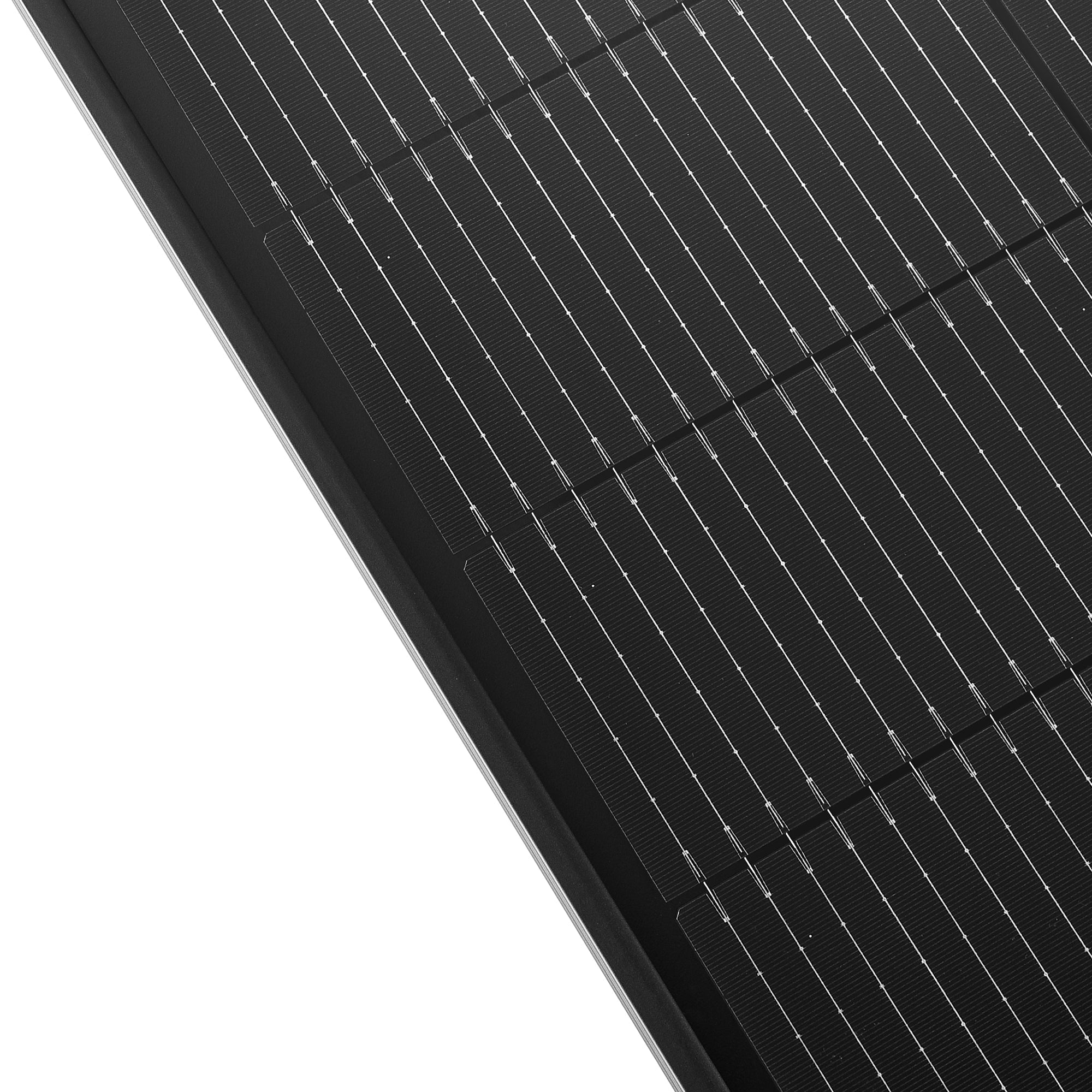

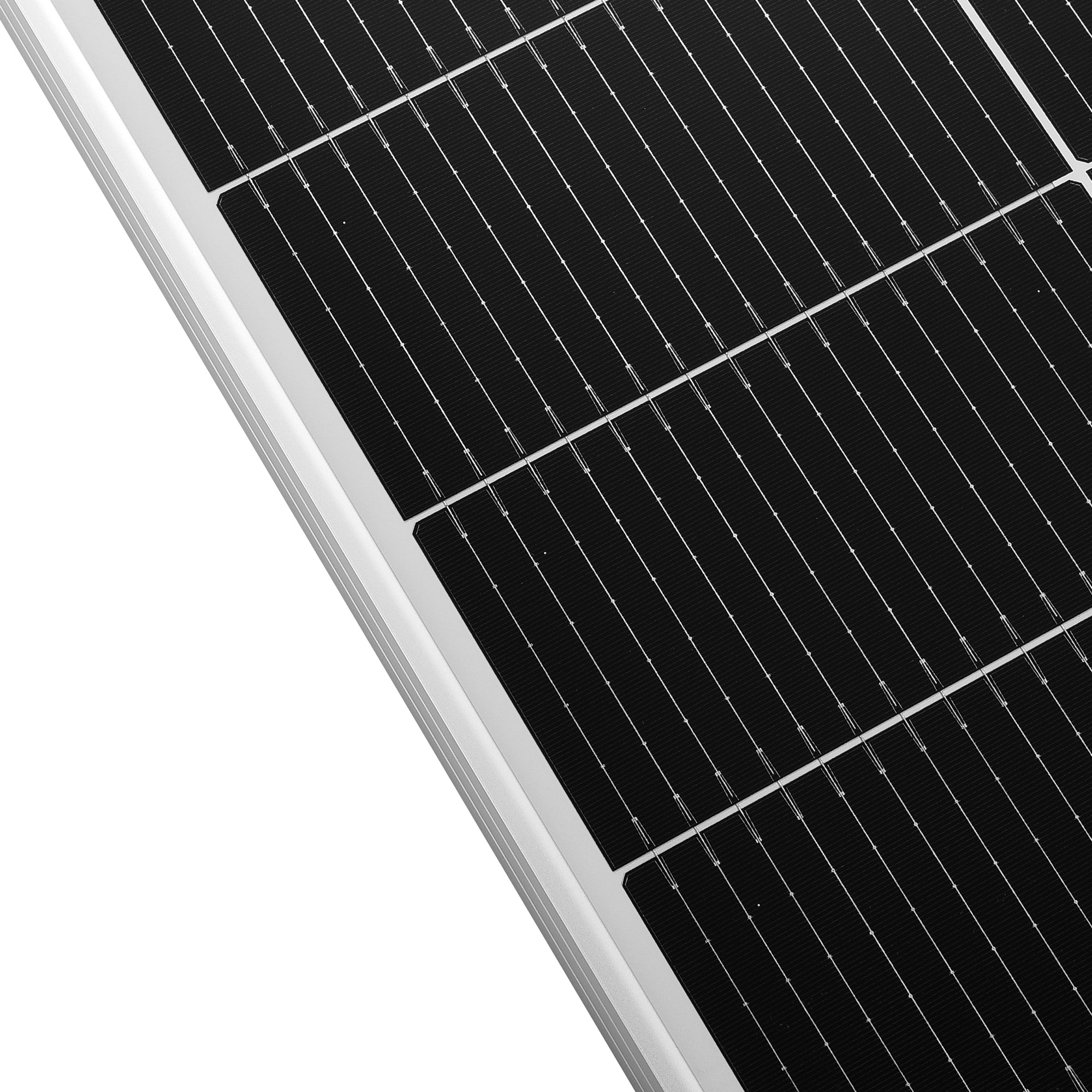

- Advanced N-Type Monocrystalline Cells: Built with premium solar cell technology boasting up to a 25.1% maximum cell efficiency, providing optimal energy yield even during low-light or overcast conditions.

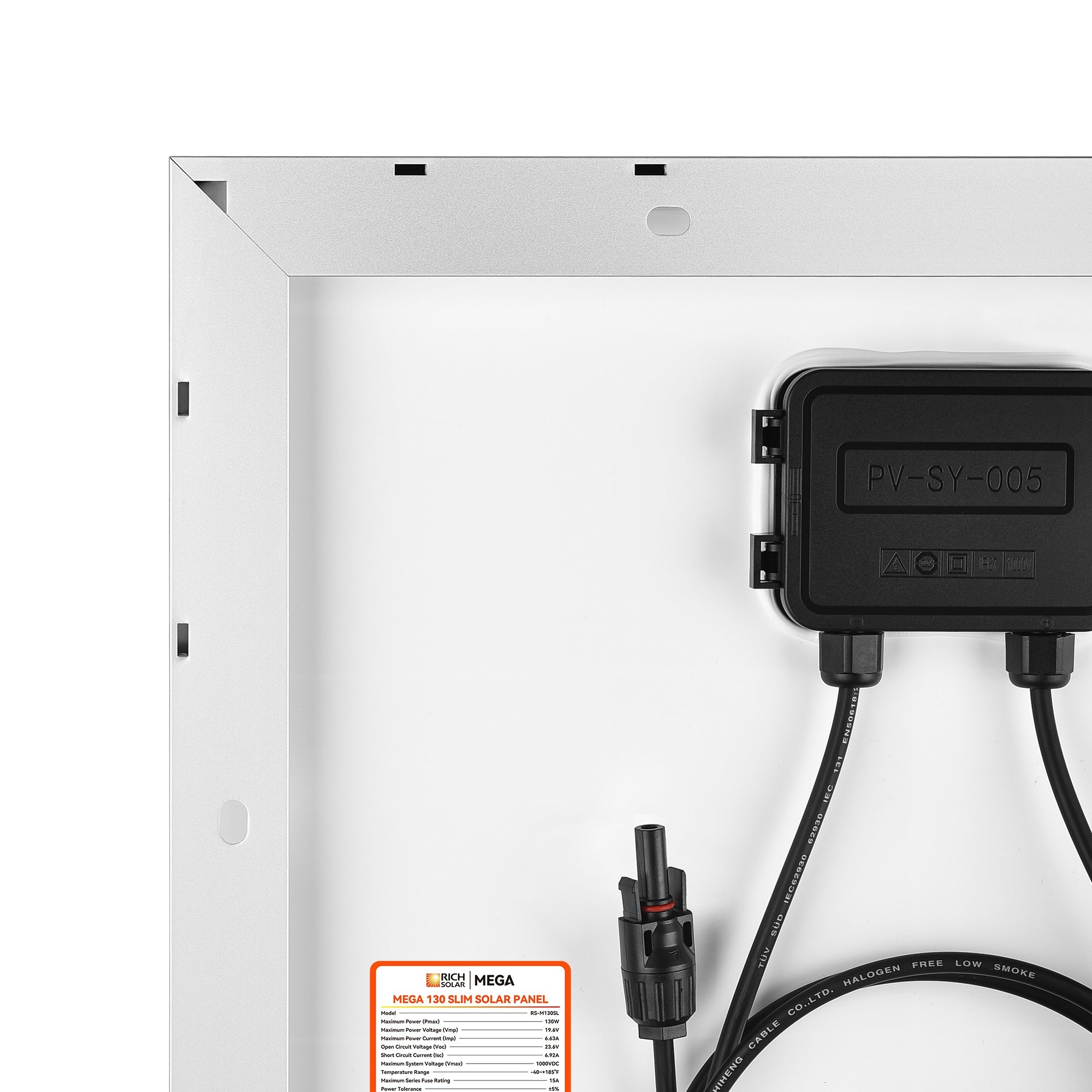

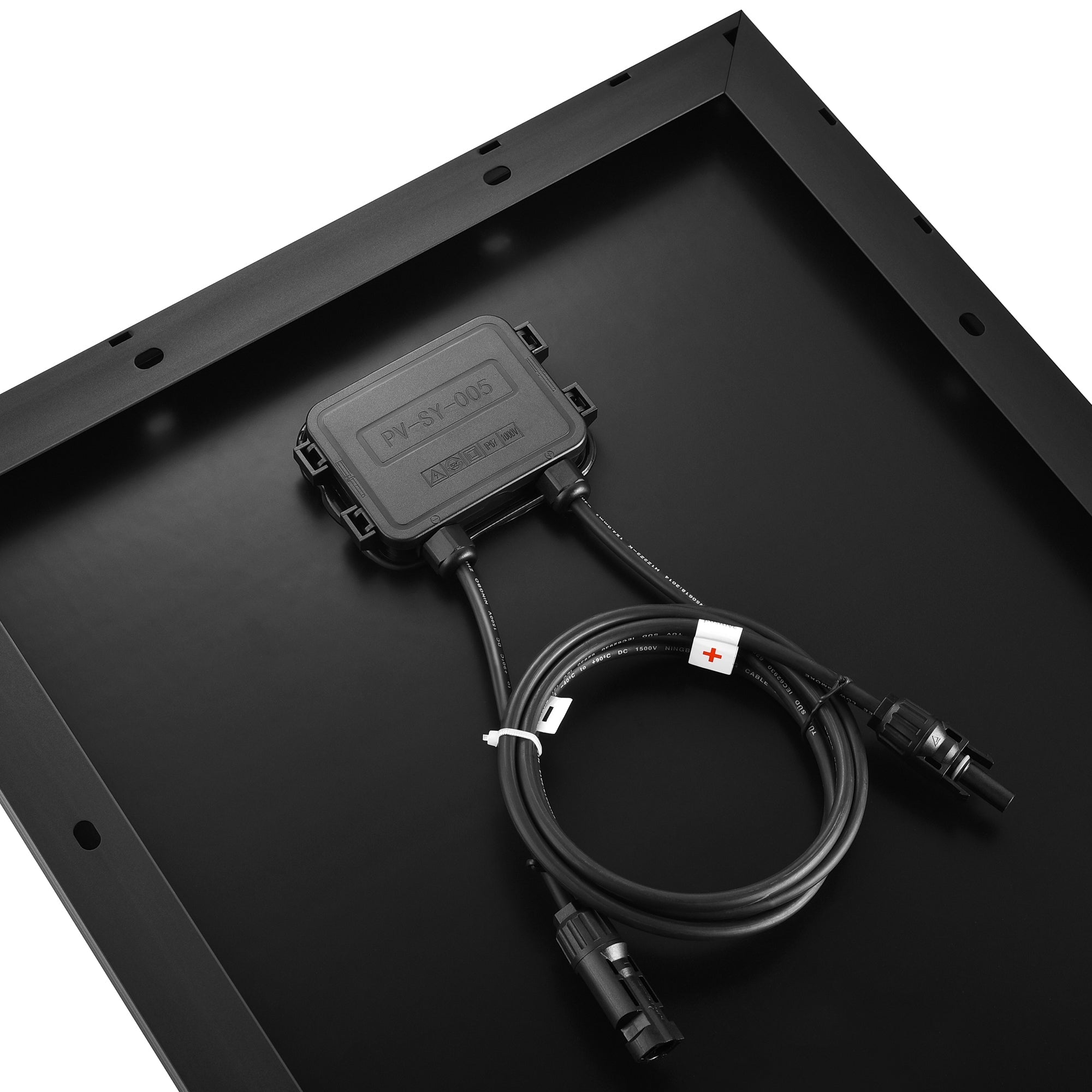

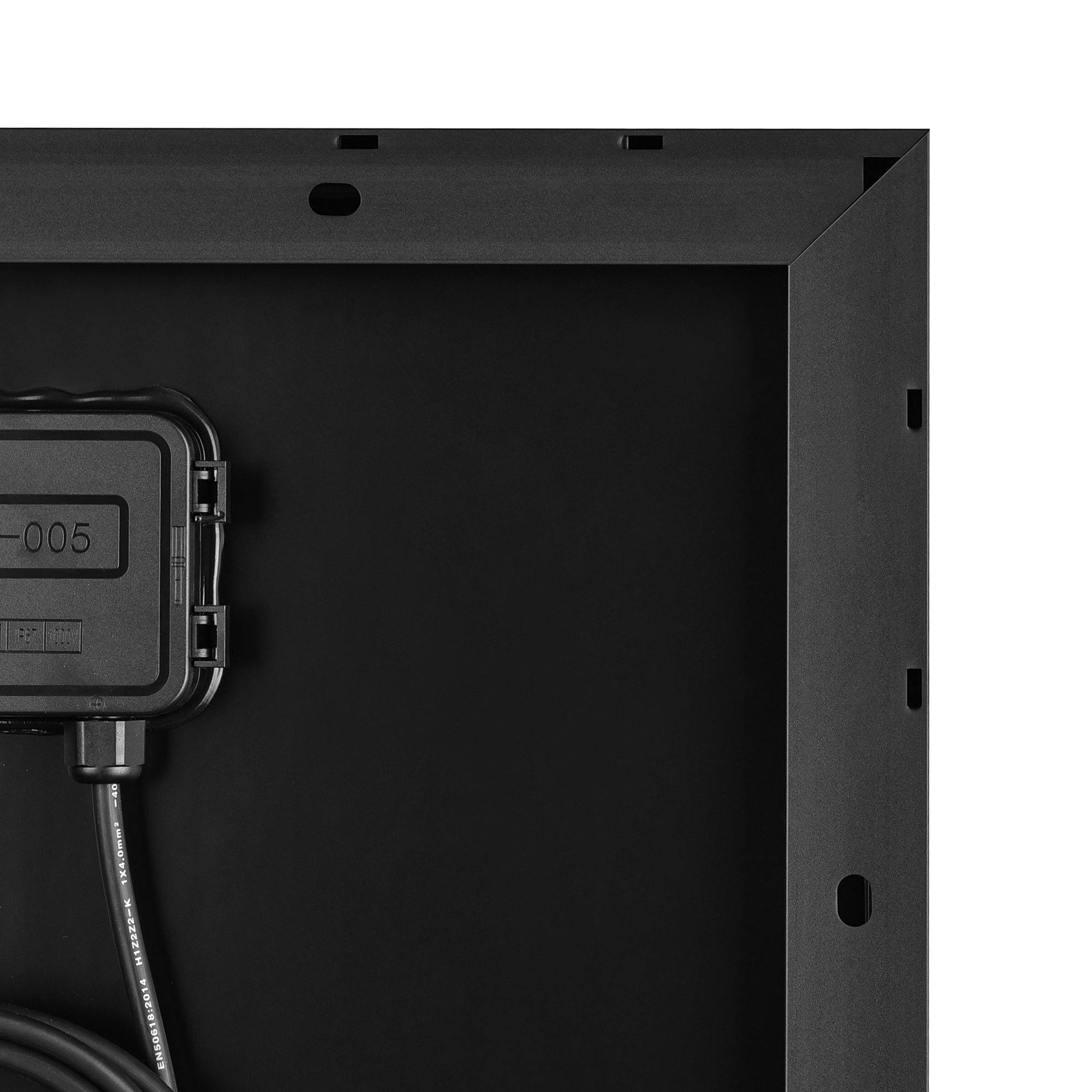

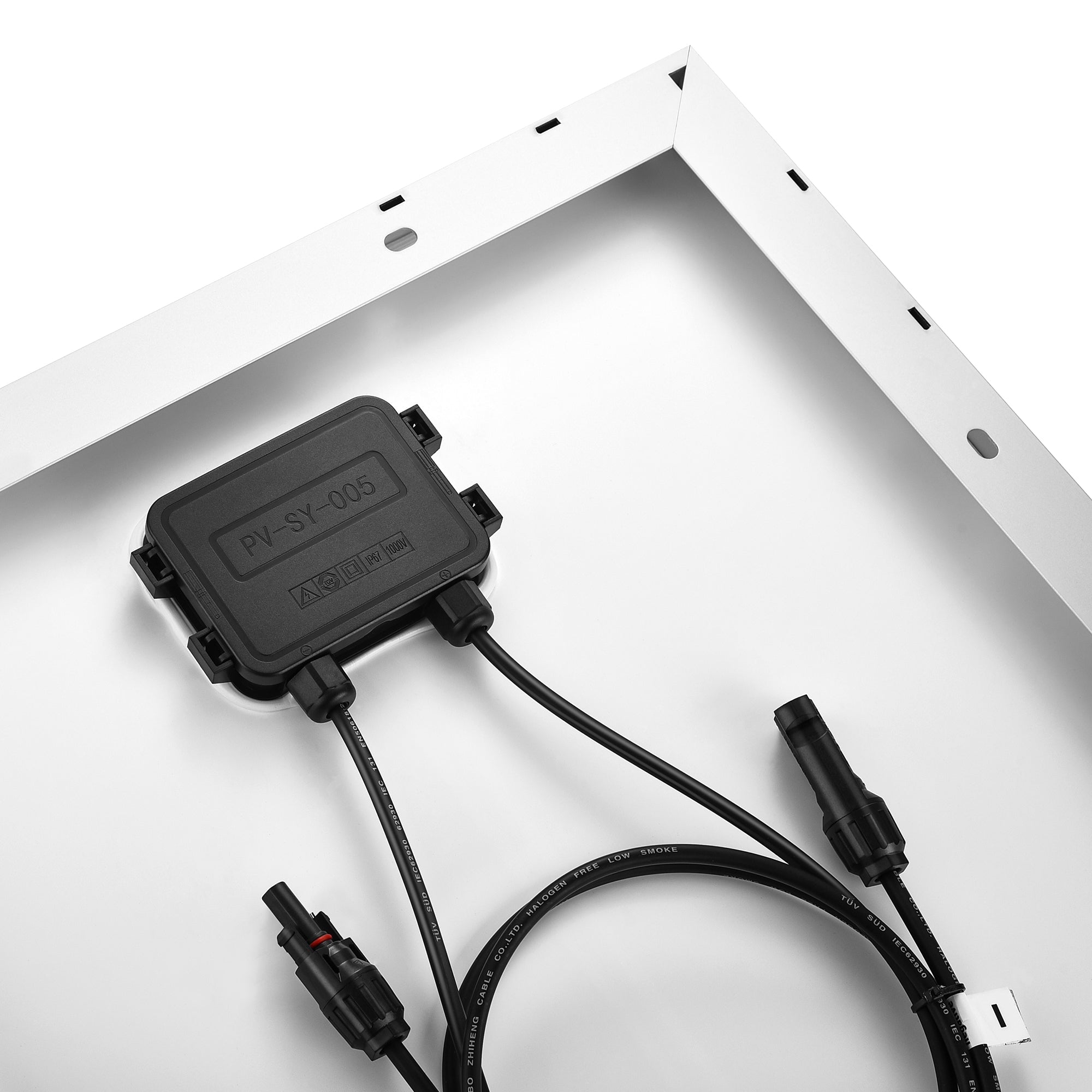

- All-Weather Outdoor Resilience: Outfitted with an IP67 waterproof junction box and pre-attached MC4 connectors. Built to withstand punishing environments, resisting snow loads up to 5400Pa and wind forces up to 2400Pa.
- Plug-and-Play Integration: Comes with pre-drilled mounting holes for quick pairing with standard Z-brackets, tilt mounts, or roof rack rails. Fully compatible with standard 12V battery banks and MPPT charge controllers.
Onyx Black vs. Classic Silver Comparison
Review the primary technical specifications below to choose the perfect fit for your mobile off-grid build.
| Specification | MEGA 130 Slim Onyx (Black Frame) | MEGA 130 Slim (Silver Frame) |
|---|---|---|
| SKU / Part Number | RS-M130SLB | RS-M130SL |
| Maximum Power (Pmax) | 130 Watts | 130 Watts |
| Maximum Power Voltage (Vmp) | 19.6V | 19.6V |
| Maximum Power Current (Imp) | 6.63A | 6.63A |
| Open Circuit Voltage (Voc) | 23.6V | 23.6V |
| Short Circuit Current (Isc) | 6.29A | 6.92A |
| Dimensions | 65.0 x 15.8 x 1.2 inches | 65.0 x 15.8 x 1.2 inches |
| Weight | 13.9 lbs | 15.4 lbs |
| Output Warranty | 25-Year Performance Guarantee | 25-Year Performance Guarantee |
Frequently Asked Questions (FAQs)
What are the main differences between the Onyx Black and Classic Silver models?
The primary differences lie in the frame color, total weight, and minor changes in short circuit current. The Onyx Black edition features a lighter architecture weighing 13.9 pounds with an all-black aesthetic, whereas the Classic Silver edition weighs 15.4 pounds and utilizes a standard clear-anodized aluminum frame. Both feature identical physical lengths, widths, and 130W power outputs.
Can I use the RICH SOLAR 130W Slim panel to charge a 12V battery directly?
No, you should never connect a solar panel directly to a battery. To safely charge a 12V Lithium (LiFePO4), AGM, or Lead-Acid battery, you must route the panel through a solar charge controller (such as an MPPT or PWM controller). This regulates the incoming voltage and current, preventing overcharging and battery damage.
Do these narrow solar panels work effectively during winter or overcast conditions?
Yes, solar panels generate electricity using light, not heat, and colder ambient temperatures actually improve running efficiency. While cloud cover lowers overall energy output compared to clear days, the advanced N-Type monocrystalline cells in the RICH SOLAR MEGA series are designed to pull maximum current in diffused low-light scenarios. Always clear away snow accumulation or debris to maintain energy generation.
Do I need an inverter for my mobile off-grid solar system setup?
An inverter is only required if you intend to power household AC appliances (like a standard refrigerator, microwave, laptop charger, or television) that use 110V power. If your camper, van, or boat exclusively runs 12V DC accessories (such as USB ports, LED lights, or 12V ventilation fans), you can run your system directly off your battery bank without an inverter.
Will this solar panel drain my battery bank overnight?
No, your battery will not drain backward into the solar array at night as long as you use a solar charge controller. Modern charge controllers feature integrated blocking circuitry that halts reverse current flow immediately when sunlight fades.
