Garage Gator Motorized Kayak & Canoe Lift GG8220CK storage lift
Product Description

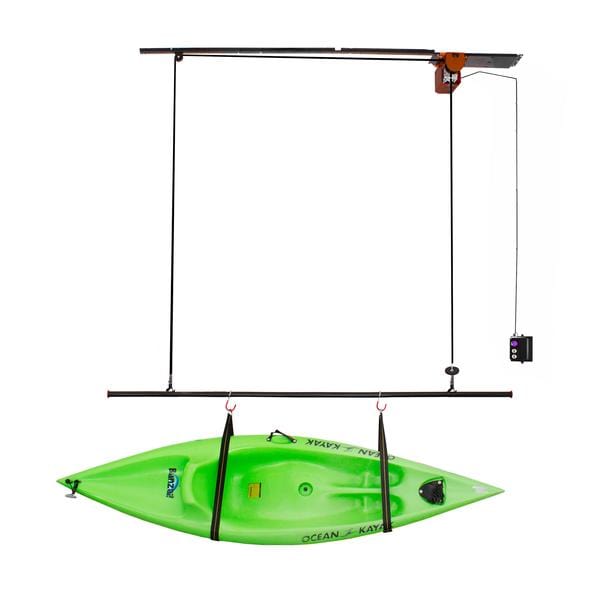

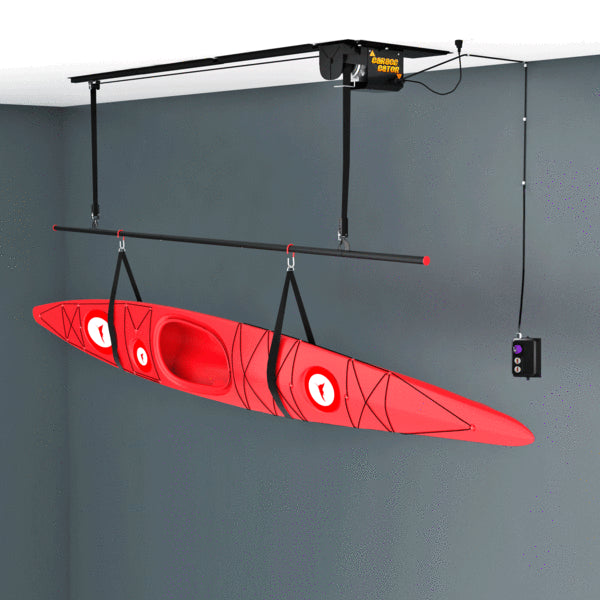

The Garage Gator GG8220CK is a motorized ceiling lift built specifically for kayaks and canoes. Lower the lift bar to ground level, secure your boat with the included adjustable straps, and press the button — the electric motor raises it overhead at 30 ft. per minute, clearing your garage floor without any lifting or ladder climbing.
Rated for up to 220 lbs, the GG8220CK accommodates ceilings from 9 to 15 ft. and fits a single kayak, canoe, or a similar load of paddle sports gear. The kit ships complete with the motor, mounting hardware, straps, and lift bar needed for a ceiling installation.
Items the lift system can lift include (but are not limited to):
- Aquatic gear
- Kayaks
- Canoes
- Paddle sports gear
Includes:
- Motor mounting plates
- Electric motor hoist

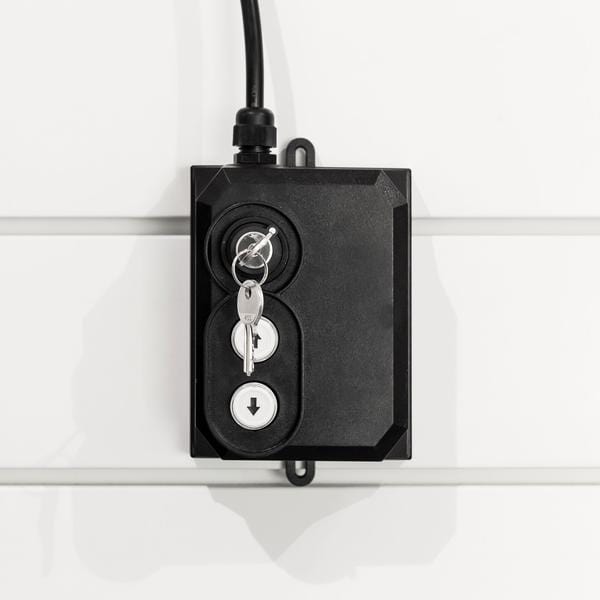

- Wired push-button controller
- Ceiling mount with channel bar
- 2 adjustable 8 ft. straps
- 9 ft. lift bar
- Installation hardware
- Key lock for safety
WARNING: Handling the coated electrical wires of this product may expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.p65warnings.ca.gov.
Specifications/Warranty
- Weight Capacity: 220 lbs.

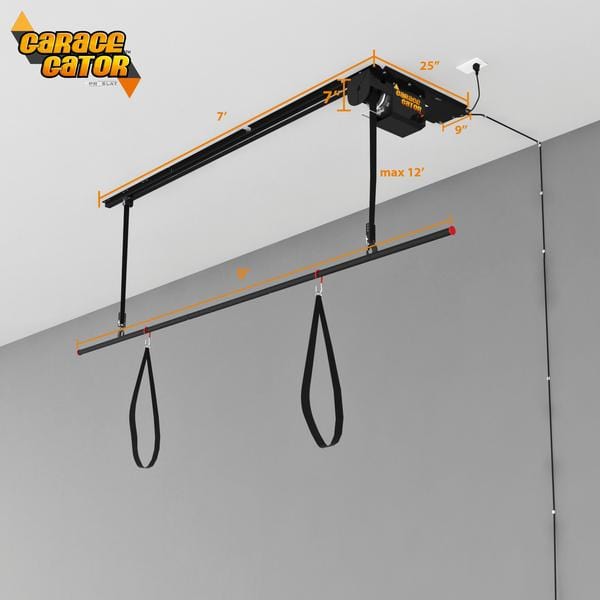

- Bar Width: 9 ft.

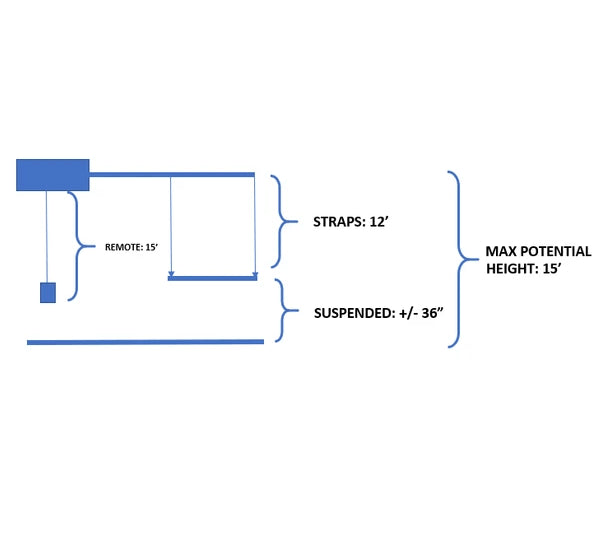

- Lifting Height: 12 ft.
- Lifting Speed: 30 ft./min.
- Strap Width: 32 mm
- Cable Length: 12 ft.
- Motor: Electric 460W, 3/5 HP
- Voltage: 120V / 60Hz, 4.5 Amps

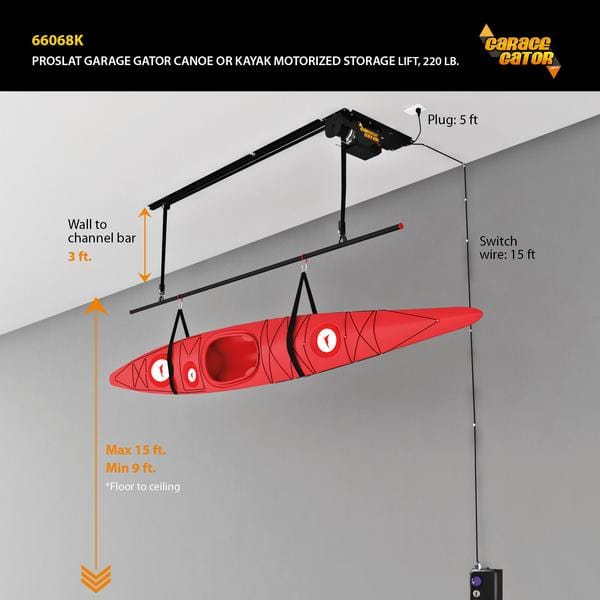

- Ceiling Range: Accommodates 9–15 ft. ceilings
- Use: Designed for indoor use
Tech Drawing/ Assembly PDF
Frequently Asked Questions
How much weight can the GG8220CK lift?
It’s rated for up to 220 lbs, enough for a single kayak or canoe, or a comparable load of paddle sports gear on the included straps.
What ceiling heights does it fit?
The GG8220CK accommodates ceilings from 9 to 15 ft., with a 12 ft. lifting height and a 9 ft. bar width.
How fast does it raise the load?
The motor lifts at 30 ft. per minute, so a kayak or canoe goes from floor to ceiling in well under a minute.
What’s included for securing the kayak or canoe?
Two adjustable 8 ft. straps (32 mm wide) attach to the 9 ft. lift bar to cradle and secure your boat while it’s raised or lowered.
Is this safe to install and use myself?
Yes, the kit includes all mounting hardware and a key-locked controller for safety. Note the Prop 65 warning on the coated electrical wiring — wash your hands after handling during installation, as with any wired electrical product.
Can I lift two kayaks with this unit?
The GG8220CK is built for a single kayak or canoe. For two boats, Garage Gator’s Dual Power Kayak & Canoe Lift (GG8220CK2) is sized for that load instead.
What voltage does the motor need?
It runs on standard 120V / 60Hz household power and draws 4.5 amps.
Is it rated for outdoor use?
No, the GG8220CK is designed for indoor use, such as an attached or enclosed garage.
Does it come with an assembly guide?
Yes, a full assembly PDF with diagrams is included and linked on this page.
Can I use this to lift other gear besides boats?
The straps and bar are sized for kayaks and canoes, but the lift also works well for other aquatic gear and paddle sports equipment within the 220 lb limit.
