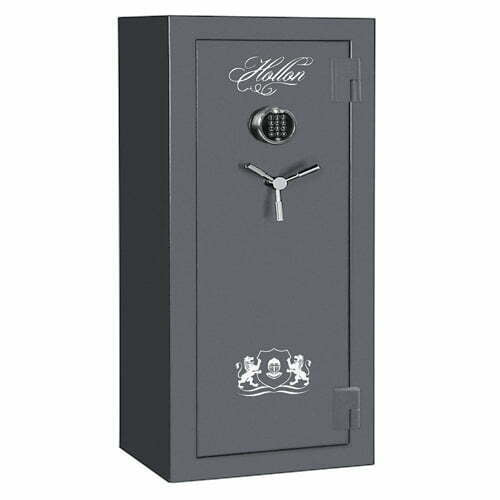

Hollon Crescent Shield CS-12E Fire & Burglary Gun Safe
The Hollon Crescent Shield CS-12E Gun Safe is built with a 12-gauge steel body and door, 1.5" chrome-plated steel locking bolts and a UL Listed Type 1 S&G electronic keypad lock behind a drill-resistant hard plate. It is assembled in the USA with American and global parts.
Hollon rates the Crescent Shield series for 75 minutes of fire protection. The interior is rated for up to 12 long guns and is finished with a deep grey foam-backed lining and a pocket door organizer. At 59" H x 22" W x 16" D and 320 lbs, it is the most compact safe in the series.
Key Features
- 12-Gauge Steel Construction: 12-gauge steel body and door.
- 75-Minute Fire Rating: Rated by Hollon for 75 minutes of fire protection.
- S&G Electronic Lock: UL Listed Type 1 Sargent & Greenleaf electronic keypad lock.
- Drill-Resistant Hard Plate: Hard plate protects the lock mechanism against drilling and punch attacks.
- Locking Bolts: 1.5" chrome-plated solid steel locking bolts.
- Capacity: Rated for up to 12 long guns.
- Interior Finish: Deep grey foam-backed plush lining to protect stocks and finishes.
- Pocket Door Organizer: Door panel with handgun holsters and accessory pockets.
- Floor Anchoring: 4 pre-drilled bolt-down holes in the base.
- Finish: Gun Metal Gray exterior.
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | CS-12E (Crescent Shield Series) |
| Brand | Hollon Safe |
| Exterior Dimensions (H x W x D) | 59" H x 22" W x 16" D |
| Interior Dimensions (H x W x D) | 55 1/2" H x 19 1/4" W x 9 1/2" D |
| Weight | 320 lbs |
| Rated Gun Capacity | Up to 12 long guns (manufacturer rating) |
| Fire Rating | 75 minutes |
| Steel | 12-gauge body and door |
| Lock | UL Listed Type 1 S&G electronic lock |
| Locking Bolts | 1.5" chrome steel bolts |
| Floor Anchoring | 4 pre-drilled bolt-down holes |
| Finish | Gun Metal Gray |
| Manufacturing | Assembled in the USA with American and global parts |
Frequently Asked Questions
What is the fire rating of the Hollon Crescent Shield CS-12E safe?
Hollon rates the CS-12E for 75 minutes of fire protection. Hollon does not publish a test temperature for the Crescent Shield series.
Will 12 rifles really fit in the CS-12E?
Twelve is the manufacturer's count for unscoped long guns packed tight. The interior is only 9 1/2" deep, so with scopes or thick stocks plan on about two-thirds of that, roughly 8. It suits shotguns and unscoped rifles best.
Will the CS-12E fit in a closet?
It has a small footprint at 22" wide and 16" deep, and stands 59" tall. It will pass face-first through most 24" to 30" closet and bedroom doors; measure the clear opening and allow a few inches for the handle and keypad. It weighs 320 lbs.
What lock comes standard on the CS-12E gun safe?
A UL Listed Type 1 Sargent & Greenleaf electronic keypad lock, protected by a drill-resistant hard plate.
What should I do if the CS-12E keypad won't open?
Change the battery first. A weak or dead battery causes most keypad lockouts, and the code is kept when the battery is replaced. If a fresh battery doesn't solve it, email info@garagetoolsstorage.com, or call or text 765-221-3366.
Can the Hollon CS-12E be bolted to the floor?
Yes. It comes with 4 pre-drilled anchor holes in the base so it can be bolted to a concrete slab or subfloor.
How is a 320 lb safe like the CS-12E delivered?
It ships LTL freight with free liftgate service to the curb. Moving it inside is up to the buyer; a hand truck rated for the weight and two people is typical. Inspect it before signing and report damage within 24 hours.
How does the CS-12E compare to the CS-24E?
The CS-24E is 30" wide and 21" deep instead of 22" x 16", weighs 570 lbs, and has a 14" deep interior versus 9 1/2". If you own scoped rifles, the extra depth of the CS-24E matters more than the gun count.
Does the CS-12E have an outlet or interior light?
Hollon's catalog lists a light kit upgrade for the Crescent Shield series but no built-in outlet. To confirm what ships with current stock, email info@garagetoolsstorage.com, or call or text 765-221-3366.
Is 12-gauge steel thinner than 10-gauge?
Yes. A lower gauge number means thicker steel, so the CS-12E's 12-gauge body is a step below the 10-gauge steel used on Hollon's Black Hawk series.
