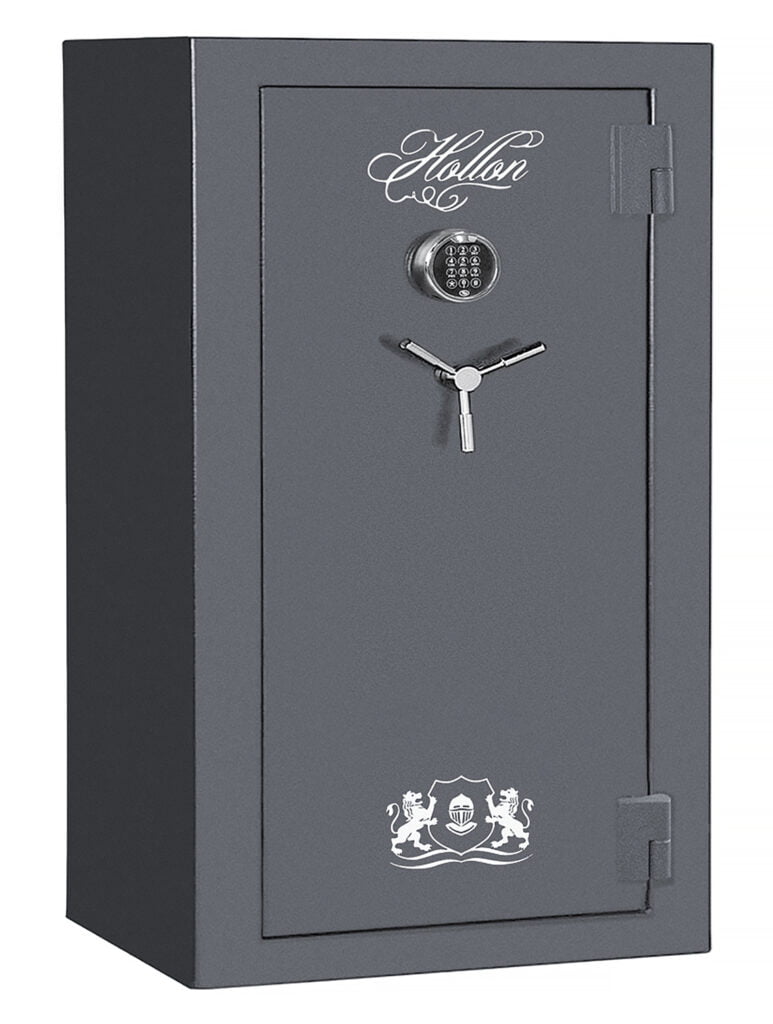

Hollon Crescent Shield CS-45E Fire & Burglary Gun Safe
The Hollon Crescent Shield CS-45E Gun Safe is built with a 12-gauge steel body and door, 1.5" chrome-plated steel locking bolts and a UL Listed Type 1 S&G electronic keypad lock behind a drill-resistant hard plate. It is assembled in the USA with American and global parts.
Hollon rates the Crescent Shield series for 75 minutes of fire protection. The 31.08 cubic foot interior is rated for up to 45 long guns and is finished with a deep grey foam-backed lining and a pocket door organizer. It is the largest Crescent Shield model at 72" H x 45" W x 28" D and weighs 1048 lbs.
Key Features
- 12-Gauge Steel Construction: 12-gauge steel body and door.
- 75-Minute Fire Rating: Rated by Hollon for 75 minutes of fire protection.
- S&G Electronic Lock: UL Listed Type 1 Sargent & Greenleaf electronic keypad lock.
- Drill-Resistant Hard Plate: Hard plate protects the lock mechanism against drilling and punch attacks.
- Locking Bolts: 1.5" chrome-plated solid steel locking bolts.
- Capacity: Rated for up to 45 long guns in 31.08 cubic feet.

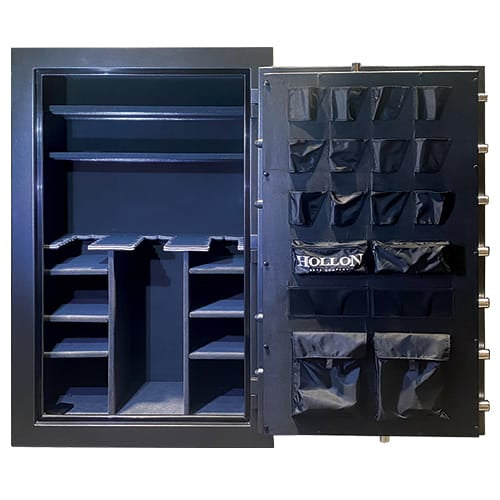

- Interior Finish: Deep grey foam-backed plush lining to protect stocks and finishes.
- Pocket Door Organizer: Door panel with handgun holsters and accessory pockets.
- Floor Anchoring: 4 pre-drilled bolt-down holes in the base.
- Finish: Gun Metal Gray exterior.
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | CS-45E (Crescent Shield Series) |
| Brand | Hollon Safe |
| Exterior Dimensions (H x W x D) | 72" H x 45" W x 28" D |
| Interior Dimensions (H x W x D) | 67 5/8" H x 41 1/4" W x 19 1/4" D |
| Weight | 1048 lbs |
| Interior Volume | 31.08 cu. ft. |
| Rated Gun Capacity | Up to 45 long guns (manufacturer rating) |
| Fire Rating | 75 minutes |
| Steel | 12-gauge body and door |
| Lock | UL Listed Type 1 S&G electronic lock |
| Locking Bolts | 1.5" chrome steel bolts |
| Floor Anchoring | 4 pre-drilled bolt-down holes |
| Finish | Gun Metal Gray |
| Manufacturing | Assembled in the USA with American and global parts |
Frequently Asked Questions
Is the Crescent Shield CS-45E fire rated?
Yes. Hollon rates the CS-45E for 75 minutes of fire protection.
What are the exterior dimensions and weight of the Hollon CS-45E?
Outside it measures 72" H x 45" W x 28" D. Inside it is 67 5/8" H x 41 1/4" W x 19 1/4" D, about 31 cubic feet. It weighs 1048 lbs.
Realistically, how many long guns fit in the CS-45E?
The 45-gun rating assumes unscoped guns packed tight. With scopes, plan on about two-thirds of that, roughly 30. The tall interior fits long barrels that won't stand up in a 59" safe.
What lock type is installed on the Hollon CS-45E?
A UL Listed Type 1 Sargent & Greenleaf electronic keypad lock, protected by a drill-resistant hard plate.
Can the Hollon CS-45E be anchored down?
Yes. The base has 4 pre-drilled bolt-down holes for anchoring to concrete or a wood floor.
Why won't my CS-45E keypad accept the code?
Check the battery first. A weak battery is the most common reason, and changing it does not erase the code. If a fresh battery doesn't fix it, email info@garagetoolsstorage.com, or call or text 765-221-3366.
Do I need a special floor or doorway for a 1,048 lb safe?
A ground floor or garage slab is the usual spot for a safe this heavy. The narrowest side is 28" deep, which clears most 36" exterior doors but can be tight in interior doorways, and a 72" safe tilted on a dolly needs overhead clearance.
How does the CS-45E compare to the Black Hawk BHS-45?
They share a 72" x 45" x 28" exterior and weigh about the same. The BHS-45 adds 10-gauge steel, a 90-minute rating and an outlet with USB ports. The CS-45E uses 12-gauge steel with a 75-minute rating.
Would the CS-36E be enough instead of the CS-45E?
The CS-36E is 59" tall, 36" wide and 26" deep with 19.5 cubic feet inside and weighs 720 lbs. Choose the CS-45E if you need the extra height for long rifles or have more than about 24 scoped guns.
How does the CS-45E ship, and what is the return policy?
It ships LTL freight with free liftgate service to the curb; moving it inside is the buyer's job to arrange. Inspect before signing and report damage within 24 hours. Returns are accepted within 14 days with a 20% restocking fee, and freight is charged both ways.
