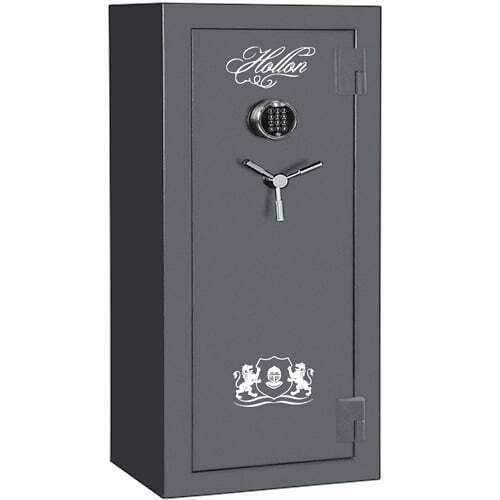

Hollon CS-24E Crescent Shield 24-Gun Safe
The Hollon Crescent Shield CS-24E Gun Safe is built with a 12-gauge steel body and door, 1.5" chrome-plated steel locking bolts and a UL Listed Type 1 S&G electronic keypad lock behind a drill-resistant hard plate. It is assembled in the USA with American and global parts.

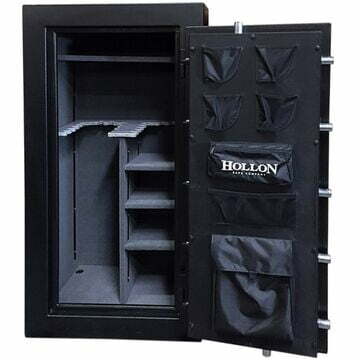

Hollon rates the Crescent Shield series for 75 minutes of fire protection. The 11.7 cubic foot interior is rated for up to 24 long guns and is finished with a deep grey foam-backed lining and a pocket door organizer. It measures 59" H x 30" W x 21" D and weighs 570 lbs.
Key Features
- 12-Gauge Steel Construction: 12-gauge steel body and door.
- 75-Minute Fire Rating: Rated by Hollon for 75 minutes of fire protection.
- S&G Electronic Lock: UL Listed Type 1 Sargent & Greenleaf electronic keypad lock.
- Drill-Resistant Hard Plate: Hard plate protects the lock mechanism against drilling and punch attacks.
- Locking Bolts: 1.5" chrome-plated solid steel locking bolts.
- Capacity: Rated for up to 24 long guns in 11.7 cubic feet.
- Interior Finish: Deep grey foam-backed plush lining to protect stocks and finishes.
- Pocket Door Organizer: Door panel with handgun holsters and accessory pockets.
- Floor Anchoring: 4 pre-drilled bolt-down holes in the base.
- Finish: Gun Metal Gray exterior.
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | CS-24E (Crescent Shield Series) |
| Brand | Hollon Safe |
| Exterior Dimensions (H x W x D) | 59" H x 30" W x 21" D |
| Interior Dimensions (H x W x D) | 55" H x 26 1/4" W x 14" D |
| Weight | 570 lbs |
| Interior Volume | 11.7 cu. ft. |
| Rated Gun Capacity | Up to 24 long guns (manufacturer rating) |
| Fire Rating | 75 minutes |
| Steel | 12-gauge body and door |
| Lock | UL Listed Type 1 S&G electronic lock |
| Locking Bolts | 1.5" chrome steel bolts |
| Floor Anchoring | 4 pre-drilled bolt-down holes |
| Finish | Gun Metal Gray |
| Manufacturing | Assembled in the USA with American and global parts |
Frequently Asked Questions
How many guns can the Hollon CS-24E hold?
Hollon rates it for 24 long guns, which assumes unscoped guns packed tight. With scopes and accessories, about two-thirds is realistic, roughly 16. The interior is 55" H x 26 1/4" W x 14" D (11.7 cubic feet).
What are the exterior dimensions and weight of the CS-24E?
The CS-24E measures 59" H x 30" W x 21" D and weighs 570 lbs.
Can the Hollon CS-24E be bolted down to the floor?
Yes. The base has 4 pre-drilled anchor holes for securing it to a concrete slab or wood floor.
What type of lock is installed on the CS-24E?
A UL Listed, Type 1 rated Sargent & Greenleaf electronic keypad lock, protected by a drill-resistant hard plate.
What is the fire rating of the Hollon CS-24E safe?
Hollon rates the CS-24E for 75 minutes of fire protection. Fire ratings are designed around paper; keep digital media in a separate media container.
The CS-24E won't open with the right code. What is the fix?
In most cases it is the battery. Replace it and try again; the S&G lock keeps your code during a battery change. If a new battery doesn't help, email info@garagetoolsstorage.com, or call or text 765-221-3366.
Will the CS-24E fit through an interior door?
Usually. It is 30" wide but only 21" deep, so it can be turned to pass through on its depth. Allow extra for the handle and keypad, and plan for 570 lbs on stairs.
How is the CS-24E shipped, and what if I need to return it?
It ships LTL freight with free liftgate service to the curb; moving it inside is up to the buyer. Inspect before signing and report damage within 24 hours. Returns are accepted within 14 days with a 20% restocking fee, and freight is charged both ways.
Should I go up to the CS-36E instead?
The CS-36E is 36" wide and 26" deep, weighs 720 lbs and has 19.5 cubic feet inside versus 11.7. Its 19" interior depth makes room for scoped rifles that crowd a 14" deep safe.
How does the CS-24E compare to the Black Hawk BHS-22?
Both are 59" tall and 30" wide. The BHS-22 is 24" deep, weighs 600 lbs, uses 10-gauge steel and has a 90-minute rating plus a built-in outlet. The CS-24E is 3" shallower, with 12-gauge steel and a 75-minute rating.
