FD-2714E B-Rated Commercial Depository Drop Safe with Electronic Keypad
The FD-2714E Depository Drop Safe provides maximum protection and fast access control for commercial cash-handling environments, retail locations, restaurants, and offices. Equipped with a front-loading drop drawer and an internal Anti-Fish Baffle, employees can quickly drop cash envelopes, check bundles, and till receipts without gaining access to the main interior vault. Powered by a high-security UL Listed Type 1 Sargent & Greenleaf (S&G) Electronic Lock, authorized personnel gain rapid digital PIN access. Built with a 1/2" thick solid steel door, an internal spring-loaded relocker, and drill/ballistic-resistant hardplate, the FD-2714E delivers enterprise-grade burglary defense for daily business operations.
Key Security & Engineering Features

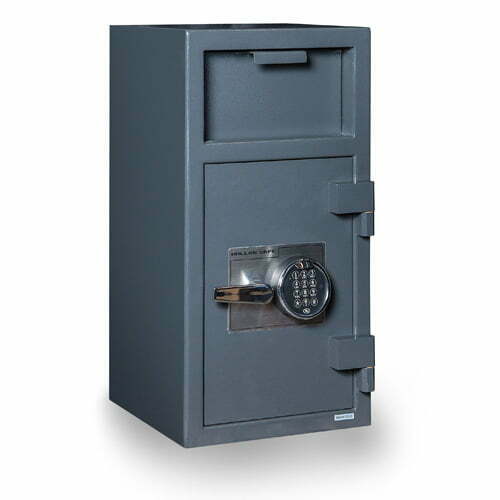

- UL Listed Type 1 S&G Electronic Lock: Industry-leading Sargent & Greenleaf digital keypad lock ensures rapid access and effortless user PIN management.
- B-Rated Solid Steel Construction: Built with a 1/2" thick solid steel door and heavy-gauge steel body engineered to resist forced entry.

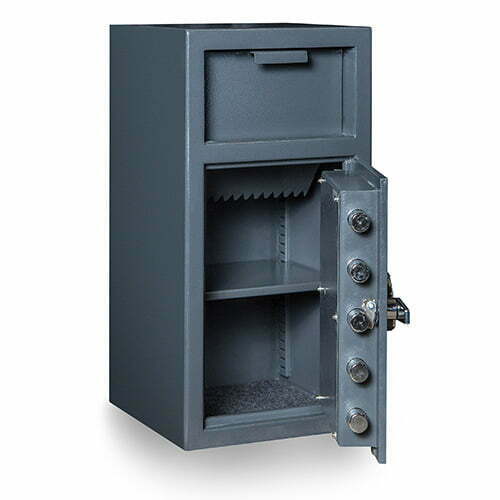

- Anti-Fish Baffle: Internal sawtooth anti-fish baffle behind the deposit door physically blocks fishing tools, hooks, and tape from pulling dropped contents back out.
- Internal Spring-Loaded Relocker: Triggers a secondary internal deadlock mechanism if the primary lock is tampered with or physically attacked.
- Drill & Ballistic Resistant Hardplate: Protects both the electronic lock mechanism and internal relocker from drill, punch, and ballistic forced entry attempts.
- Solid Active Locking Bolts: Equipped with (5) 1-1/4" solid steel active locking bolts for maximum door engagement.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar prevents door prying and removal during aggressive burglary attacks.
- Floor Mounting Ready: Pre-drilled with (4) anchor holes in the base for firm anchoring to concrete or wood floors (hardware not included).
- Assembled in the USA: Proudly assembled in the USA with American and global parts.
Technical Specifications
| Model | FD-2714E |
| Safe Category | B-Rated Commercial Depository Drop Safe |
| Lock Type | UL Listed Type 1 S&G (Sargent & Greenleaf) Electronic Lock |
| Deposit Mechanism | Front-Loading Drop Drawer with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Locking System | (5) 1-1/4" Active Solid Steel Bolts + Heavy-Duty Dead Bar |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Exterior Dimensions (H x W x D) | 27" x 14" x 14" |
| Interior Dimensions (H x W x D) | 18" x 13-1/2" x 11" |
| Weight | 115 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the electronic lock on the FD-2714E compare to the FD-2714C dial lock?
The FD-2714E uses a UL Listed Type 1 S&G electronic keypad lock, which allows authorized managers to enter codes in seconds and quickly change PINs without calling a locksmith, whereas the FD-2714C uses a traditional manual combination dial lock.
What is an anti-fish baffle on a depository safe?
An anti-fish baffle consists of internal sawtooth metal guards built into the drop chute. It allows cash bags and envelopes to fall smoothly into the vault while physically blocking hooks, tape, or tools from fishing items back through the drop door.
What happens if someone tries to drill into the lock?
The lock and internal relocker are protected by a drill and ballistic-resistant hardplate. If an aggressive drill attempt penetrates the outer layer, the internal spring-loaded relocking device triggers instantly, snapping a secondary bolt into place to keep the door locked tight.
What are the interior dimensions and weight of the FD-2714E?
The FD-2714E weighs 115 lbs and features exterior dimensions of 27" H x 14" W x 14" D with a spacious 18" H x 13-1/2" W x 11" D internal vault space.
