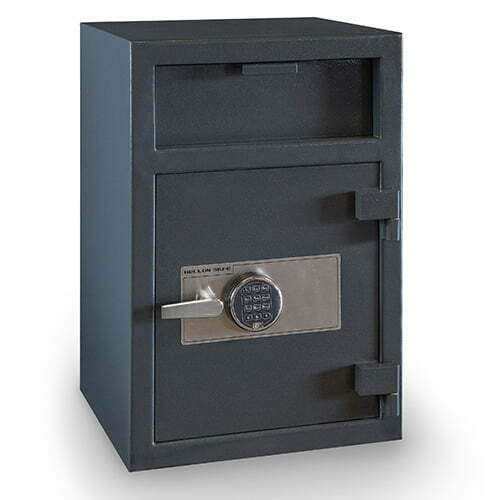

FD-3020E Heavy-Duty B-Rated Commercial Depository Drop Safe with Digital Keypad
The FD-3020E Depository Drop Safe provides maximum physical security and rapid electronic access control for high-volume commercial cash-handling environments, retail chains, convenience stores, restaurants, and financial operations. Designed to protect revenue against internal shrinkage and external theft, this heavy-duty 198 lb B-rated safe features a front-loading drop chute with an internal Anti-Fish Baffle, allowing employees to quickly deposit cash envelopes, till bags, and receipts without accessing the main vault interior.
Powered by a high-security UL Listed Type 1 Sargent & Greenleaf (S&G) Electronic Keypad Lock, authorized managers enjoy rapid digital PIN access and simple code administration. Constructed with a massive 1/2" solid steel door, a removable interior shelf, and a 3.65 cubic foot capacity, the FD-3020E offers the perfect balance of organized storage and heavy-duty burglary defense.
Key Security & Engineering Features
- UL Listed Type 1 S&G Electronic Lock: Industry-standard Sargent & Greenleaf digital keypad lock ensures rapid opening times and effortless PIN code updates for management.
- B-Rated Solid Steel Construction: High-strength continuous-weld body with a heavy 1/2" thick solid steel door built to withstand brute force burglary attempts.

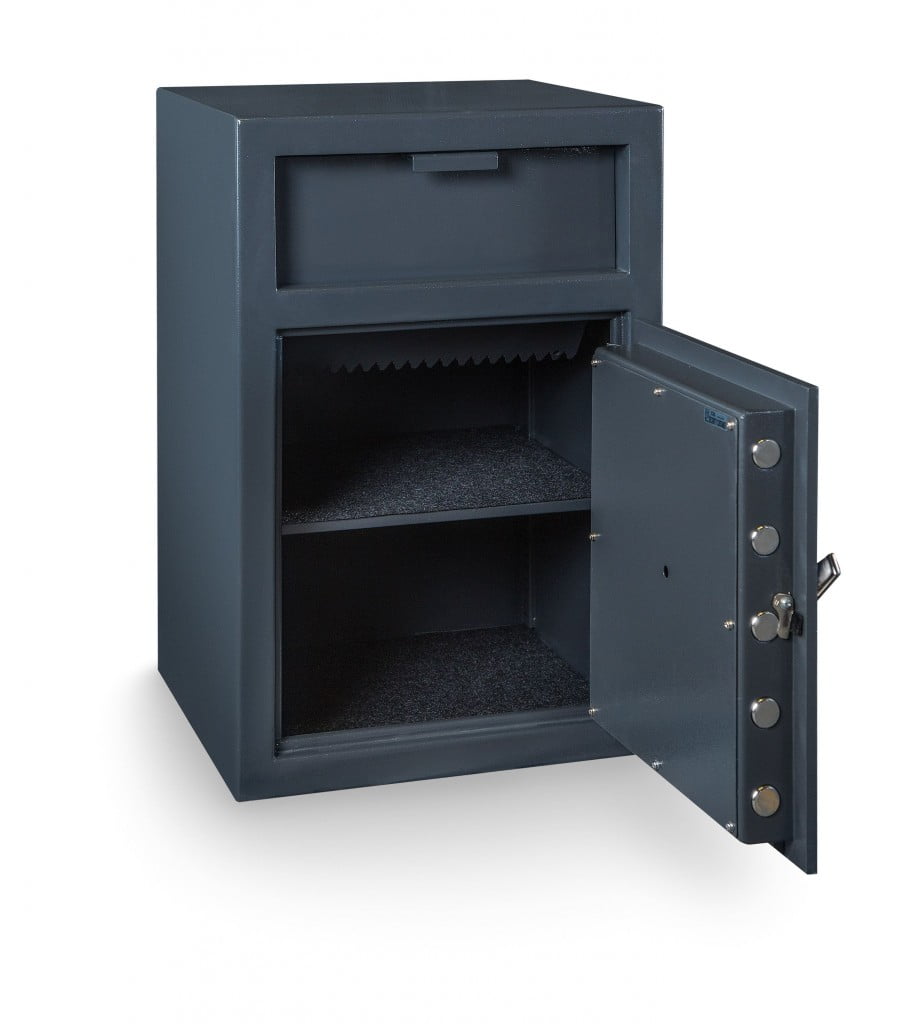

- One Removable Interior Shelf: Includes a removable shelf allowing for organized separation of cash bags, coin trays, ledgers, and reserve till cash.
- Anti-Fish Baffle: Internal sawtooth anti-fish guard behind the deposit door physically blocks fishing tools, hooks, and tape from extracting deposited cash.
- Internal Spring-Loaded Relocker: Automatically triggers a secondary internal deadlock mechanism if physical tampering or punch attacks are detected.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields both the S&G electronic lock mechanism and internal relocker from drill and ballistic attack vectors.
- Solid Active Locking Bolts: Equipped with (5) 1-1/4" solid steel active locking bolts for comprehensive door engagement.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar locks the door frame against prying and hinge-cutting tools.
- Floor Mounting Ready: Pre-drilled with (4) anchor holes in the base for firm attachment to concrete or wood floors (mounting hardware not included).
- Assembled in the USA: Proudly assembled in the USA with high-quality American and global parts.
Technical Specifications
| Model | FD-3020E |
| Safe Category | B-Rated Commercial Depository Drop Safe |
| Lock Type | UL Listed Type 1 S&G (Sargent & Greenleaf) Electronic Lock |
| Deposit Mechanism | Front-Loading Drop Drawer with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Locking System | (5) 1-1/4" Active Solid Steel Bolts + Heavy-Duty Dead Bar |
| Internal Organization | (1) Removable Interior Shelf |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Exterior Dimensions (H x W x D) | 30" x 20" x 20" |
| Interior Dimensions (H x W x D) | 19-3/4" x 18" x 17" |
| Interior Capacity | 3.65 Cubic Feet |
| Weight | 198 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the electronic lock on the FD-3020E compare to the FD-3020C dial lock?
The FD-3020E features a UL Listed Type 1 S&G digital electronic keypad that allows managers to unlock the safe in seconds and change access PINs on demand without a technician. The FD-3020C utilizes a mechanical combination dial lock.
Does the FD-3020E come with shelves?
Yes, the FD-3020E includes one removable interior shelf, allowing you to customize the internal 3.65 cu. ft. vault space for coin trays, cash drawers, or documentation.
What is an anti-fish baffle on a depository safe?
An anti-fish baffle consists of internal sawtooth metal guards in the deposit chute. It allows cash bags and envelopes to drop smoothly into the main vault while preventing thieves from fishing deposits back out with wires, tape, or hooks.
What happens if someone tries to drill into the S&G keypad lock?
The lock and internal relocker are shielded by a drill and ballistic-resistant hardplate. If a drill penetrates the housing, the internal spring-loaded relocker automatically fires a secondary bolt to deadlock the safe shut.
What are the exterior dimensions and total weight of the FD-3020E?
The FD-3020E measures 30" High x 20" Wide x 20" Deep on the exterior and weighs 198 lbs, providing substantial weight and capacity for commercial security needs.
