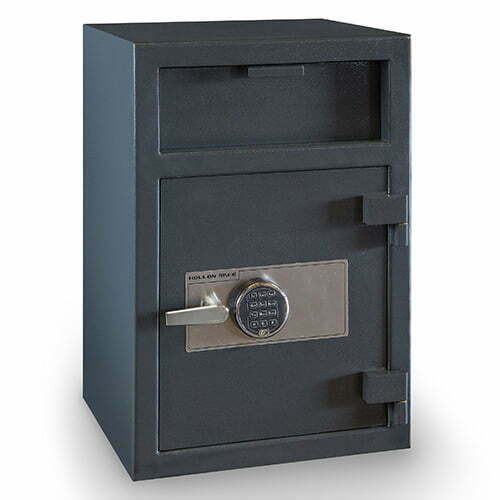

FD-3020EILK Heavy-Duty B-Rated Depository Safe with S&G Electronic Lock & Dual Key Inner Locker
The FD-3020EILK Depository Drop Safe provides maximum physical protection, rapid digital access, and multi-tier dual-custody security for commercial cash-handling operations, retail businesses, convenience stores, and restaurants. Featuring a high-security UL Listed Type 1 Sargent & Greenleaf (S&G) Electronic Keypad Lock on the main door paired with an internal UL Listed Dual Key Inner Locking Compartment Drawer, this commercial safe allows businesses to strictly partition cash access between daily store managers and keyholders.
Engineered with a 1/2" thick solid steel door, an internal Anti-Fish Baffle to stop drop-chute theft, a spring-loaded relocking mechanism, and drill/ballistic-resistant hardplate, the 180 lb FD-3020EILK delivers enterprise-grade defense against internal shrinkage and external burglary.
Key Security & Engineering Features
- UL Listed Type 1 S&G Electronic Lock: Outer door features a Sargent & Greenleaf digital keypad for rapid access and simple code management.

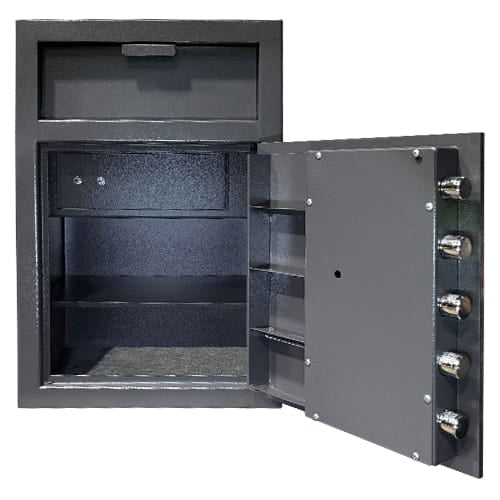

- UL Listed Dual Key Inner Compartment: Integrated inner lock box drawer requires two physical keys, enforcing dual-custody access for secondary reserve cash, till drawers, or high-value deposits.
- B-Rated Heavy-Duty Steel Construction: Continuous-weld body with a 1/2" thick solid steel main outer door designed for commercial burglary defense.
- Anti-Fish Baffle: Internal sawtooth anti-fish guard behind the deposit door physically blocks fishing tools, wire, hooks, and tape from pulling dropped contents back out.
- Internal Spring-Loaded Relocker: Automatically triggers an auxiliary deadlock mechanism if physical tampering, punch, or drill attacks are detected.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields both the outer electronic lock and internal relocker from mechanical drilling and ballistic attacks.
- Solid Active Locking Bolts: Equipped with (5) 1-1/4" solid steel active locking bolts for comprehensive door engagement.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar locks into the frame to prevent door removal during prying attacks.
- Pre-Drilled Anchor Holes: Features (4) pre-drilled anchor holes in the base for firm attachment to concrete or wood floors (mounting hardware not included).
- Assembled in the USA: Proudly assembled in the USA with American and global components.
Technical Specifications
| Model | FD-3020EILK |
| Safe Category | B-Rated Commercial Depository Drop Safe with Inner Locker |
| Main Door Lock Type | UL Listed Type 1 S&G (Sargent & Greenleaf) Electronic Keypad Lock |
| Inner Locker Lock Type | UL Listed Dual Key Lock (Dual Custody Control) |
| Deposit Mechanism | Front-Loading Drop Drawer with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Locking System | (5) 1-1/4" Active Solid Steel Bolts + Heavy-Duty Dead Bar |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Exterior Dimensions (H x W x D) | 30" x 20" x 20" |
| Main Interior Dimensions (H x W x D) | 12-1/4" x 19-3/4" x 16-7/8" |
| Inner Lock Box Dimensions (H x W x D) | 4-3/8" x 19-3/4" x 16-7/8" |
| Weight | 180 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the combination of the digital lock and inner dual-key compartment work?
The outer main door is accessed via the UL Listed Type 1 S&G electronic keypad, allowing quick PIN access for daily management. The internal drawer is controlled separately by a UL Listed Dual Key Lock requiring two distinct keys to open, ensuring that even managers with the digital code cannot open the inner compartment without the keyholders present.
How does the FD-3020EILK differ from the FD-3020CILK model?
Both safes share the same 30" x 20" x 20" outer frame, 180 lb weight, and inner dual-key drawer. However, the FD-3020EILK features a digital S&G electronic keypad on the main door, while the FD-3020CILK uses a mechanical combination dial lock.
What is an anti-fish baffle on a depository drop safe?
An anti-fish baffle is a set of internal sawtooth metal plates inside the drop chute. It allows cash bags and envelopes to drop smoothly into the main vault while preventing thieves from fishing deposits back out using wires, tape, or hooks.
What are the dimensions of the FD-3020EILK safe and its internal drawer?
The exterior measures 30" H x 20" W x 20" D. The main interior compartment measures 12-1/4" H x 19-3/4" W x 16-7/8" D, and the inner dual-key lock box drawer measures 4-3/8" H x 19-3/4" W x 16-7/8" D.
