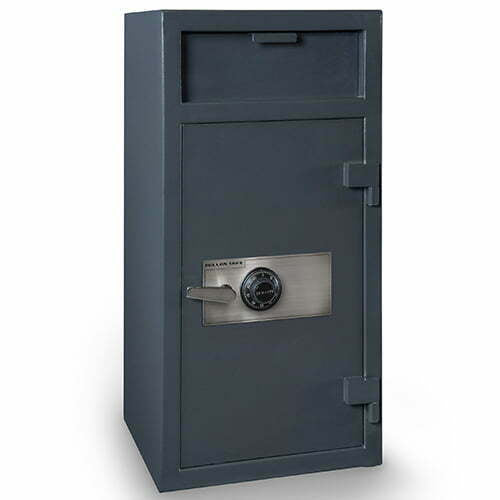

FD-4020C 40" B-Rated Single Door Depository Drop Safe with UL Listed S&G Group 2 Dial Lock
The FD-4020C Single Door Depository Safe is a larger drop safe for cash, till trays, deposit bags and receipts in retail stores, convenience stores and offices. It stands 40 inches tall, weighs 250 lbs, and has a front deposit door with an internal anti-fish baffle.
A UL Listed Sargent & Greenleaf (S&G) Group 2 combination dial lock secures the door with no batteries to replace. The 1/2" thick solid steel door is held by (7) 1-1/4" active solid steel locking bolts, with a spring-loaded relocker and drill/ballistic resistant hardplate behind the lock.
Key Security & Engineering Features
- UL Listed S&G Group 2 Dial Lock: Mechanical Sargent & Greenleaf combination lock; no battery replacement needed.
- B-Rated Steel Construction: Welded steel body with a 1/2" thick solid steel door.
- Anti-Fish Baffle: Baffle behind the deposit door blocks fishing tools, hooks and tape.
- 7-Bolt Active Locking System: (7) 1-1/4" solid steel active locking bolts.
- Removable Interior Shelf: One removable, non-adjustable shelf for cash drawers, reserve funds and records.
- Internal Spring-Loaded Relocker: Fires a secondary deadlock if the primary lock is punched, drilled or otherwise attacked.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields the lock and the internal relocker.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar keeps the door in the frame if the hinges are attacked.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | FD-4020C |
| Safe Category | B-Rated Single Door Commercial Depository Drop Safe |
| Lock Type | UL Listed S&G (Sargent & Greenleaf) Group 2 Combination Dial Lock |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Locking Bolts | (7) 1-1/4" Solid Steel Active Locking Bolts + Full Dead Bar |
| Interior Organization | 1 Removable (Non-Adjustable) Shelf |
| Exterior Dimensions (H x W x D) | 40" x 20" x 20" |
| Interior Dimensions (H x W x D) | 27-1/8" x 19-3/4" x 16" |
| Weight | 250 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the FD-4020C differ from double-door models like the FDD-3020 series?
The FD-4020C is a single-door safe, 40" tall with 27-1/8" of interior height and a 250 lb weight. The FDD-3020 series is 30" tall with two separately locked compartments. The FD-4020C gives you one taller open space behind one S&G dial.
What mechanism prevents cash from being retrieved back through the deposit door?
An anti-fish baffle inside the deposit opening. Envelopes and bags drop past it, but it blocks wire, tape or hooks from pulling them back out.

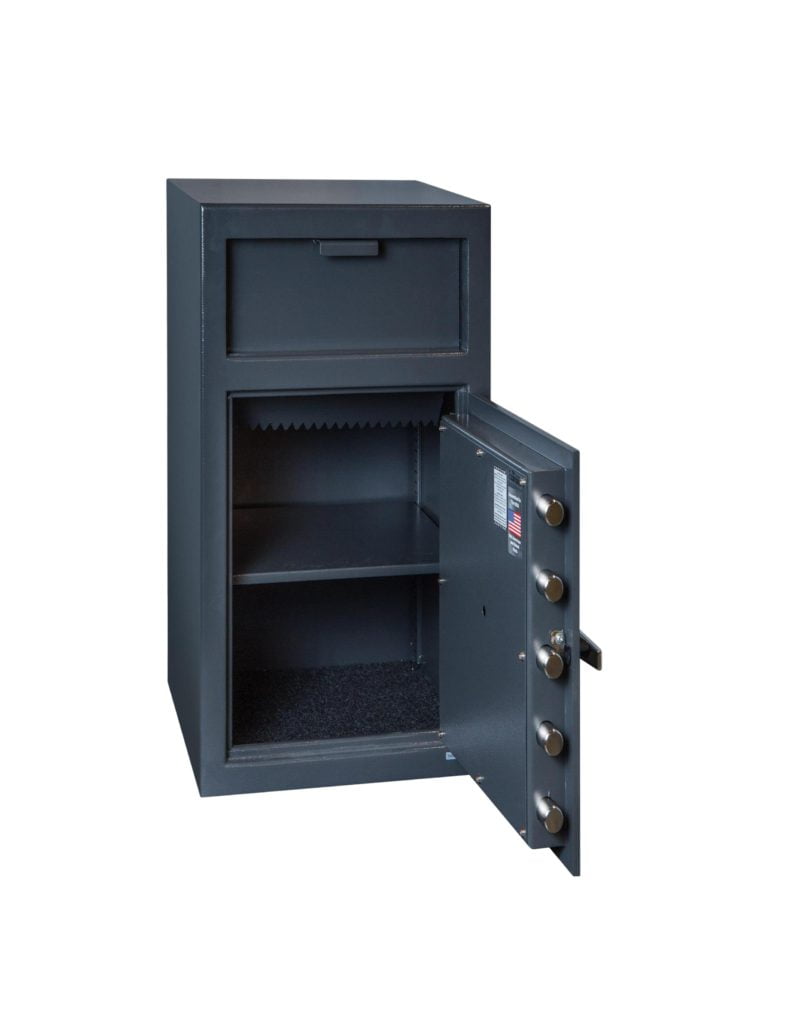

Is the internal shelf inside the FD-4020C removable?
Yes. The single shelf lifts out to make room for taller items or cash boxes, though its height is fixed.
What are the exterior and interior dimensions and weight of the FD-4020C safe?
Exterior: 40" H x 20" W x 20" D. Interior: 27-1/8" H x 19-3/4" W x 16" D. Weight: 250 lbs.
How does the FD-4020C compare to the 30-inch FD-3020C?
The FD-4020C is 10" taller, weighs 250 lbs instead of 198 lbs, uses seven locking bolts instead of five, and adds a removable shelf. Its interior is 27-1/8" H x 19-3/4" W x 16" D versus 19-3/4" H x 18" W x 17" D on the FD-3020C.
Why does the bolt count matter?
More bolts spread the door's grip along the frame, so there are fewer weak points for a pry bar. The FD-4020C has seven 1-1/4" solid steel bolts plus a hinge-side dead bar.
Is a mechanical dial slower to open than a keypad?
Yes, a dial takes several turns to open. In exchange there are no batteries or electronics. If quick access matters more, the FD-4020E is the same safe with an S&G keypad.
How will the 250 lb FD-4020C be delivered?
By LTL freight with a free liftgate, curbside. Moving it inside is the customer's job, so line up two or three helpers and a heavy-duty dolly. Inspect before signing and report damage within 24 hours.
Can the FD-4020C protect documents in a fire?
Hollon does not list a fire rating for this safe. It is meant for burglary and cash-drop protection; keep important papers in a fire-rated safe.
Is there a manufacturer warranty on the FD-4020C?
Yes. Hollon's limited warranty covers manufacturing defects in parts and labor for one year from purchase, for the original owner.
