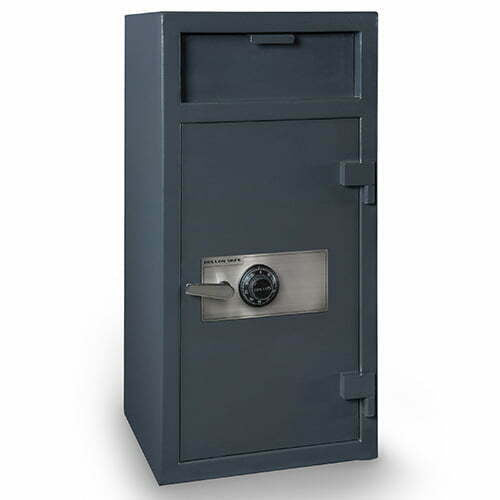

FD-4020CILK 40" B-Rated Depository Drop Safe with Inner Locking Compartment & UL Listed Group 2 Dial Lock
The FD-4020CILK Depository Safe is built for businesses that want two levels of access inside one safe. Along with the main compartment, it has an inner locking compartment with dual key access, so funds placed in the lock box stay secured even after the main door is opened.
The main door uses a UL Listed Group 2 combination dial lock (Sargent & Greenleaf), with no batteries. It has a 1/2" thick solid steel door, (7) 1-1/4" active solid steel locking bolts, an internal anti-fish baffle behind the deposit door, a spring-loaded relocker and a drill/ballistic resistant hardplate. Weight is 250 lbs.
Key Security & Engineering Features

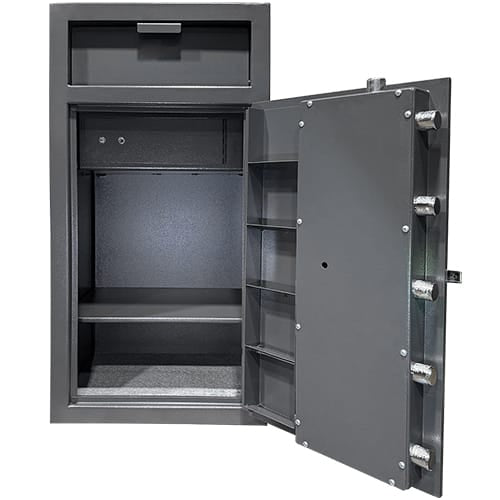

- Inner Locking Compartment with Dual Key Access: Internal lock box that needs two keys to open, for dual-custody control inside the safe.
- UL Listed Group 2 Combination Dial Lock: Sargent & Greenleaf mechanical dial on the outer door; no batteries.
- B-Rated Steel Construction: Welded steel body with a 1/2" thick solid steel outer door.
- Anti-Fish Baffle: Internal guard behind the deposit door blocks fishing tools, wire and tape.
- 7-Bolt Active Locking System: (7) 1-1/4" solid steel active locking bolts.
- Removable Interior Shelf: One removable, non-adjustable shelf for float cash, coin bags or records.
- Internal Spring-Loaded Relocker: Fires a secondary deadlock if the primary lock is punched, drilled or otherwise attacked.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields the lock and the internal relocker.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar keeps the door in the frame if the hinges are attacked.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | FD-4020CILK |
| Safe Category | B-Rated Depository Drop Safe with Inner Locking Box |
| Outer Door Lock Type | UL Listed Group 2 Combination Dial Lock (S&G) |
| Inner Compartment Lock Type | Dual Key Access Lock (Dual Custody Control) |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Locking Bolts | (7) 1-1/4" Solid Steel Active Locking Bolts + Full Dead Bar |
| Interior Organization | Inner Locking Compartment + 1 Removable (Non-Adjustable) Shelf |
| Exterior Dimensions (H x W x D) | 40" x 20" x 20" |
| Main Interior Dimensions (H x W x D) | 19-5/8" x 19-3/4" x 16" |
| Interior Lock Box Dimensions (H x W x D) | 9-3/4" x 19-1/2" x 15-1/4" |
| Weight | 250 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the FD-4020CILK differ from the standard FD-4020C model?
Both share the 40" x 20" x 20" body, 250 lb weight, 1/2" steel door and S&G Group 2 dial. The FD-4020CILK adds an inner locking compartment with dual key access, which reduces the open main interior to 19-5/8" of height.
How does the inner dual key locking compartment work?
The lock box measures 9-3/4" H x 19-1/2" W x 15-1/4" D and needs two separate keys to open. A manager can open the main door for the shelf and other storage without being able to open the lock box.
What stops money from being fished out through the deposit opening?
An anti-fish baffle behind the deposit door blocks wire, hooks and tape from pulling envelopes back out.
What are the interior dimensions and weight of the FD-4020CILK safe?
It weighs 250 lbs. The main interior is 19-5/8" H x 19-3/4" W x 16" D, and the lock box is 9-3/4" H x 19-1/2" W x 15-1/4" D.
How does the FD-4020CILK compare with the 30-inch FD-3020CILK?
The FD-4020CILK is 10" taller with a much deeper lock box (9-3/4" high versus 4-3/8"), seven locking bolts instead of five, a removable shelf, and a weight of 250 lbs versus 180 lbs.
Is there a shelf in the main compartment?
Yes, one removable shelf. Its height is not adjustable.
Can I set my own dial combination?
Hollon requires Group 2 dial combinations to be reset by a qualified locksmith; doing it yourself can void the warranty.
Is a B-rated safe strong enough for a retail store?
B-rated safes are a common choice for daily cash drops in stores and restaurants. B-rate reflects construction, not a timed attack test, so check your insurer's cash limit for this class before keeping large amounts overnight.
What kind of floor anchors should I use?
Use anchors suited to your floor through the four pre-drilled holes in the base: wedge or sleeve anchors for concrete, heavy lag bolts for wood. Hardware is not included.
How is the FD-4020CILK shipped?
LTL freight with free liftgate service, delivered curbside. Arrange help and a dolly to move the 250 lb safe inside, inspect it before signing and report any damage within 24 hours.
