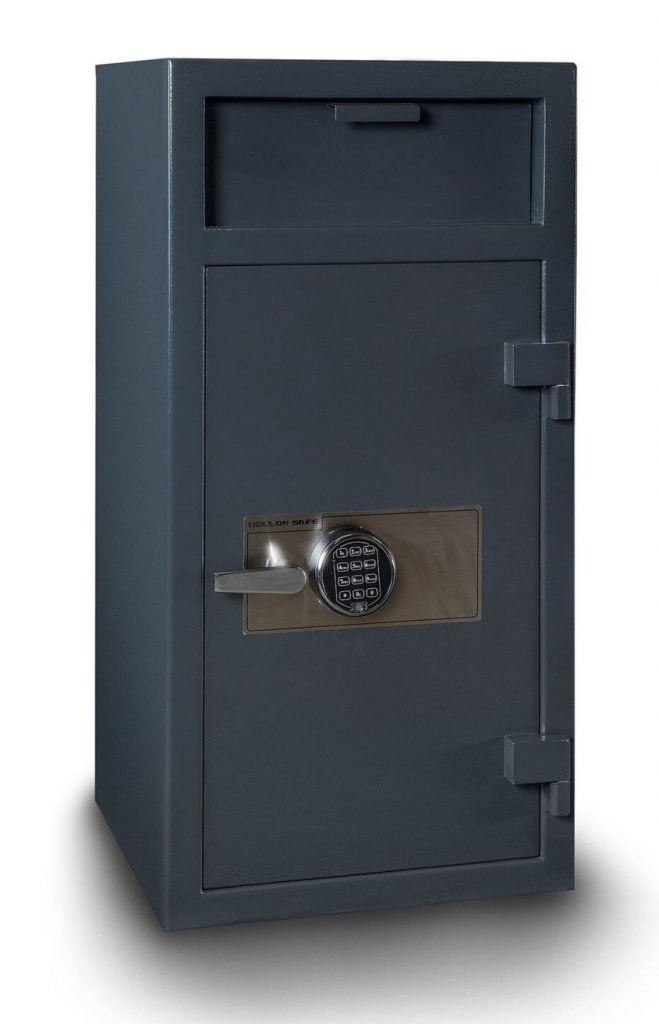

FD-4020E 40" B-Rated Single Door Depository Drop Safe with S&G UL Listed Type 1 Electronic Keypad Lock
The FD-4020E Single Door Depository Safe is a larger drop safe for cash receipts, till trays and deposit envelopes in retail and convenience stores. It stands 40 inches tall, weighs 250 lbs and has a front deposit door with an internal anti-fish baffle.
A Sargent & Greenleaf (S&G) UL Listed Type 1 electronic lock gives managers quick PIN access. The 1/2" thick solid steel door is held by (7) 1-1/4" active solid steel locking bolts, with an internal spring-loaded relocker and a drill/ballistic resistant hardplate.
Key Security & Engineering Features
- S&G UL Listed Type 1 Electronic Lock: Sargent & Greenleaf keypad with programmable access codes.
- B-Rated Steel Construction: Welded steel body with a 1/2" thick solid steel door.
- Anti-Fish Baffle: Internal guard behind the deposit door blocks hooks, tape and tools.
- 7-Bolt Active Locking System: (7) 1-1/4" solid steel active locking bolts.

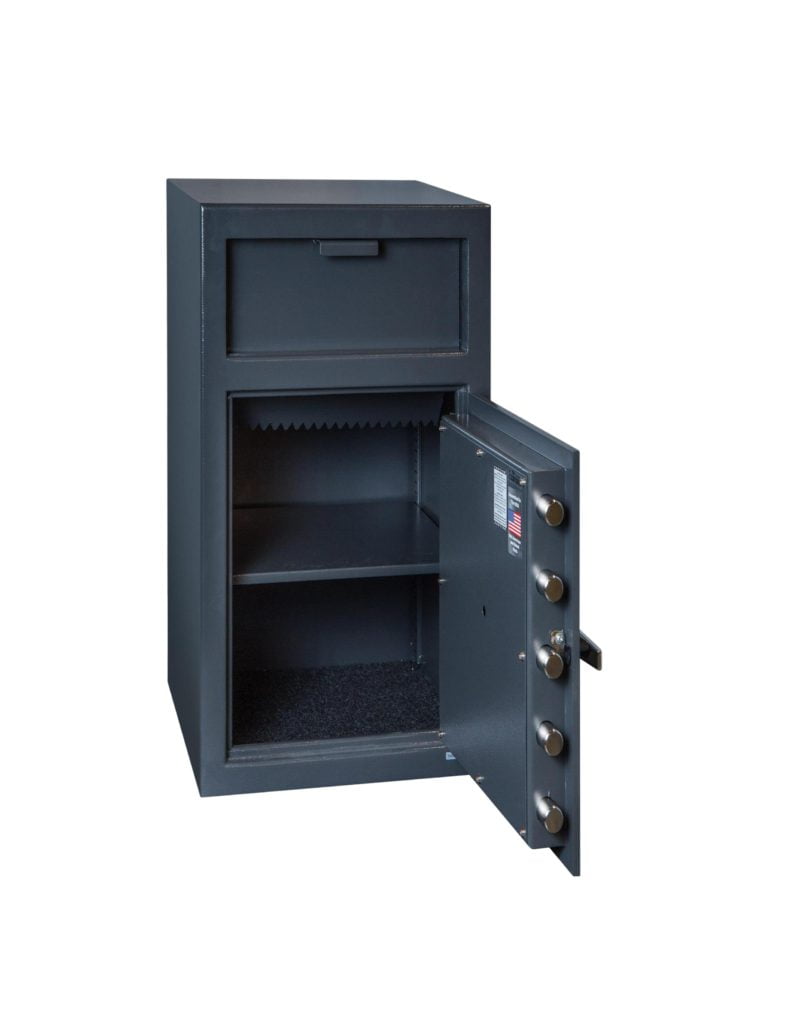

- Removable Interior Shelf: One removable, non-adjustable shelf for cash drawers, floats and documents.
- Internal Spring-Loaded Relocker: Fires a secondary deadlock if the primary lock is punched, drilled or otherwise attacked.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields the lock and the internal relocker.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar keeps the door in the frame if the hinges are attacked.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
Technical Specifications
| Model | FD-4020E |
| Safe Category | B-Rated Single Door Commercial Depository Drop Safe |
| Lock Type | S&G (Sargent & Greenleaf) UL Listed Type 1 Electronic Keypad Lock |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Locking Bolts | (7) 1-1/4" Solid Steel Active Locking Bolts + Full Dead Bar |
| Interior Organization | 1 Removable (Non-Adjustable) Shelf |
| Exterior Dimensions (H x W x D) | 40" x 20" x 20" |
| Interior Dimensions (H x W x D) | 27-1/8" x 19-3/4" x 16" |
| Weight | 250 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
Frequently Asked Questions
How does the FD-4020E differ from the FD-4020C model?
Both have the same 40" x 20" x 20" body, 250 lb weight, 1/2" steel door and seven locking bolts. The FD-4020E uses an S&G UL Listed Type 1 electronic keypad; the FD-4020C uses an S&G Group 2 mechanical dial.
What stops people from fishing deposited money back out through the deposit door?
An anti-fish baffle inside the deposit opening. It lets envelopes and bags fall into the safe and physically blocks wire, tape or hooks from reaching them.
Can the interior shelf be adjusted or removed?
It can be removed to fit taller cash boxes or till stacks, but its height position is fixed.
What are the interior dimensions and weight of the FD-4020E safe?
Inside it measures 27-1/8" H x 19-3/4" W x 16" D, in a 40" H x 20" W x 20" D cabinet that weighs 250 lbs.
My FD-4020E keypad will not open the safe. What now?
Most of the time it is the battery. Install a fresh one; S&G electronic locks keep the programmed code through a battery change. If the safe still will not open, email info@garagetoolsstorage.com, or call or text 765-221-3366.
Do staff need the code to drop deposits?
No. Anyone can make a drop through the front deposit door. Only code holders can open the main door to reach the deposits.
Is the electronic lock UL listed?
Yes. The S&G lock is UL Listed Type 1 under UL 2058, the standard for high-security electronic locks. The listing covers the lock; the safe itself is B-rated.
Where should I install a 40-inch drop safe?
Most businesses put it in a back office or behind the counter, out of public view, and bolt it to a concrete floor. At 40" tall it will not fit under a standard 36" counter, so plan floor space of at least 20" x 20" plus room for the door to swing open.
What happens on delivery day?
A freight truck with a liftgate sets the safe down at the curb. You are responsible for moving it inside. Check it over before signing and report any damage within 24 hours.
Can I return the FD-4020E if it is not right for me?
Returns are accepted within 14 days. A 20% restocking fee applies and freight is charged both ways.
