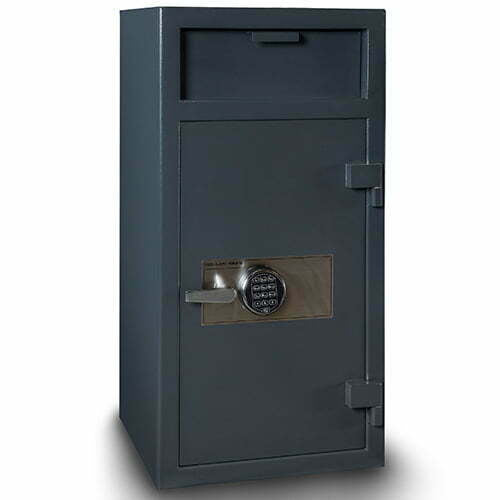

FD-4020EILK 40" B-Rated Depository Drop Safe with Inner Locking Compartment & UL Listed Type 1 S&G Electronic Lock
The FD-4020EILK Depository Safe combines keypad access with a second locked space inside. It has an inner locking compartment with key access, so a manager who opens the outer door with a PIN still cannot reach the lock box without the key.
The outer door uses a UL Listed Type 1 Sargent & Greenleaf (S&G) electronic lock. It has a 1/2" thick solid steel door, (7) 1-1/4" active solid steel locking bolts, an internal anti-fish baffle behind the deposit door, a spring-loaded relocker and a drill/ballistic resistant hardplate. Weight is 250 lbs.
Key Security & Engineering Features
- Inner Locking Compartment with Key Access: Internal lock box that needs a key to open, even after the outer door is unlocked.
- UL Listed Type 1 S&G Electronic Lock: Sargent & Greenleaf keypad with PIN access and code management.
- B-Rated Steel Construction: Welded steel cabinet with a 1/2" thick solid steel outer door.
- Anti-Fish Baffle: Internal guard behind the deposit door blocks fishing tools, hooks and tape.
- 7-Bolt Active Locking System: (7) 1-1/4" solid steel active locking bolts.
- Removable Interior Shelf: One removable, non-adjustable shelf for cash drawers, floats or documents.
- Internal Spring-Loaded Relocker: Fires a secondary deadlock if the primary lock is punched, drilled or otherwise attacked.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate shields the lock and the internal relocker.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar keeps the door in the frame if the hinges are attacked.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | FD-4020EILK |
| Safe Category | B-Rated Depository Drop Safe with Inner Key Compartment |
| Outer Door Lock Type | UL Listed Type 1 S&G (Sargent & Greenleaf) Electronic Lock |
| Inner Compartment Lock Type | Key Access Lock Box |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle |
| Door Construction | 1/2" Solid Steel Door |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocker |
| Locking Bolts | (7) 1-1/4" Solid Steel Active Locking Bolts + Full Dead Bar |
| Interior Organization | Inner Key Locker + 1 Removable (Non-Adjustable) Shelf |
| Exterior Dimensions (H x W x D) | 40" x 20" x 20" |
| Main Interior Dimensions (H x W x D) | 19-5/8" x 19-3/4" x 16" |
| Interior Lock Box Dimensions (H x W x D) | 9-3/4" x 19-1/2" x 15-1/4" |
| Weight | 250 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does the FD-4020EILK differ from the FD-4020CILK model?
Both have the same 40" x 20" x 20" body, 250 lb weight, 1/2" steel door and inner locking compartment. The FD-4020EILK has an S&G UL Listed Type 1 electronic keypad on the outer door; the FD-4020CILK has an S&G Group 2 mechanical dial. Hollon lists the EILK lock box as key access and the CILK lock box as dual key access.
How does the inner key-locking compartment work?

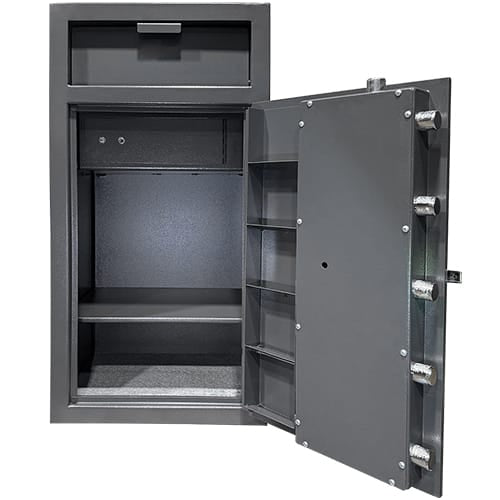

The lock box is 9-3/4" H x 19-1/2" W x 15-1/4" D and opens only with its key. Managers can use the keypad to reach the shelf and main compartment without access to what is in the lock box.
What prevents cash from being fished back out through the deposit door?
The deposit opening has an internal anti-fish baffle that lets envelopes fall in but blocks tools, wire or tape from reaching them.
What are the interior dimensions and weight of the FD-4020EILK?
It weighs 250 lbs. The main interior is 19-5/8" H x 19-3/4" W x 16" D, and the key-locked box is 9-3/4" H x 19-1/2" W x 15-1/4" D.
The keypad on my FD-4020EILK seems dead. How do I fix it?
Swap in a new battery first, since a drained battery is behind most keypad problems. The S&G lock keeps its code while the battery is replaced. If a new battery does not solve it, email info@garagetoolsstorage.com, or call or text 765-221-3366.
What fits in the inner lock box?
At 9-3/4" H x 19-1/2" W x 15-1/4" D it holds several bank deposit bags, coin rolls, cash envelopes or a spare cash drawer insert.
Is the FD-4020EILK fire resistant?
No fire rating is published for this model. It is intended for burglary and cash-control protection rather than fire protection.
What should I check when the safe is delivered?
Look over the crate and the safe for damage before signing, note anything on the receipt, and report it within 24 hours. The safe is delivered curbside by liftgate; moving it inside is up to you.
Does Hollon warranty the FD-4020EILK?
Hollon's limited warranty covers manufacturing defects in parts and labor for one year from purchase for the original owner.
Can I bolt the FD-4020EILK to the floor?
Yes. Four pre-drilled holes in the base allow anchoring to concrete or wood. Anchors are not included.
