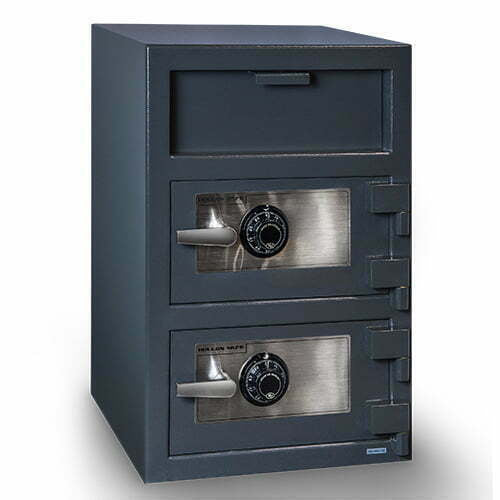

FDD-3020CC Heavy-Duty B-Rated Double Door Depository Drop Safe with Dual S&G Combination Dials
The FDD-3020CC Double Door Depository Safe offers advanced two-tier access control and heavy-duty physical protection for multi-shift retail environments, commercial cash-handling businesses, restaurants, and financial management operations. Built with two completely separate, independently locked compartments, the FDD-3020CC allows top-drawer cash deposits to drop directly into the secure upper chamber while giving shift supervisors or armored transport teams independent access to the lower vault.
Both doors are individually protected by UL Listed S&G (Sargent & Greenleaf) Group 2 Combination Dial Locks and constructed with 1/2" thick solid steel doors. Featuring an internal Anti-Fish Baffle behind the top deposit drawer, internal spring-loaded relocking devices, and drill/ballistic-resistant hardplates, this 200 lb double-door safe prevents internal shrinkage, physical forced entry, and chute fishing.
Key Security & Engineering Features
- Two Independent Lockable Compartments: Separate top and bottom compartments allow distinct access permissions for shift cashiers, managers, or armored courier drops.
- Dual UL Listed S&G Group 2 Combination Dials: Premium mechanical combination dials provide trusted, manipulation-resistant locking on both upper and lower doors.
- B-Rated Heavy Steel Construction: Solid steel body with dual 1/2" thick solid steel doors engineered for high-risk commercial environments.

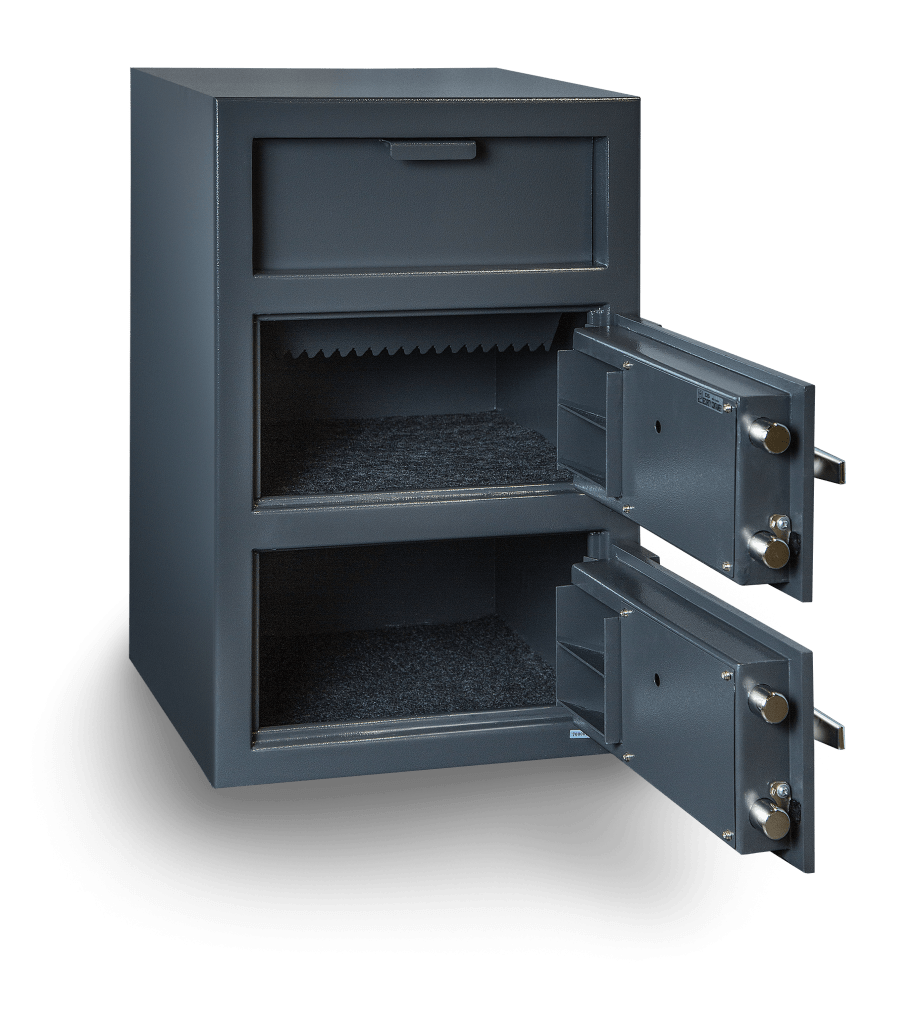

- Anti-Fish Baffle: Internal sawtooth anti-fish chute guard prevents unauthorized fishing or extraction of deposited cash bags and envelopes through the drop door.
- Internal Spring-Loaded Relocking Device: Automatically deploys an auxiliary relocker to freeze the boltwork if tampering or lock destruction is attempted.
- Drill & Ballistic-Resistant Hardplate: Hardened steel shielding protects the locks and internal relockers against drill bit, punch, and ballistic attack methods.
- Active Solid Steel Locking Bolts: 1-1/4" solid steel active locking bolts deliver multi-point structural locking engagement on both doors.
- Heavy-Duty Dead Bar: Full-length hinge-side steel dead bar locks doors securely into the frame, preventing door removal even if external hinges are cut.
- Pre-Drilled Anchor Holes: Includes (4) pre-drilled anchor holes in the base for secure bolting to concrete or wooden floors (hardware not included).
- Assembled in the USA: Proudly assembled in the USA with American and global components.
Technical Specifications
| Model | FDD-3020CC |
| Safe Category | B-Rated Double Door Commercial Depository Drop Safe |
| Lock Types | (2) Independent UL Listed S&G Group 2 Combination Dial Locks |
| Deposit Mechanism | Front-Loading Drop Drawer with Anti-Fish Baffle (Drops to Top Chamber) |
| Door Construction | 1/2" Thick Solid Steel Doors (Top & Bottom) |
| Locking System | 1-1/4" Solid Steel Active Locking Bolts + Heavy-Duty Hinge-Side Dead Bar |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocking Devices |
| Exterior Dimensions (H x W x D) | 30" x 20" x 20" |
| Top Interior Dimensions (H x W x D) | 8-1/4" x 19-3/4" x 17" |
| Bottom Interior Dimensions (H x W x D) | 8-1/4" x 19-3/4" x 17" |
| Total Interior Volume | 3.6 cu. ft. |
| Weight | 200 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How do drops function in the FDD-3020CC double door safe?
Items placed into the top front-loading drawer drop directly into the top internal chamber. The top door must be unlocked with its dedicated S&G combination dial to access those dropped deposits, while the lower compartment remains totally separate and controlled by its own unique combination code.
What is the benefit of a double door depository safe over a single door model?
A double door safe allows strict compartmentalization. For example, shift supervisors can hold the combination to the upper drop compartment to clear cash drawers during shifts, while executive management or armored car services hold the combination to the bottom compartment containing long-term cash reserves or change floats.
How does an anti-fish baffle prevent cash theft?
An anti-fish baffle uses internal angled metal teeth inside the drop chute. When an item is dropped, the teeth allow it to pass through easily but prevent thieves from using wires, sticky tape, or hooks to pull items back out through the drop opening.
What are the interior dimensions of the top and bottom compartments?
Both the top and bottom compartments feature identical interior dimensions of 8-1/4" High x 19-3/4" Wide x 17" Deep, offering a combined storage volume of 3.6 cubic feet.
