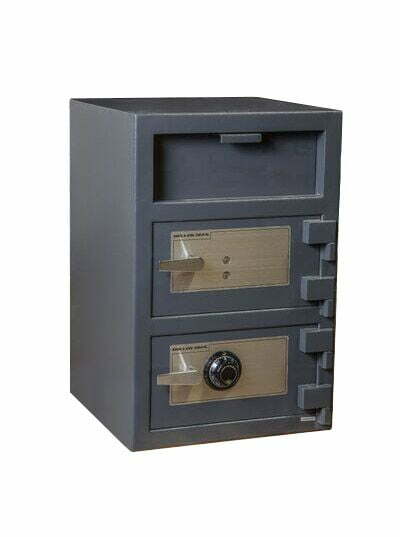

FDD-3020CK B-Rated Double Door Depository Drop Safe with Dual Key Top & S&G Dial Lock
The FDD-3020CK Double Door Depository Safe separates cash drops from everything else. Envelopes put through the front deposit door fall into the top compartment, which is secured by a UL Listed dual key lock that needs two keys to open.
The bottom compartment has a mechanical S&G (Sargent & Greenleaf) combination dial lock for managers handling change tills and longer-term storage. Both doors are 1/2" thick solid steel, with an internal anti-fish baffle, spring-loaded relockers and drill/ballistic resistant hardplates. Weight is 200 lbs.
Key Security & Engineering Features
- Two-Lock Configuration: Dual key control on the top drop compartment and a mechanical dial on the bottom compartment.
- UL Listed Dual Key Top Lock: The drop compartment needs two separate keys, so one employee cannot reach dropped cash alone.
- S&G Combination Dial Bottom Lock: Mechanical Sargent & Greenleaf dial; no batteries.
- B-Rated Steel Construction: Welded steel body with two 1/2" thick solid steel doors.
- Anti-Fish Baffle: Internal guard keeps cash bags and envelopes from being fished back out.
- Solid Active Locking Bolts: 1-1/4" solid steel active locking bolts on both doors.
- Internal Spring-Loaded Relocking Devices: Each door has a relocker that deadlocks the boltwork if its lock is punched or drilled.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate covers the locks and relockers.
- Heavy-Duty Dead Bar: Hinge-side steel dead bar keeps each door seated in the frame during a prying or hinge-cutting attack.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
Technical Specifications
| Model | FDD-3020CK |
| Safe Category | B-Rated Double Door Commercial Depository Drop Safe |
| Top Door Lock Type | UL Listed Dual Key Lock (Dual Custody Requirement) |
| Bottom Door Lock Type | S&G (Sargent & Greenleaf) Mechanical Combination Dial Lock |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle (Drops into Top Compartment) |
| Door Construction | 1/2" Thick Solid Steel Doors (Top & Bottom) |
| Locking System | 1-1/4" Solid Steel Active Locking Bolts + Heavy-Duty Hinge-Side Dead Bar |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocking Devices |
| Exterior Dimensions (H x W x D) | 30" x 20" x 20" |
| Top Interior Dimensions (H x W x D) | 8-1/4" x 19-3/4" x 17" |
| Bottom Interior Dimensions (H x W x D) | 8-1/4" x 19-3/4" x 17" |
| Total Interior Volume | 3.6 cu. ft. (Hollon figure) |
| Weight | 200 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
Frequently Asked Questions
How do access controls differ between the FDD-3020CK, FDD-3020EK, and FDD-3020CC models?
All three have the same 30" x 20" x 20" body and 200 lb weight. The FDD-3020CK has a dual key top door and a dial bottom door, the FDD-3020EK has a dual key top door and a keypad bottom door, and the FDD-3020CC has dials on both doors.
How does the dual-key top door work on the FDD-3020CK safe?
The top door has a UL Listed dual key lock that needs two different keys to open. Give the keys to two different people and no one can reach deposited funds without a second keyholder present.
Where do items fall when dropped into the deposit door?
Into the upper compartment. The lower compartment is sealed off from it and opens only with the S&G combination dial.
What are the interior dimensions and weight of the FDD-3020CK safe?
It weighs 200 lbs. The top and bottom compartments each measure 8-1/4" H x 19-3/4" W x 17" D.
Does any part of the FDD-3020CK need batteries?
No. The top lock uses keys and the bottom lock is a mechanical dial, so there is nothing electronic to maintain.
Who should change the dial combination?
Hollon calls for a qualified locksmith to reset Group 2 dial combinations. A do-it-yourself reset can void the warranty.
What does a B rating tell me about this safe?
It describes construction, mainly the steel thickness of the door and body, and is used by insurers to set cash limits. It is not a lab attack test like TL-15 or TL-30.
Will my safe arrive on a pallet with liftgate service?
Yes. It ships LTL freight with a free liftgate and is set down at the curb. You will need to arrange moving it inside. Inspect it before signing and report damage within 24 hours.
Does the FDD-3020CK have a fire rating?
Hollon does not list one. This is a cash-control and burglary safe; use a fire-rated safe for documents or media.
What warranty covers the FDD-3020CK?
Hollon's published limited warranty is one year on parts and labor against manufacturing defects, for the original owner.
