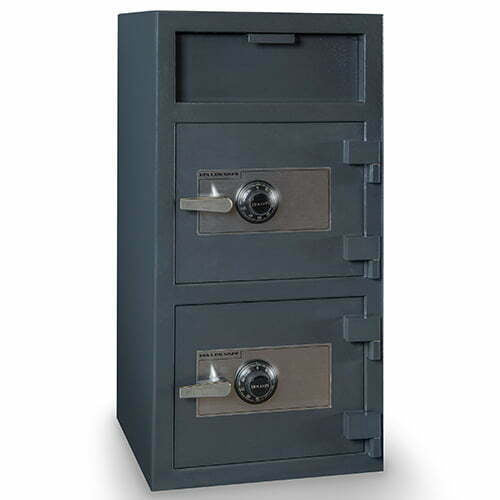

FDD-4020CC 40" B-Rated Double Door Depository Drop Safe with Dual S&G Group 2 Combination Dials
The FDD-4020CC Double Door Depository Safe has two separately locked compartments in a 40-inch, 260 lb cabinet, so cash drops, register funds and reserves can be handled by different people.
Deposits made through the front deposit door pass an internal anti-fish baffle into the top compartment. A removable interior shelf helps organize cash drawers, floats or documents. Both doors use Sargent & Greenleaf (S&G) Group 2 mechanical combination dial locks, 1/2" solid steel doors and 1-1/4" active solid steel locking bolts.
Key Security & Engineering Features
- Dual Compartment Double-Door Configuration: Two separate locking compartments for independent access control.
- Two S&G Group 2 Combination Dial Locks: Mechanical Sargent & Greenleaf dials on both doors; no batteries.
- B-Rated Steel Construction: Welded steel body with 1/2" thick solid steel doors.
- Anti-Fish Baffle: Internal guard behind the deposit door prevents retrieval of deposited bags and envelopes.
- 1-1/4" Solid Steel Active Locking Bolts: Active bolts on both doors for multi-point engagement with the frame.
- Removable Interior Shelf: One removable shelf for cash trays, binders or equipment.
- Internal Spring-Loaded Relocking Devices: Each door has a relocker that deadlocks the boltwork if its lock is punched or drilled.
- Drill & Ballistic Resistant Hardplate: Hardened steel plate covers the locks and relockers.
- Heavy-Duty Dead Bar: Hinge-side steel dead bar keeps each door seated in the frame during a prying or hinge-cutting attack.
- Pre-Drilled Anchor Holes: (4) anchor holes in the base for bolting to concrete or wood floors (hardware not included).
- Assembled in the USA: Assembled in the USA with American and global parts.
Technical Specifications
| Model | FDD-4020CC |
| Safe Category | B-Rated Double Door Depository Drop Safe |
| Lock Type (Both Doors) | (2) S&G (Sargent & Greenleaf) Group 2 Mechanical Dial Locks |
| Deposit Mechanism | Front-Loading Deposit Door with Anti-Fish Baffle (Drops into Top Compartment) |
| Door Construction | 1/2" Thick Solid Steel Doors (Top & Bottom) |
| Locking System | 1-1/4" Solid Steel Active Locking Bolts + Heavy-Duty Hinge-Side Dead Bar |
| Protection Features | Drill/Ballistic Hardplate, Internal Spring-Loaded Relocking Devices |

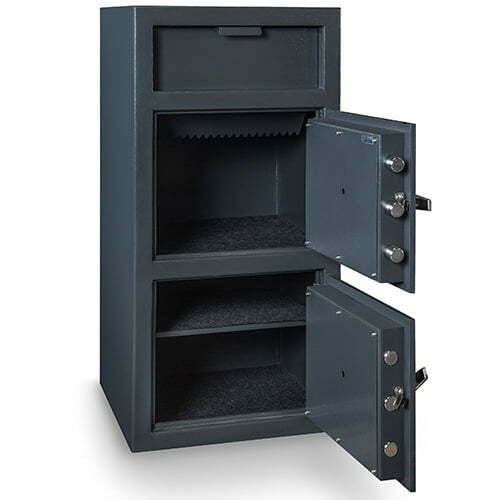

| Interior Organization | 2 Separate Compartments + 1 Removable Interior Shelf |
| Exterior Dimensions (H x W x D) | 40" x 20" x 20" |
| Top Interior Dimensions (H x W x D) | 11-1/8" x 19-3/4" x 16" |
| Bottom Interior Dimensions (H x W x D) | 15-1/2" x 19-3/4" x 16" |
| Capacity / Volume | 7.0 Cubic Feet (Hollon figure) |
| Weight | 260 lbs |
| Anchor Holes | (4) Pre-Drilled Anchor Holes (Hardware not included) |
| Assembly | Assembled in the USA with American and Global Parts |
Frequently Asked Questions
How does a double door depository safe like the FDD-4020CC work?
It has two independent compartments. Deposits dropped through the deposit door land in the upper compartment (11-1/8" H). The lower compartment (15-1/2" H) is separate, for till drawers, change funds or documents, and each compartment has its own combination dial.
What locks are on the FDD-4020CC safe?
Both doors have Sargent & Greenleaf (S&G) Group 2 mechanical combination dial locks, so there are no batteries to replace.
What are the dimensions of the FDD-4020CC?
Outside it is 40" H x 20" W x 20" D and weighs 260 lbs. The top compartment is 11-1/8" H x 19-3/4" W x 16" D and the bottom is 15-1/2" H x 19-3/4" W x 16" D.
What prevents cash from being retrieved out of the deposit door?
An anti-fish baffle inside the deposit opening blocks hooks, line and tape from reaching dropped items.
How does the FDD-4020CC compare to the 30-inch FDD-3020CC?
The FDD-4020CC is 10" taller and 60 lbs heavier (260 vs. 200 lbs). Its compartments are taller, 11-1/8" top and 15-1/2" bottom, versus 8-1/4" each on the FDD-3020CC, and it adds a removable shelf.
Does the FDD-4020CC include a shelf?
Yes, one removable interior shelf.
Can I reset the dial combinations myself?
Hollon says Group 2 dial combinations should be changed by a qualified locksmith, and a self-reset can void the warranty.
How do I receive a 260 lb safe?
It comes by LTL freight with a free liftgate and is left at the curb. Line up enough help and a heavy-duty dolly to move it inside, inspect it before signing, and report damage within 24 hours.
Will the FDD-4020CC protect papers in a fire?
Hollon does not list a fire rating for this model. It is a burglary and cash-control safe; documents needing fire protection belong in a fire-rated safe.
What are the return terms for the FDD-4020CC?
Returns are accepted within 14 days, with a 20% restocking fee and freight charged both ways.
