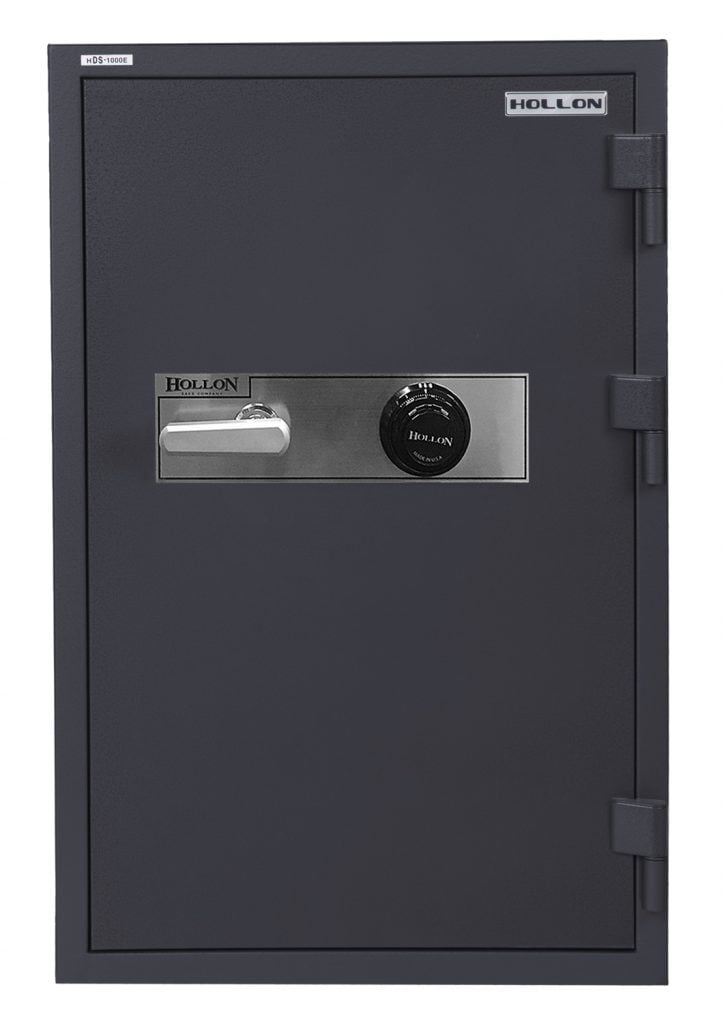

The HDS-1000C Fireproof Data Safe is a heavy-duty, high-security media vault designed to protect heat-sensitive digital media, hard drives, backup tapes, USB drives, and critical documents from extreme heat, water damage, and theft. Built with a mechanical Sargent & Greenleaf (S&G) Group II Combination Dial Lock, it offers reliable keyless access without requiring batteries. Featuring a 1-hour fire protection rating tested up to 1850°F outside while maintaining a safe interior temperature under 125°F, the HDS-1000C provides maximum thermal insulation for sensitive electronic storage media.
Key Features & Highlights
- 1-Hour Fire Protection for Digital Media: Withstands exterior fire temperatures up to 1850°F while keeping internal temperatures below 125°F to prevent corruption of heat-sensitive media.
- S&G Group II Combination Dial Lock: Commercial-grade mechanical combination lock by Sargent & Greenleaf delivers proven reliability, high manipulation resistance, and battery-free operation.
- Water & Moisture Barrier: Engineered protective sealing guards sensitive contents against fire sprinklers, water hoses, and high ambient humidity.

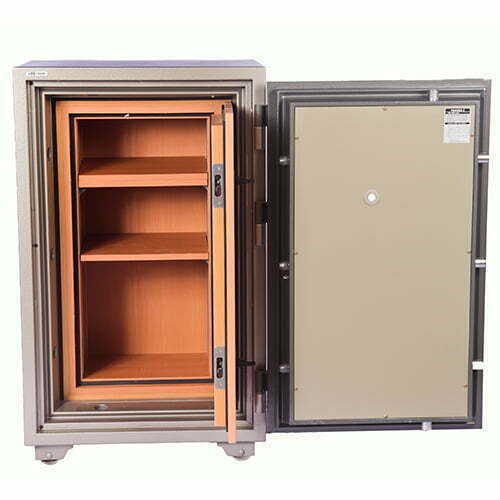

- Customizable Interior Storage: Includes two removable shelves to optimize space for hard drive enclosures, optical media, magnetic tapes, and business records.
- Anti-Theft Mass & Solid Integrity: Weighing 535 lbs, this solid steel vault deters unauthorized removal. Built without a center bolt-down hole to preserve thermal and moisture resistance.
Technical Specifications
| Model | HDS-1000C |
| Product Type | Fireproof Digital Media & Data Safe |
| Fire Rating | 60 Minutes (1850°F Exterior / Max 125°F Interior) |
| Lock Type | S&G (Sargent & Greenleaf) Group II Combination Dial Lock |
| Exterior Dimensions | 36-1/2" H x 23-5/8" W x 21" D |
| Interior Dimensions | 25" H x 12-3/4" W x 9-1/4" D |
| Total Weight | 535 lbs (242.6 kg) |
| Shelving | 2 Removable Shelves |
| Water Protection | Protects against fire sprinklers, water spray, and humidity |
| Bolt-Down Hole | None (Solid bottom design to maximize thermal barrier) |
What Is the Difference Between HDS-1000C and HDS-1000E?
Both models share the exact same exterior measurements, 535 lb frame, 1-hour fire rating (1850°F / 125°F interior), and water resistance. The primary difference is the lock mechanism:
- HDS-1000C (This Model): Features a mechanical S&G Group II Combination Dial Lock, preferred by users who want long-term mechanical reliability without relying on electronic keypads or batteries.
- HDS-1000E: Features an S&G UL Listed Type 1 Electronic Lock, ideal for fast keypad access and multi-user environment code changes.
Frequently Asked Questions (FAQs)
Q: What digital media can be stored in the HDS-1000C Data Safe?
A: The HDS-1000C is designed to protect external hard drives (HDDs & SSDs), USB flash drives, LTO/magnetic backup tapes, memory cards, CDs/DVDs, and critical paper files. Standard safes permit internal heat up to 350°F, which destroys digital media; the HDS-1000C keeps internal temperatures below 125°F to ensure data survival.
Q: Does the S&G Group II dial lock require batteries?
A: No. The Sargent & Greenleaf Group II mechanical combination lock is completely analog and mechanical. It operates without batteries, wiring, or electrical components.
Q: Why is there no center bolt-down hole on the HDS-1000C?
A: Omitting floor mounting holes prevents fire, heat, and water from penetrating through the bottom of the safe during a fire emergency. At 535 lbs, the safe offers strong natural protection against physical theft.
Q: Is the interior shelf setup customizable?
A: Yes, the safe includes two removable shelves, allowing you to reconfigure the internal layout to store taller drive arrays, tape storage containers, or binder boxes.
Q: Will this safe protect my media from water damage if fire sprinklers activate?
A: Yes. The HDS-1000C features protective door seals that guard the interior chamber against water from fire sprinklers, hoses, and elevated ambient humidity levels.
