Rich Solar 2500W 48VDC 120VAC Complete Hybrid Solar Kit

Power Your Off-Grid Freedom with the Rich Solar 2500W Complete Hybrid Solar Kit

Whether you are outfitting a remote workshop, establishing emergency home backup power, or setting up an off-grid cabin, the Rich Solar 2500W 48VDC 120VAC Complete Hybrid Solar Kit delivers industrial-grade energy reliability. This all-in-one package combines high-efficiency solar generation, a heavy-duty hybrid inverter, and premium tier-1 lithium storage to let you break free from the traditional power grid seamlessly.

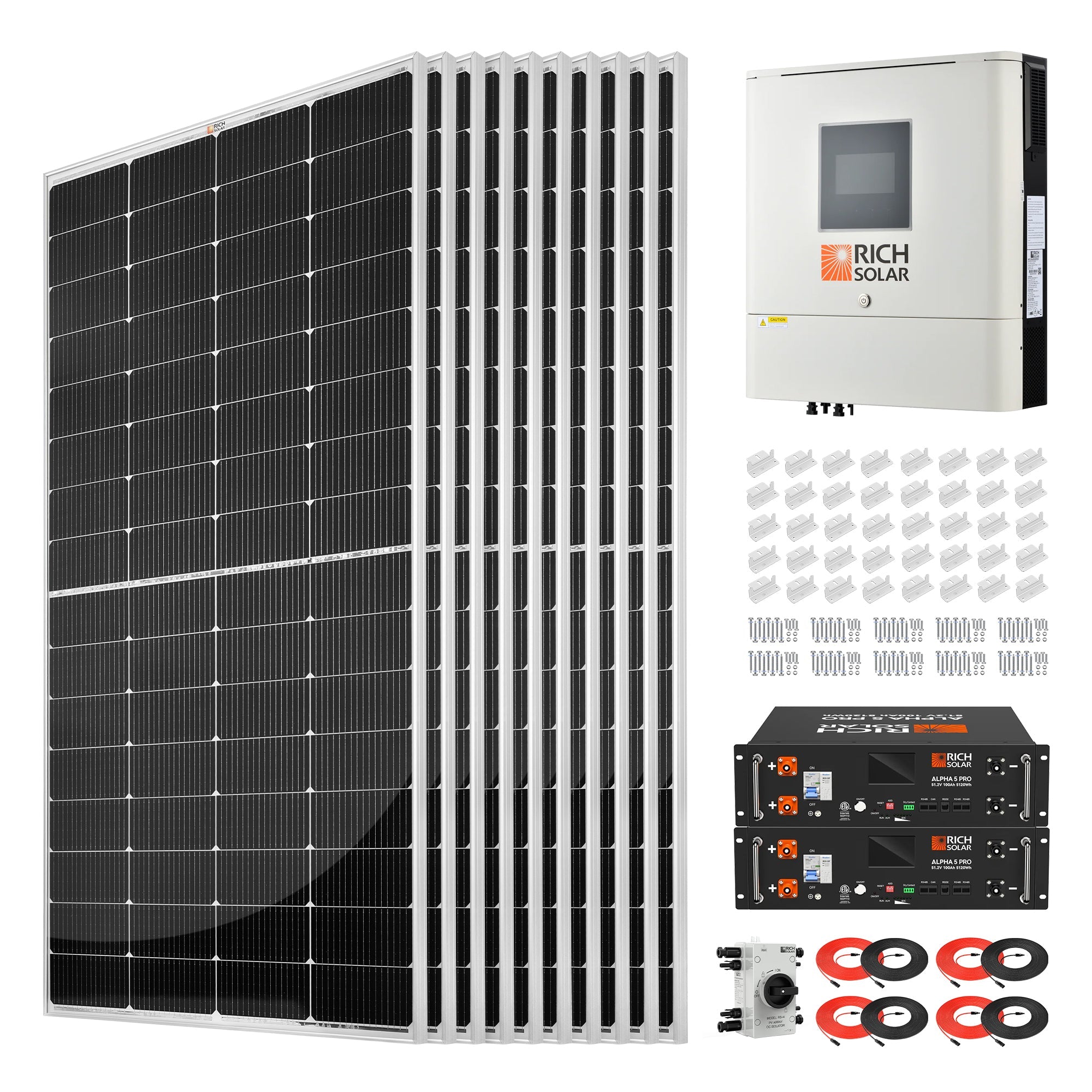

What is Included in the Box?

• 1 x NOVA 6500S 6500W 48V Off-Grid Hybrid Solar Inverter (Model: RS-H6548S)
• 10 x MEGA 250W Monocrystalline Solar Panels (Model: RS-M250)
• 2 x ALPHA 5 PRO 5.12kWh Server Rack LiFePO4 Batteries (Model: RS-B5121P) - Total 10.24kWh Storage
• 2 x 10AWG 30FT Extension Cables (Model: RS-30102)
• 2 x 10AWG 10FT Extension Cables (Model: RS-10102)
• 15 x Heavy-Duty Z-Brackets (Model: RS-ZB4C)
• 1 x PV DC Quick Disconnect (Model: RS-i4)

Core Component Breakdown & Performance Highlights

1. NOVA 6500S 6500W 48V Off-Grid Hybrid Solar Inverter

The beating heart of your solar system. Featuring a massive 13,000VA surge capacity and built-in Wi-Fi communication for remote desktop or smartphone monitoring, it easily handles high-startup-draw equipment like power tools, air compressors, and refrigerators.

• Expandable Design: Supports up to 6 units in parallel for system scaling.
• Smart Operations: Configurable AC/PV output priority timers let you dictate when to draw power from the sun vs. utility lines or backup generators.
• Battery-Independent Mode: Operates directly from solar panels even if batteries are disconnected or undergoing maintenance.

2. MEGA 250W Monocrystalline Solar Panels

Engineered for maximum photon capture, these panels are constructed using an innovative 16-busbar solar cell configuration to lower electrical resistance and increase overall cell conversion efficiency.

• Low-Light Optimization: Superior performance on cloudy days, early mornings, and late evenings.
• Durable Infrastructure: Housed in a lightweight anodized aluminum frame with high-transmission, anti-reflective (AR) coated tempered glass built to survive high winds and snow loads.

3. ALPHA 5 PRO 51.2V 100Ah LiFePO4 Batteries

Safe, deeply cyclable, and ultra-dense energy storage. With a 7,000 deep-cycle life and a 10-year built-in manufacturer defect warranty, this premium server rack configuration outlasts traditional lead-acid options by more than a decade.

• Smart Protections: Features a high-end integrated Battery Management System (BMS) safeguarding against over-charging, over-discharging, short circuits, and temperature abnormalities.
• Scalability: Parallel up to 15 modules together to increase your standby storage runtime down the road.

Technical Specifications Comparison Matrix

Why Purchase From Garage Tools Storage?

When transitioning your workshop or property over to alternative power systems, you need a support framework that lasts just as long as your equipment. At Garage Tools Storage, we supply complete off-grid solutions with premium customer support, insured freight shipping options, and authentic manufacturer-backed component warranties (3 Years on the NOVA Inverter, 10 Years on ALPHA Batteries, and 25 Years on MEGA Panel Output Performance).

Frequently Asked Questions (FAQ) — Rich Solar 2500W Hybrid Kit

Can this 2500W hybrid solar kit run a workshop or power tools?

Yes, this solar kit can easily run high-draw garage power tools, including table saws, air compressors, and drills. While the solar panels generate 2500W of continuous daylight power, the included NOVA 6500W hybrid inverter provides a massive 6,500W continuous output capacity (surging up to 13,000VA). This high ceiling prevents the system from tripping when handling the intense startup surges common with heavy-duty electric motors.

How long will the 10.24kWh battery bank run my appliances?

The included dual ALPHA 5 PRO battery bank holds 10,240 watt-hours of electricity, which can run a 1,000-watt load for approximately 9 to 10 hours continuously. For lighter workshop loads, such as LED lighting, a laptop, and a small refrigerator (averaging around 300W total), this battery storage bank can deliver over 30 hours of continuous off-grid runtime without any solar recharge input.

What does a "Hybrid" solar kit mean, and do I need to be connected to the grid?

A hybrid solar kit means the system can automatically blend and switch between solar power, battery storage, a gas generator, or the traditional utility grid. You do not need to be tied to the utility grid to use this kit; it functions perfectly as a 100% standalone, off-grid power plant. However, if you do have utility power available, you can program the inverter to use solar first and safely fall back on grid power only when the batteries run low.

Is this Rich Solar kit expandable if my power needs grow later?

Yes, every primary component of this system is fully scalable and expandable. The NOVA 6500S inverter supports linking up to 6 units together in parallel to increase your total output wattage. Additionally, you can add more MEGA solar panels to fill out the inverter's maximum 8,000W PV capacity, and scale up to 15 ALPHA 5 PRO batteries in parallel to increase your overall storage depth.

Are the solar panels and server rack batteries safe for cold weather use?

The solar panels perform exceptionally well in cold weather, but the LiFePO4 batteries must be kept in a temperature-controlled space above 32°F (0°C) to safely charge. While cold temperatures actually increase solar panel voltage efficiency, lithium iron phosphate chemistry cannot accept a charge in sub-freezing temperatures without risking damage. We highly recommend installing the server rack battery bank inside an insulated garage, basement, or utility room.
