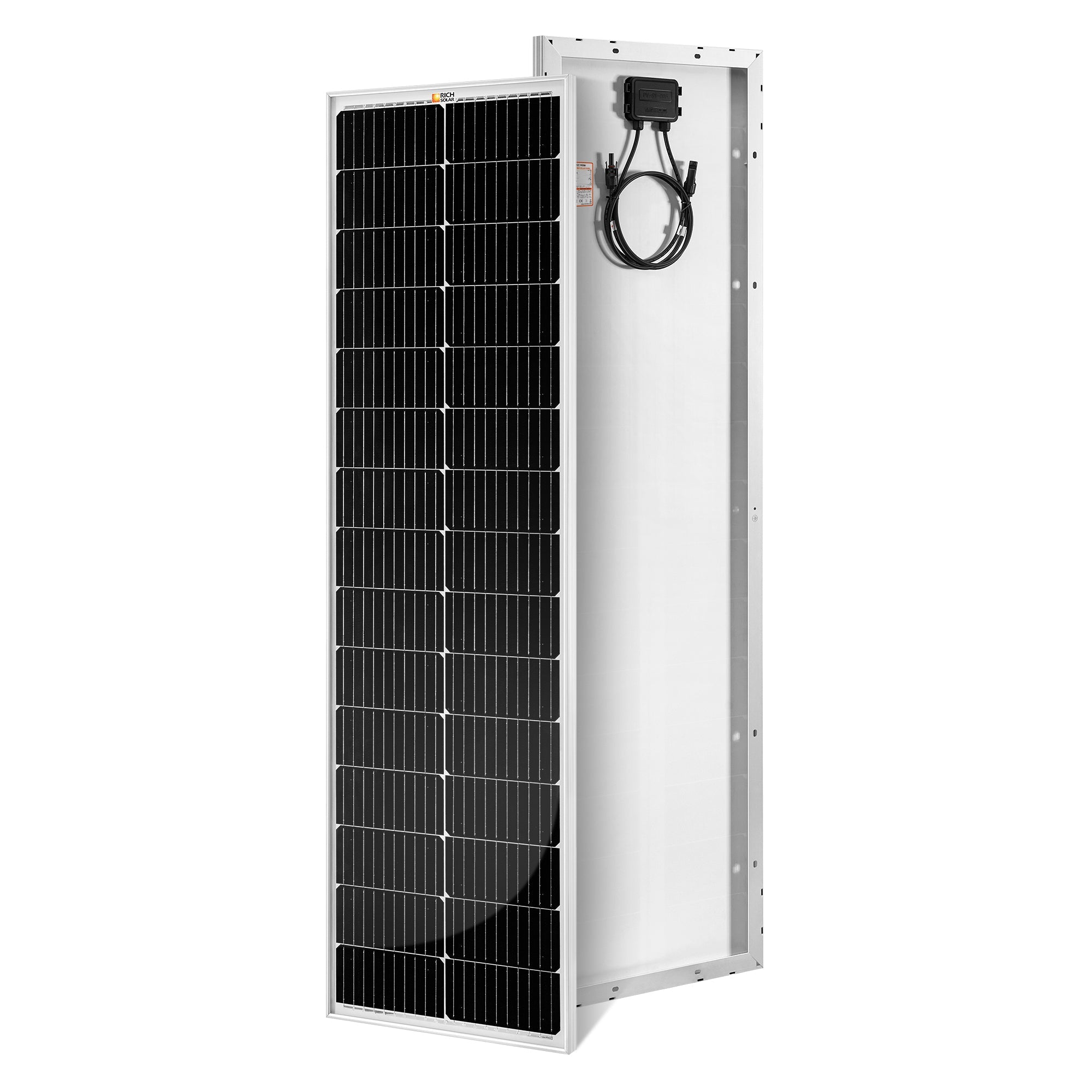

Rich Solar 100W MEGA SLIM 12V Solar Panel (RS-M100SLX)

Maximize Your Off-Grid Power with the RICH SOLAR 100W MEGA SLIM Solar Panel

When rooftop real estate on your RV, camper van, overlanding rig, or boat is limited, standard solar panels simply won't fit. The RICH SOLAR MEGA 100 SLIM (Model: RS-M100SLX) is specifically engineered to bridge the gap between high-efficiency power output and an ultra-narrow footprint.

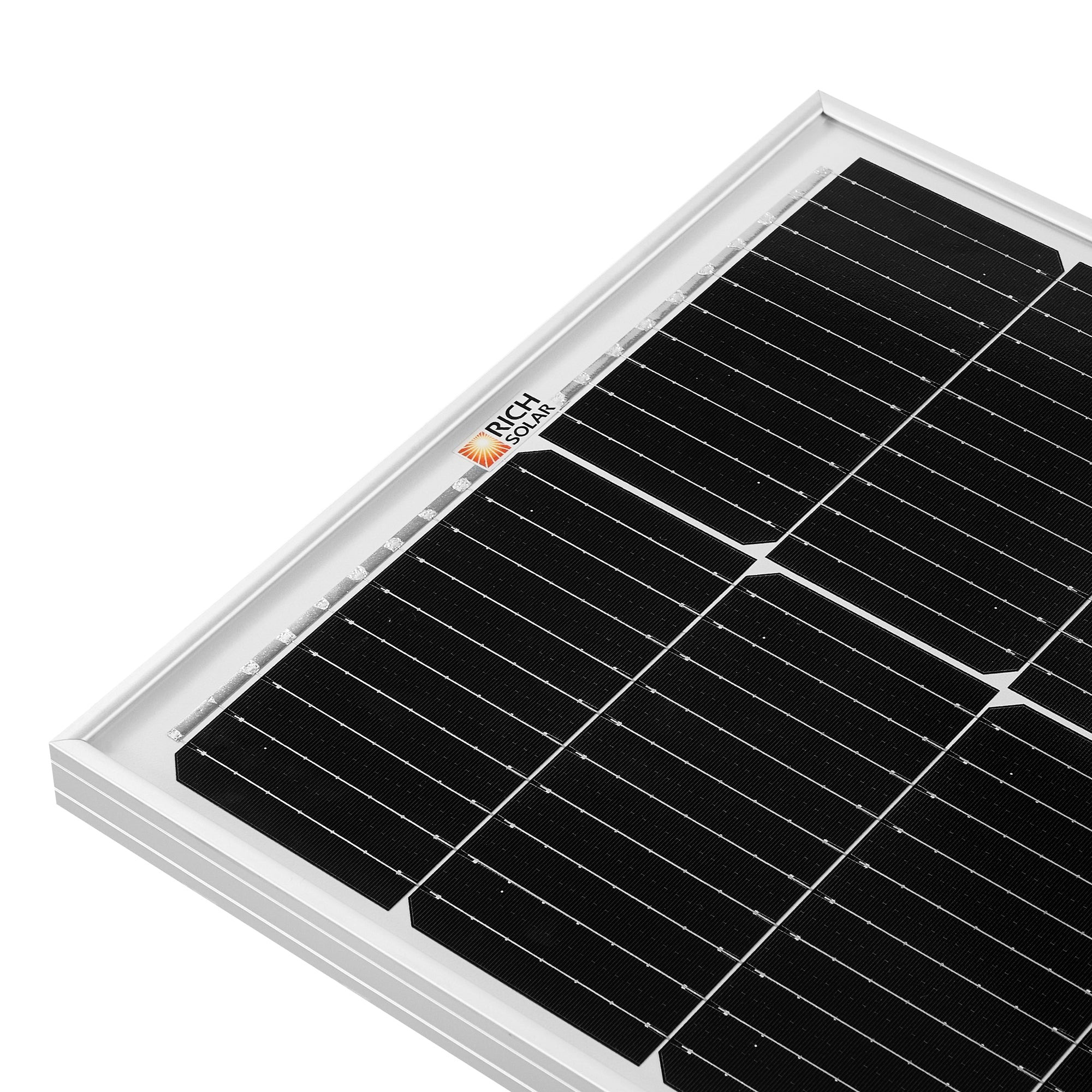

Featuring an advanced 10-busbar monocrystalline cell layout, this 100-watt slim solar panel delivers up to 22.6% cell efficiency, ensuring you get maximum energy conversion even in tight, awkward mounting spaces. Whether you are navigating tight solar arrays or mounting between roof racks, the MEGA SLIM provides premium, reliable off-grid charging capability.

Key Features & Performance Benefits

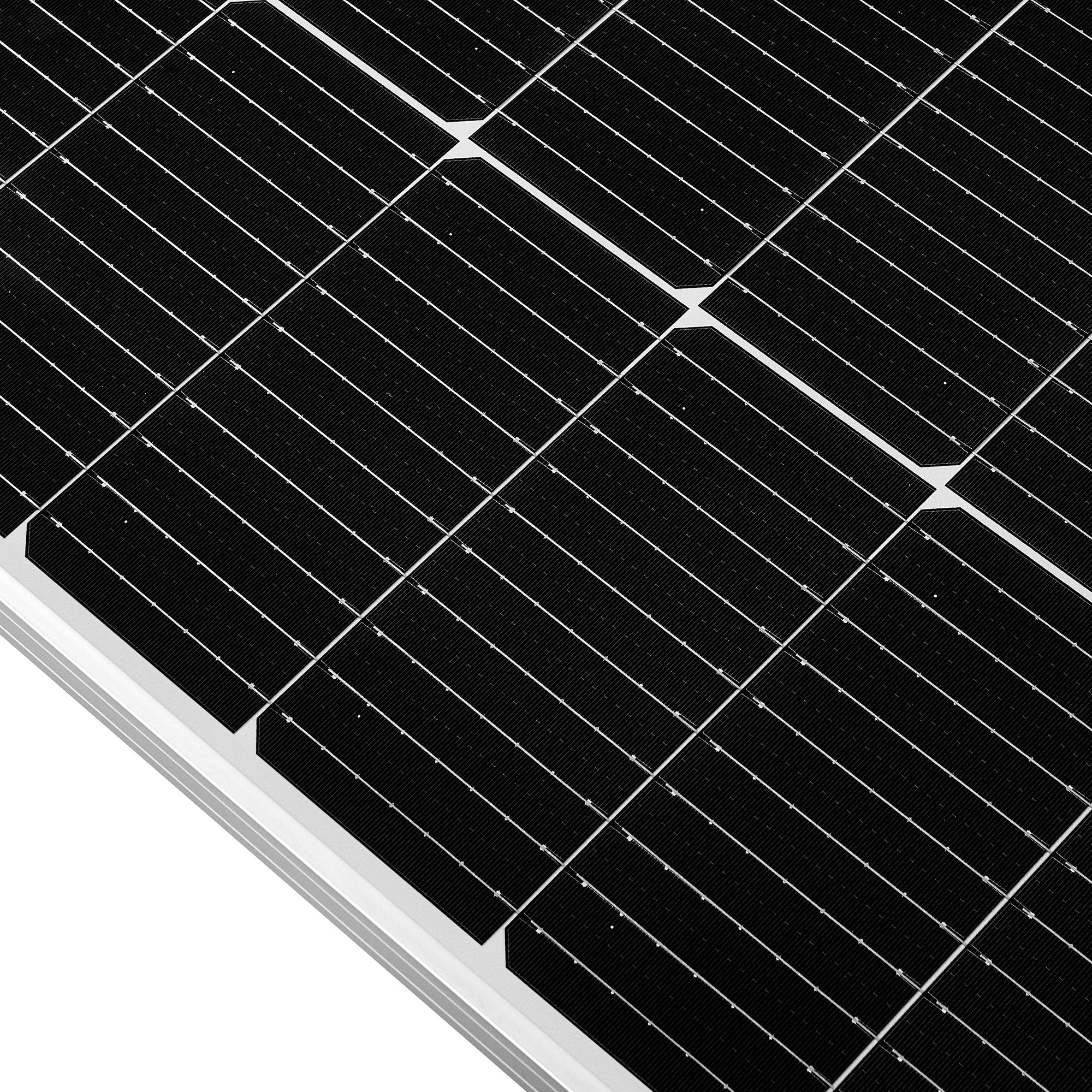

• High-Efficiency 10-Busbar Monocrystalline Cells: Advanced cell architecture achieves up to 22.6% efficiency, capturing more energy per square inch.
• Ultra-Narrow Slimline Profile: Measuring just 15.8 inches wide, it perfectly fits camper van roofs, RV edges, and overland vehicle racks where standard panels fail to sit flat.
• Maximum Solar Capture: Constructed with 3.2 mm anti-reflective (AR) coated tempered glass to maximize light transmission while providing heavy-duty impact protection.
• Guaranteed Power Output: Positive power tolerance of 0 to +5W ensures your panel meets or exceeds its 100W rating straight out of the box.
• Superior Low-Light Utility: Optimized to generate reliable electricity during overcast conditions, early mornings, and late evenings.
• Extreme Environment Certification: Tested to withstand up to 2400 Pa wind loads, 5400 Pa heavy snow loads, and 35 mm hail traveling at 97 km/h.
• Built for Longevity: PID-resistant design and rigorous double EL (Electroluminescence) inspections guarantee zero performance-robbing microcracks.

Seamless Installation & Hardware Integration

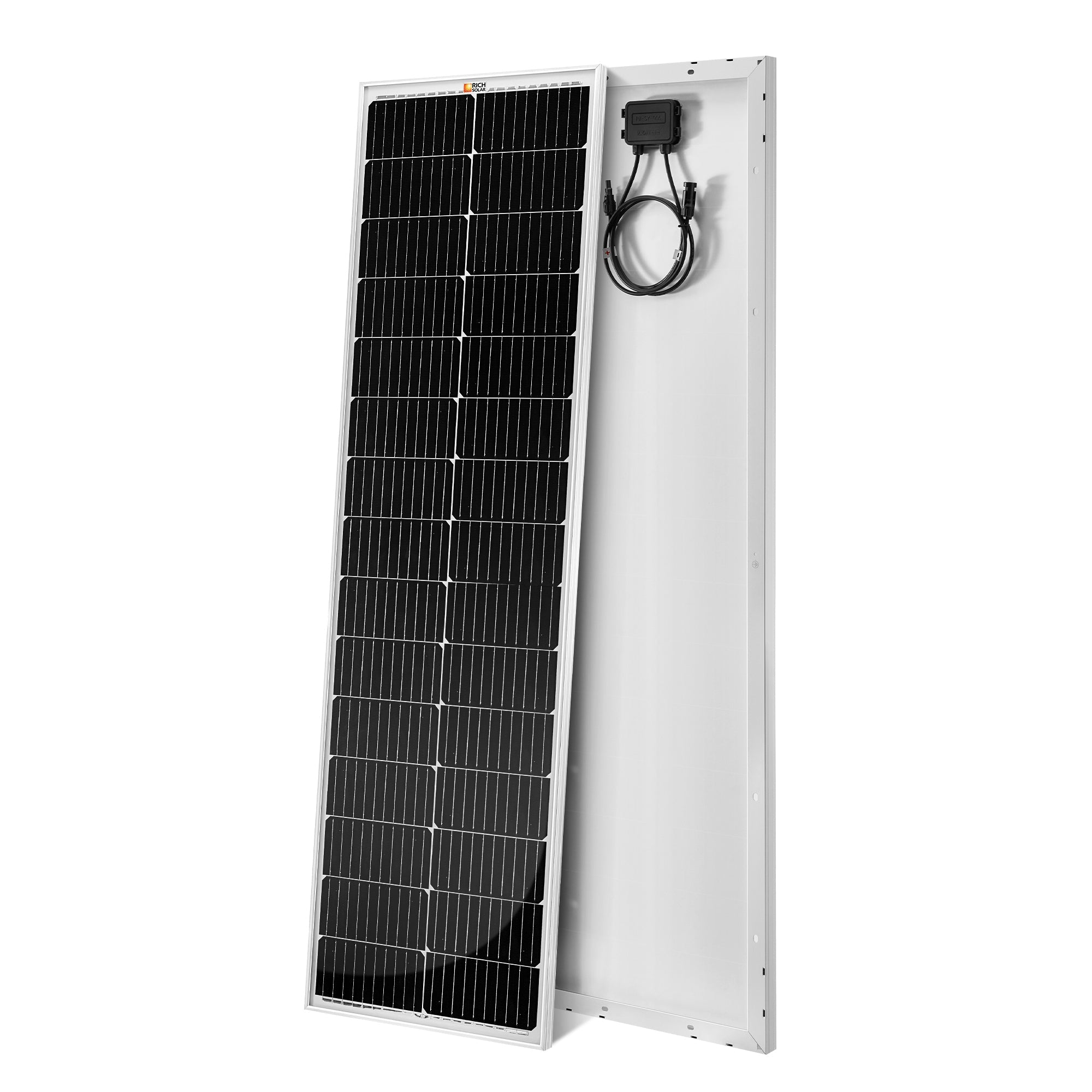

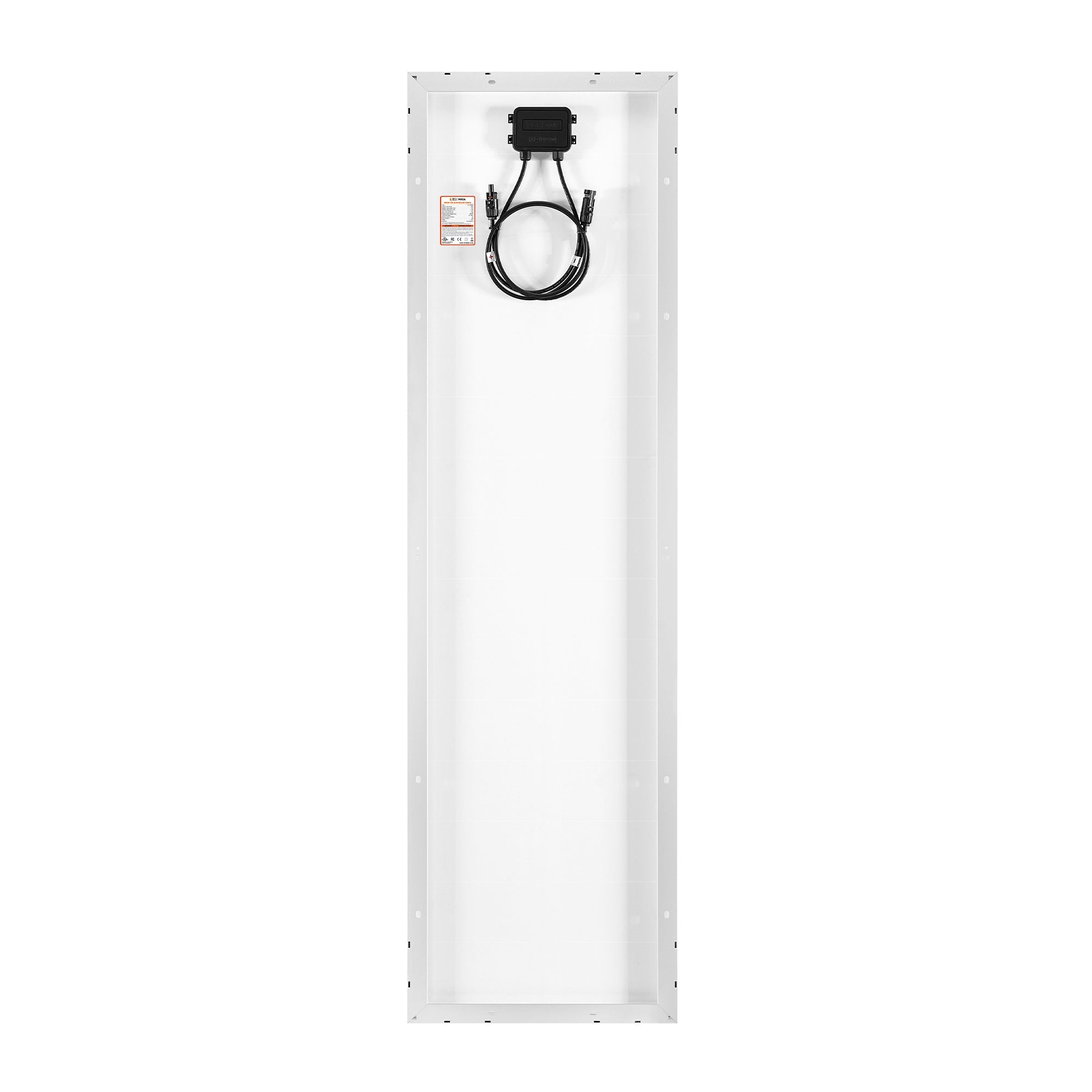

Setting up your off-grid mobile solar system is quick and straightforward. The ruggedized, corrosion-resistant anodized aluminum frame comes equipped with 12 pre-drilled mounting holes. It is perfectly optimized for quick pairing with standard Z-brackets, tilt mounts, pole mounts, or ground installations. The panel features integrated 3-foot 12 AWG cable leads terminated with IP67-rated waterproof solar connectors for secure, weather-sealed plug-and-play connections.

Technical Specifications

Industry-Leading Warranty Protection

Invest with absolute peace of mind. Every RICH SOLAR MEGA 100 SLIM solar panel is backed by a robust manufacturer warranty package:

• 25-Year Power Output Warranty: Guarantees long-term energy generation efficiency over decades of use.
• 10-Year Workmanship Warranty: Covers mechanical and manufacturing integrity.

Frequently Asked Questions

What makes the RICH SOLAR MEGA 100 SLIM different from standard 100W solar panels?

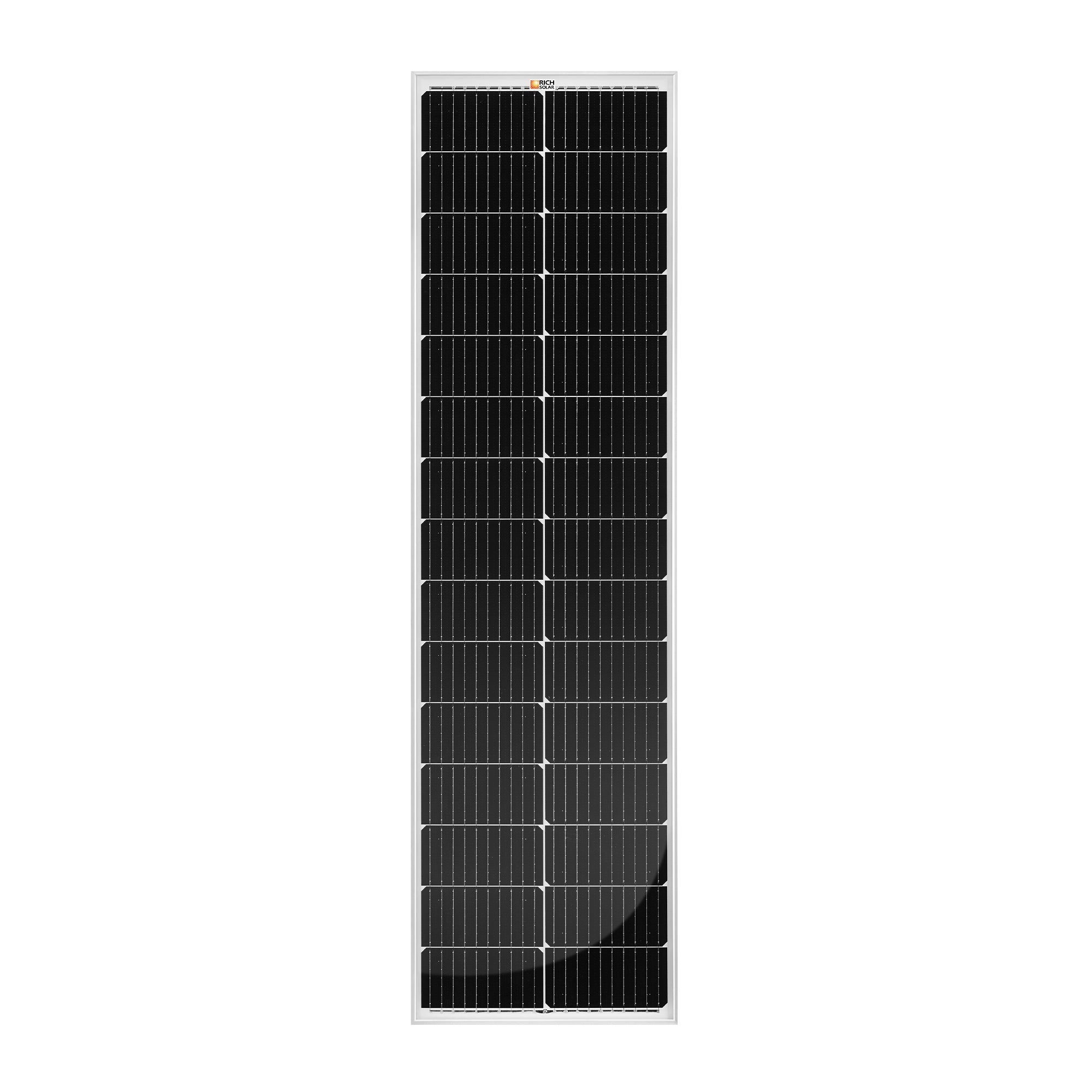

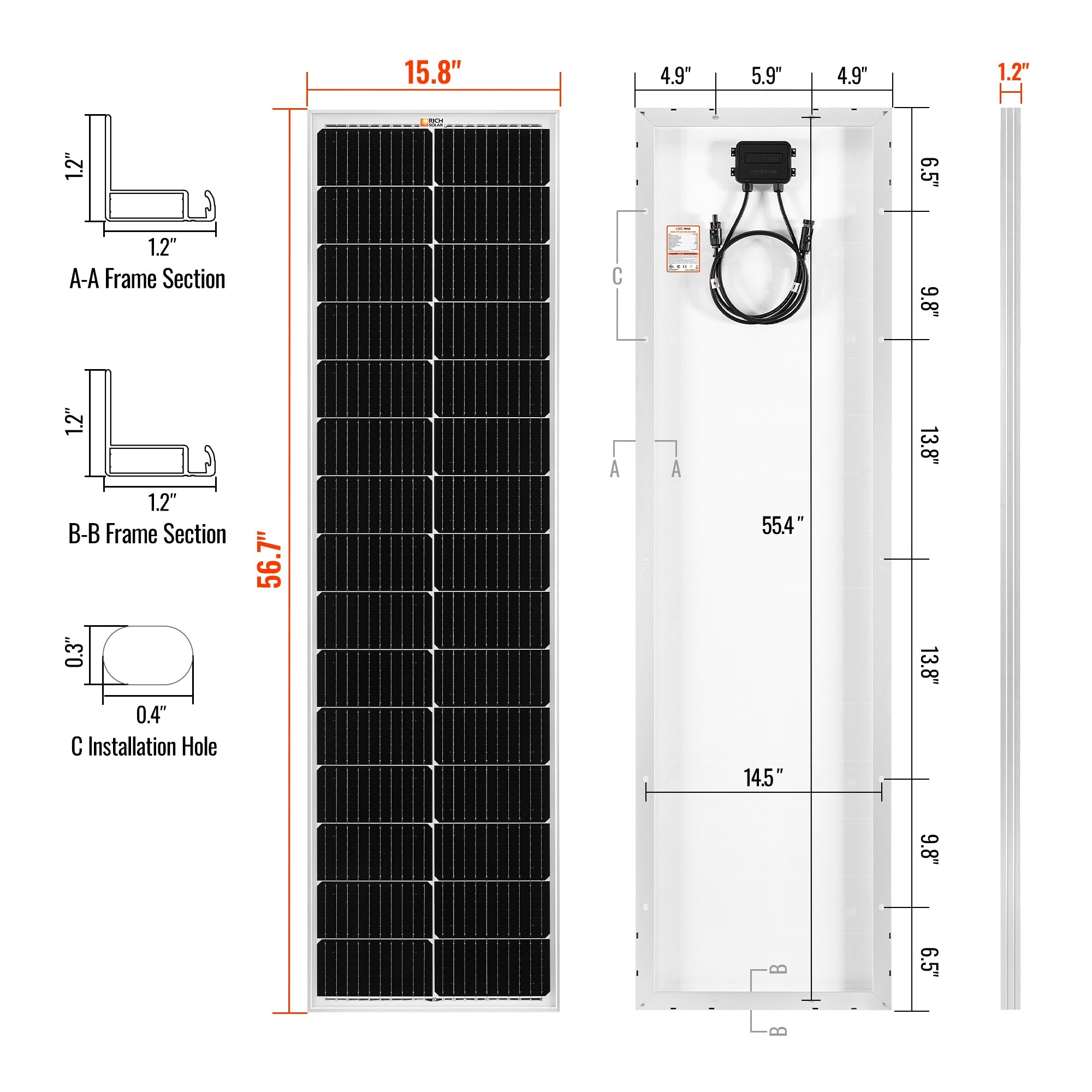

The primary difference is the physical dimension profile. Standard 100W panels are wider and shorter. The MEGA 100 SLIM (RS-M100SLX) features an elongated, narrow footprint (56.7 x 15.8 inches). This makes it ideal for narrow mounting areas on camper vans, RV roofs, boat decks, and vehicle overland racks.

Can I connect this slim solar panel to a 12V battery system?
Yes. With a Maximum Power Voltage (Vmp) of 17.3V, this panel is perfectly optimized to charge standard 12V battery banks, including Lithium (LiFePO4), AGM, Gel, and flooded lead-acid batteries, when paired with an appropriate solar charge controller.

Does this panel require a specific type of charge controller?
The RS-M100SLX is compatible with both PWM and MPPT solar charge controllers. For optimal energy harvesting, especially in changing light conditions, an MPPT controller is highly recommended.

Is the RICH SOLAR 100W Slim panel weatherproof?

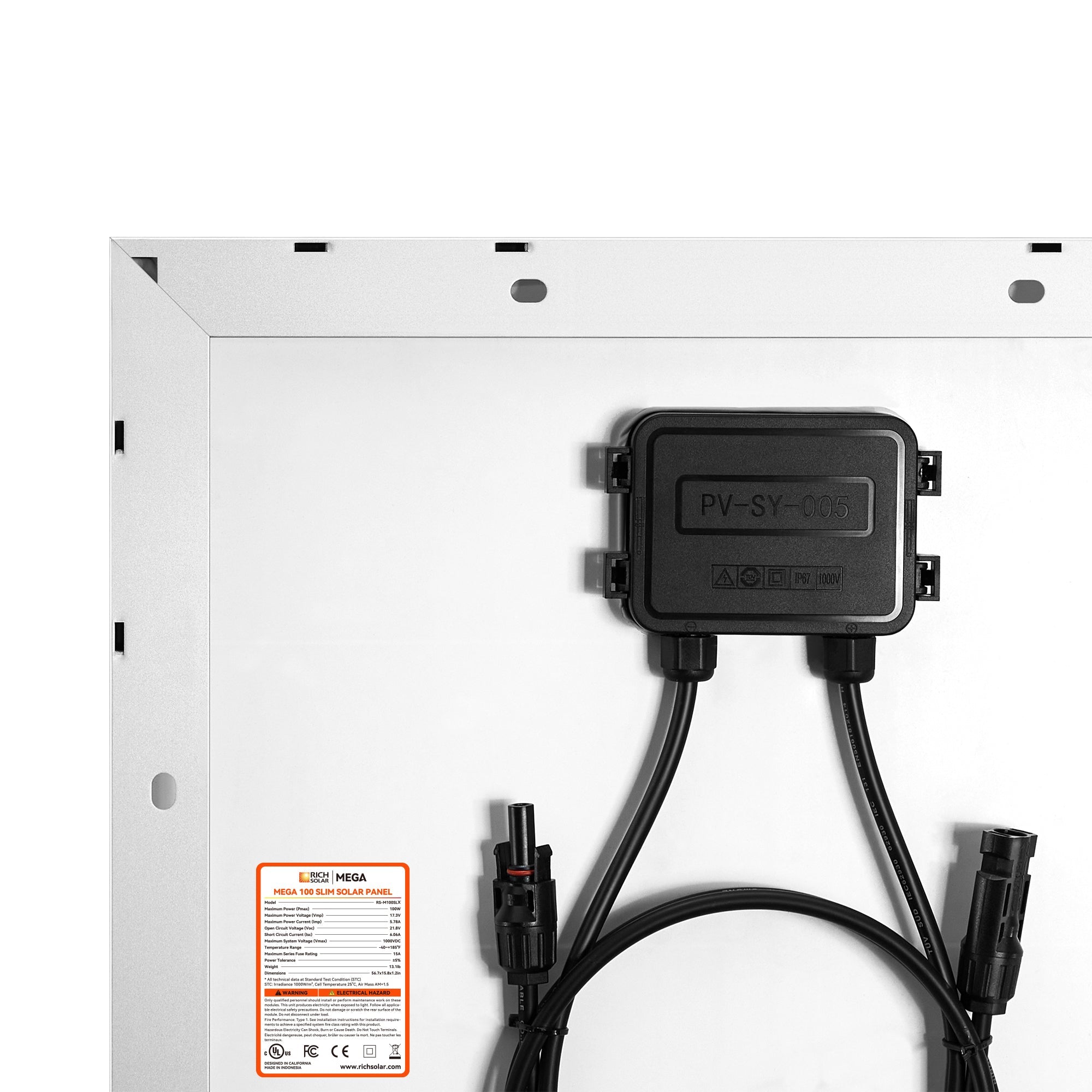

Absolutely. The panel is constructed with a heavy-duty anodized aluminum frame, 3.2 mm tempered glass, and features an IP67-rated waterproof junction box and pre-wired solar connectors to withstand rain, snow, hail, and high winds.

Is a Slim panel this thin still durable enough for daily use?
Yes. Despite the reduced thickness, it uses the same tempered glass and aluminum-framed construction as Rich Solar's standard panels, rated to withstand normal wind and snow loads. See the specifications above for its exact wind/snow load rating.

Will this fit on my van or RV roof with limited clearance?
Yes, that's the main use case for the Slim series. Check the exact length, width, and thickness in the specifications above against your roof's available space and existing roof-rack or vent layout before ordering.

Is this a flexible panel I can walk on or bend around a curved roof?
No — this is a rigid, thin-profile panel, not a flexible/bendable panel. It has a standard aluminum frame and tempered glass surface and should be mounted flat; it's not designed to be walked on or flexed around curves.

How do I wire it into my van or RV's existing electrical system?

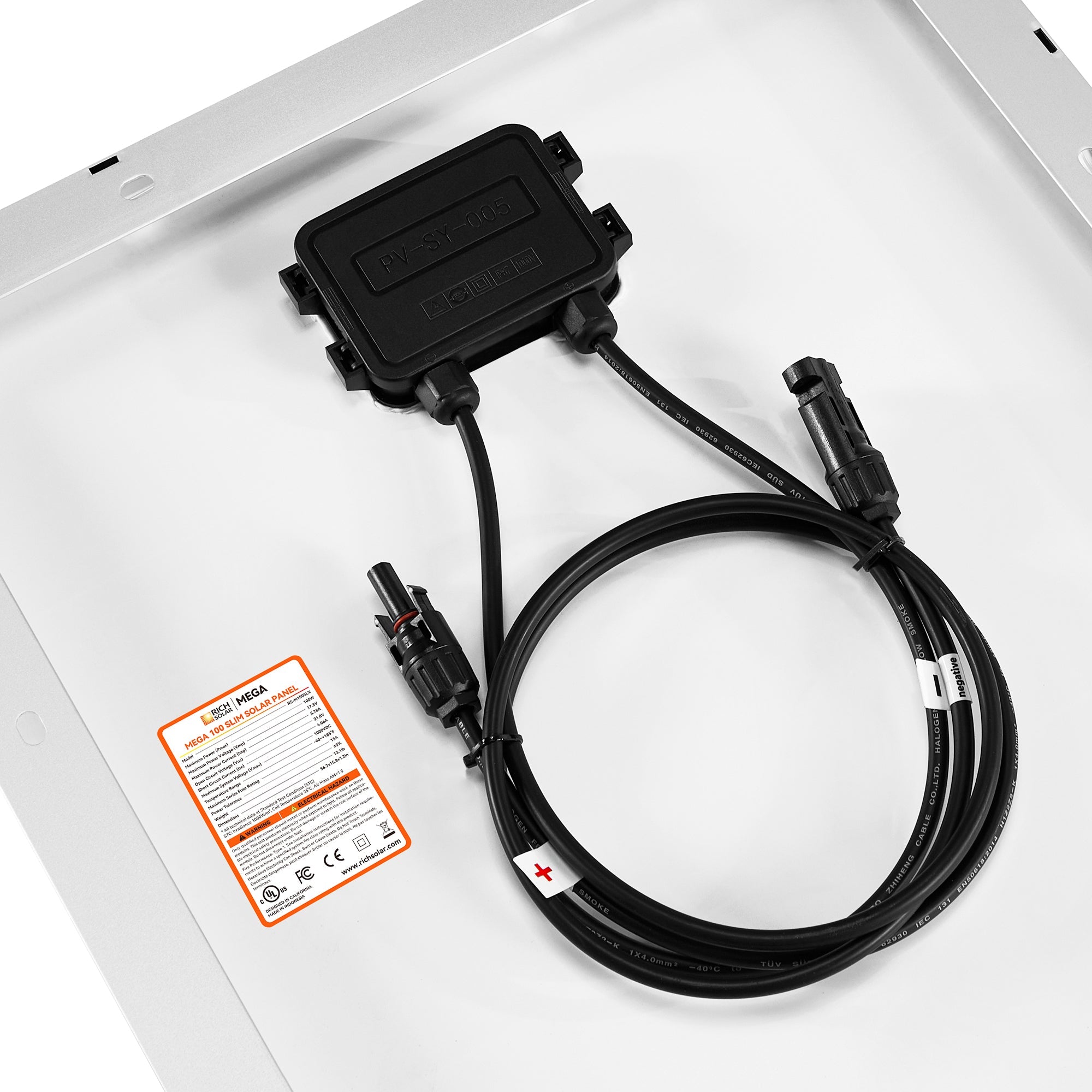

The panel outputs 12V DC through standard MC4 connectors, so it wires into any properly sized 12V solar charge controller the same way a standard rigid panel would — no special adapters needed.

Is it waterproof for driving in rain or washing the vehicle?
Yes. It uses a sealed, IP-rated waterproof junction box and weatherproof MC4 connectors (see the specifications above for the exact rating), so normal rain and washing won't affect it once properly mounted and sealed.

What's included when I order this panel?
The panel ships with its attached output cable and MC4 connectors. Mounting hardware, brackets, and cable entry glands are typically sold separately unless the listing states otherwise — check the product images and specifications above.
