The Rich Solar 100W Slim Onyx Off-Grid Solar Kit is the definitive engineering solution for vehicles, mobile workshops, and compact spaces where roof real estate is limited. Built around the ultra-narrow 100W Slim Onyx monocrystalline solar panel, this complete kit delivers robust 12V power generation without sacrificing valuable space on narrow camper van roofs, overland racks, or roof-mounted garage structures.
Whether you are outfitting a Sprinter van, an off-road trailer, or looking to establish a reliable solar backup system for your tool shed, this master off-grid kit provides high-efficiency solar cells paired with premium, commercial-grade power management components.
Why Slim Design Matters: Conventional 100W panels are often wide and square, causing placement conflicts with roof vents, gear boxes, and air conditioning units. The Rich Solar Slim Onyx line features an elongated, narrow footprint optimized to slip into tight margins seamlessly.
Select Your Power Tier: Available Slim Kit Variations
We have consolidated all Rich Solar Slim variations into one master page so you can scale your off-grid generation array according to your energy consumption profiles. Choose from 100W up to 400W configurations using the same sleek form factor:
| Kit Tier Configuration | Total Panel Output | Included Charge Controller | Primary Application Profile |
|---|---|---|---|
| 100W Slim Kit (Base) | 1x 100W Slim Onyx Panel | Bravo 30A MPPT Controller | Trickle charging, LED lighting, small electronics, and basic 12V battery maintenance. |
| 200W Slim Kit | 2x 100W Slim Onyx Panels | Bravo 30A MPPT Controller | Running 12V portable refrigerators, ventilation fans, and everyday device charging. |
| 300W Slim Kit | 3x 100W Slim Onyx Panels | Bravo 30A MPPT Controller | Extended off-grid overland trips, mobile workspaces, power tool chargers, and electronics arrays. |
| 400W Slim Kit | 4x 100W Slim Onyx Panels | Bravo 30A MPPT Controller | Full-time van life, high-draw appliances, heavy inverter usage, and multi-battery banks. |

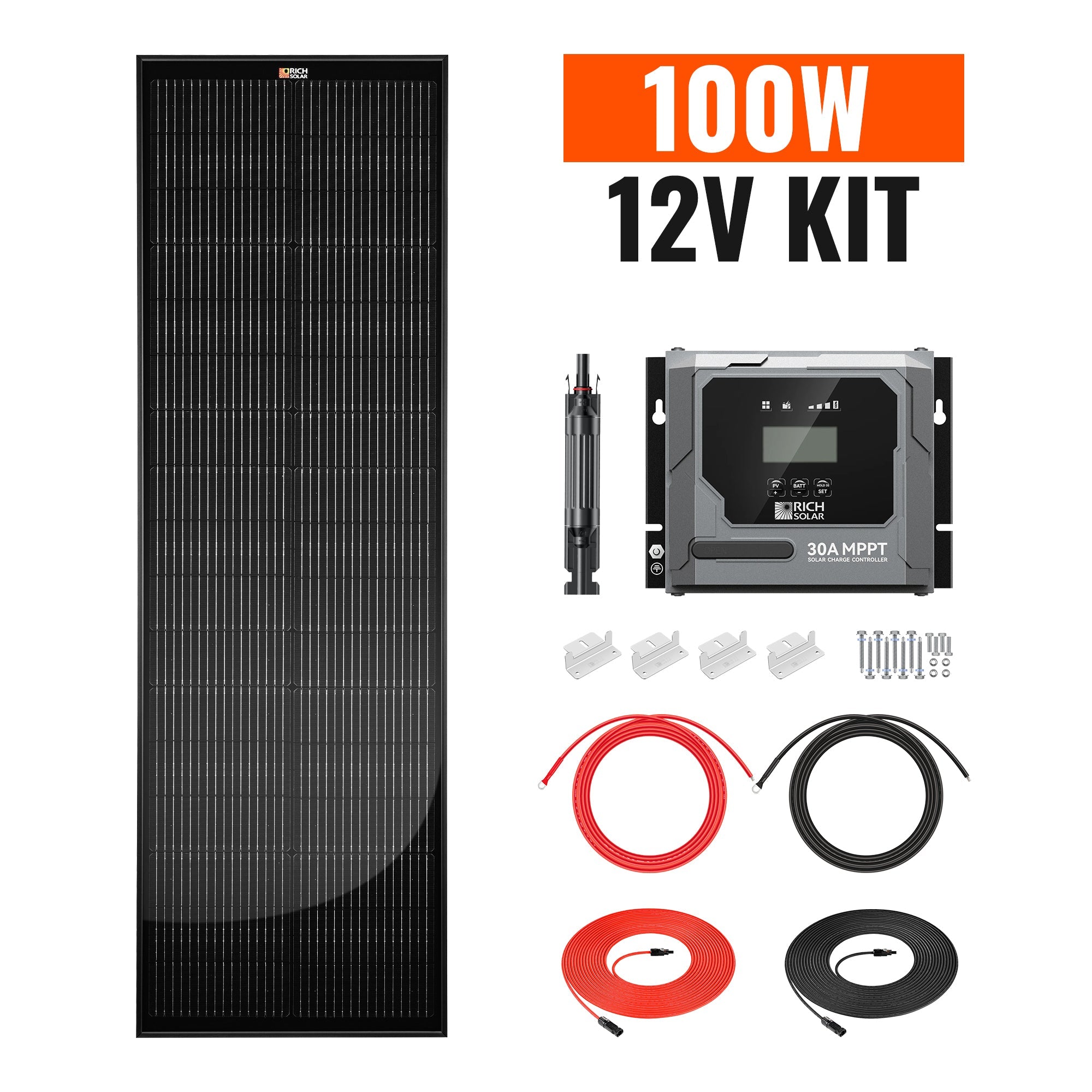

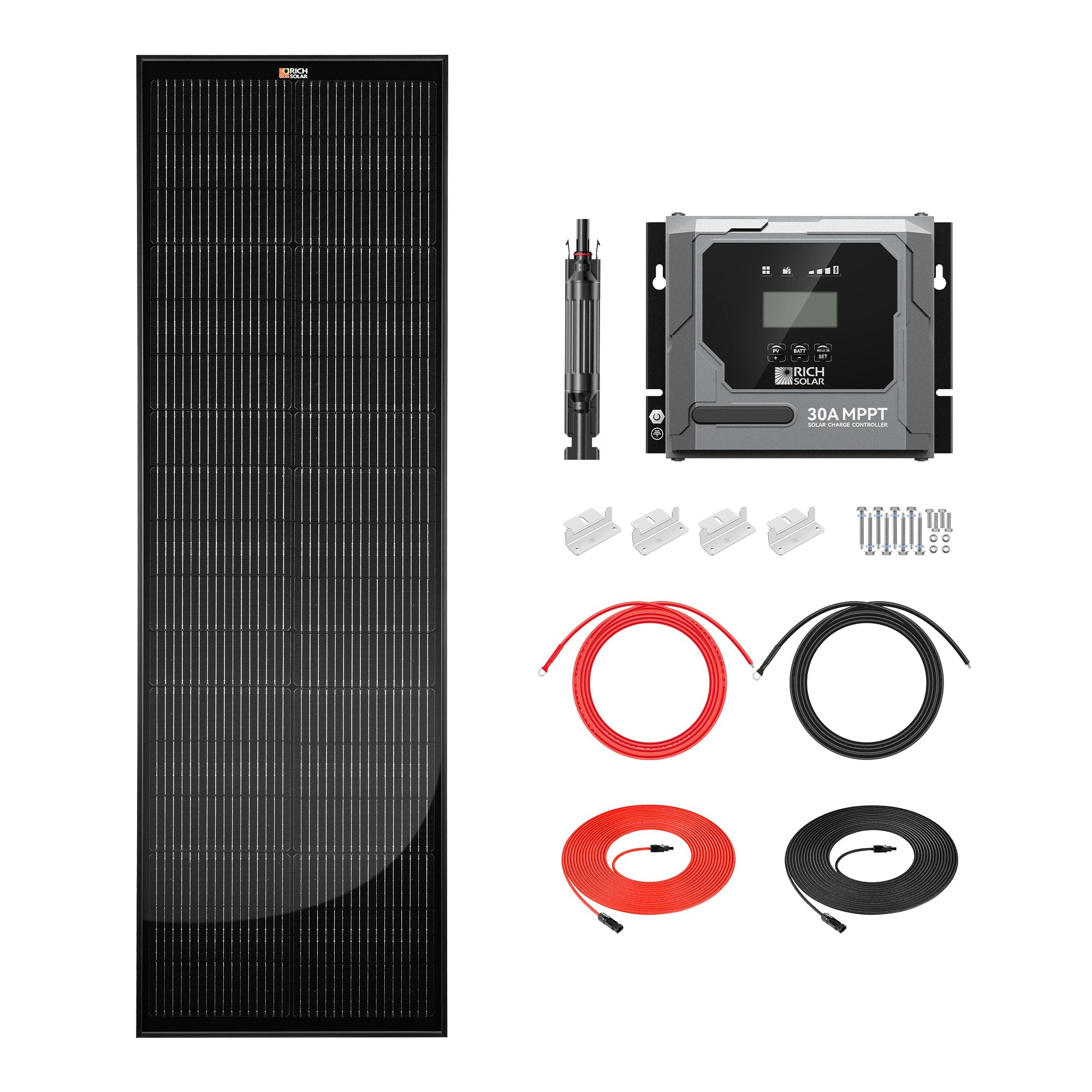

What’s Included in the Complete 100W Base Kit:
- 1x MEGA 100W SLIM Onyx Solar Panel (RS-M100SLB): High-density, anti-reflective monocrystalline cells wrapped in a durable, sleek black anodized aluminum frame.
- 1x Bravo 30A MPPT Charge Controller (RS-MPPT30PB): Maximum Power Point Tracking technology that improves charging efficiency by up to 30% compared to traditional PWM controllers. Fully compatible with Lithium, AGM, Gel, and Flooded batteries.
- 1x 30-Foot 10AWG Solar Cable Set (RS-30101): Heavy-duty, weather-resistant wiring with pre-fitted MC4 connectors to link your panels securely to the controller.
- 2x 10-Foot #10 Gauge Battery Cables (Red/Black Set - RS-1010): Stranded copper wire engineered to safely feed optimized currents directly from your charge controller into your battery storage bank.
- 1x Mounting Z-Brackets Set (RS-ZB4C): Corrosion-proof hardware built to secure your panels firmly against vehicle vibrations, highway winds, and rugged off-road terrains.
- 1x 10A Solar Panel Inline Fuse Holder (RS-SC10F): Critical electrical circuit protection safeguarding your entire investment against unexpected overcurrent spikes.
Advanced Technical Engineering and Performance Benefits
- Unmatched Space Efficiency: The narrow, elongated geometric design allows side-by-side or peripheral framing alongside roof racks, maximizing surface potential on narrow roofs.
- True MPPT Power Extraction: Rather than down-regulating voltage and wasting excess capacity, the included Bravo 30A MPPT solar charge controller constantly monitors the panel output to harvest maximum possible wattage under fluctuating cloud cover.
- Plug-and-Play Assembly Architecture: Standard industrial MC4 connectors eliminate guesswork, providing watertight links out of the box for safe DIY execution.
- All-Weather Resilient Shell: Engineered to withstand severe environmental stress, including high-velocity wind loads, heavy snow accumulations, and direct physical impact from trail brush.
Frequently Asked Questions
Can I mix this 100W Slim Panel with other non-slim solar panels in the future?
Yes, you can mix and match solar panels of different dimensions or wattages, but they must possess compatible voltage ratings. For peak optimization across mixed arrays, wiring the panels in parallel is recommended, or utilizing a dedicated secondary charge controller to avoid system efficiency degradation.
How many amp-hours can a 100W Slim Kit return to my battery bank daily?
Under standard operating conditions with roughly 5 hours of direct peak sunlight, a single 100W solar panel will generate approximately 400 to 500 Watt-hours of energy. For a standard 12V battery bank, this translates to recovering roughly 30 to 40 Amp-hours of usable power back to your system per day.
Is the included Bravo 30A MPPT controller capable of managing upgrades if I add more panels later?
Absolutely. The heavy-duty Bravo 30A MPPT charge controller is purposely oversized for the base 100W kit. It features the internal capacity to handle up to 400 Watts of solar input on a 12V DC system, meaning you can easily scale up to our 200W, 300W, or 400W setup by simply adding matching expansion panels over time.
What types of batteries can I charge with this Rich Solar kit?
The intelligent multi-stage charging algorithms native to the Bravo 30A MPPT controller allow seamless plug-and-play profile setting for Lithium-ion (LiFePO4), Sealed AGM, Gel, and traditional deep-cycle Flooded Lead-Acid battery cells.
Will this kit fit on my van or RV roof?
The Slim panel series is built specifically for van and RV roofs where space and weight are limited. Check the exact panel dimensions in the specifications above against your available roof space and existing vents, AC units, or roof racks before ordering.
Do I need to drill into my roof to mount it?
Most van and RV installs do require drilling to secure the mounting brackets and run the cable through a roof entry gland, though some owners use adhesive-backed brackets for a no-drill install on suitable roof surfaces. Check the included mounting hardware and your roof material before deciding which method to use.
What charge controller comes with the kit, and can I upgrade it?
It ships with an MPPT controller. If you later add panels or move to a larger bank, a higher-amperage MPPT controller can be fitted separately, provided it matches your battery voltage and can take the array's input.
Does it keep charging while the vehicle is in motion?
It does — there is no interlock tying generation to the ignition. What limits output on the move is shading from trees, buildings and bridges rather than the motion itself, so parked-in-sun still charges faster than driving under cover.
What's the warranty on this kit?
The Slim panels typically carry Rich Solar's standard power-output and workmanship warranty, while the charge controller carries its own separate manufacturer warranty — see the specifications above for exact terms on each component.
How is a Slim kit different from Rich Solar's standard off-grid kit?
A Slim kit uses the thinner, lighter Slim panel series designed for van/RV roof mounting, versus the thicker rigid panels in Rich Solar's standard off-grid kits, which are better suited to ground mounts, roofs with more clearance, or permanent cabin installs.
