Rich Solar 1200 Watt 24V Off-Grid Complete Solar Kit with Lithium Batteries

Take complete control of your power destiny with the Rich Solar 1200 Watt 24V Complete Off-Grid Solar Kit. Meticulously designed for cabins, remote tiny homes, overlanding rigs, and RV setups, this comprehensive premium solar solution provides all the essential components to harness, convert, store, and utilize clean solar energy anywhere on earth.

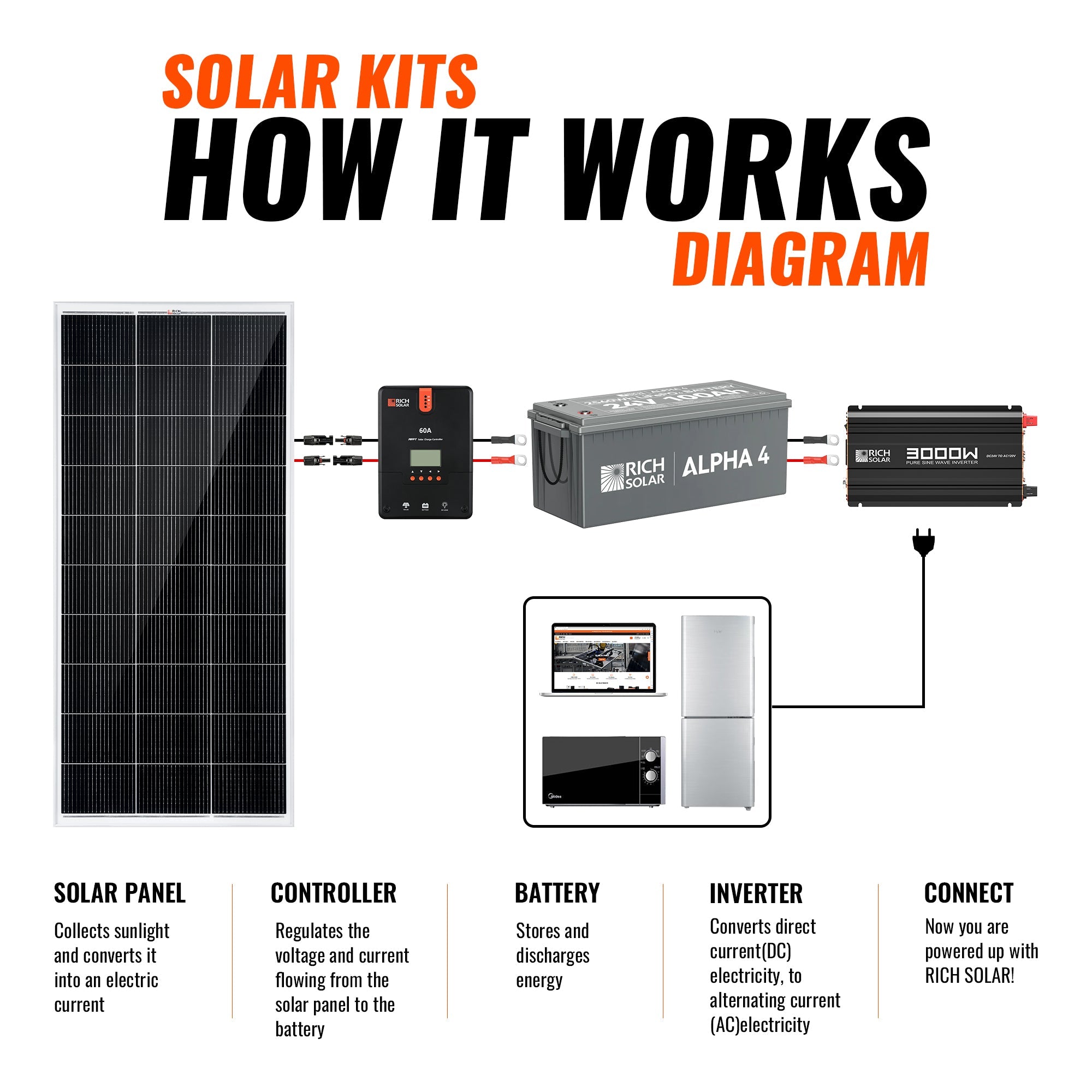

This master kit eliminates the guesswork of DIY off-grid power systems by bundling perfectly paired, industrial-grade components: six high-efficiency 200W Monocrystalline panels, a high-tracking 60A MPPT controller, a heavy-duty 3000W Pure Sine Wave inverter, and two advanced ALPHA 4 Lithium Iron Phosphate (LiFePO4) self-heating batteries.

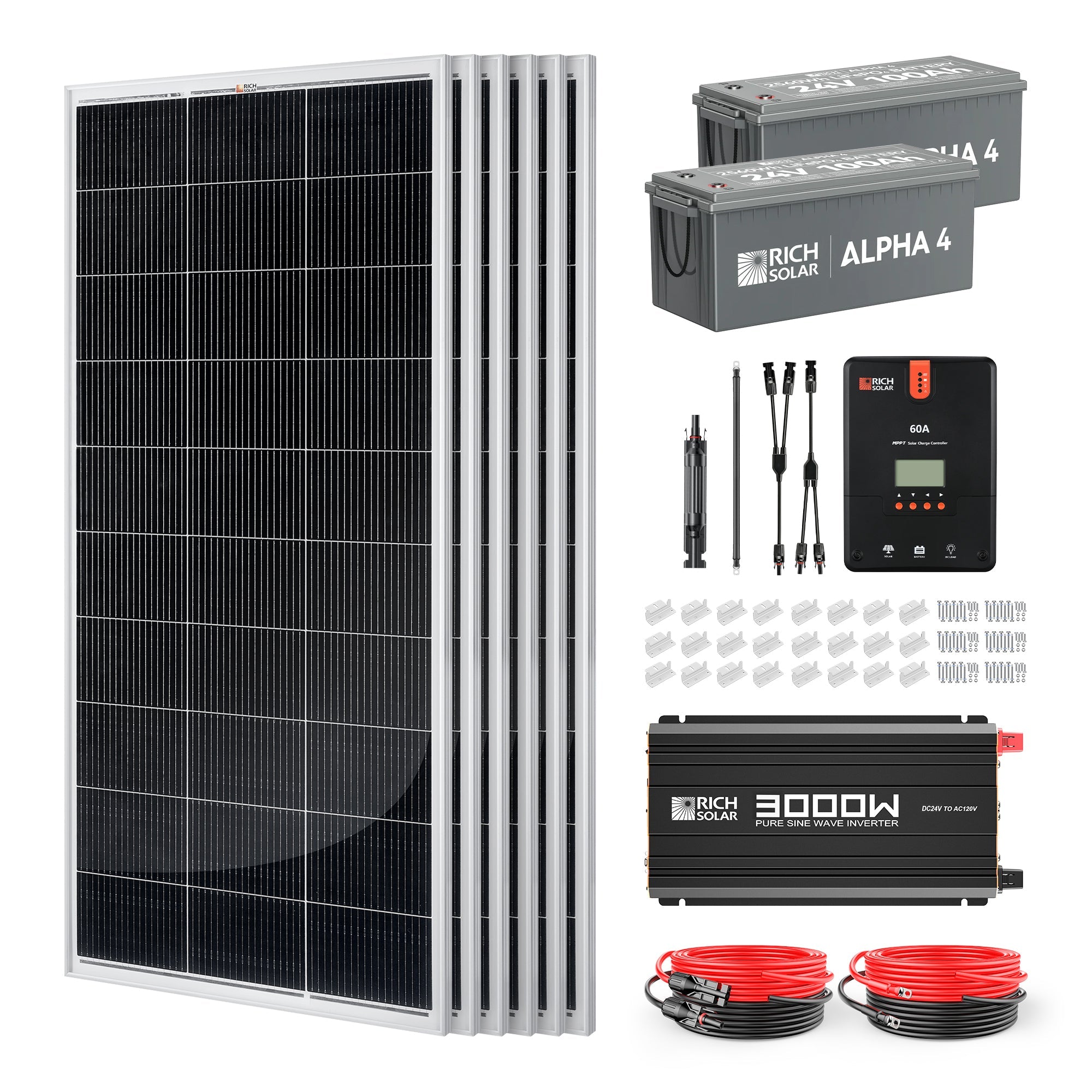

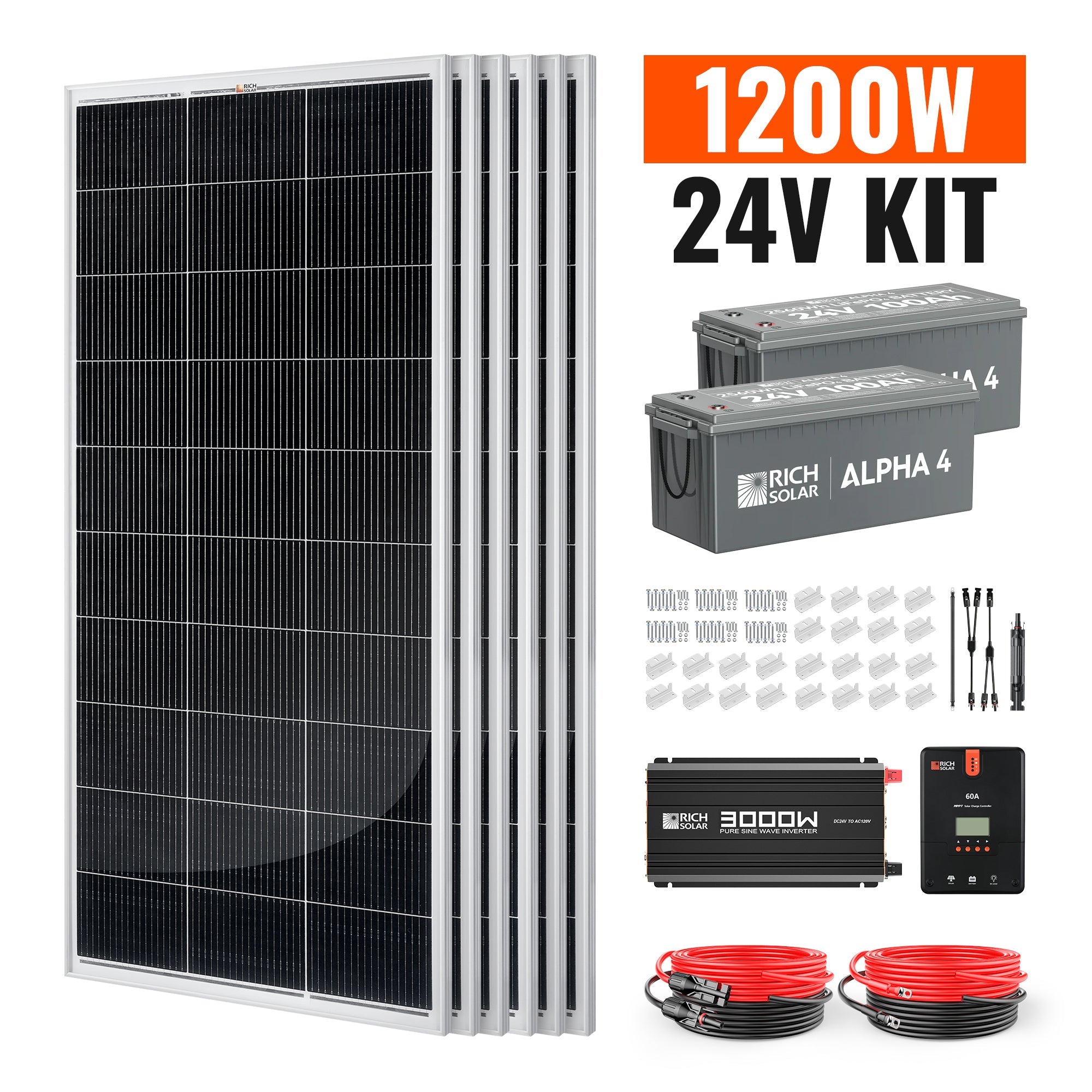

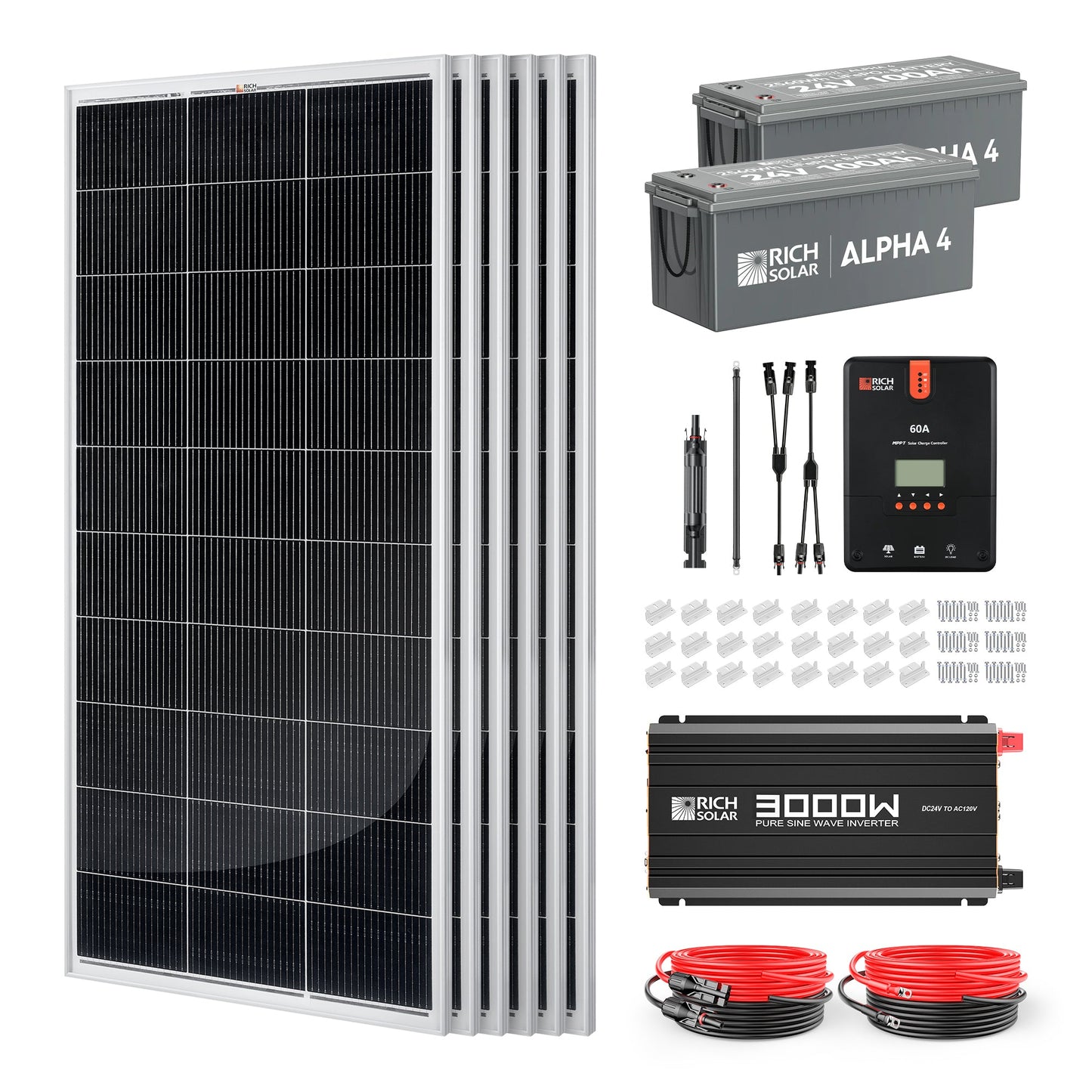

What is Included in the Rich Solar 1200W 24V Solar Kit?

• 6 x MEGA 200W 12V Monocrystalline Solar Panels (RS-M200)
• 2 x ALPHA 4 24V 100Ah Lithium LiFePO4 Batteries (RS-B241S)
• 1 x NOVA 3000W 24V Pure Sine Wave Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 6 x Z-Bracket Mounting Sets (RS-ZB4C)

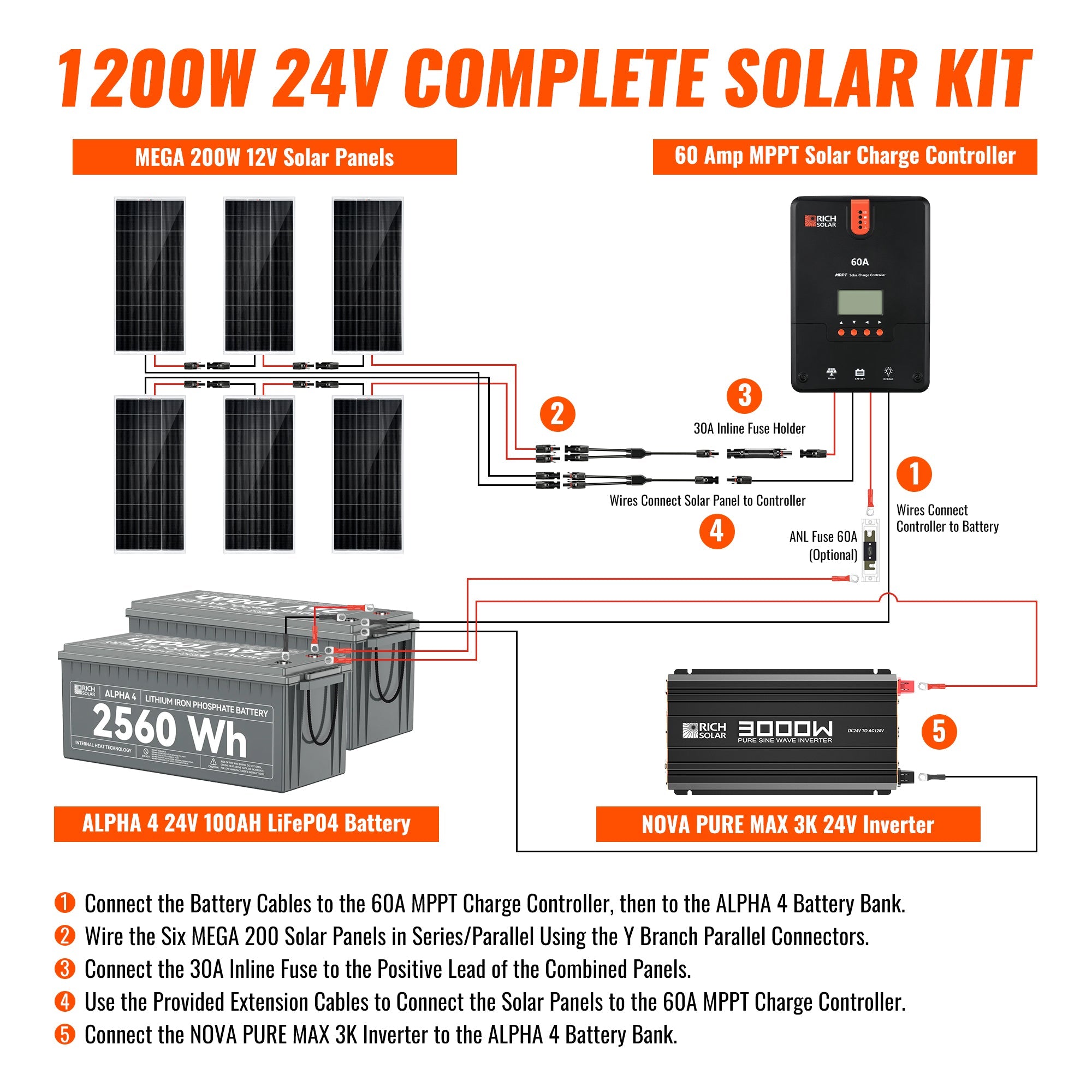

• Comprehensive Wiring & Installation Components: 1x 30A Inline Fuse Holder, 1x Y-Branch Parallel Adapter, 1x 2-Gauge 1ft Red Inverter Cable, 1x 2-Gauge 1ft Black Inverter Cable, 1x 30ft 10 AWG Solar Cable Set, 1x 10ft 8 AWG Solar Cable Set, and 1x 4 AWG 8ft Battery Cable Set.

Core Component Breakdown & Core Specifications

1. MEGA 200W Monocrystalline Solar Panels

Engineered for maximum power extraction even in low-light environments (early mornings, late evenings, or heavily overcast days). Built with strong anti-reflective coated tempered glass and a rugged, corrosion-resistant anodized aluminum frame featuring 14 pre-drilled holes for fast installation.

• Total Wattage: 1200W (6 panels x 200W)
• Maximum Power Voltage (Vmp): 18.4V
• Maximum Power Current (Imp): 10.9A
• Weight & Dimensions: 24 lbs | 58.7 x 26.8 x 1.2 inches
• Warranty: 25-Year Limited Power Output / 10-Year Workmanship

2. ALPHA 4 24V 100Ah Lithium (LiFePO4) Batteries

Never worry about freezing temperatures ruining your energy storage. These smart, heavy-duty batteries feature advanced internal self-heating technology that activates below 41°F, alongside seamless smartphone app tracking for real-time monitoring.

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Energy Capacity: 2560Wh per battery (5120Wh total bank)
• Cycle Life: Over 5,000 deep discharge cycles
• Safety Features: Built-in 100A BMS, UL94 V-0 flame-retardant casing, and IP65 waterproof rating
• Warranty: 5-Year Comprehensive Warranty

3. NOVA 3000W 24V Pure Sine Wave Inverter

Safely convert your stored 24V DC battery power into clean, stable 120V AC household electricity. Pure sine wave output ensures that sensitive medical equipment, laptops, appliances, and power tools run efficiently without interference or damage.

• Continuous AC Output: 3000 Watts
• Peak Surge Capacity: 6000 Watts
• Efficiency Rating: >88%
• Built-in Outlets: 3 x AC Sockets, 1 x USB Power Port (5V/2.1A)
• Safety Protections: Electronic overload, internal DC backup fuses, low voltage, over-temperature, and short-circuit auto-shutdown

4. 60 Amp MPPT Solar Charge Controller

The brain of your system optimizes the energy flow between your solar array and battery bank. Boasting an ultra-fast tracking efficiency up to 99% and a peak conversion efficiency of 98%.

• Maximum Solar Input Voltage (Voc): 150V DC
• System Compatibility: Automatically detects and manages 12V/24V/36V/48V systems
• Battery Compatibility: Sealed, Gel, Flooded, and Lithium (LiFePO4)
• Safety Protections: Reverse polarity, overcharging, over-discharging, and reverse currents

Off-Grid Solar System Specifications Comparison

How does the Rich Solar 1200W system look by the numbers? Use this unified specifications guide to plan your space and capacity requirements:

Frequently Asked Questions

Can the Rich Solar 1200W Kit run an RV Air Conditioner?

Yes. With a 3000W continuous inverter and 6000W peak surge rating, this kit provides ample power to start and run a standard 13,500 BTU or 15,000 BTU RV air conditioner. The dual Alpha 4 Lithium battery bank offers 5,120 Watt-hours of storage to sustain continuous high-draw appliances smoothly.

What makes the Alpha 4 LiFePO4 batteries better for off-grid applications?

Unlike standard lithium batteries that suffer permanent damage if charged in sub-freezing temperatures, the Alpha 4 features integrated intelligent self-heating. When internal sensors detect temperatures under 41°F, the system safely uses incoming solar power to heat the cell core to safe operating levels before initiating a charge cycles. It also boasts an incredible 5000+ cycle lifespan.

Is the 1200-watt complete solar kit expandable?

Absolutely. The heavy-duty 60A MPPT controller can manage up to 1600 Watts of solar input on a 24V configuration. This allows you to add up to two extra 200W solar panels to your array down the road without replacing your core electrical charge management system.
