PRODUCT DESCRIPTION

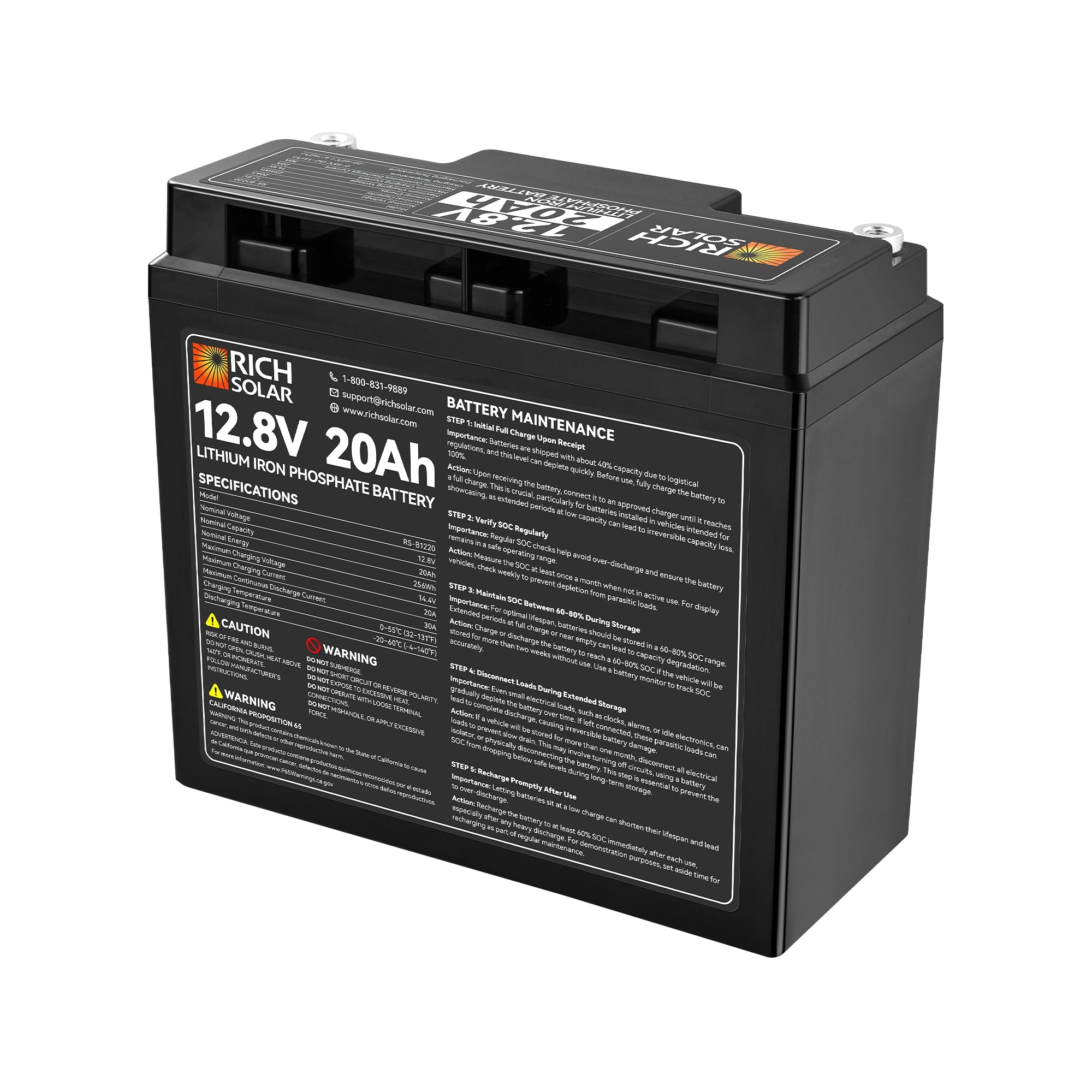

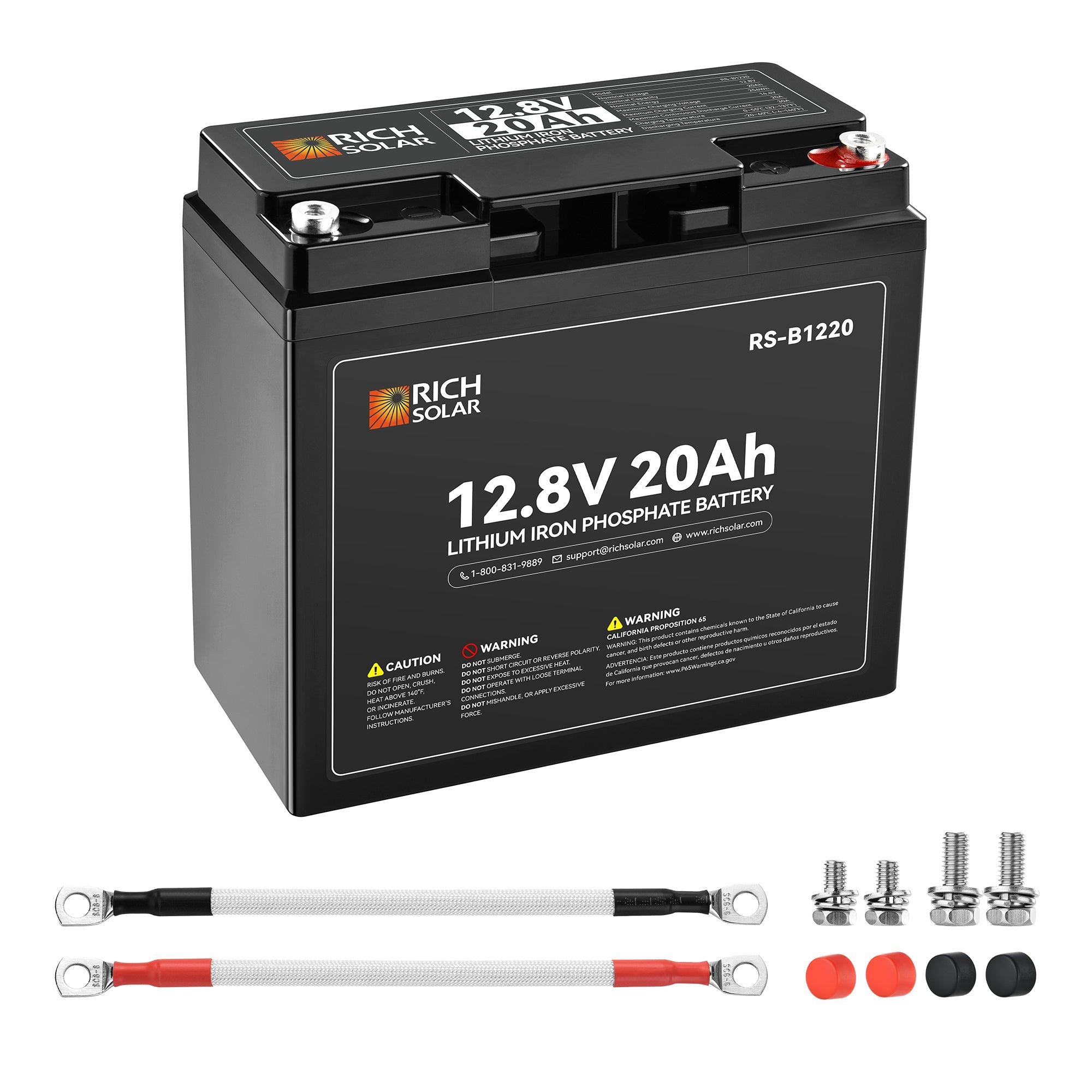

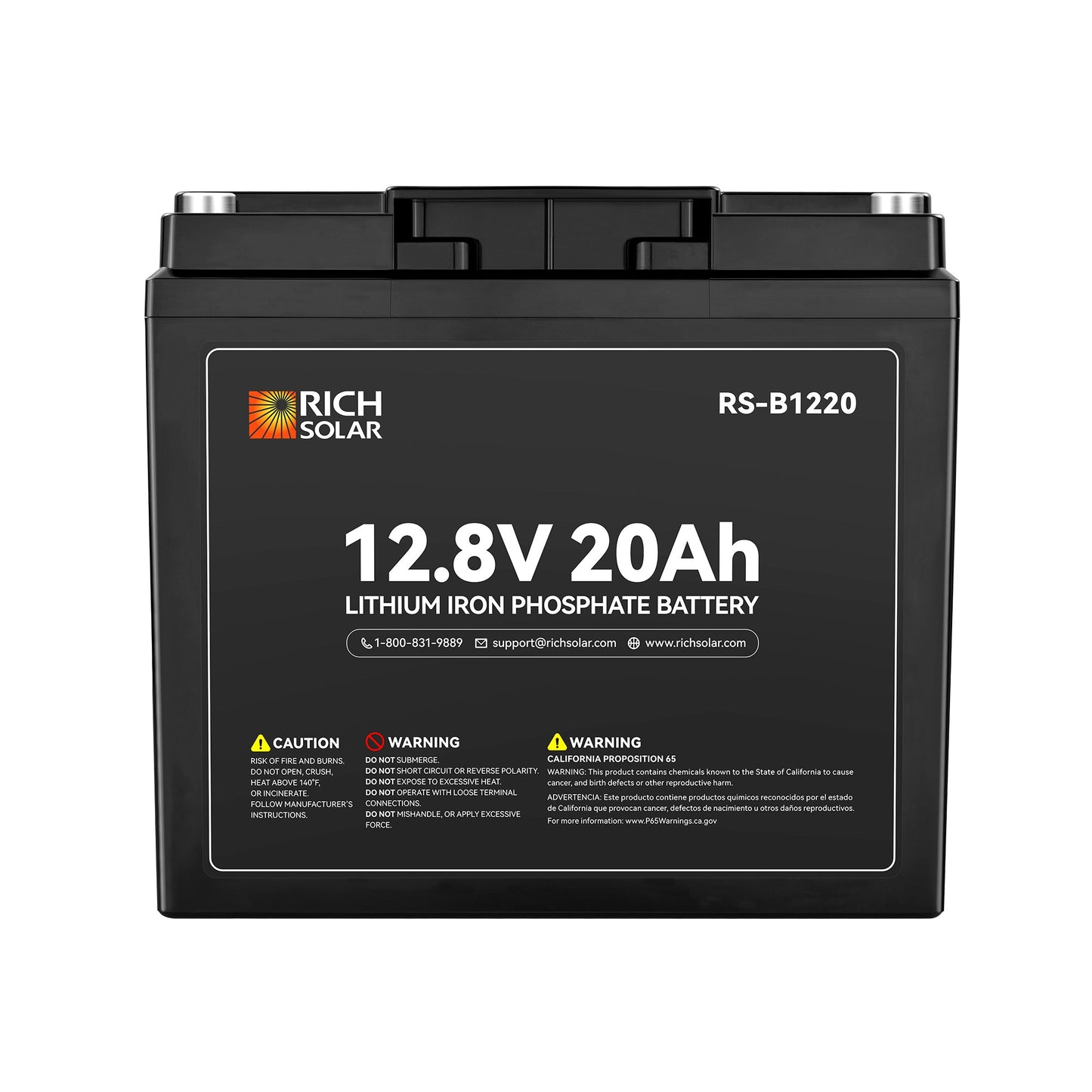

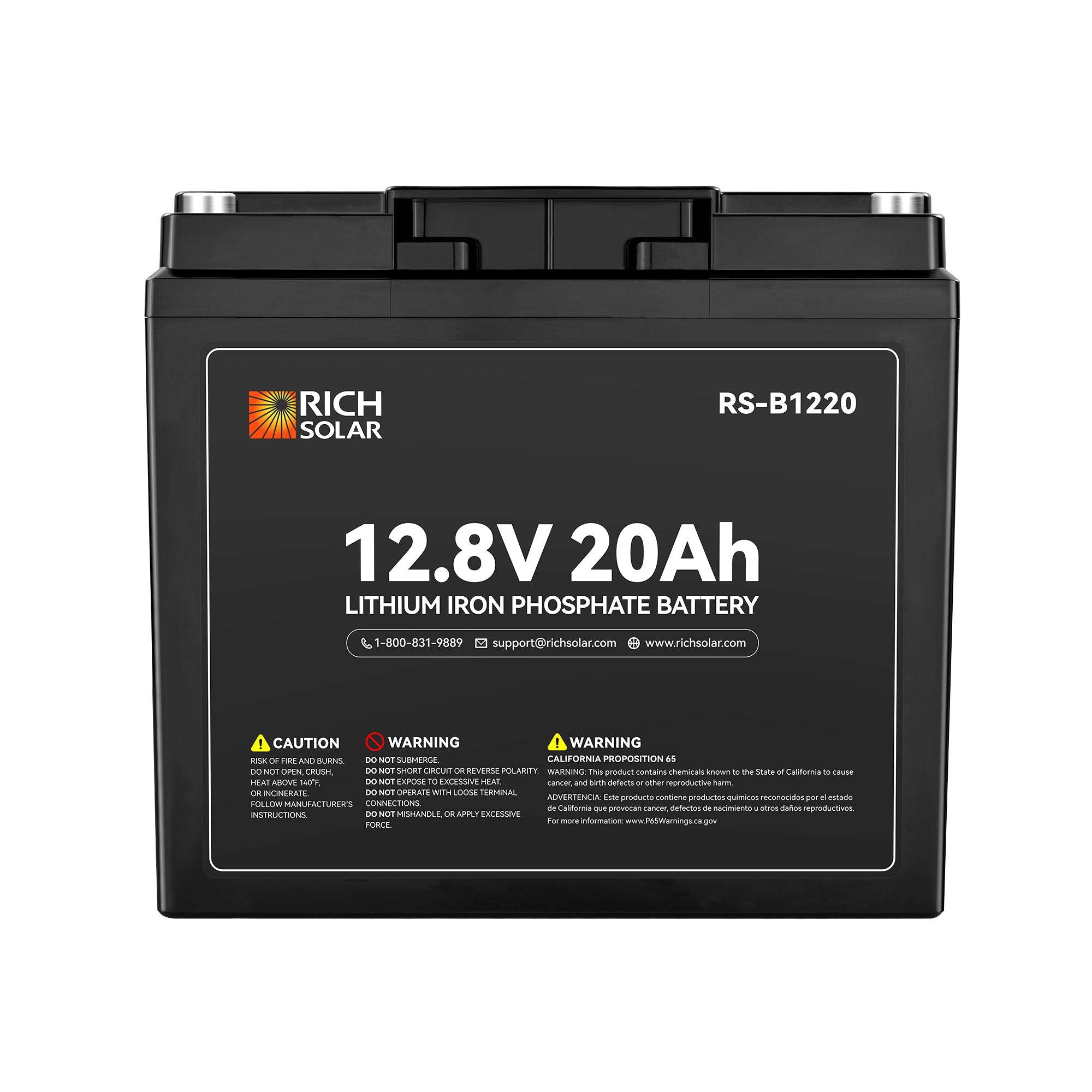

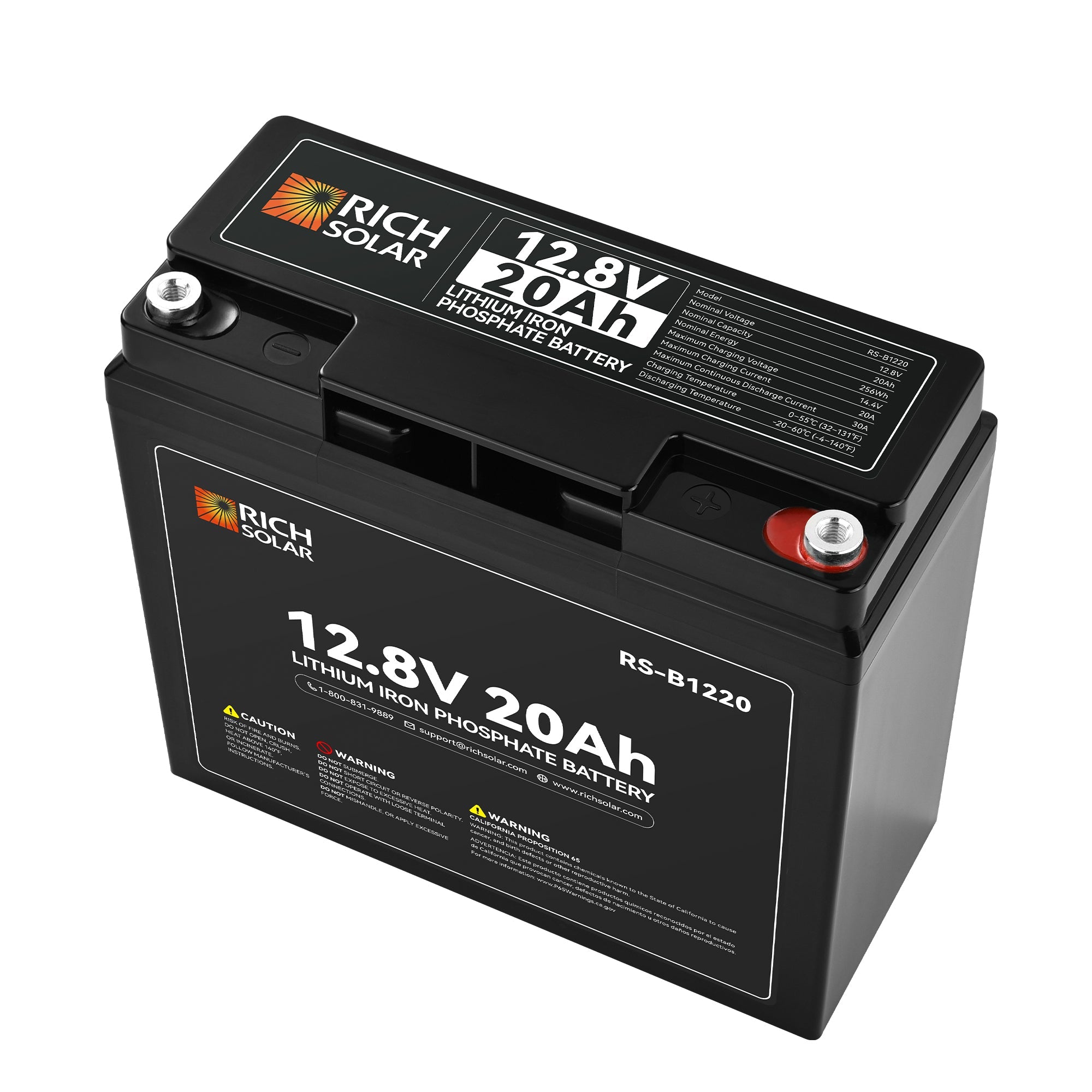

Rich Solar 12V 20Ah LiFePO4 Lithium Deep Cycle Battery (256Wh)
The Rich Solar 12V 20Ah LiFePO4 Lithium Battery is a high-performance, maintenance-free deep cycle energy storage solution engineered for reliability and long service life. Built with premium Grade A+ LiFePO4 cells, this lightweight 256Wh battery delivers stable power for RVs, marine vessels, solar systems, off-grid cabins, and critical backup systems.
Key Features & Benefits
- Premium Grade A+ Stability: Manufactured with top-tier Lithium Iron Phosphate (LiFePO4) chemistry to ensure maximum thermal stability, chemical safety, and optimal discharge efficiency.
- Advanced Built-In BMS Protection: The integrated Battery Management System protects against overcharging, over-discharging, over-current, short circuits, and features low-temperature charging protection.
- Exceptional Cycle Life: Provides over 3,000 cycles at 70% Depth of Discharge (DoD), drastically outlasting traditional lead-acid alternatives.
- Expandable Power Configurations: Supports parallel scaling up to 4 units (4P) to increase total current capacity as your power needs grow.
- Ultra-Lightweight Profile: Weighing only 4.6 lbs, it offers a compact, high-energy-density alternative that reduces vehicle and kit weight.

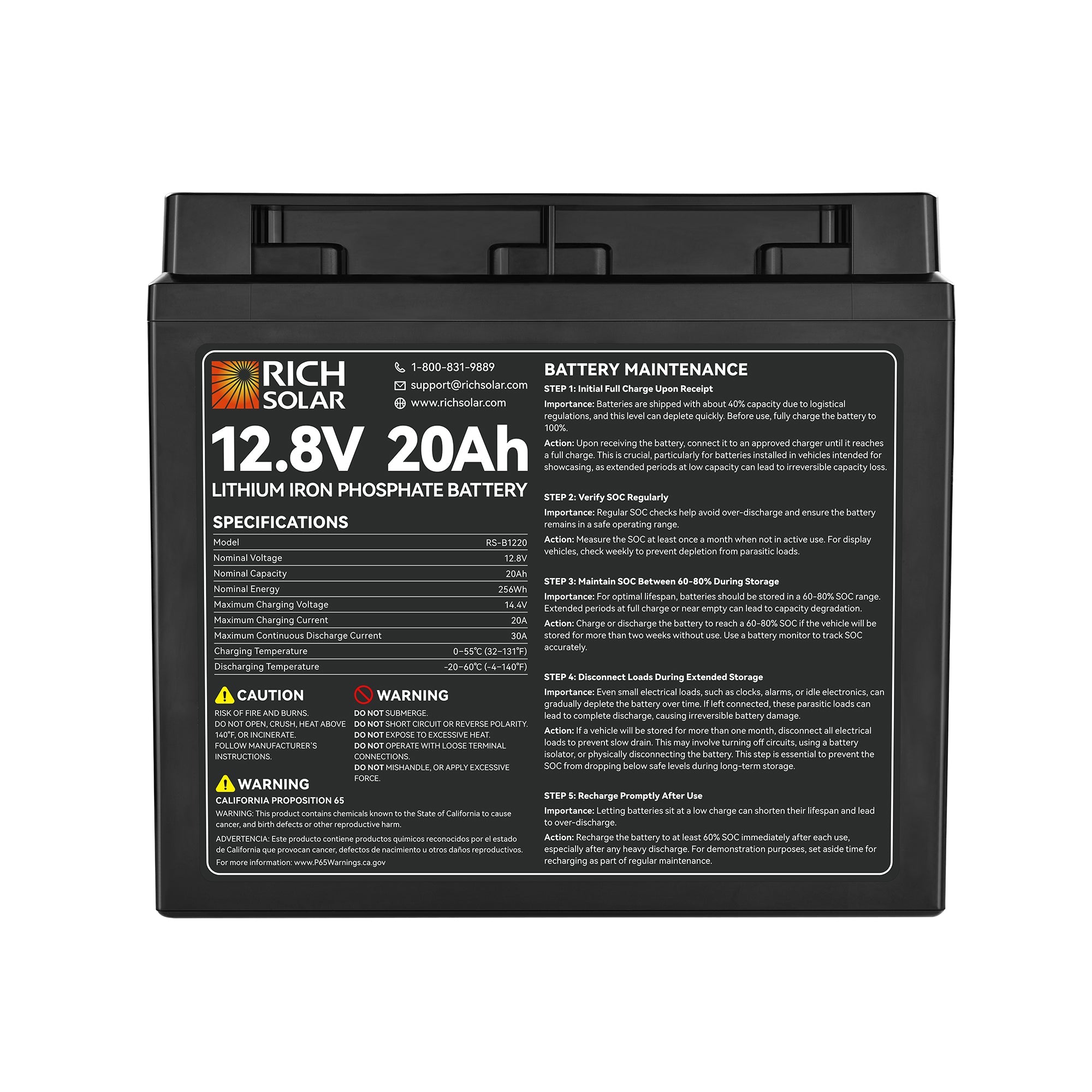

Technical Specifications
| Specification Category | Technical Parameter Data |
|---|---|
| Nominal Voltage | 12.8V |
| Rated Capacity / Nominal Energy | 20Ah / 256Wh |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | 3,000+ Cycles (at 70% DoD) |
| Parallel Expansion | Up to 4 units in parallel (4P configuration) |
| Recommended / Max Charge Current | 10A / 20A |
| Max Continuous / Peak Discharge Current | 30A / 50A (for 10 Seconds) |
| Charge / Discharge Temperatures | 32°F to 131°F / -4°F to 140°F |
| Terminal Type & Case Material | M6 Terminals / Rugged Sealed Plastic |

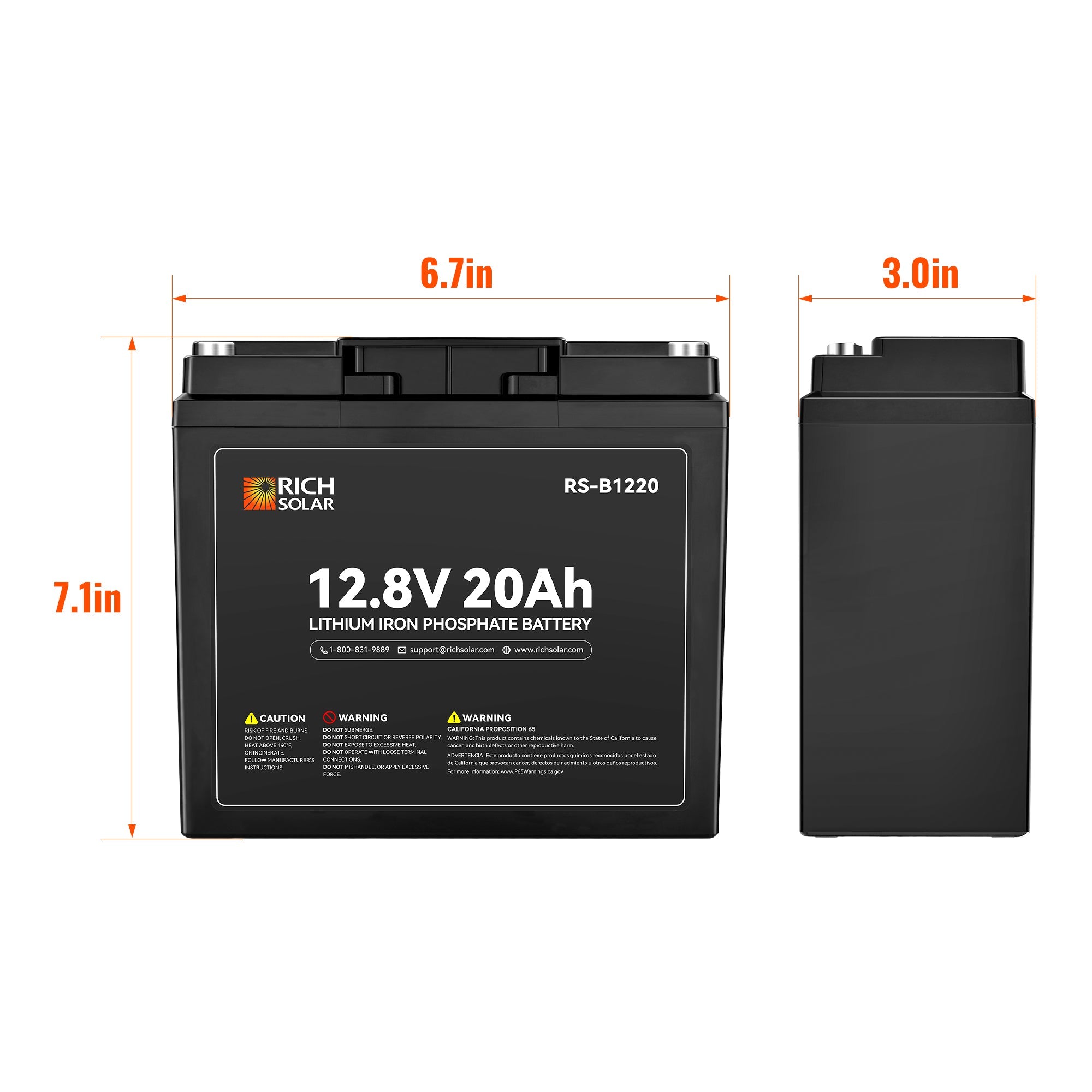

| Dimensions & Net Weight | 7.1 x 3.1 x 6.5 inches / 4.6 lbs |
| Safety Certifications | UL 1642, CE, UN 38.3 |
Performance Comparison: LiFePO4 vs. Standard Lead-Acid
Upgrading your power bank layout yields measurable efficiency improvements over conventional battery configurations:
| Performance Metric | Rich Solar 12V 20Ah LiFePO4 | Standard 12V AGM / Lead-Acid |
|---|---|---|
| Lifespan (70% DoD) | 3,000+ Lifecycles | 300 - 500 Lifecycles |
| Usable Discharge Depth | Up to 80-100% without damage | Max 50% recommended depth |
| Average Weight | 4.6 lbs (Ultra-lightweight) | 12 - 15 lbs |
| Self-Discharge Rate | Less than or equal to 5% per month | 10% to 15% per month | Zero Maintenance Required | Requires ventilation / inspection |
Frequently Asked Questions (FAQs)
Q: Can I connect multiple Rich Solar 12V 20Ah batteries together to scale up my capacity?
A: Yes. You can safely expand your system by connecting up to 4 units in parallel (4P setup) to match increasing storage and current runtime needs. Connecting in series is not recommended for this model.
Q: What does the built-in Battery Management System (BMS) protect against?
A: The smart integrated BMS keeps your battery safe by preventing common causes of cell degradation, automatically cutting off power in instances of overcharging, over-discharging, excess current spikes, short circuits, and extreme high or low-temperature exposure.
Q: What are the charging temperature limitations for this lithium battery?
A: For safe operation, charge the battery when ambient temperatures are between 32°F and 131°F. Discharging can safely occur in cold temperatures from -4°F up to 140°F.
Q: Is this battery safe to use inside closed spaces like a camper, van, or indoor workshop?
A: Yes. Rich Solar LiFePO4 batteries are sealed, maintenance-free, and do not emit toxic gasses or spill liquids, making them completely safe for interior installations and off-grid workspaces.
