Unleash Complete Power Independence with the Rich Solar 13,000W Off-Grid Solar Kit
Take full control of your power supply with the ultimate heavy-duty energy solution. The Rich Solar 13,000W 120/240V Off-Grid Hybrid Solar System Kit is engineered to handle rigorous demands, making it the perfect energy backbone for entire off-grid homes, large workshops, detached garages, or critical emergency backup systems. Featuring a massive 30.72kWh of storage capacity driven by the next-generation ALPHA 5 PRO server rack batteries, this kit delivers absolute reliability when you need it most.

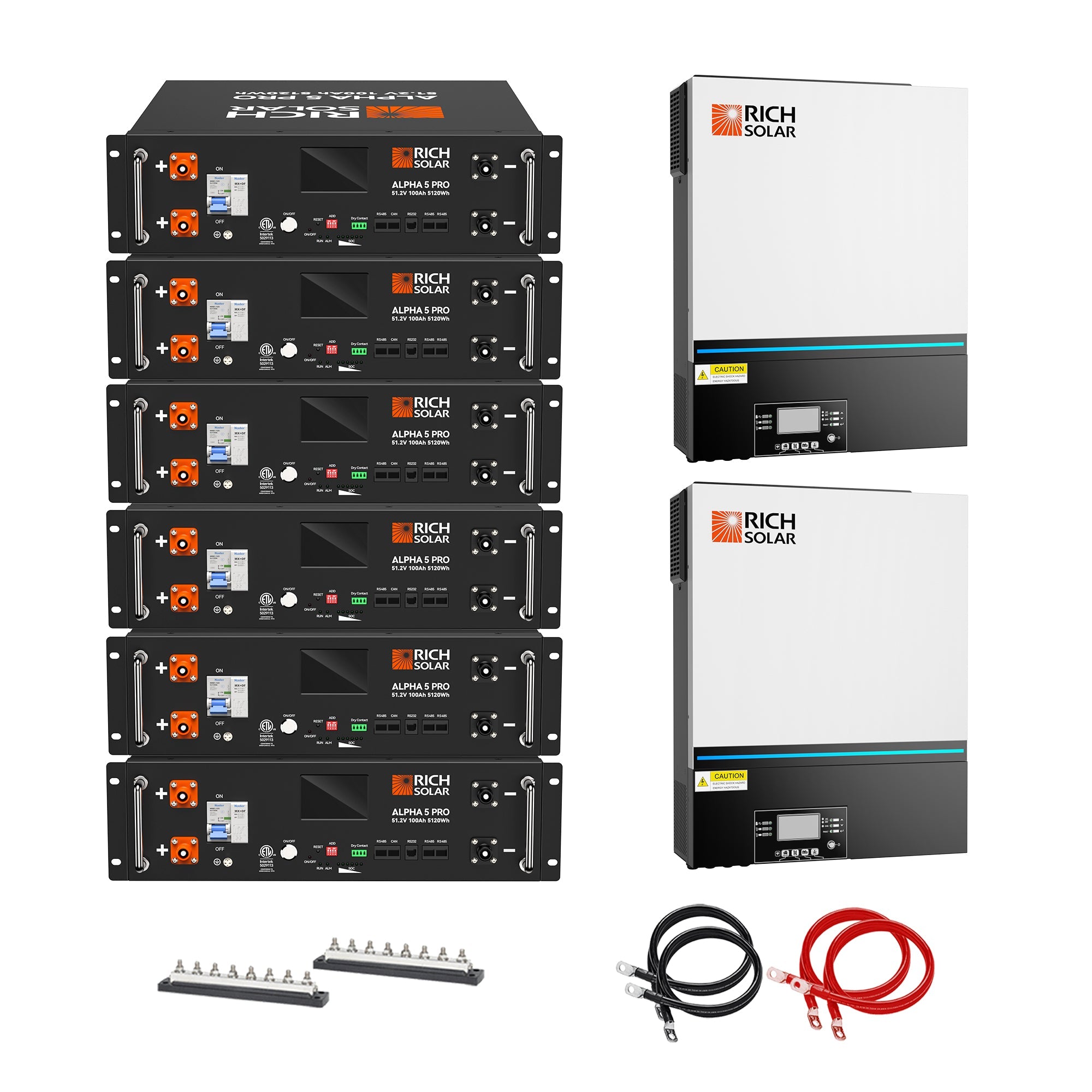

What's Included in the Master Kit:
- 2 x NOVA 6548 Hybrid Solar Inverters: 6,500W 48V Off-Grid Inverters (13,000W total continuous output) configured for clean 120/240V split-phase power.
- 6 x ALPHA 5 PRO Server Rack Batteries: 5.12kWh 51.2V 100Ah LiFePO4 Lithium Batteries combining for a massive 30.72kWh battery bank.
- 2 x Heavy-Duty Busbars: Rated at 600 AMPs for safe, seamless power distribution.
- 4 x Battery Interconnect Wires: 4-foot 2/0 Gauge AWG premium wire sets with 3/8" lugs.
Key Performance & Architectural Highlights
Pure Sine Wave Split-Phase Power (120V/240V)
By pairing two synchronized NOVA 6548 inverters, this kit natively outputs a true 120V/240V split-phase AC power structure. This means you can run everyday household appliances alongside heavy-duty 240V hardware like well pumps, air compressors, power tools, and central air units without flickering or voltage drops.
Industrial-Grade ALPHA 5 PRO LiFePO4 Storage
The core of this system's longevity lies in its six server-rack form factor Lithium Iron Phosphate (LiFePO4) batteries. Rated for 7,000 deep cycles and a 10-year operational lifespan, these batteries feature an advanced integrated Battery Management System (BMS) that actively protects your cells against overcharging, deep discharge, overcurrent, and short circuits.
System Component Specifications
1. NOVA 6548 Hybrid Inverter Specifications (Per Unit)
| Feature | Specification |
|---|---|
| Rated Output Power | 6500VA / 6500W (13,000W Total System Output) |
| Output Waveform | Pure Sine Wave |
| Max PV Array Power | 8000W (Dual MPPT trackers: 4000W x 2) |
| MPPT Voltage Range | 90 ~ 450 VDC (Max Open Circuit: 550 VDC) |
| Max Charging Current | 120A (Solar) / 120A (AC Grid/Generator) |
| Certifications | UL 1741 Certified by TUV |
2. ALPHA 5 PRO LiFePO4 Server Rack Battery Specifications (Per Unit)
| Feature | Specification |
|---|---|
| Nominal Voltage & Capacity | 51.2V / 100Ah (5,120Wh / 5.12kWh per battery) |
| Total Energy Capacity | 30,720Wh (30.72kWh Total Bank) |
| Cycle Life | 7,000 Deep Cycles |
| Continuous Charge/Discharge | 100A / 100A |
| Scalability | Parallel expansion up to 15 units |
| Certifications | UL1973, UL9540A, FCC Compliant |
Quick Answers
In building this product reference, we directly address the most common technical questions crawled by search engines and AI engines regarding off-grid hybrid power kits:
Can this solar kit power a whole house?
Yes. With a 13,000-watt continuous output and a true 120V/240V split-phase setup, this system is explicitly designed to handle heavy household loads, including central air conditioners, deep well pumps, refrigerators, and multiple kitchen appliances simultaneously.
How many solar panels can I connect to this system?
Each NOVA 6548 inverter features dual internal MPPT charge controllers capable of managing up to 8,000 watts of solar array power. Operating both inverters allows you to connect up to a total of 16,000W of solar panel inputs, offering massive room for fast battery replenishment.
What is the benefit of the ALPHA 5 PRO Lithium Server Rack design?
Traditional lithium batteries take up excessive floor space and present wiring clutter. The server rack structure optimizes spatial footprint while native communication protocols (RS485/CAN) ensure the batteries and inverters talk to each other flawlessly, maximizing cell efficiency and life expectancy.
Does this kit work with a backup generator?
Absolutely. The integrated hybrid architecture allows you to easily connect a fuel-powered generator or standard utility grid as an auxiliary backup input. You can customize charging priorities via the LCD screen to switch automatically during extended storm seasons.
Frequently Asked Questions
What's included in this 13,000W complete kit?
This kit bundles Rich Solar solar panels totaling 13,000W, a LiFePO4 battery bank (30.72kWh), an MPPT charge controller, and a pure sine wave inverter for AC output — check the specifications and product images above for the exact component list and quantities.
How do I tell whether this will run a specific appliance?
Two numbers decide it. The appliance's running watts must sit inside the inverter's continuous rating, and its startup surge — often several times running watts on anything with a compressor or motor — must sit inside the surge rating. Then divide the bank's watt-hours by running watts for runtime.
How many hours of power does this system actually give me?
There is no single figure, because it scales with draw. A 100 W load runs roughly ten times longer than a 1,000 W load on the same bank. Total your appliance wattages, divide the bank's watt-hours by that number, and treat daytime solar as extending the result rather than as part of it.
Can I use this somewhere with no utility supply at all?
Yes — that is the intended use. Cabins, remote workshops, boats and vehicles all run on this class of system with no grid present. Size the array and bank to your winter usage rather than your summer usage, since that is the binding constraint.
Can I add more solar panels or battery capacity later?
Usually yes. Controllers and inverters generally ship with headroom above what the base kit uses. The limits that matter are the controller's maximum input voltage and current, and the documented maximum parallel or series battery configuration — both are in the specifications above.
Is professional installation required?
Not for the DC portion, which is designed to be assembled without special tools. It becomes a job for a licensed electrician the moment you tie AC output into a building's wiring, which is a permitting and code question as much as a technical one.
Is there any way to see what the system is doing without walking out to it?
Where the model includes Bluetooth or Wi-Fi monitoring, an app gives you state of charge, live power draw and health warnings remotely. It is genuinely useful for spotting a failing charge cycle early. The specifications above confirm whether this unit has it.
Which part of this system is likely to need replacing first?
Statistically the inverter or the charge controller, since they are the active electronics; panels routinely outlast their 25-year output warranty, and LiFePO4 banks are rated in thousands of cycles. That is worth knowing when you plan the install: leave the electronics accessible.
How does this compare to a standby generator?
Different trade-offs. A generator runs indefinitely while fuel lasts and handles large surge loads; this runs silently, needs no fuel deliveries, and keeps recharging as long as the sun comes up. Solar wins on multi-day outages where fuel runs out, and on anywhere you cannot run an engine.
