Rich Solar 1600 Watt 24V Off-Grid Solar Kit with 60A MPPT Controller

The Rich Solar 1600 Watt 24V Off-Grid Solar Kit is a heavy-duty, high-efficiency alternative energy solution designed for large RVs, remote cabins, marine setups, and off-grid work or garage spaces. Featuring eight premium 200W monocrystalline solar panels with 18 busbars and an advanced 60A MPPT charge controller, this 24-volt kit easily pairs with up to a 400Ah 24V battery bank to quietly supply consistent power without generator noise.

Why Choose the Rich Solar 1600W 24V Kit?

• Maximum Power Density: Includes 8 x MEGA 200W solar panels utilizing an 18-busbar configuration for maximized electrical conductivity and minimal energy loss.
• High-Efficiency MPPT Tracking: The included 60A charge controller delivers up to 99% tracking efficiency, capturing optimal power during overcast or early morning low-light conditions.
• Robust System Protection: Integrated electronic defenses shield your components against reverse polarity, overcharging, short-circuiting, and reverse current.
• Complete Installation Package: Ships with all necessary heavy-gauge solar cables, battery connections, inline fuses, and Z-brackets for secure mounting.

Comprehensive Component Breakdown

1. MEGA 200W Monocrystalline Solar Panels (8x Included)

Engineered with anti-reflective coated tempered glass and rugged anodized aluminum frames, these panels feature 14 pre-drilled holes for rapid mounting compatibility with Z-brackets, tilt mounts, or ground poles.

• Maximum Power (Pmax): 200W per panel (1600W Total)
• Maximum Power Voltage (Vmp): 18.4V
• Maximum Power Current (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Dimensions & Weight: 58.7 x 26.8 x 1.2 inches | 24.0 lbs per panel
• Warranty: 25-Year limited power output warranty; 10-Year workmanship warranty

2. 60 Amp MPPT Solar Charge Controller (1x Included)

An intelligent controller that automatically identifies 12V, 24V, 36V, and 48V DC system voltages while featuring a die-cast aluminum frame for quick heat dissipation.

• Rated Battery Current: 60A
• Maximum Solar Input Voltage: 150V (at 77°F)
• Max Solar Input Power: 1600W when configured for 24V systems
• Battery Compatibility: Lithium, Sealed (AGM), Gel, and Flooded deep-cycle batteries
• Connectivity: Built-in RS232 port for optional Bluetooth remote monitoring
• Warranty: 2-Year limited manufacturer warranty

Rich Solar System Configuration Matrix

Ensure this system matches your storage capacity and vehicle needs. Below is the operational framework for this 1600W architecture:

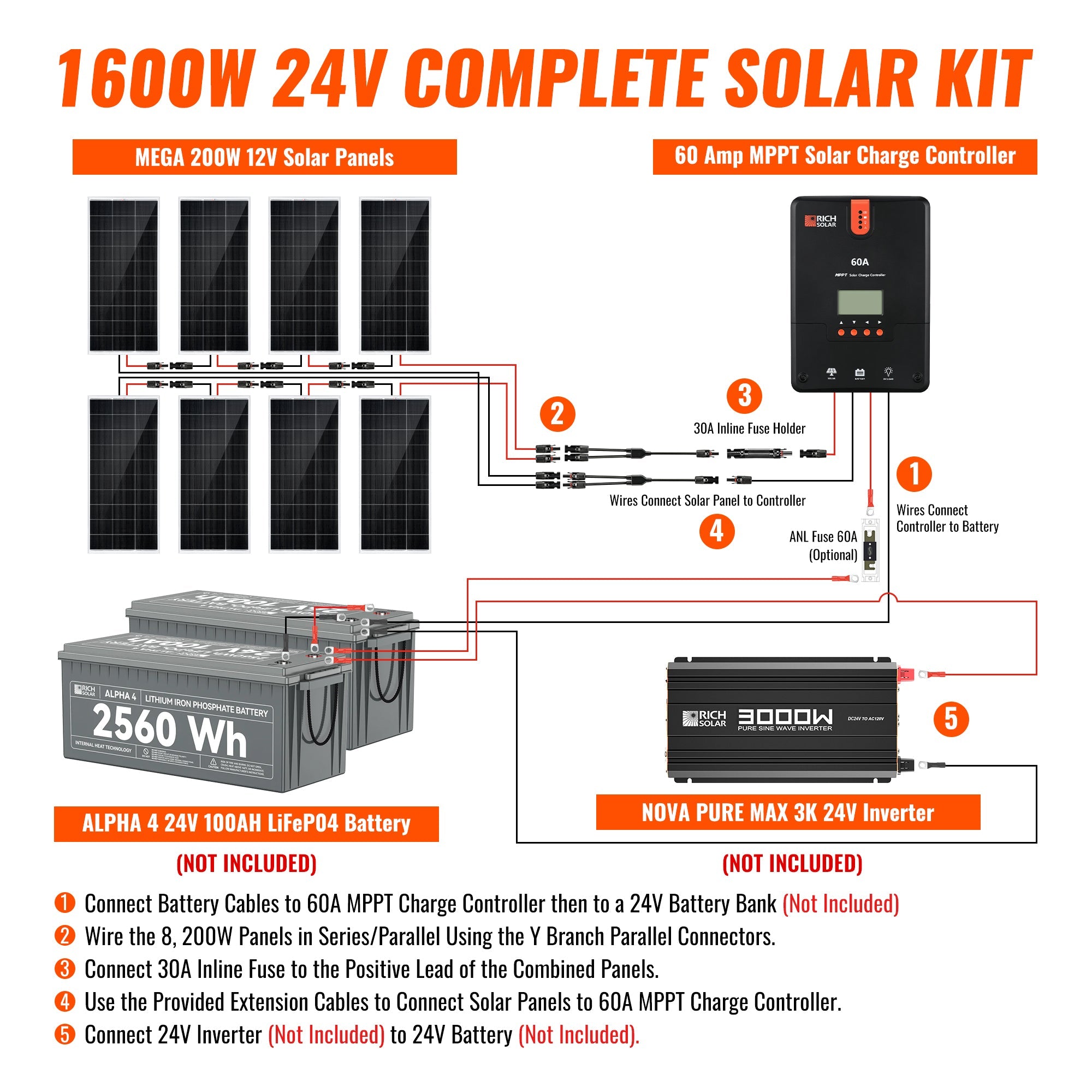

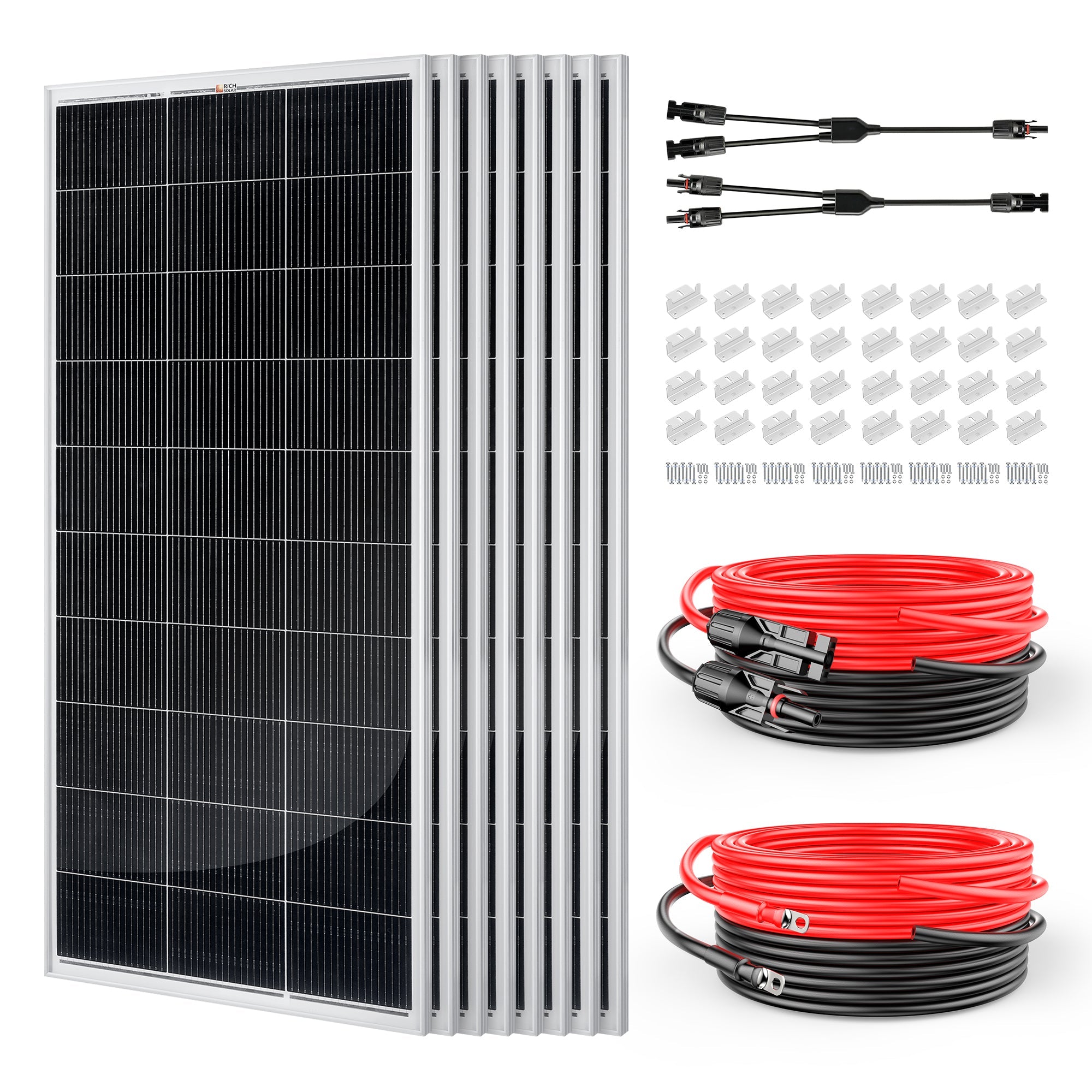

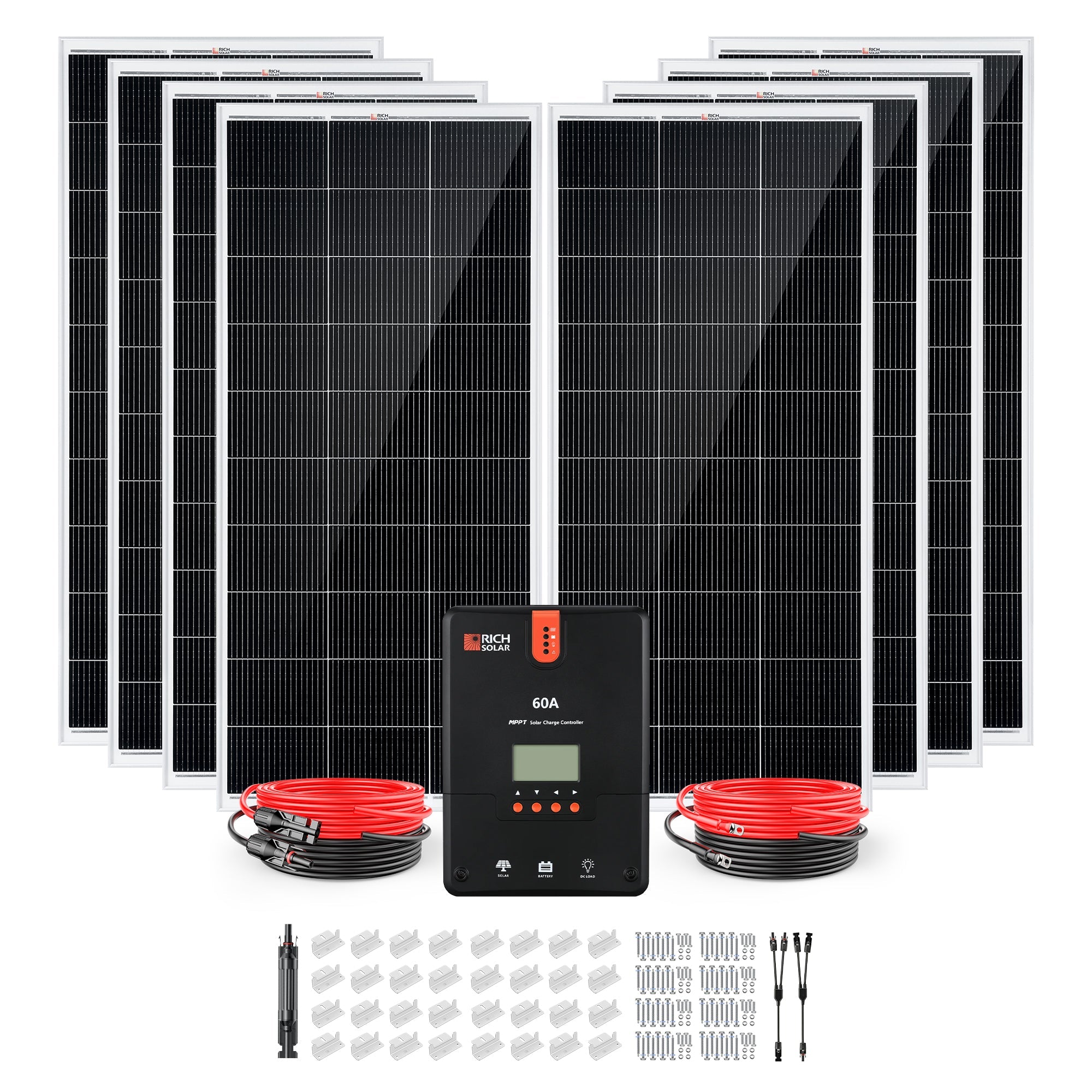

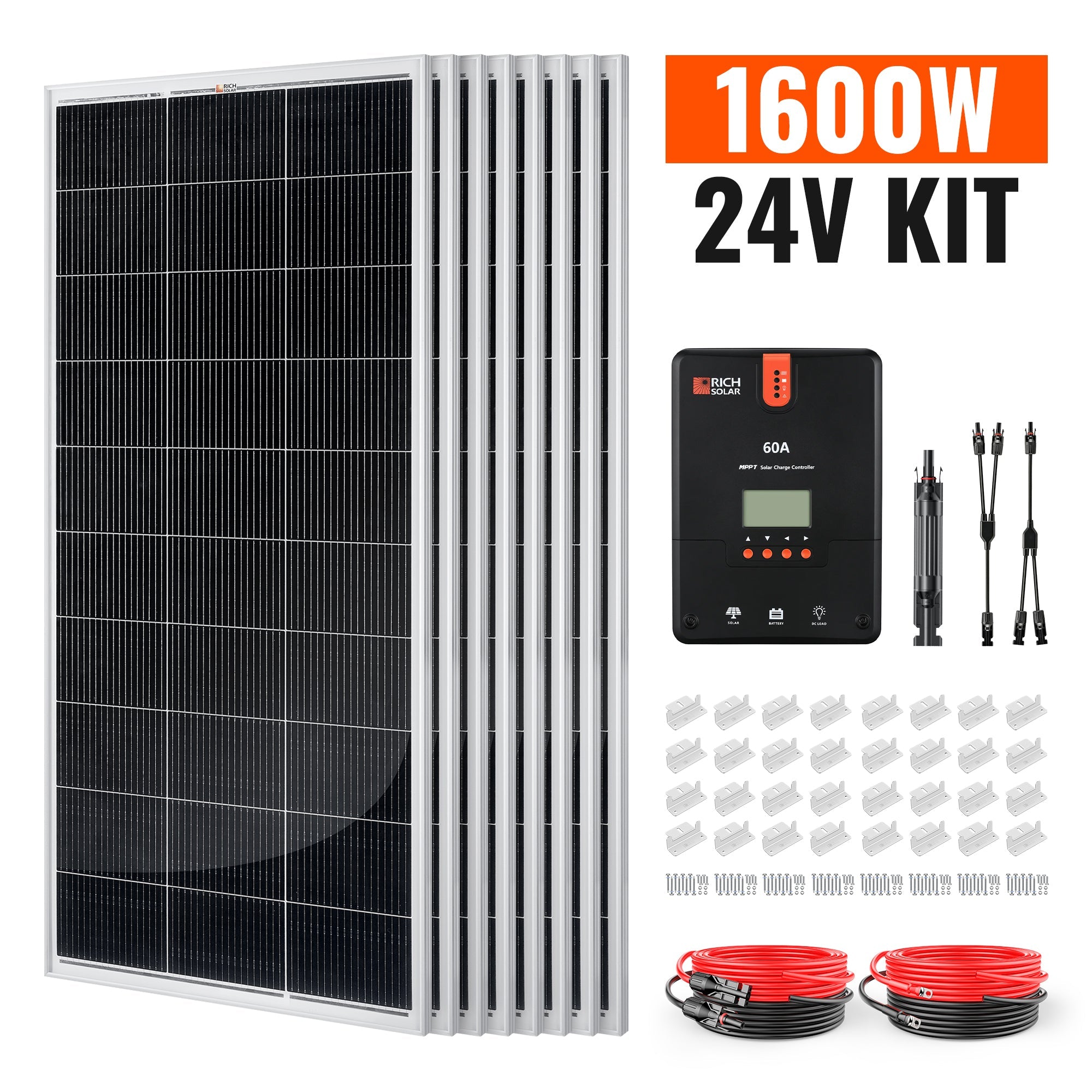

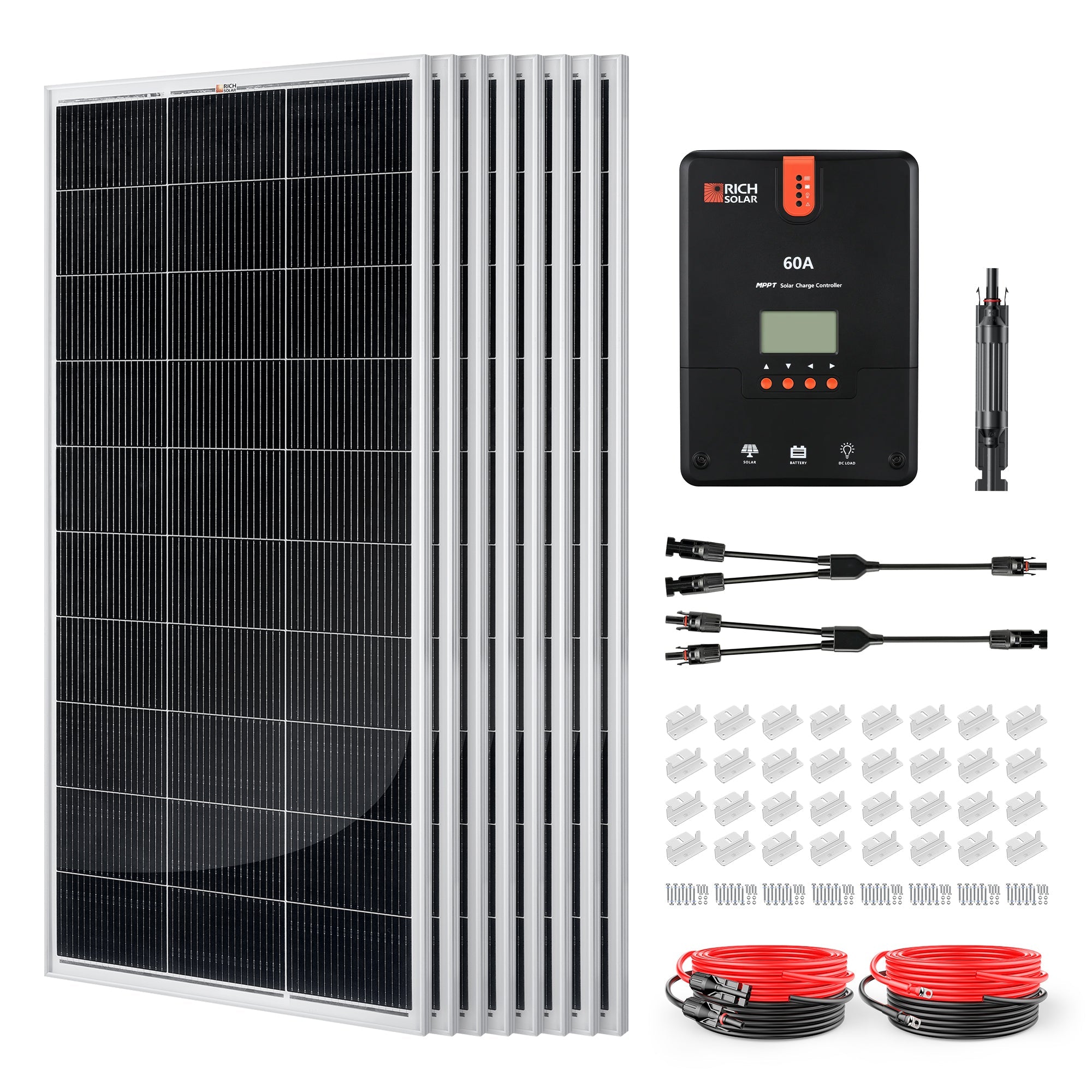

Complete Kit Packing List

• 8 x Rich Solar 200 Watt Monocrystalline Solar Panels (RS-M200)
• 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
• 1 x 20-Foot #10 AWG Red Solar Cable (Panel to Controller)
• 1 x 20-Foot #10 AWG Black Solar Cable (Panel to Controller)
• 1 x 10-Foot #8 AWG Red Battery Cable (Controller to Battery)
• 1 x 10-Foot #8 AWG Black Battery Cable (Controller to Battery)
• 8 x Mounting Z-Bracket Sets (4 pieces per set)
• 1 x 30A Inline Fuse Holder with Fuse
• 1 x Y-Branch Parallel Adapter Set

Frequently Asked Questions (FAQ)

What size battery bank should I use with this 1600W solar kit?
For optimal performance and energy storage efficiency, we recommend pairing this 24V kit with a battery bank up to 400Ah at 24V. This balance ensures your panels can fully charge your storage system during daylight hours.

Can this solar kit charge lithium batteries?
Yes. The included 60A MPPT solar charge controller features customizable charging profiles compatible with Lithium-ion, LiFePO4, Sealed (AGM), Gel, and Flooded deep-cycle batteries. It is also designed to revive over-discharged lithium batteries.

How much space do I need to mount all eight 200W solar panels?
Each individual 200W panel dimensions are 58.7 x 26.8 inches, requiring roughly 11 square feet of surface space. For the entire eight-panel array, you will need approximately 88 square feet of unobstructed space on your RV roof, cabin roof, or ground mount system.

Can I expand this system later with more solar panels?
The 60A MPPT controller has a maximum solar input power limit of 1600W when running a 24V system. To add more panels to this system, you would need to step up your battery bank to a 48V configuration (which increases controller capacity to 3200W) or integrate a second charge controller in parallel.
