Power Your Off-Grid Adventures Without Sacrificing Roof Real Estate

If you are building out a camper van, an overlander rig, or upgrading your RV, roof space is your most valuable asset. The Rich Solar 200W Slim Kit is engineered specifically to tackle this challenge. By combining two ultra-narrow 100W Onyx solar panels with a commercial-grade 30A MPPT charge controller, this kit slips easily alongside roof racks, AC units, and vent fans—delivering maximum energy yield from an incredibly compact footprint.

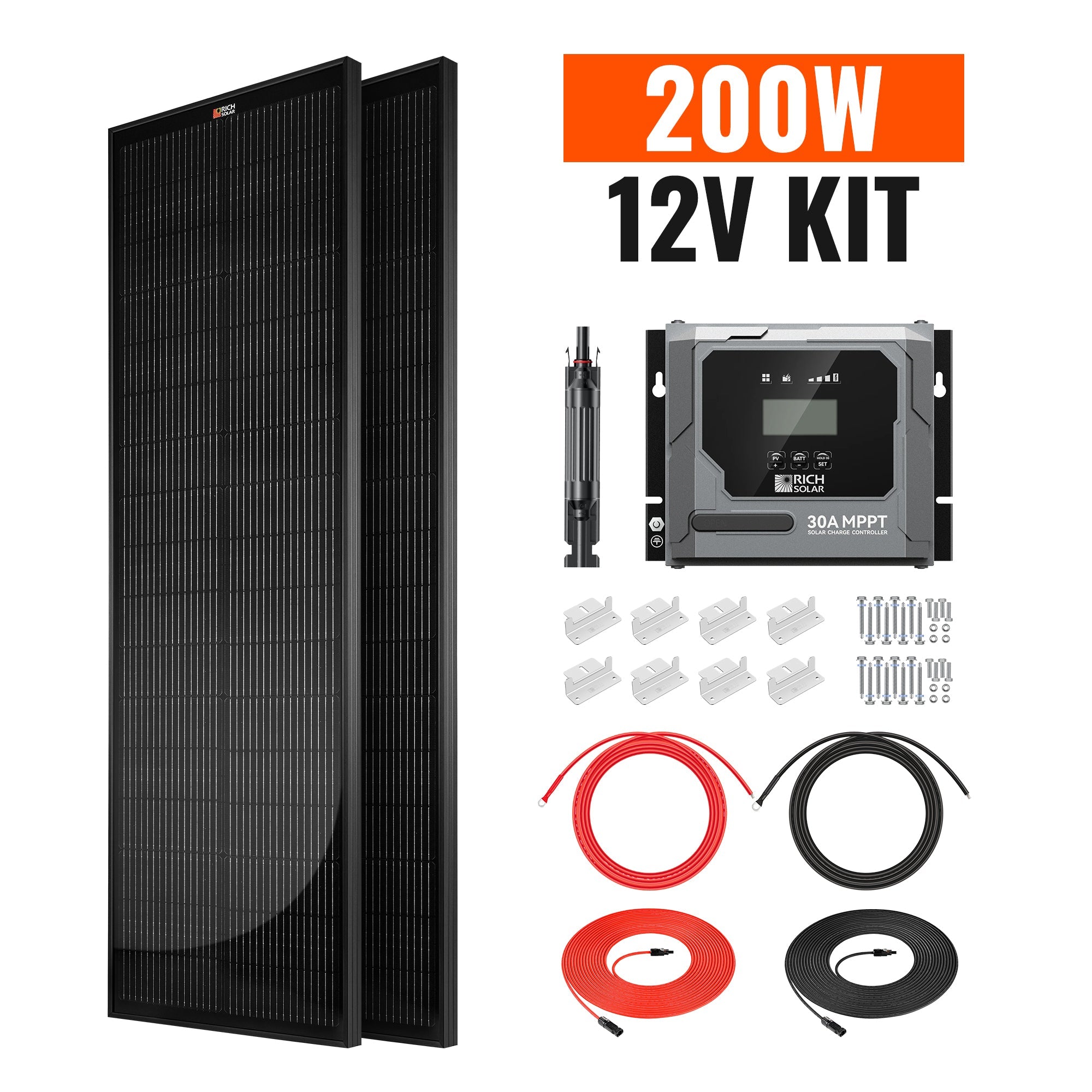

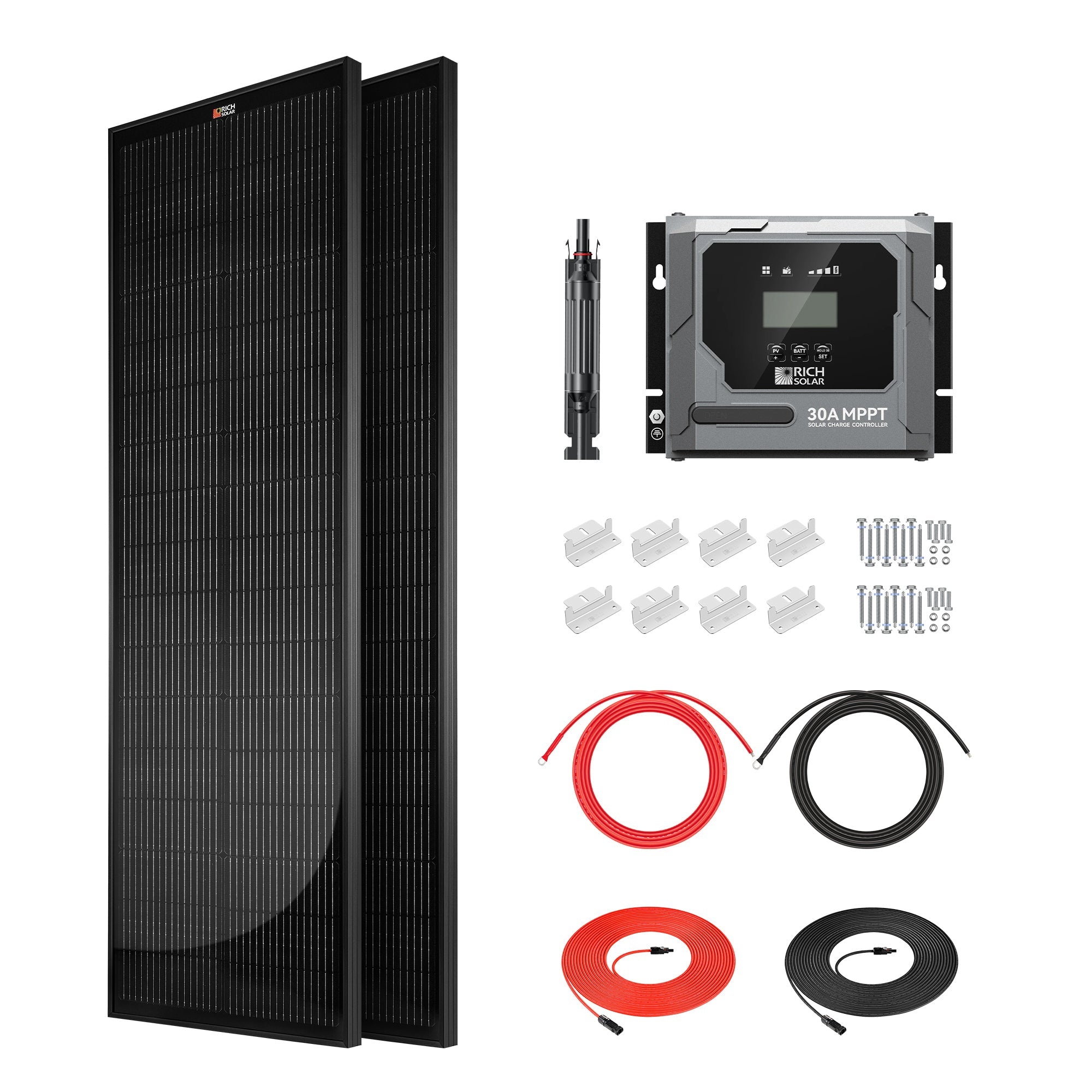

What's Included in the Box:

  • 2x MEGA 100W SLIM Onyx Solar Panels (RS-M100SLB)
  • 1x Bravo 30A MPPT Charge Controller with built-in Bluetooth (RS-MPPT30PB)
  • 1x 30-Foot 10AWG Solar Cable Set (Panel to Controller)
  • 1x 10-Foot #10 Gauge Battery Cable Set (Red & Black, Controller to Battery)
  • 1x Heavy-Duty Mounting Z-Bracket Set (RS-ZB4C)
  • 1x 10A Solar Panel Inline Fuse Holder (RS-SC10F)

Why the Rich Solar Slim Series Changes the Off-Grid Game

1. Next-Gen N-Type TOPCon Technology

Unlike standard entry-level solar panels that lose efficiency rapidly, the Rich Solar MEGA Slim series utilizes advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) monocrystalline cells. This cell design achieves up to 25.1% cell efficiency, outperforming traditional PERC panels by generating more power during dawn, dusk, and overcast days, while offering superior resistance to light-induced degradation over time.

2. Ultra-Narrow Footprint

Measuring just 15.7 inches wide, these panels have an 11.8% smaller footprint than older narrow designs without losing a single watt of production. They fit perfectly on tight van roof tracks, boat decks, or adjacent to a MaxxAir fan, giving you total freedom over your roof layout.

3. Real-Time Bluetooth Monitoring

The included Bravo 30A MPPT Charge Controller features an advanced tracking algorithm boasting up to 99.5% efficiency. With its built-in Bluetooth connectivity, you can track real-time solar input, historical yield, and battery charge metrics straight from your smartphone using the Rich Solar App.

4. Weatherproof and Rugged Construction

Built to endure the harshest remote environments, the panels feature a sealed, IP67-rated junction box, a heavy-duty anodized aluminum frame, and low-iron anti-reflective tempered glass. They are certified to withstand massive physical loads, surviving up to 5400 Pa of heavy snow and 2400 Pa of intense wind forces.

Rich Solar Slim Series Kit Comparison Table

Need more power for your system? Compare how the 200W configuration scales against its higher-capacity sibling variations in the Slim Series lineup:

Kit Variant Total Output Panel Configuration Included Controller Best Use Case
200W Slim Kit 200 Watts 2x 100W Slim Panels Bravo 30A MPPT Vans, small campers, weekend trips, maintaining battery banks.
300W Slim Kit 300 Watts 3x 100W Slim Panels Bravo 30A MPPT Mid-sized overland setups running continuous 12V fridges and lighting.
400W Slim Kit 400 Watts 4x 100W Slim Panels Bravo 30A MPPT Full-time digital nomads, heavy electronics usage, and large capacities.

Technical Specifications

MEGA 100W SLIM ONYX Solar Panel (Per Panel)

  • Maximum Power (Pmax): 100W
  • Maximum Power Voltage (Vmp): 19.6V
  • Maximum Power Current (Imp): 5.1A
  • Open Circuit Voltage (Voc): 23.6V
  • Short Circuit Current (Isc): 5.38A
  • Dimensions: 50.0 x 15.7 x 1.2 inches (1270 x 400 x 30 mm)
  • Weight: 12.4 lbs (5.6 kg)
  • Operating Temperature Range: -40°F to +185°F

Bravo 30A MPPT Charge Controller

  • Tracking Efficiency: Up to 99.5%
  • Max Conversion Efficiency: 98%
  • System Voltage: 12V/24V Auto-Detect
  • Solar Input Voltage Range: 8V - 100V
  • Battery Compatibility: Lithium (LiFePO4), AGM, Gel, Sealed/Flooded, Custom Profiles
  • Connectivity: Built-in Bluetooth (Rich Solar Mobile App)

Frequently Asked Questions

What are the dimensions of the panels in the Rich Solar 200W Slim Kit?
Each individual 100W Slim solar panel measures 50.0 inches long, 15.7 inches wide, and 1.2 inches thick. Thanks to their narrow width profile, they occupy an 11.8% smaller overall surface footprint than standard 100W rigid glass panels.

What type of batteries are compatible with the Bravo 30A MPPT Controller?
The Bravo 30A MPPT controller features an automatic system voltage detection feature (12V/24V) and natively supports 8 plus battery chemistry profiles. It is fully compatible with Lithium (LiFePO4), AGM, GEL, Wet/Flooded cells, Calcium, Crystal, and custom battery profiles.

Can I expand this 200W system in the future?
Yes. The included Bravo 30A MPPT controller can easily handle up to 500W of total solar input on a standard 12V battery system (and up to 1000W on a 24V setup). You can add up to two more 100W Slim panels down the line without needing to buy a new charge controller.

What is the advantage of N-Type TOPCon panels over standard solar panels?
N-Type TOPCon solar cell configurations provide a substantially higher energy conversion rate, better efficiency metrics during low-light conditions (such as heavy clouds, mornings, and evenings), and experience minimal power degradation over a 25-year lifespan compared to traditional P-Type or PERC solar designs.

What is the manufacturer warranty on this solar kit?
Rich Solar backs the structural components with a 10-year workmanship warranty, paired alongside a premier 25-year limited power output performance warranty that guarantees the panels will maintain at least 80% of their original production rating after 25 years of use.

Will this kit fit on my van or RV roof?
The Slim panel series is built specifically for van and RV roofs where space and weight are limited. Check the exact panel dimensions in the specifications above against your available roof space and existing vents, AC units, or roof racks before ordering.

Do I need to drill into my roof to mount it?
Most van and RV installs do require drilling to secure the mounting brackets and run the cable through a roof entry gland, though some owners use adhesive-backed brackets for a no-drill install on suitable roof surfaces. Check the included mounting hardware and your roof material before deciding which method to use.

What charge controller comes with the kit, and can I upgrade it?
It ships with an MPPT controller. If you later add panels or move to a larger bank, a higher-amperage MPPT controller can be fitted separately, provided it matches your battery voltage and can take the array's input.

Can I use this to keep a power station topped up?
In most cases, with the right input adapter for that unit. Check the power station's maximum solar input voltage and current against the panel's open-circuit voltage before connecting, since exceeding the input rating is what damages them.

How is a Slim kit different from Rich Solar's standard off-grid kit?
A Slim kit uses the thinner, lighter Slim panel series designed for van/RV roof mounting, versus the thicker rigid panels in Rich Solar's standard off-grid kits, which are better suited to ground mounts, roofs with more clearance, or permanent cabin installs.
