Rich Solar 2500W 48VDC 240VAC Complete Hybrid Solar Kit | 10.24kWh LiFePO4 Battery Backup

Take full control of your energy independence with the Rich Solar 2500W 48VDC 240VAC Complete Hybrid Solar Kit. This comprehensive, premium off-grid power package engineered by Rich Solar is specifically designed for modern residential backup, large workshops, remote garages, and heavy-duty off-grid applications. Delivering true split-phase 240V AC power and paired with an expansive 10.24kWh server-rack lithium battery reserve, this system easily handles demanding 120V household appliances and heavy-duty 240V tools alike.

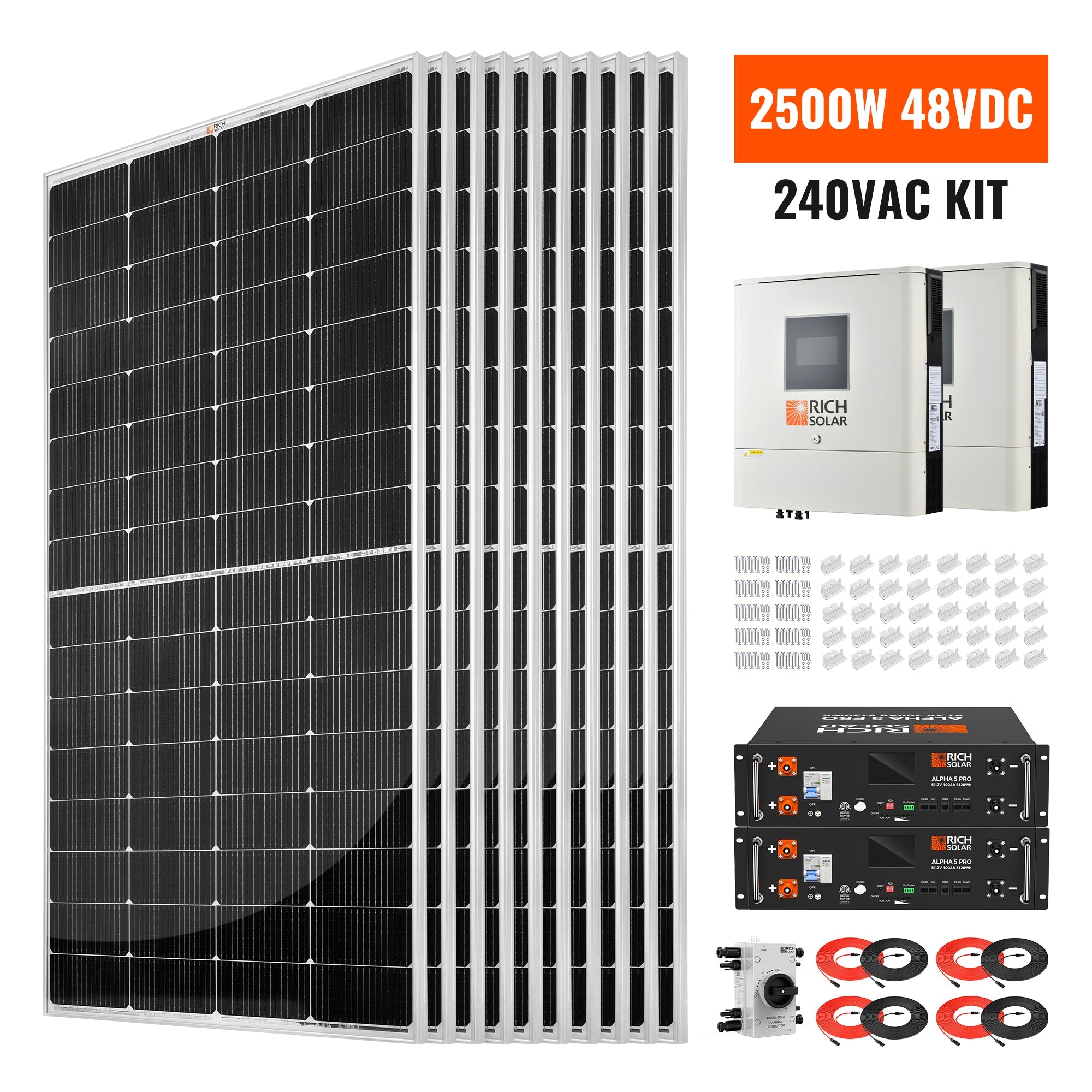

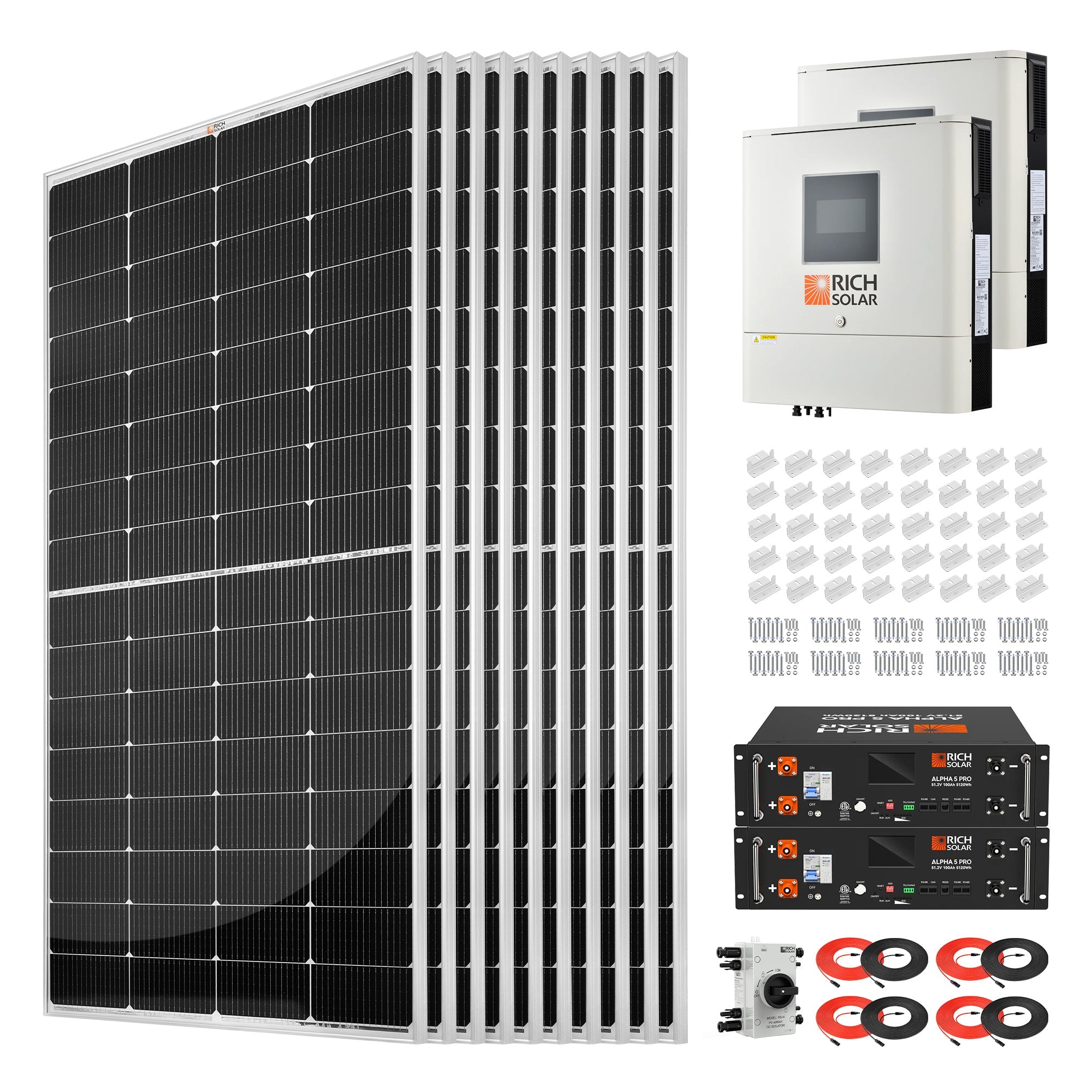

What is Included in This Complete System?

This all-in-one solar kit comes with everything required to harvest, store, and manage your own clean energy safely:

• 2 x NOVA 6500S 48V Off-Grid Hybrid Solar Inverters (H6548S): Configured for split-phase 240VAC output.
• 10 x MEGA 250W Monocrystalline Solar Panels (RS-M250): High-efficiency panels providing 2500W total solar inputs.
• 2 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batteries (RS-B5121P): Premium LiFePO4 chemistry yielding 10.24kWh total capacity.
• Extension Cables: 2 x 10AWG 30FT cables & 2 x 10AWG 10FT cables for quick plug-and-play assembly.
• Mounting Hardware: 15 x Durable aluminum Z-Brackets for rigid surface installations.
• Safety Disconnect: 1 x Heavy-duty PV DC Quick Disconnect safety switch.

Core Component Engineering & Features

1. High-Efficiency MEGA 250W Monocrystalline Panels

Engineered with advanced 16-busbar solar cell configurations, these lightweight anodized aluminum frame panels optimize electron flow while ensuring extreme long-term durability. Anti-reflective (AR) coated tempered glass provides superior low-light performance on cloudy days, early mornings, and late evenings.

• Warranty: 25-Year Output Warranty & 10-Year Workmanship Warranty.
• Weatherproof Resilience: Certified to withstand extreme wind, snow, and impact conditions.

2. ALPHA 5 PRO 51.2V 100Ah LiFePO4 Server Rack Batteries

The system features a massive 10.24kWh storage reserve driven by two tier-1 server rack batteries. Monitored by a sophisticated internal Battery Management System (BMS), these cells are protected against over-charging, over-discharging, overcurrent, and temperature spikes.

• Safety Certifications: Fully certified to rigorous industry standards: UL1973, UL9540A, and FCC.
• Long Lifespan: Offers over 7,000 deep cycles and a 10+ year service life.
• Scalable Architecture: Parallel expansion capability up to 15 total batteries for future storage growth.

3. Split-Phase NOVA 6500S 48V Off-Grid Hybrid Inverters

By pairing two UL-compliant 6500W hybrid inverters, this kit generates a robust, stable split-phase 240VAC pure sine wave output. Built-in Wi-Fi communication modules enable effortless mobile monitoring via Android or iOS apps.

• Versatile Prioritization: Configurable AC/PV output timers allow you to choose when to prioritize solar power vs. utility or generator input.
• Battery-Independent Mode: Operates directly from solar panels during peak sunlight hours, saving battery cycles.

Comprehensive System Specifications Table

Review the exact technical metrics across the entire solar array, battery bank, and inverter stack:

Frequently Asked Questions

Can this hybrid solar kit run 240V appliances like dryers or well pumps?

Yes. By utilizing twin NOVA 6500S inverters in a parallel configuration, the system produces a true split-phase 240VAC pure sine wave output. This setup is perfect for powering large home electronics, 240V workshop tools, well pumps, or EV chargers without stressing components.

What safety certifications do the Rich Solar batteries hold?

The ALPHA 5 PRO lithium server rack batteries hold complete regulatory listings including UL1973 (for energy storage battery systems) and UL9540A (fire safety testing standard). These standards ensure your backup power meets strict regional building and electrical codes.

Can I add more solar panels or batteries to this kit later?

Absolutely. The dual inverter system handles up to 8,000W of total solar inputs, meaning you can easily add more panels over time. Additionally, the integrated smart BMS allows you to connect up to 15 ALPHA 5 PRO batteries in parallel to increase your total kilowatt-hour backup capacity as your power demands grow.
