PRODUCT DESCRIPTION
The Rich Solar 260W Slim Solar Panel Kit is the ultimate off-grid power solution engineered specifically for space-constrained roofs, camper vans, overland rigs, and RV edge rails. Traditional solar panels are often too wide to fit alongside roof racks, vents, or awnings. This master kit solves that challenge by pairing two high-efficiency MEGA 130W Slim Solar Panels (measuring only 15.7 inches wide) with an intelligent Bravo 30A MPPT Charge Controller.
Whether you are building out a camper van electrical system or expanding your overlanding power grid, this plug-and-play complete package maximizes energy collection without sacrificing your valuable rooftop real estate.
Why Choose a Slim Profile Solar Kit?
- Ultra-Narrow Footprint: At just 15.7 inches wide, these long-and-narrow panels fit perfectly along roof edges, perimeter roof racks, or between existing van roof features.
- Advanced MPPT Efficiency: The included Bravo 30A MPPT controller features up to 99.5% tracking efficiency, ensuring your batteries receive maximum charge even during partial shading or cloudy days.
- Extreme Weather Resilience: Built with high-transmission, anti-reflective tempered glass and an anodized aluminum frame certified to handle a 5400 Pa snow load and 2400 Pa wind load.

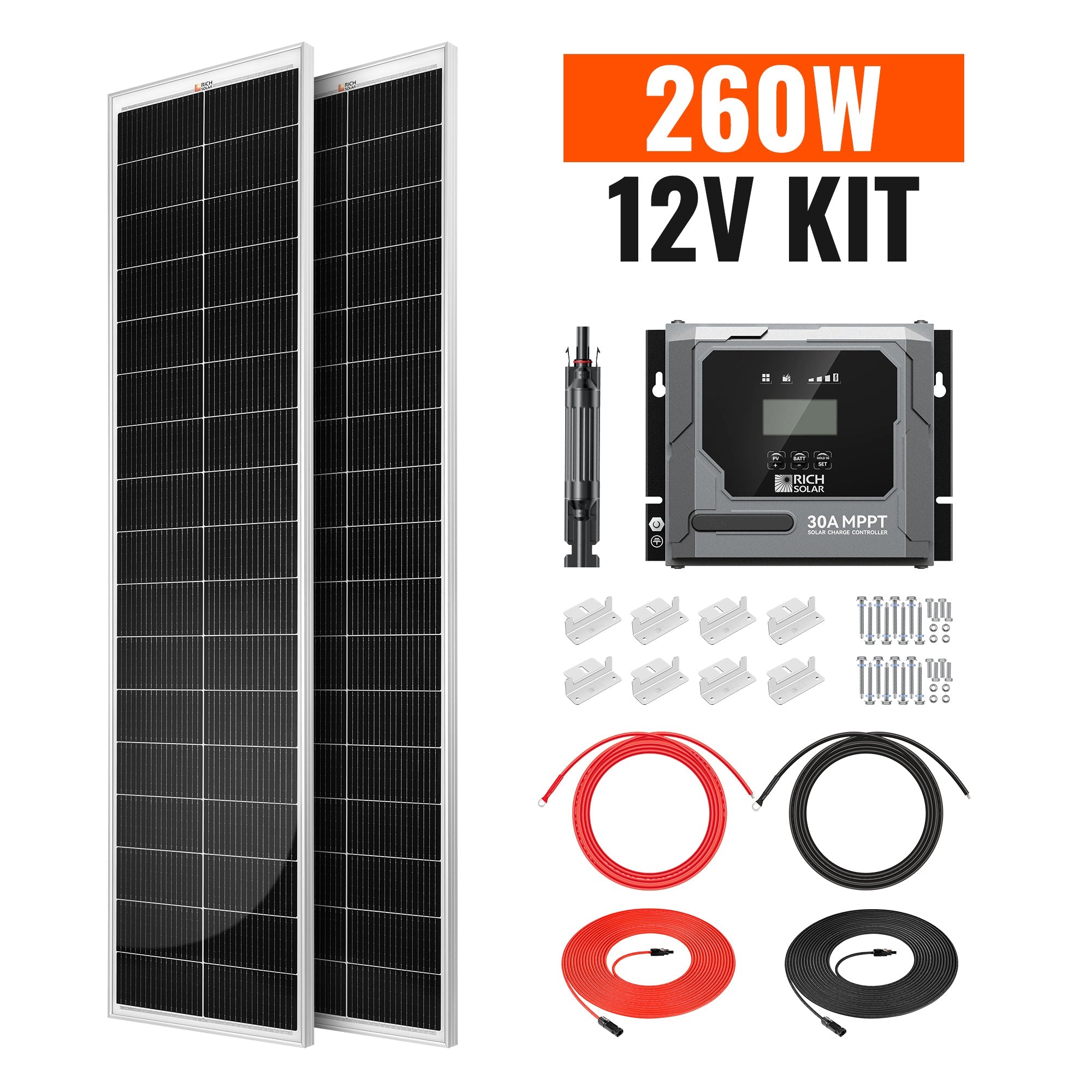

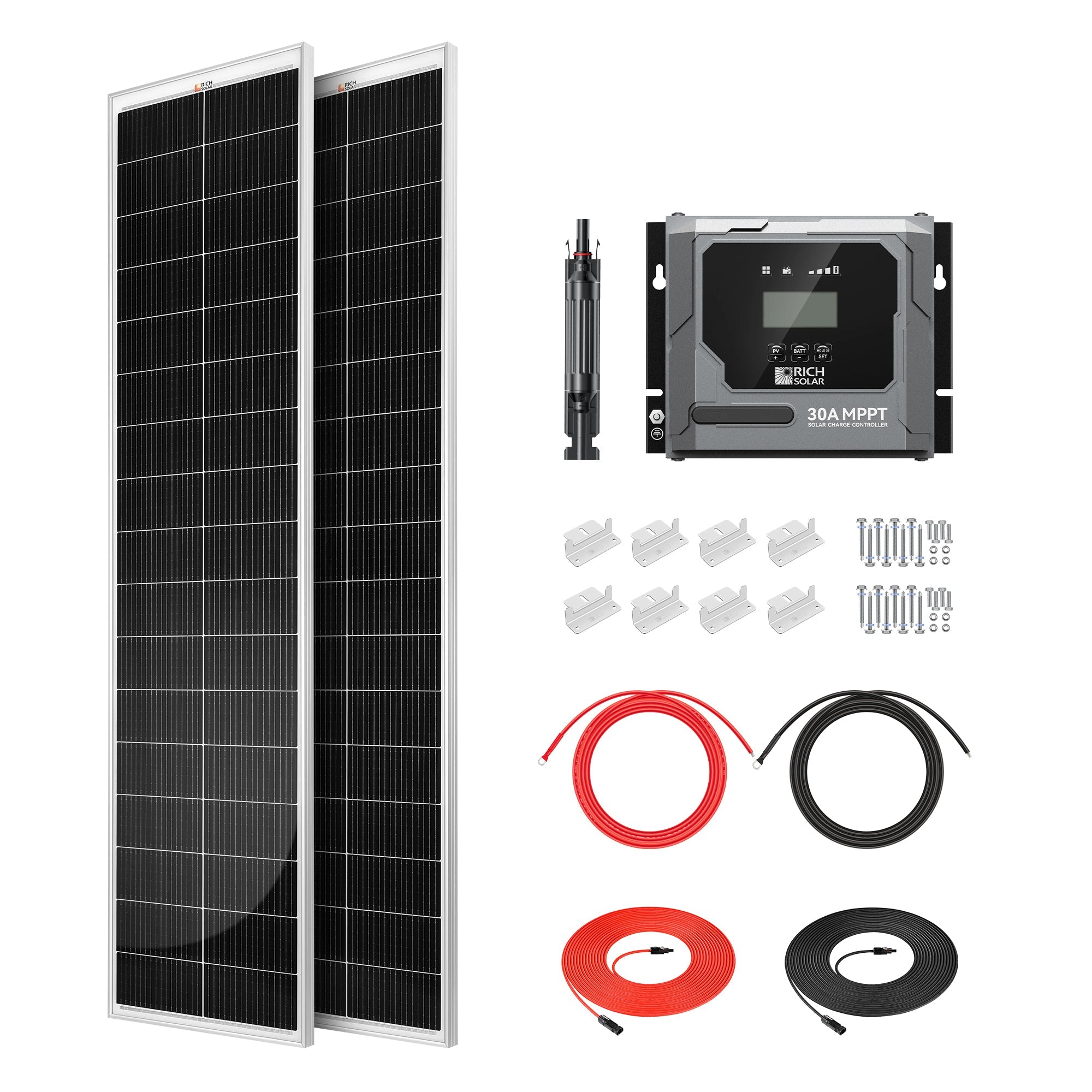

Complete Kit Components & What’s Included
This all-in-one kit includes everything needed to bridge the gap between your rooftop and your battery bank:
- 2 x MEGA 130W Slim Solar Panels (RS-M130SL): Heavy-duty monocrystalline cells with multi-busbar technology for superior low-light performance.
- 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB): Auto-detects 12V/24V systems and supports Lithium (LiFePO4), AGM, Gel, and flooded batteries. Featuring built-in Bluetooth for real-time mobile app monitoring.
- 1 x 30-Foot 10AWG Solar Cable Set: Heavy-duty wiring for a seamless run from your roof panels down to the controller.
- 1 x 10-Foot #10 Gauge Battery Cable Set (Red & Black): Links your MPPT controller safely to your home battery bank.
- 1 x Mounting Z-Bracket Set (RS-ZB4C): Heavy-duty, rust-proof brackets for rigid surface mounting.
- 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F): Critical circuit protection to prevent overcurrent events.
Technical Specifications Comparison Table
See how the individual system variables stack up within the slim-line ecosystem to plan your custom array layout:
| Specification Parameter | MEGA 130W Slim Panel (Per Panel) | Bravo 30A MPPT Controller |
|---|---|---|
| Peak Power / Charging Capacity | 130 Watts | 30 Amps (Up to 500W at 12V / 1000W at 24V) |
| Voltage at Max Power (Vmp) | 18.1V - 19.6V | MPPT Range: 15V - 72V |
| Current at Max Power (Imp) | 6.63A - 7.18A | 30A Max Output Current |
| Open Circuit Voltage (Voc) | 22.1V - 23.6V | 8V - 100V Max Solar Input |
| Physical Dimensions | 65.0 x 15.7 x 1.2 inches | 7.0 x 5.5 x 2.9 inches |
| Net Weight | 13.9 lbs - 17.0 lbs | 1.8 lbs |
| Environmental Protection | IP67 Waterproof Junction Box | IP43 PCBA Protection |
Frequently Asked Questions (FAQ)
Q: What types of batteries are compatible with this kit's Bravo 30A controller?
A: The Bravo 30A MPPT controller features auto-detect capabilities for 12V and 24V configurations. It natively supports 8 different chemical profiles including Lithium Iron Phosphate (LiFePO4), AGM, Gel, Sealed (WET), Calcium, LTO, LCO, as well as programmable Custom profiles.
Q: Can I expand this system later by adding more slim panels?
A: Yes. The Bravo 30A charge controller is safely rated to manage up to 500 watts of solar input on a standard 12-volt battery system, or up to 1000 watts on a 24-volt system. You can add additional slim panels in series or parallel down the line up to those limits.

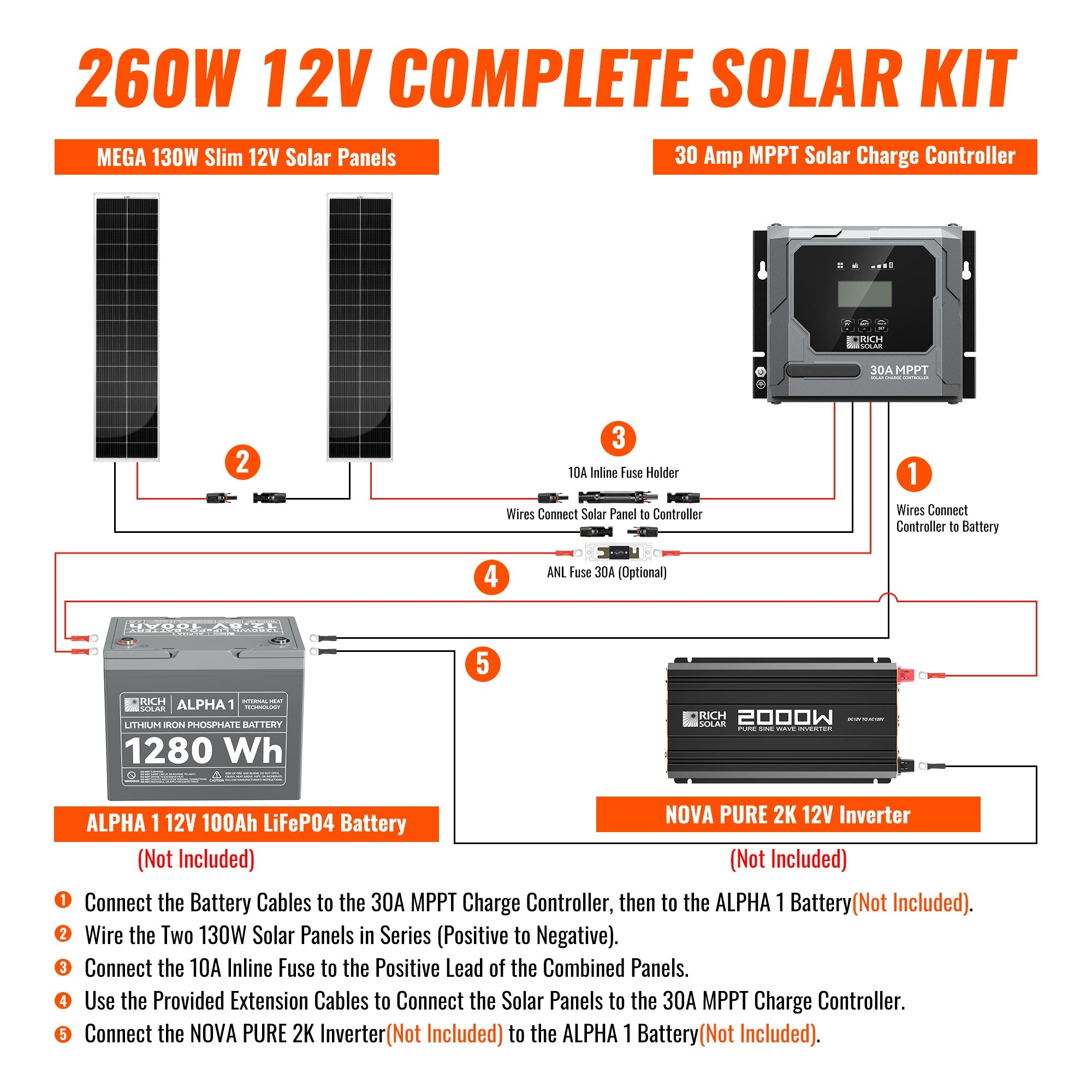

Q: Should I wire the two 130W panels in series or in parallel?
A: For optimal performance with an MPPT controller, wiring the panels in series is generally recommended. Series wiring combines panel voltage, helping the MPPT controller kick-on earlier in the morning and run later into the evening, even during overcast conditions.
Q: What is the warranty coverage for this Rich Solar kit?
A: The MEGA 130W Slim Solar Panels are backed by a premium 25-year limited power output warranty alongside a 10-year workmanship warranty, giving you complete long-term peace of mind on the road.
