Rich Solar 300 Watt 12V MPPT Solar Kit (3x 100W Monocrystalline Panels)
Rich Solar
- Regular price
- Price: $599.99
- Regular price
- List Price:
- Sale price
- Price: $599.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Power Your Freedom: Rich Solar 300W 12V Off-Grid Solar Kit with 40A MPPT Controller
The Rich Solar 300 Watt Solar Kit is engineered specifically for reliable off-grid power generation in RVs, travel trailers, overlanding rigs, boats, and remote structures. Combining three high-efficiency 100W monocrystalline solar panels with a premium 40A Bravo MPPT solar charge controller, this complete system maximizes energy harvest even in low-light, overcast, or changing weather conditions.
Whether you want to maintain your battery banks during off-grid camping or build out an emergency backup power supply, this robust 300W kit delivers silent, sustainable electricity without the noise or fuel requirements of a traditional generator.

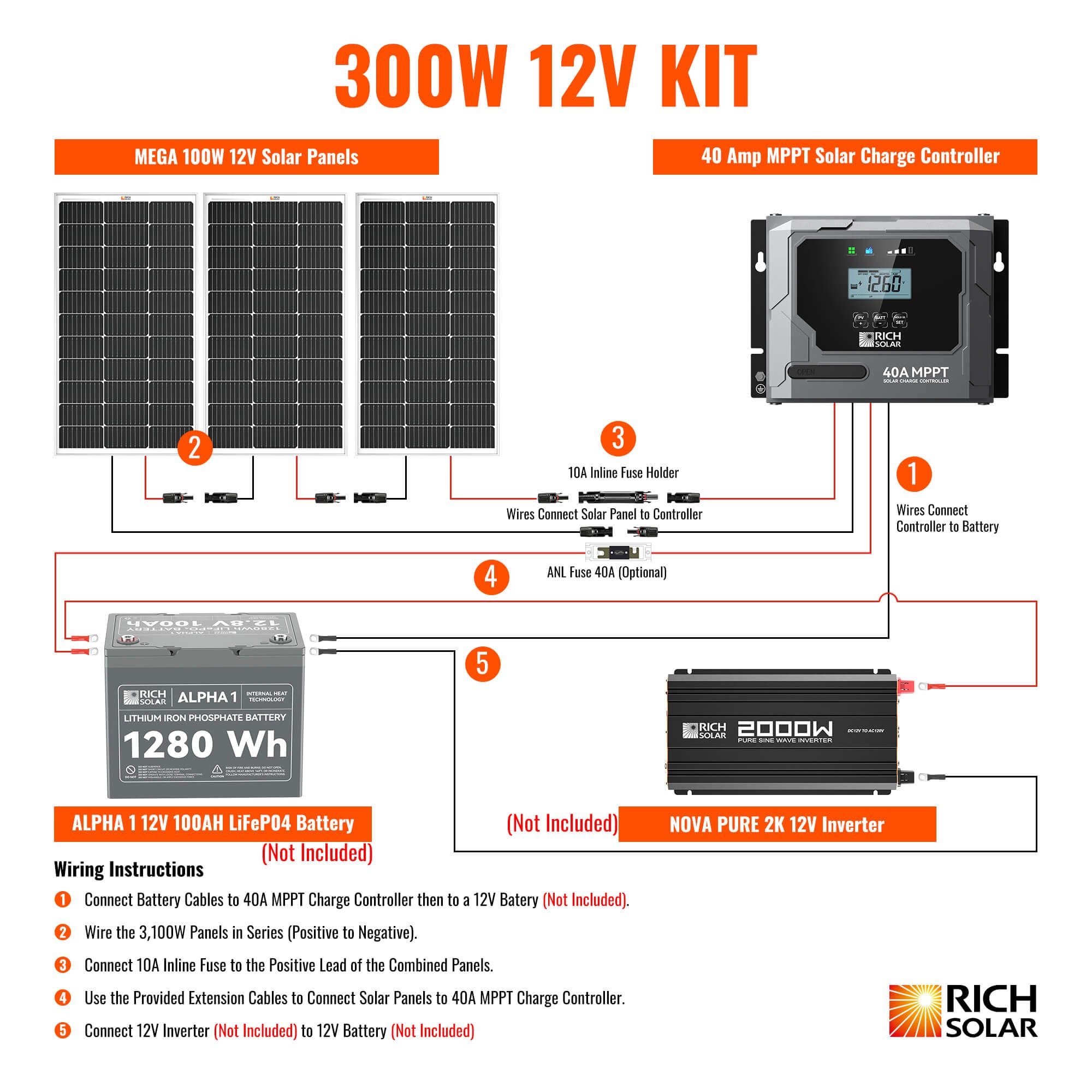

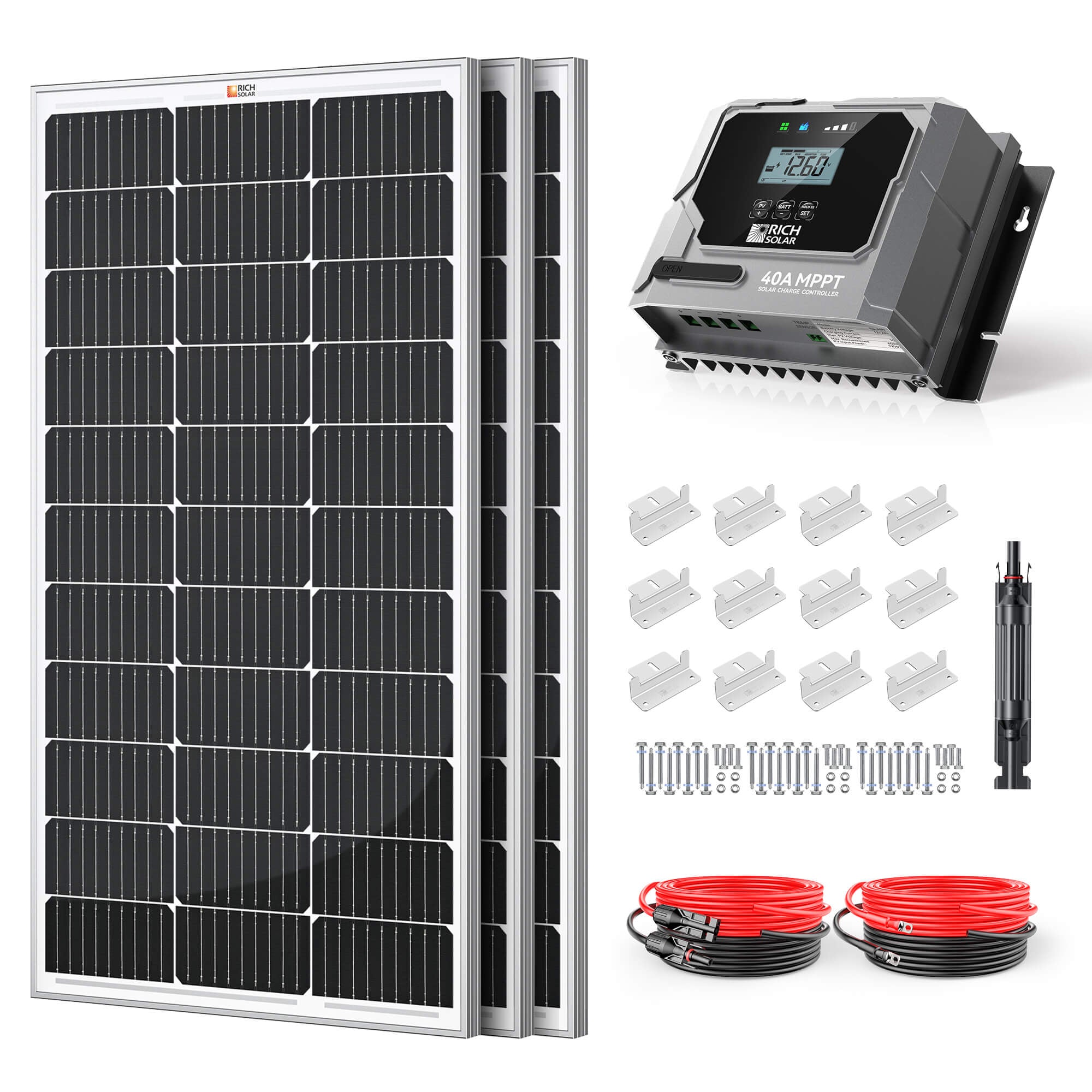

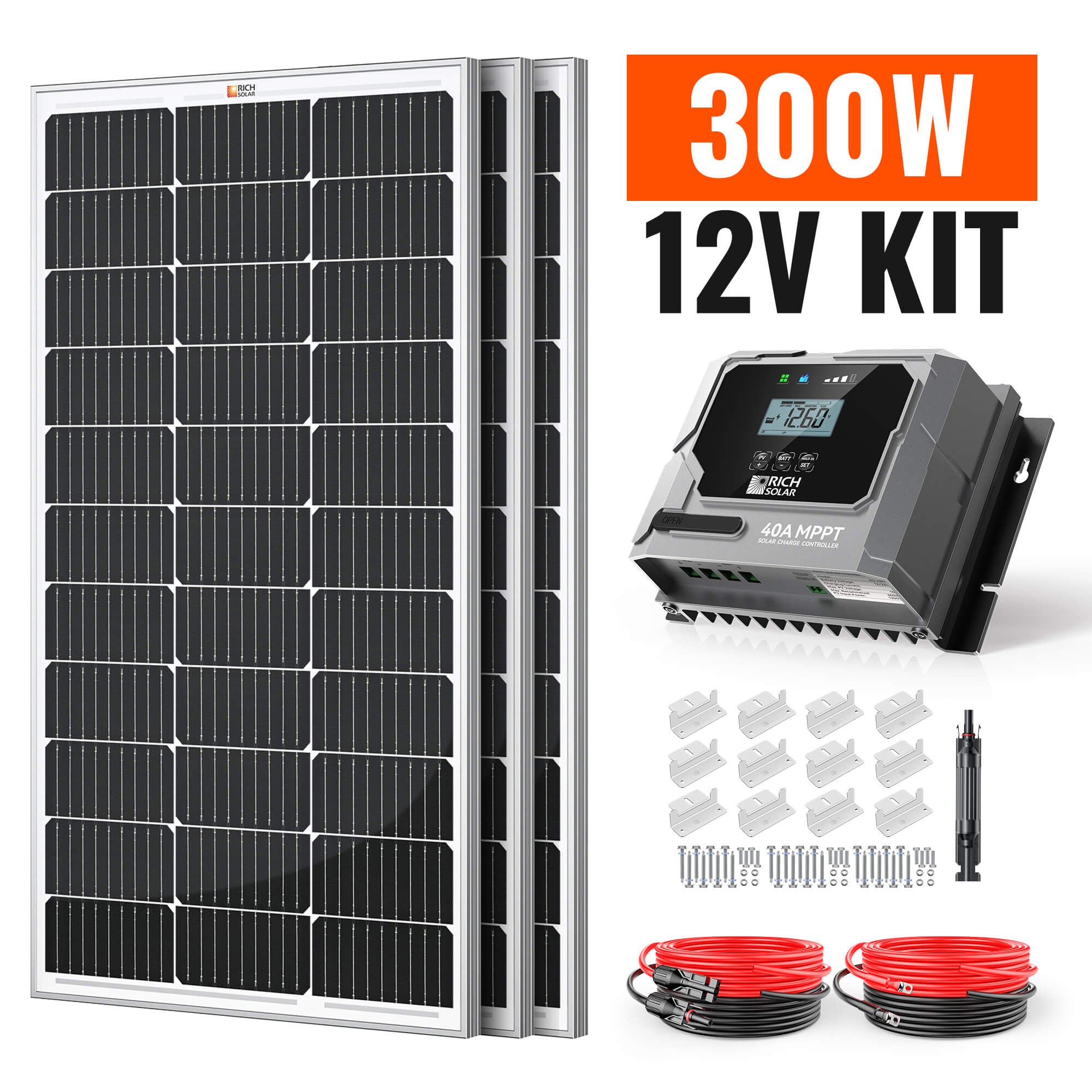

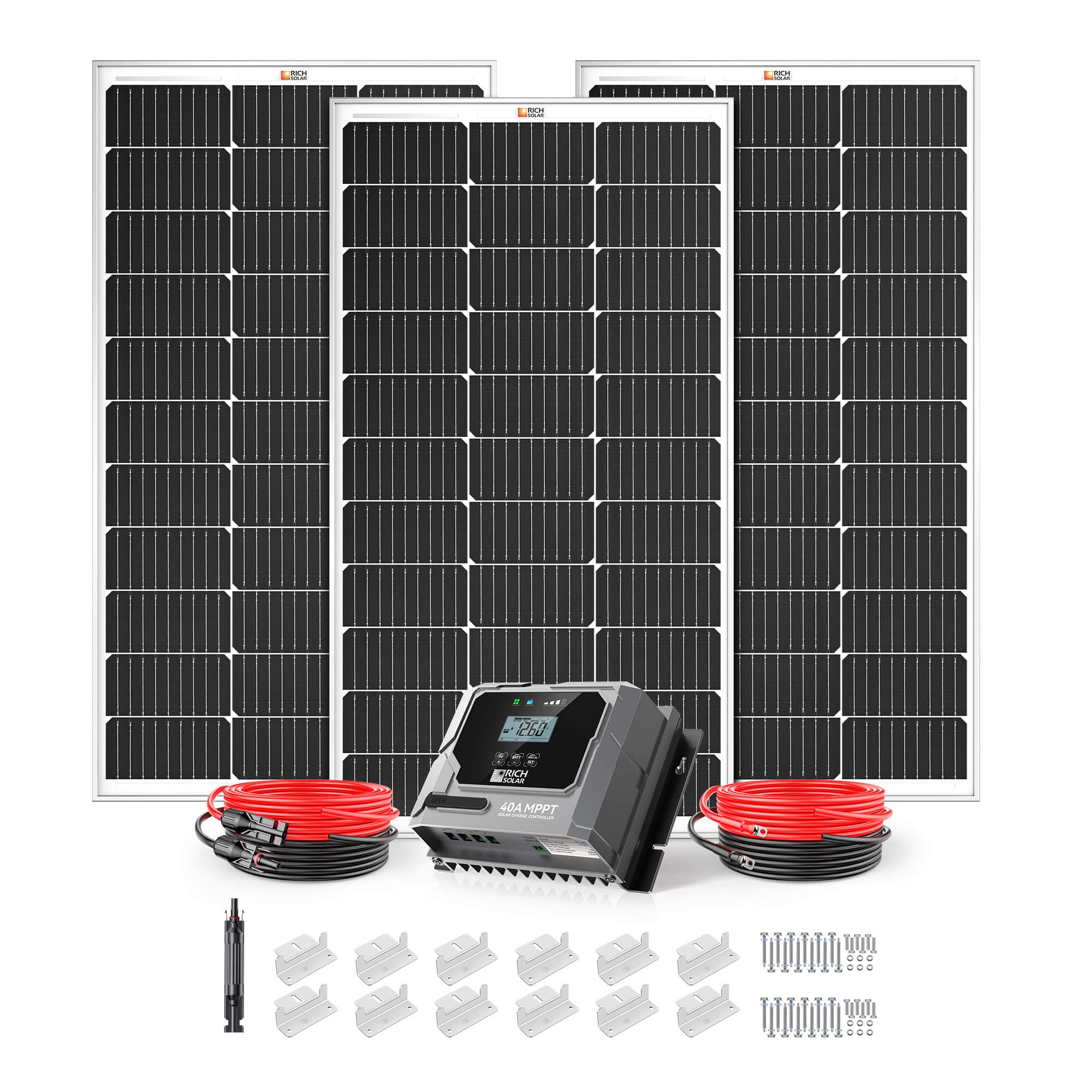

What's Included in the Complete Kit
- 3 x MEGA 100 Monocrystalline Solar Panels (RS-M100): High-efficiency panels with a 9-busbar design for optimal current paths and low-light performance.
- 1 x BRAVO 40 Amp MPPT Charge Controller (RS-MPPT40P): Heavy-duty, intelligent controller featuring up to 99.5% tracking efficiency and auto-adaptation for 12V/24V systems.
- 1 x 20' #10 Gauge Solar Cable (Red) & 1 x 20' #10 Gauge Solar Cable (Black): Heavy-duty wiring to connect your rooftop solar panel array directly to the charge controller.
- 1 x 10' #8 Gauge Battery Cable (Red) & 1 x 10' #8 Gauge Battery Cable (Black): Low-resistance cables to securely connect your controller to your battery bank.
- 3 x Mounting Z-Bracket Sets (4 per set): Corrosion-resistant, pre-drilled brackets for permanent, secure mounting onto flat surfaces.
- 1 x 10A Inline Fuse Holder with Fuse: Integrated electrical safety protection for your solar array circuits.
Key Performance Features
- Advanced 9-Busbar Cell Technology: Reduces internal resistance and cell degradation while significantly improving performance during early mornings, late evenings, and cloudy days.
- Ultra-Efficient MPPT Tracking: The included Bravo 40A controller boasts a tracking efficiency above 99.5% and a charge conversion efficiency up to 98%, unlocking up to 30% more power than standard PWM controllers.
- Universal Battery Compatibility: Fully optimized out of the box with presets for deep-cycle Lead-Acid batteries (Gel, AGM, Wet Cell, Crystal, Calcium) and advanced Lithium batteries (LiFePO4, LTO, LCO).
- Built for Tough Environments: Panels feature IP67-rated junction boxes, anti-reflective high-transparency tempered glass, and a rugged anodized aluminum frame to withstand high winds and heavy snow loads.
- Plug-and-Play Expansion: The heavy-duty 40A MPPT controller can easily handle up to 600 Watts of solar input on a 12V system or 1200 Watts on a 24V system, letting you add more panels down the road without buying a new controller.
Comprehensive System Specifications
| Component Specifications | MEGA 100W Solar Panel (Per Panel) | BRAVO 40A MPPT Controller |
|---|---|---|
| Max Power / Charging Current | 100 Watts | 40 Amps |
| Maximum Power Voltage (Vmp) | 18.6V | 100VDC (Max PV Open Circuit) |
| Maximum Power Current (Imp) | 5.38A | -- |
| Open Circuit Voltage (Voc) | 22.8V | -- |
| Short Circuit Current (Isc) | 5.78A | -- |
| Dimensions | 39.0 x 21.3 x 1.2 inches | 7.7 x 5.5 x 2.9 inches |
| Weight | 13.2 lbs | 2.58 lbs |
| Warranty Protection | 25-Year Output / 10-Year Workmanship | 2-Year Manufacturer Warranty |
Frequently Asked Questions (FAQs)
Q: What kind of batteries can I use with this Rich Solar 300W Kit?
A: The included Bravo 40A MPPT controller features built-in charging profiles for both traditional Lead-Acid battery chemistry (AGM, Sealed Gel, Flooded Wet Cell, Calcium, Crystal) and modern Lithium battery chemistry, specifically Lithium Iron Phosphate (LiFePO4), Lithium Titanium Oxide (LTO), and Lithium Cobalt Oxide (LCO).
Q: Can I add more solar panels to this specific kit later on?
A: Yes, absolutely. The Bravo 40A controller is purposely oversized for this kit to allow for seamless expansions. It supports up to a maximum recommended input of 600 Watts on a standard 12V system, or up to 1200 Watts if you transition your setup to a 24V configuration.
Q: What are the installation requirements for the solar panels?
A: Each 100W monocrystalline solar panel comes with pre-drilled holes on the back frame, making them fully compatible with the included Z-brackets. They can also be integrated easily with standard ground mounts, tilt mounts, or pole mounting setups depending on your vehicle or structure.
Q: How does an MPPT charge controller compare to a standard PWM controller?
A: An MPPT (Maximum Power Point Tracking) controller actively tracks and optimizes the voltage and current output coming from your solar array. It converts excess voltage into charging current, boosting your total charging system efficiency by up to 30% compared to a basic PWM controller.
