The Rich Solar 4000W 48VDC 240VAC Complete Hybrid Solar Kit is an all-in-one, premium renewable energy system engineered for high-demand off-grid residences, workshop garages, remote cabins, and commercial applications. By combining cutting-edge Mono PERC solar panel efficiency, a massive tier-1 lithium backup storage array, and dual heavy-duty split-phase hybrid inverters, this master kit delivers uncompromised 240V power security where grid access is unstable or unavailable.

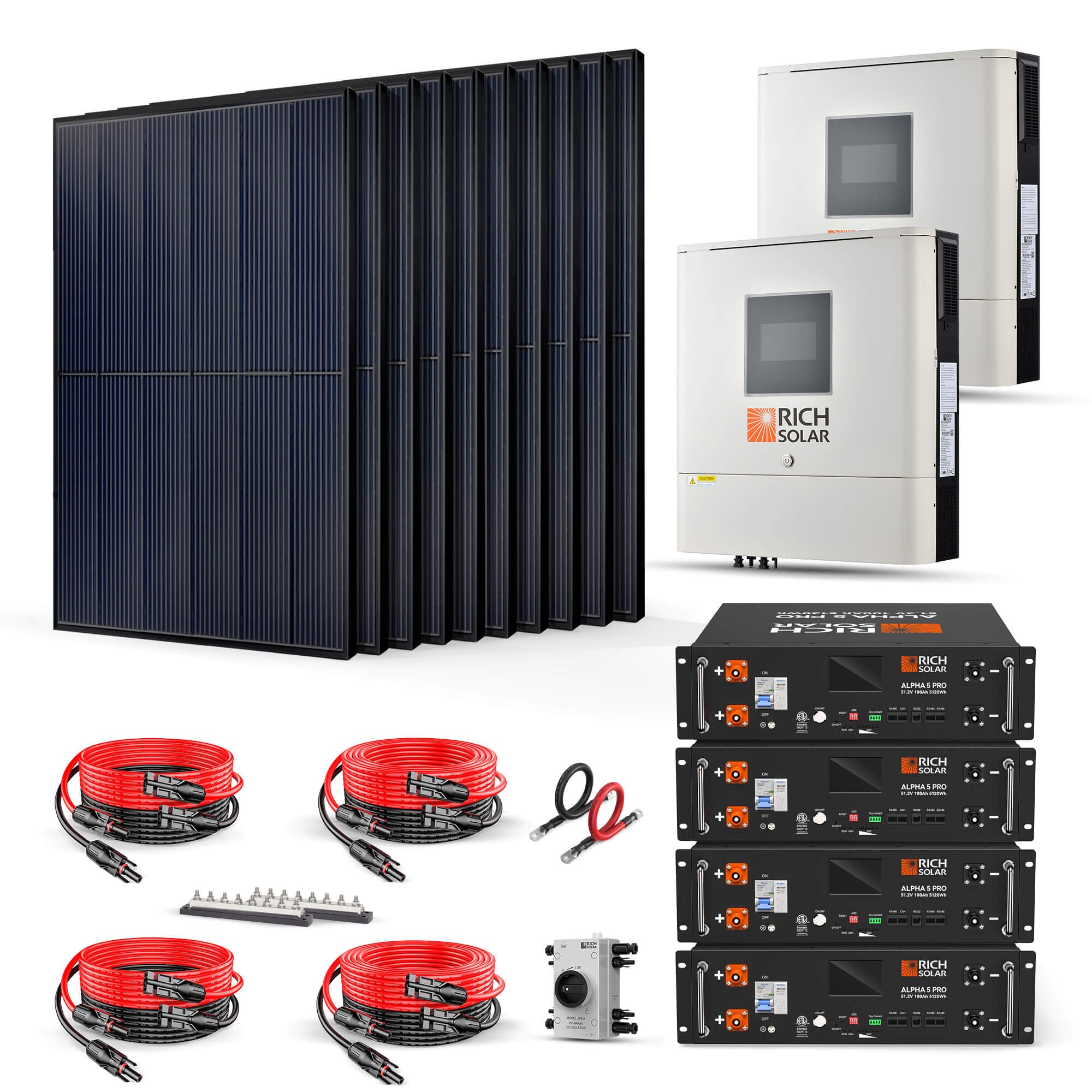

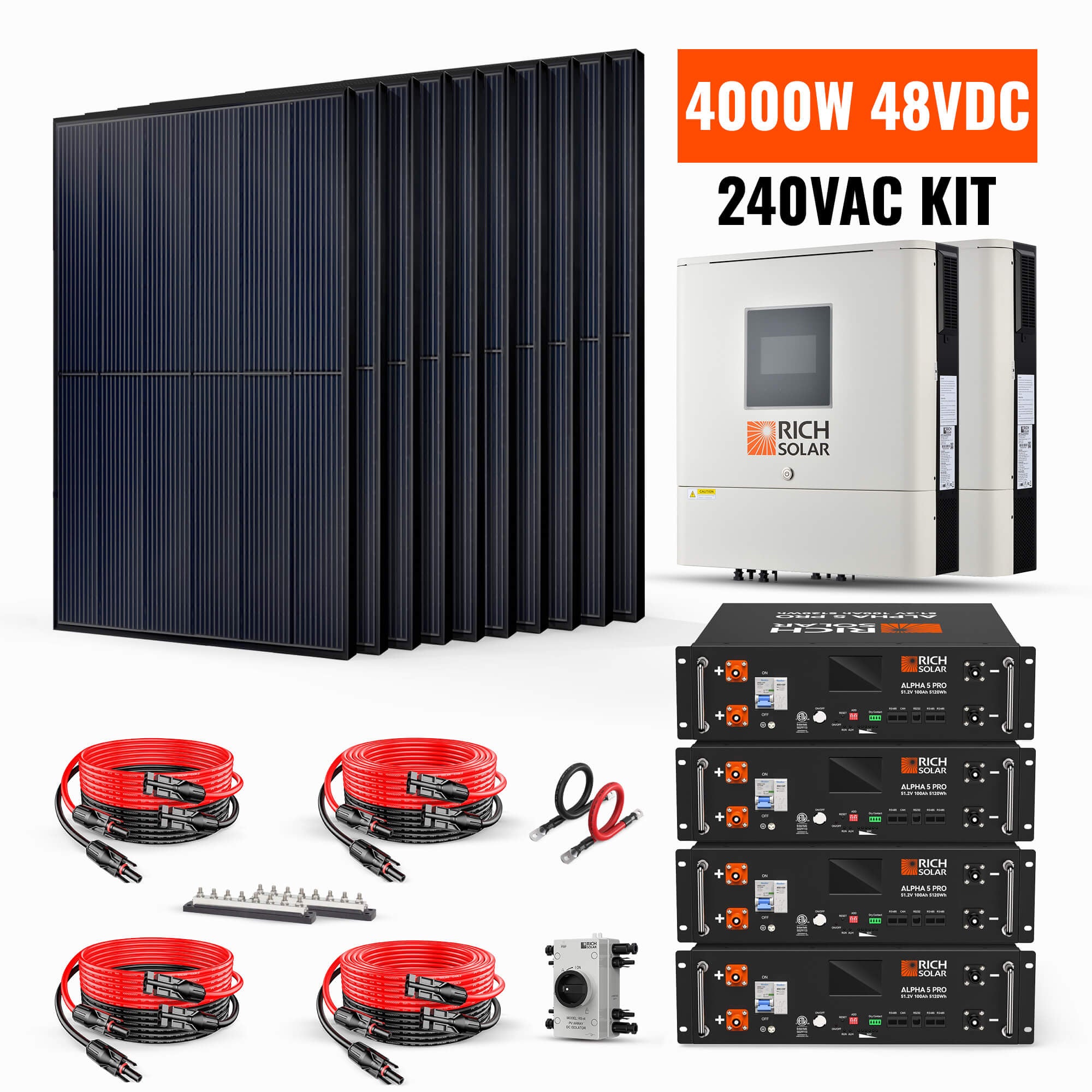

What is Included in the Rich Solar 4000W Hybrid Kit?
This complete hybrid solar system contains all core generation, management, storage, and safety components required for installation:
- 10 x MEGA 410W Solar Panels (RS-M410): 4100W total PV array utilizing high-efficiency Mono PERC technology.
- 2 x NOVA 6500S 6500W 48V Off-Grid Hybrid Inverters (RS-H6548S): Stacked to provide reliable split-phase 120V/240V power output.
- 4 x ALPHA 5 PRO 5.12kWh Server Rack LiFePO4 Batteries (RS-B5121P): 20.48kWh total capacity with an advanced integrated BMS.
- Heavy-Duty Infrastructure Components: 2 x 600 AMP Busbars, 1 x PV DC Quick Disconnect, 2 x 10AWG 30FT cables, 2 x 10AWG 10FT cables, and 1 x 4/0 AWG 5FT battery connection cables.
Key Technical Specifications Table
Review the primary technical specifications for the main modules included in this 48VDC 240VAC system setup:
| System Component | Core Specification | Performance & Dimension Standards |
|---|---|---|
| Solar Panels (MEGA 410) | 410W Max Power per panel (4,100W Total Array) | Voc: 37.5V | Imp: 13.1A | Weight: 45.2 lbs | 67.8" x 44.7" x 1.2" |
| Hybrid Inverters (NOVA 6500S) | 6500W Continuous per unit (Split-Phase Configuration) | Surge: 13,000VA | Eff: 91% | Max PV Input: 8000W | UL Compliant |
| Battery Storage (ALPHA 5 PRO) | 51.2V 100Ah Lithium Iron Phosphate (20.48kWh Total) | 7,000+ Deep Cycles | 100A Max Continuous | UL1973 & UL9540A Certified |
Core Features & Performance Advantages
High-Efficiency Mono PERC Solar Generation
The MEGA 410 Solar Panels are built with a robust 10-busbar configuration and high-transmission, anti-reflective tempered glass. These materials allow the array to deliver excellent low-light performance on overcast days, early mornings, and late evenings. The lightweight, anodized aluminum frames feature pre-drilled holes for direct compatibility with ground mounts, tilt mounts, pole mounts, and standard Z-brackets.
Dual NOVA 6500S Split-Phase Power Control
By pairing two 6500W Hybrid Solar Inverters, this kit easily establishes a true 120V/240V split-phase line capable of running heavy shop tools, well pumps, compressors, and major household appliances. The inverter features a battery-independent design, built-in Wi-Fi monitoring for iOS and Android devices, automated custom timers for AC/PV prioritization, and an industrial MPPT solar charger handling up to 250 VDC open circuit voltage.
Industrial Grade ALPHA 5 PRO Lithium Storage
Safety and energy depth are handled by 4 premium ALPHA 5 PRO Server Rack Batteries. With a total capacity of 20.48kWh, these LiFePO4 cells are rated for a massive 7,000 deep cycles. Driven by a sophisticated Battery Management System (BMS), they include multi-stage protective cutoffs for overcharging, overcurrent, short circuits, and extreme temperatures. The system can expand up to 15 parallel batteries to scale with your growing energy needs.
Manufacturer Warranty Protection
- Solar Panels: 25-Year Power Output Warranty & 10-Year Workmanship Warranty
- LiFePO4 Storage Batteries: 10-Year Manufacturer Defect Warranty
- Hybrid Inverters: 3-Year Operational Warranty
Frequently Asked Questions
Can this solar kit run 240V appliances like well pumps and power tools?
Yes. This kit includes two stacked NOVA 6500S hybrid inverters configured in split-phase mode. This layout enables the system to safely deliver true 120V/240V AC power, making it capable of running heavy-duty workshop tools, air compressors, well pumps, clothes dryers, and electric vehicle (EV) charging setups.
What does a hybrid solar kit do, and can it connect to the grid?
A hybrid solar kit combines the capabilities of an off-grid system (battery backup storage) with grid connectivity. It can run purely off-grid using the solar panel array and lithium batteries, or it can tie into your local power utility. You can configure the system to prioritize solar power, use the grid as an automatic emergency backup, or optimize your electricity bills based on time-of-use rates.
Can I expand the solar array or battery storage bank later?
Yes, this system is fully modular and scalable. The 20.48kWh ALPHA 5 PRO battery bank can be expanded by adding up to 15 server rack batteries in parallel. Additionally, the twin NOVA 6500S inverters can handle up to 8,000W of total solar input per unit, allowing you to easily add more solar panels if your daily energy demands increase.
What type of routine maintenance does this hybrid system require?
Because the kit utilizes premium solid-state electronics and ALPHA 5 PRO Lithium Iron Phosphate (LiFePO4) batteries, the system is virtually maintenance-free. Unlike traditional lead-acid batteries, there is no fluid checking or venting required. The only recommended maintenance is periodically cleaning the glass faces of the solar panels to clear away dust, leaves, or snow for optimal sunlight exposure.
Are the components certified for residential and commercial building permits?
Yes. The ALPHA 5 PRO server rack batteries carry industry-standard UL1973 and UL9540A safety certifications. The high-efficiency Mono PERC solar panels and internal safety items (such as the PV DC Quick Disconnect) meet structural and electrical safety compliance codes required by standard building and electrical inspectors.
What's included in this 4000W complete kit?
This kit bundles Rich Solar solar panels totaling 4000W, a LiFePO4 battery bank (see capacity in the specifications above), an MPPT charge controller, and a pure sine wave inverter for 240V output — check the specifications and product images above for the exact component list and quantities.
How long will the battery run before I need to recharge?
Runtime depends entirely on your load. Divide the battery bank's rated watt-hours by the combined wattage of what you are running to estimate hours of backup, then add whatever the panels put back during daylight. The exact capacity for this system is in the specifications above.
Can I use this somewhere with no utility supply at all?
Yes — that is the intended use. Cabins, remote workshops, boats and vehicles all run on this class of system with no grid present. Size the array and bank to your winter usage rather than your summer usage, since that is the binding constraint.
Can I start small and grow the system?
That is a common approach, and the components are generally specified with room to grow. Plan the eventual size early, though — it is cheaper to buy a controller sized for the finished array than to replace one that has run out of input capacity.
Is professional installation required?
Not for the DC portion, which is designed to be assembled without special tools. It becomes a job for a licensed electrician the moment you tie AC output into a building's wiring, which is a permitting and code question as much as a technical one.
