Rich Solar 400 Watt Off-Grid Solar Kit (Basic, Battery & Complete Inverter Options)

Empower your mobile or off-grid lifestyle with the ultra-reliable Rich Solar 400 Watt Off-Grid Solar Kit. Engineered precisely for RVs, vans, overland trailers, remote cabins, and structural backup power, this highly versatile 400W system captures clean, efficient power anywhere the sun shines. Featuring dual high-efficiency 200W monocrystalline solar panels built with advanced 18-busbar architecture, this kit delivers exceptional performance even under partial shading or low-light winter conditions.

Because every off-grid setup has different energy demands, we offer this master kit in three flexible configurations to match your exact power needs: Basic, Battery Storage, or the total Complete Kit with a 2000W Pure Sine Wave Inverter.

Choose Your Configuration Variant

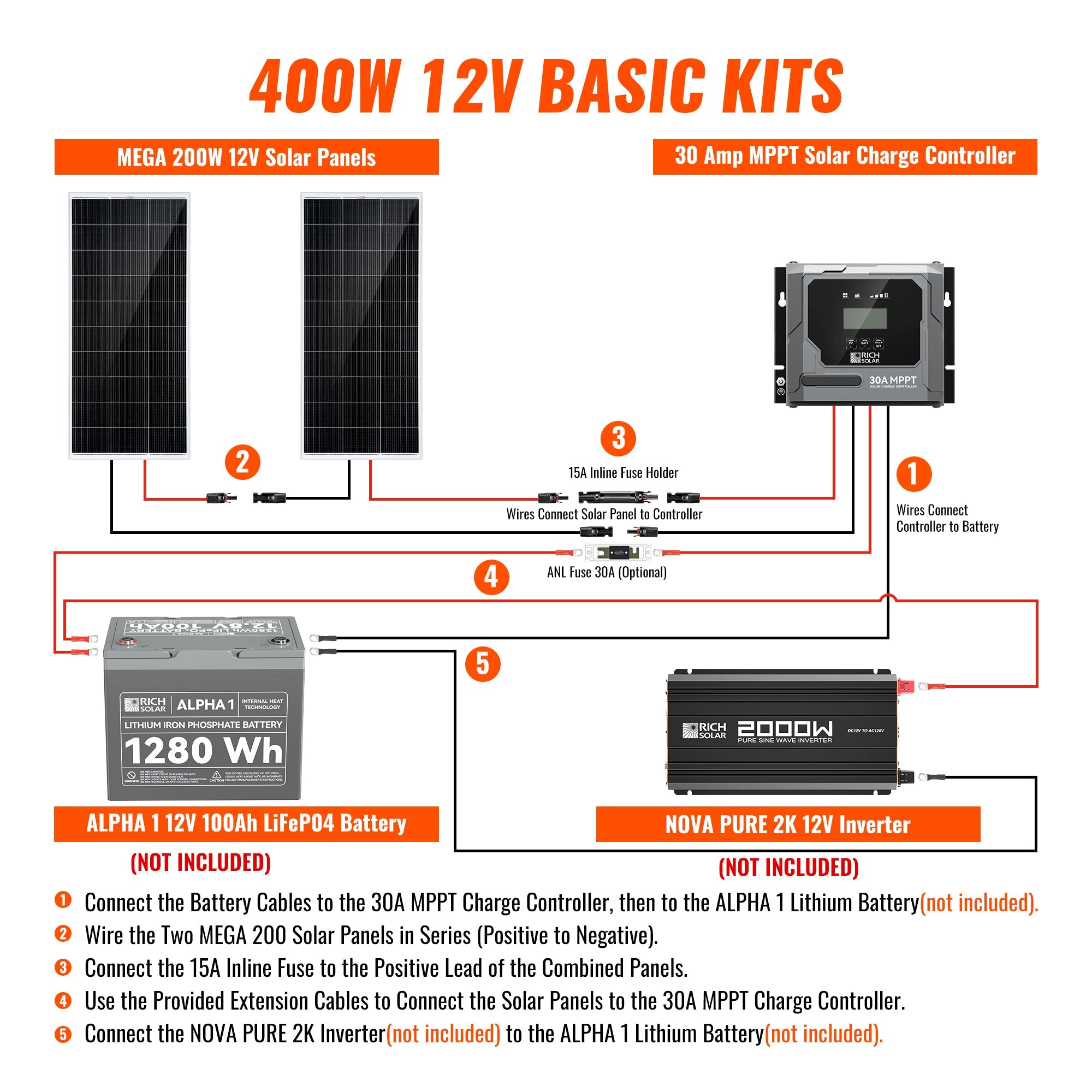

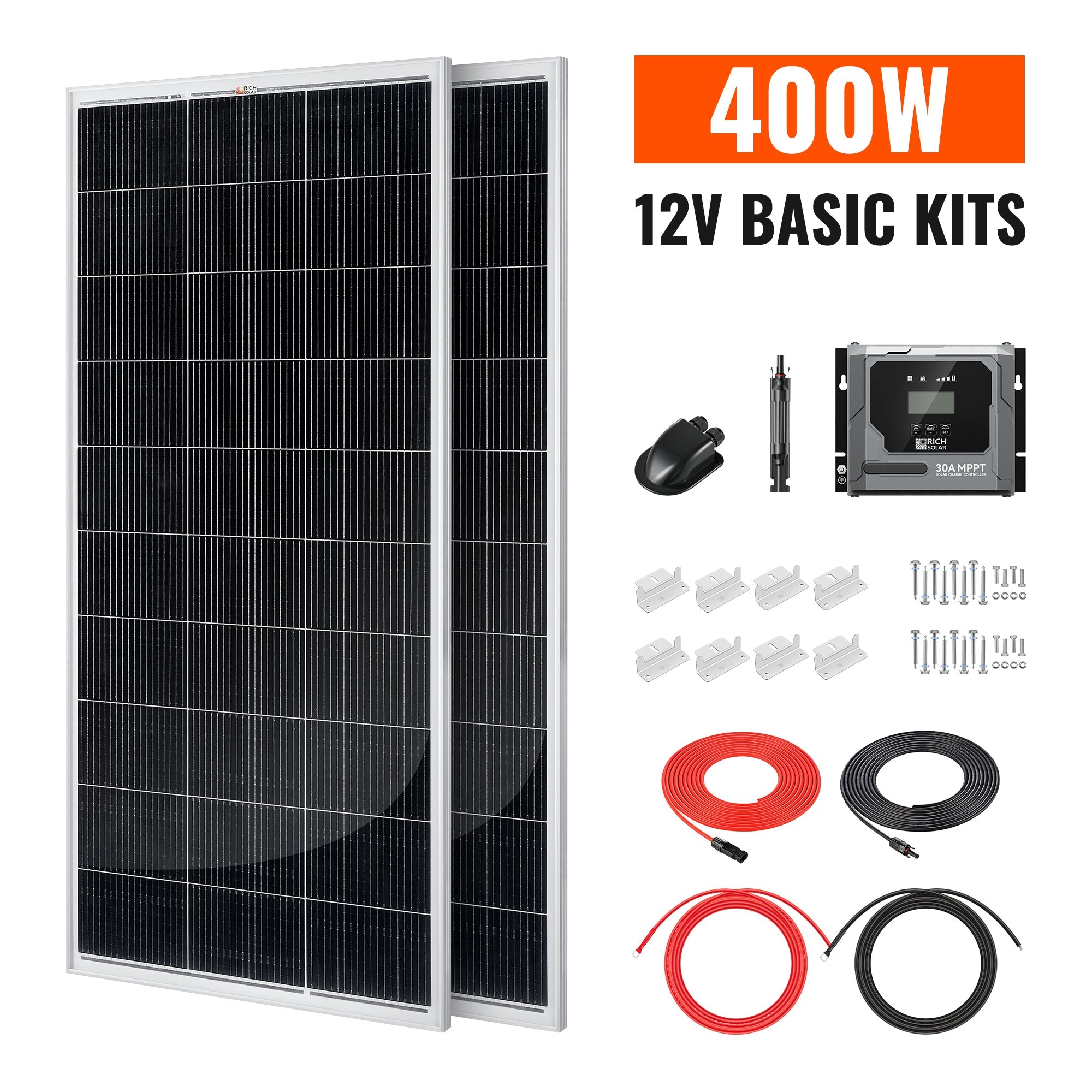

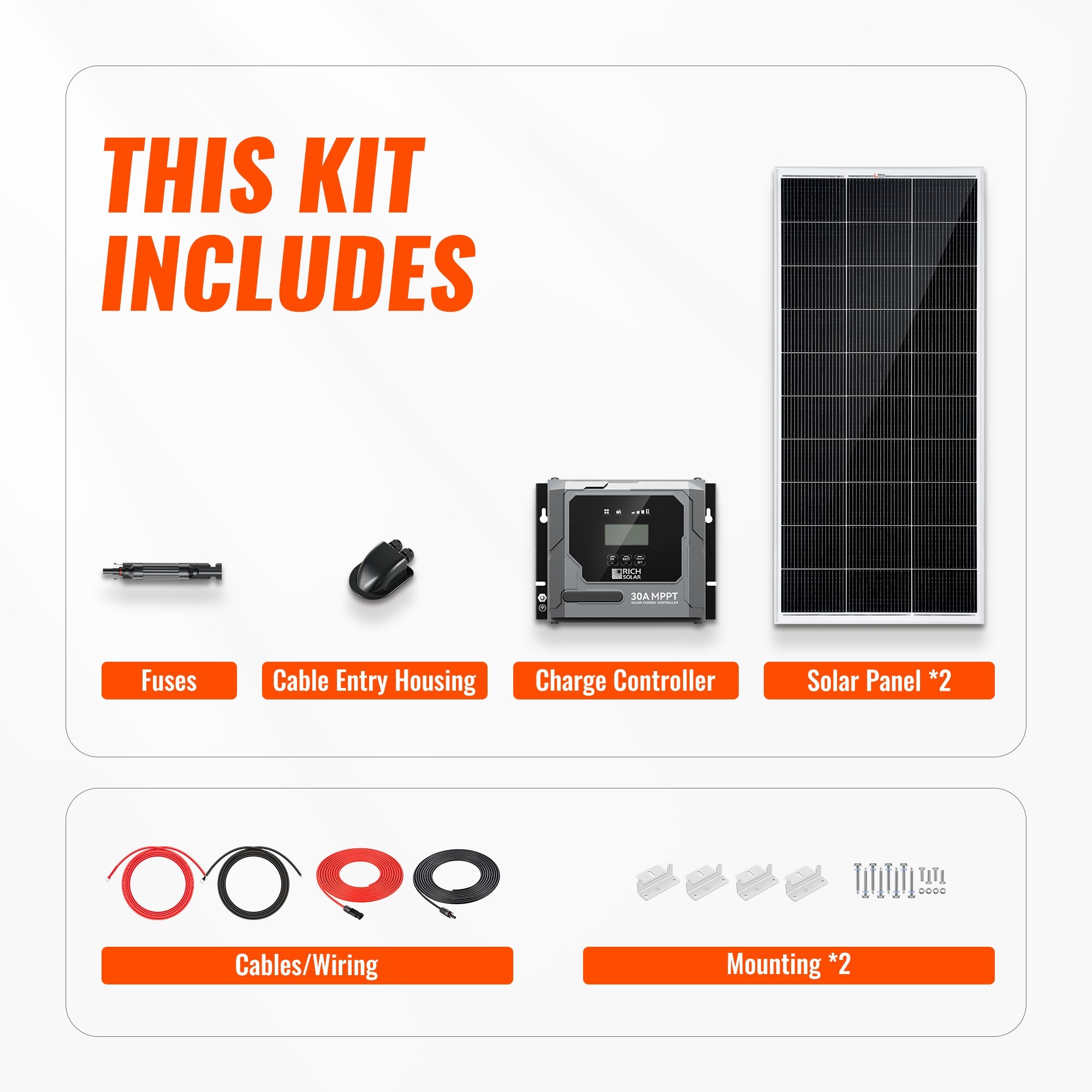

1. Basic 400W Solar Kit

The ideal structural foundation for existing power systems or custom DIY builds. This configuration focuses strictly on high-yield solar collection and safe charging.

• 2 x MEGA 200W Monocrystalline Solar Panels: Features high-transmission, anti-reflective tempered glass and a robust anodized aluminum frame.
• 1 x BRAVO 30A/40A MPPT Charge Controller: Advanced Maximum Power Point Tracking with up to 99.5% tracking efficiency. Automatically auto-detects 12V/24V systems and supports 9 distinct battery types (including LiFePO4, AGM, and Gel) with integrated Bluetooth smartphone monitoring.
• Essential Hardware Included: Heavy-duty Z-bracket mounting sets, inline fuses, and quick-connect cables.

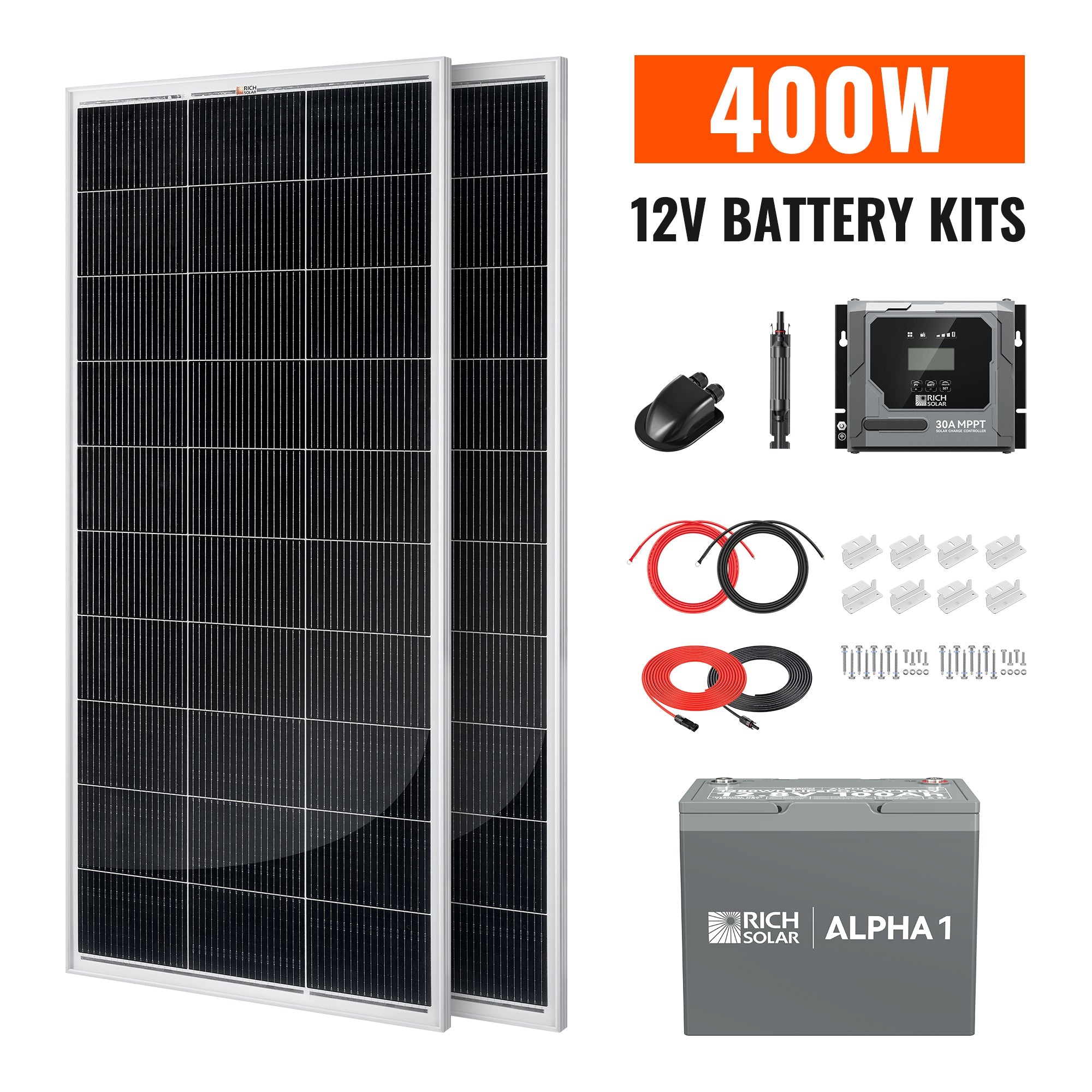

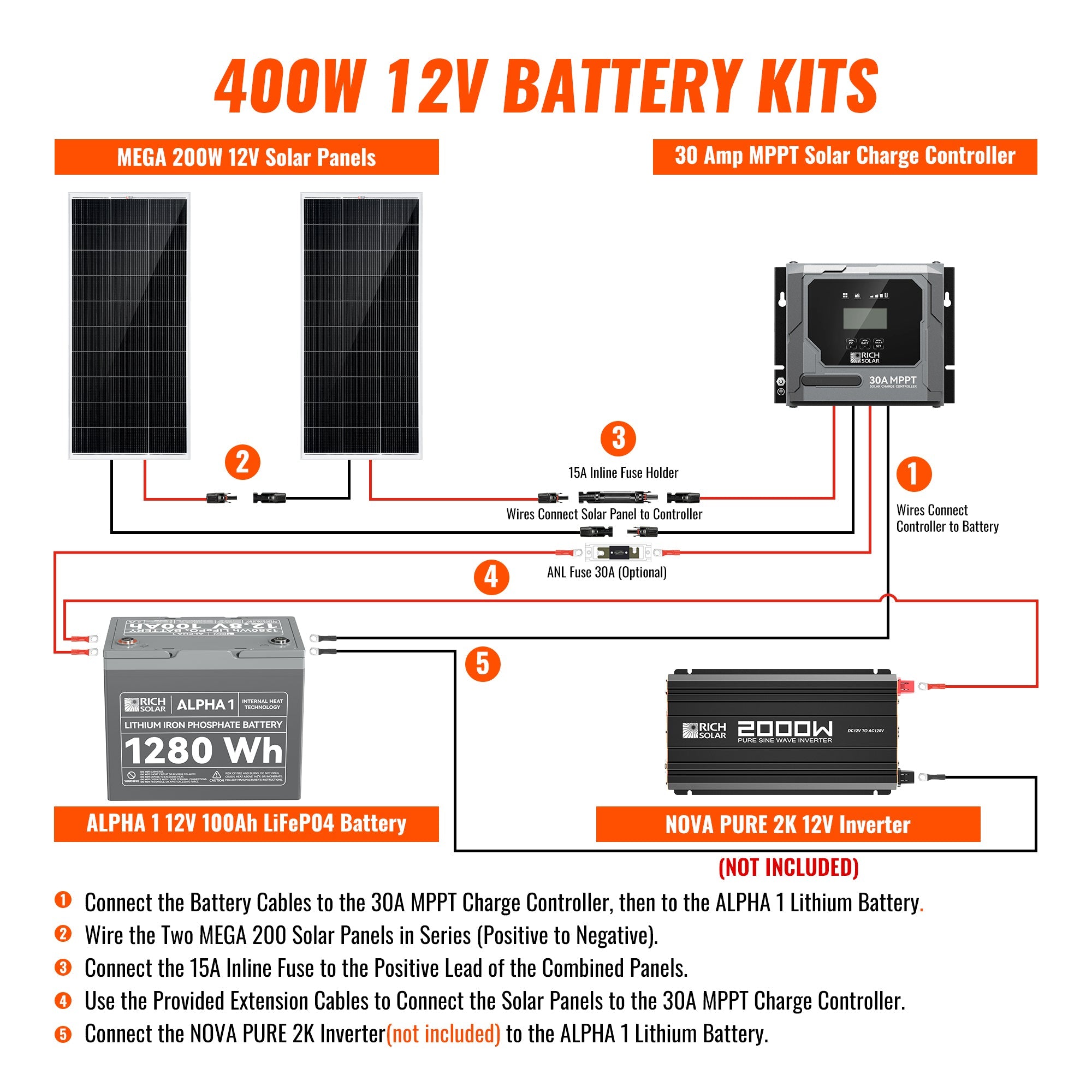

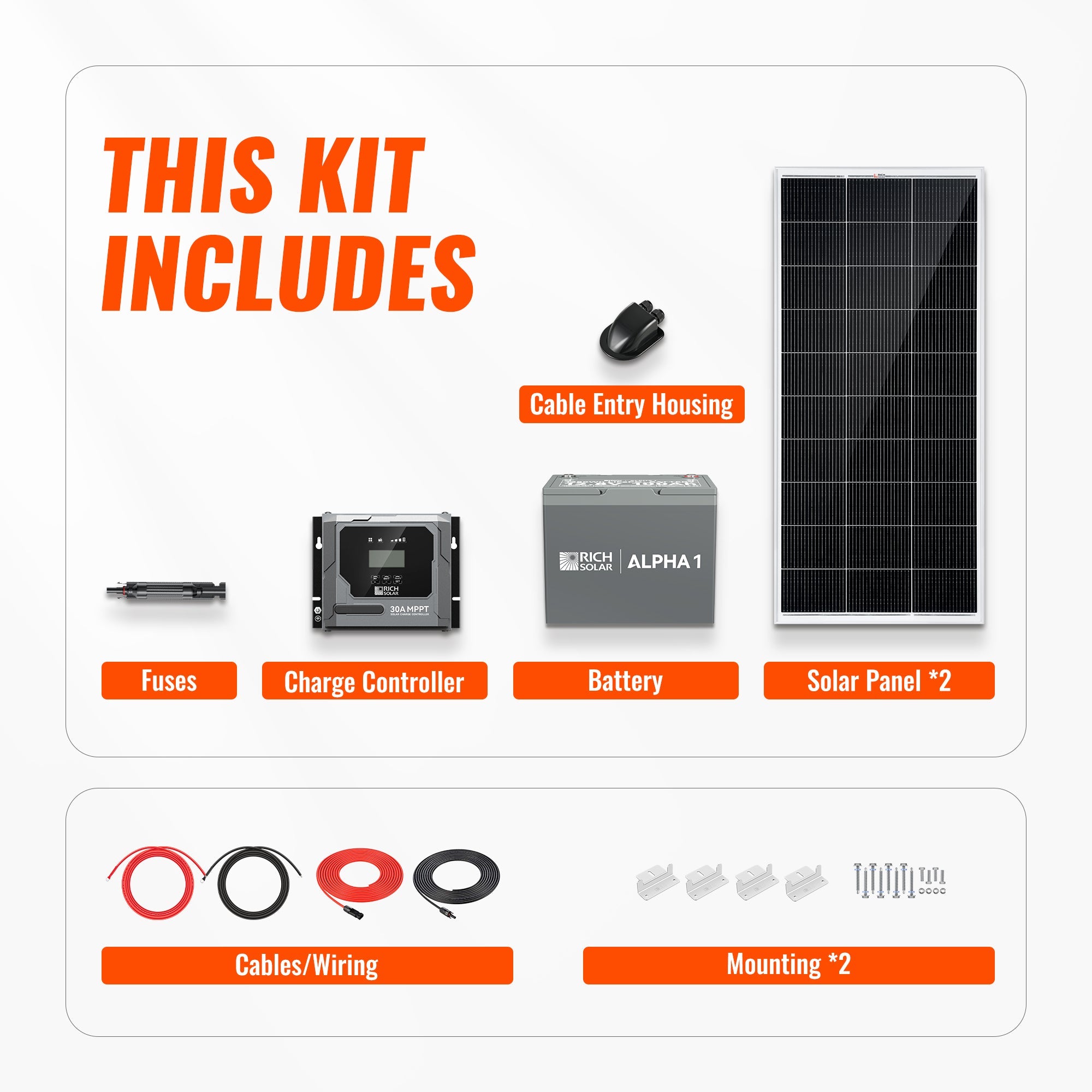

2. 400W Solar Kit with Battery Storage

Add seamless power retention to your solar generation. This setup adds premium energy storage to keep your devices running long after the sun goes down.

• All Basic Components Included: Dual 200W solar panels and the intelligent MPPT smart controller.
• 1 x ALPHA 1 12V 100Ah LiFePO4 Lithium Battery: Engineered with premium EV-grade A+ cells, offering 1,280Wh of storage capacity and over 5,000 deep-discharge cycles (3x the life of standard lead-acid batteries). Features smart internal low-temperature heating elements for safe winter charging and built-in Bluetooth tracking.

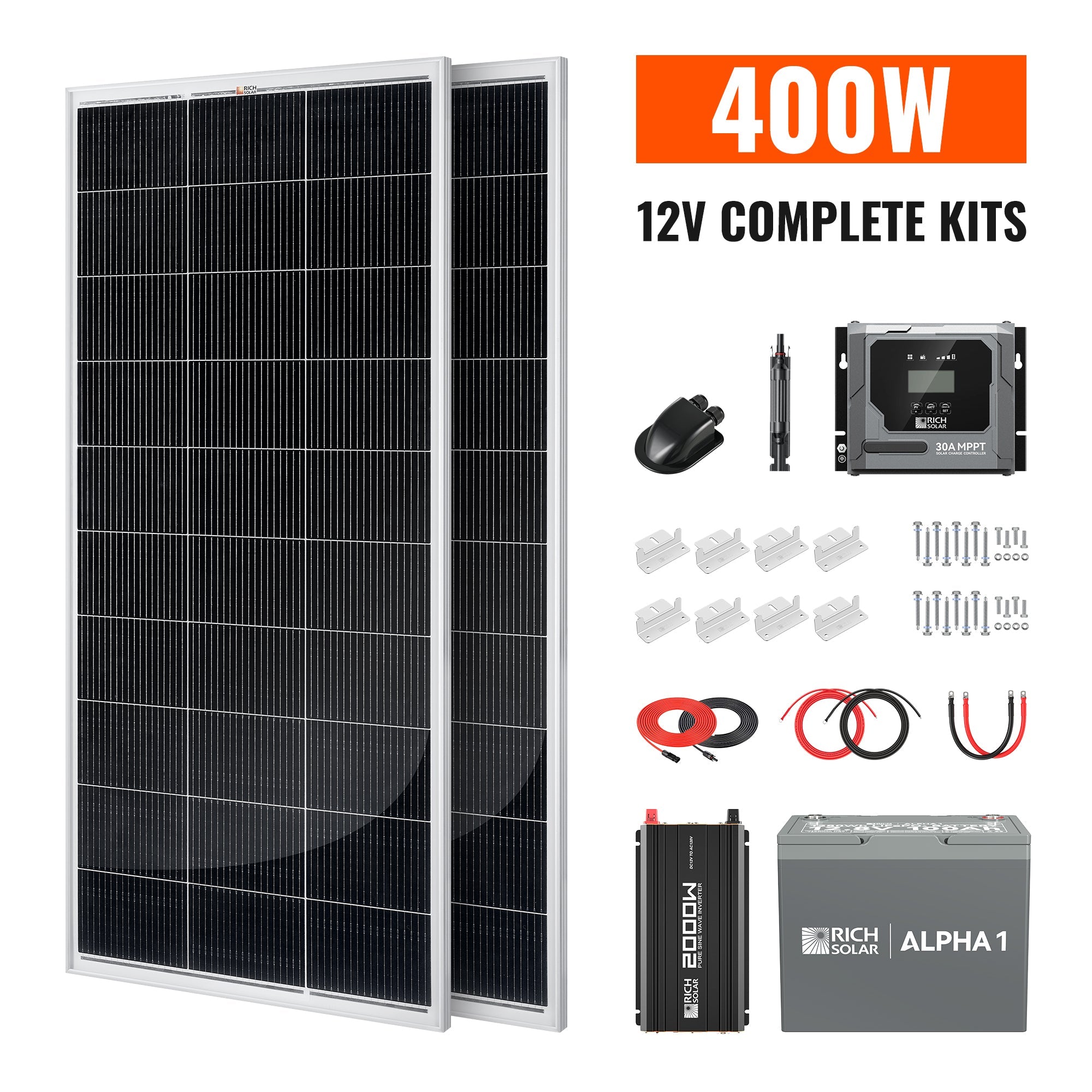

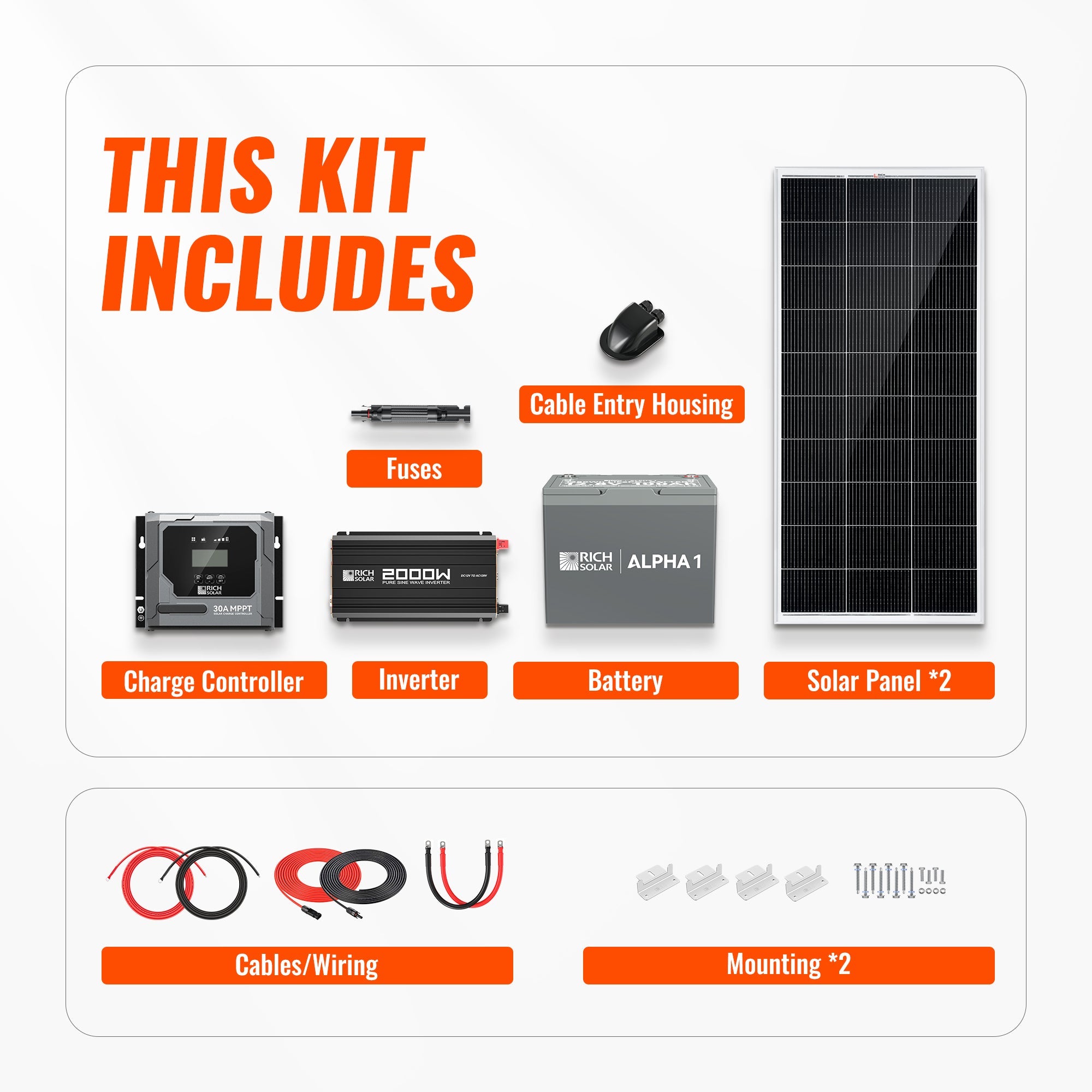

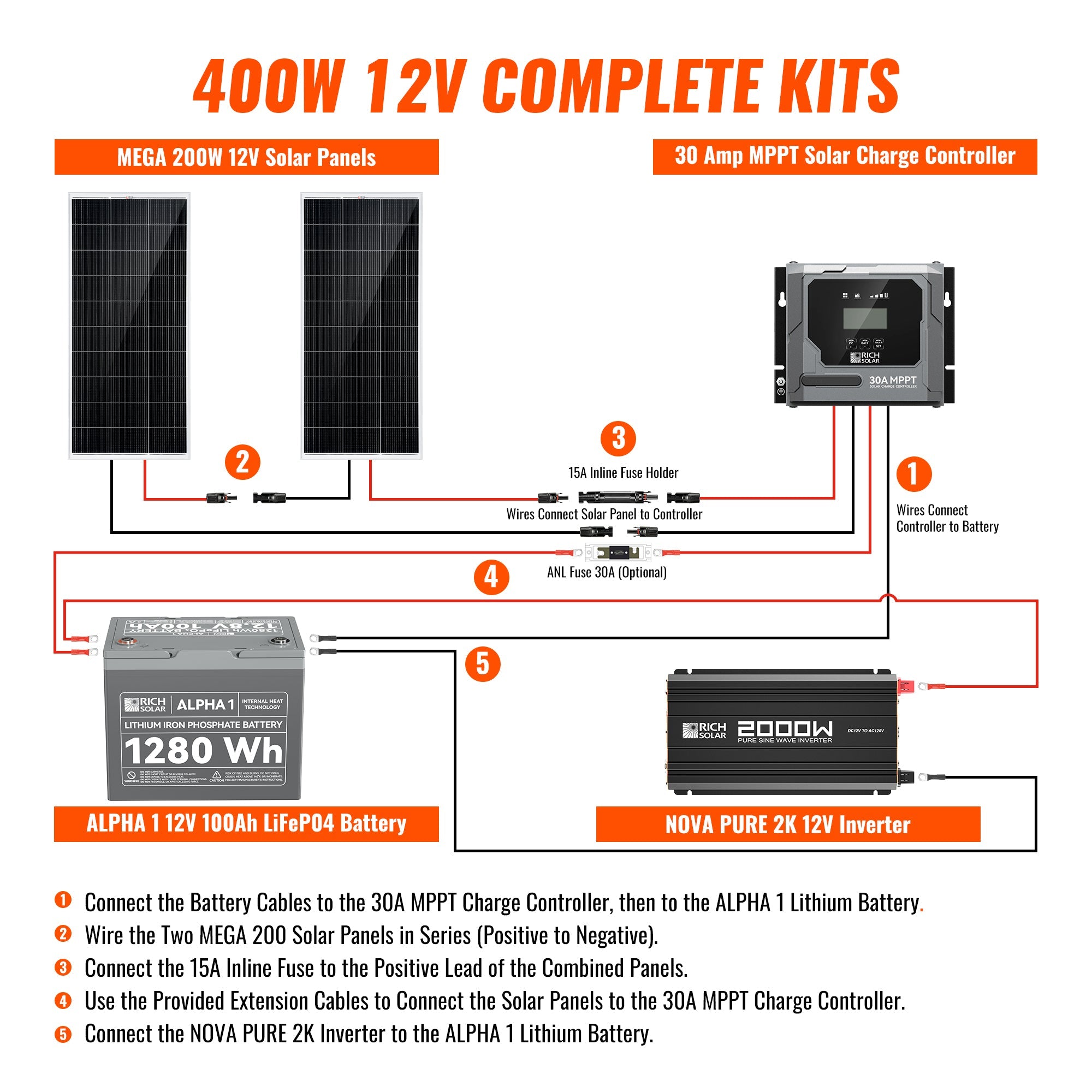

3. Complete 400W Solar Kit with Battery & Inverter

The ultimate all-in-one turn-key off-grid micro-grid. This package handles everything from sunlight generation and lithium storage to standard household AC power output.

• All Generation & Storage Components Included: 400W of solar panels, MPPT smart charge controller, and the ALPHA 1 100Ah Lithium Battery.
• 1 x NOVA 2000W 12V Pure Sine Wave Inverter: Converts stored 12V DC battery power into safe, clean 120V AC household electricity. Safely runs sensitive appliances like laptops, continuous power tools, refrigerators, blenders, and medical gear without electrical interference.

Comparison Table: Kit Configuration Specifications

Technical Specifications & Engineering

MEGA 200W Monocrystalline Solar Panel Features

• Maximum Power Output (Pmax): 200W per panel (400W total kit generation capacity)
• Maximum Power Voltage (Vmp): 18.4V
• Maximum Power Current (Imp): 10.9A
• Premium Weatherproofing: Built to endure heavy elements with a 2400 Pa wind resistance rating and 5400 Pa snow load capacities. 14 integrated factory pre-drilled holes make it seamless to bolt to Z-brackets, tilt mounts, or ground poles.
• Industrial Warranty protection: Features a 25-year limited power output warranty alongside a 10-year workmanship warranty.

BRAVO MPPT Charge Controller Technology

• Conversion Optimization: Advanced algorithm maintains a 98% conversion efficiency rate and a 99.5% active tracking efficiency to capture energy through heavy cloud layers.
• Full Protection Systems: Active electronic safeties protect your system against over-voltage, reverse polarity connections, short-circuit loops, and thermal over-temperature spikes.

ALPHA 1 LiFePO4 Lithium Storage Chemistry

• Nominal Energy capacity: 12.8V | 100Ah | 1280Wh.
• Internal Thermal Heating Protection: Built-in heaters actively protect cells down to sub-zero temperatures. Internal micro-heating engages at temperatures under 41°F (5°C) and disengages once safely above 50°F (10°C), ensuring you can charge safely year-round.
• Intelligent BMS System: Integrated Battery Management System prevents overcharging, over-discharging, cell imbalance, and high currents.

Frequently Asked Questions (FAQ)

What can a 400 watt off-grid solar kit run?

A 400W solar kit with battery storage generates roughly 1.6kWh to 2.0kWh of usable energy per day (based on 4-5 hours of peak sunlight). This is ideal for running standard high-energy necessities inside mobile vehicles or work environments, including LED lighting setups, mini-fridges, ventilation fans, smartphones, laptops, and CPAP medical machines. If utilizing our Complete Kit with the 2000W inverter, you can run larger power appliances like blenders, coffee machines, and power tool battery chargers.

Does the Rich Solar 400W Kit perform in low light or winter conditions?

Yes. The premium MEGA 200W Monocrystalline panels feature anti-reflective coated tempered glass and dense 18-busbar connections engineered for superior low-light tracking during early morning hours, late evenings, or heavily overcast winter days.

Is the lithium battery safe to charge in freezing conditions?

If you choose our Battery Kit or Complete Kit, it includes the premium ALPHA 1 Lithium Battery. Unlike cheap lithium batteries that suffer fatal damage when charged below freezing, the ALPHA 1 features internal temperature sensors and automated heating pads. When internal temperatures dip below 41°F, the battery uses incoming solar energy to warm itself safely back up before allowing a charge to enter the lithium cells.

Can I expand this 400W solar system in the future?

Absolutely. The BRAVO MPPT charge controller is engineered with a wide input voltage ceiling and auto-detects both 12V and 24V system layouts. This means you can comfortably add more solar panels or daisy-chain additional lithium batteries in parallel as your remote storage needs increase.
