RICH SOLAR 520W Slim Solar Kit for Vans & RVs

Maximize Limited Roof Space with Deep Off-Grid Power

When building out a camper van, overland rig, or tiny mobile footprint, roof real estate is your most valuable commodity. The RICH SOLAR 520W Slim Solar Kit solves this spatial constraint by utilizing ultra-sleek, narrow profiles without sacrificing electrical output. Engineered explicitly for tight layouts alongside roof racks, vents, or air conditioning units, this complete system reliably maintains your off-grid battery banks.

This master kit pairs four high-efficiency 130W Mega Slim Monocrystalline panels with an intelligent MPPT charge controller to deliver highly reliable power conversion, even in fluctuating or low-light conditions.

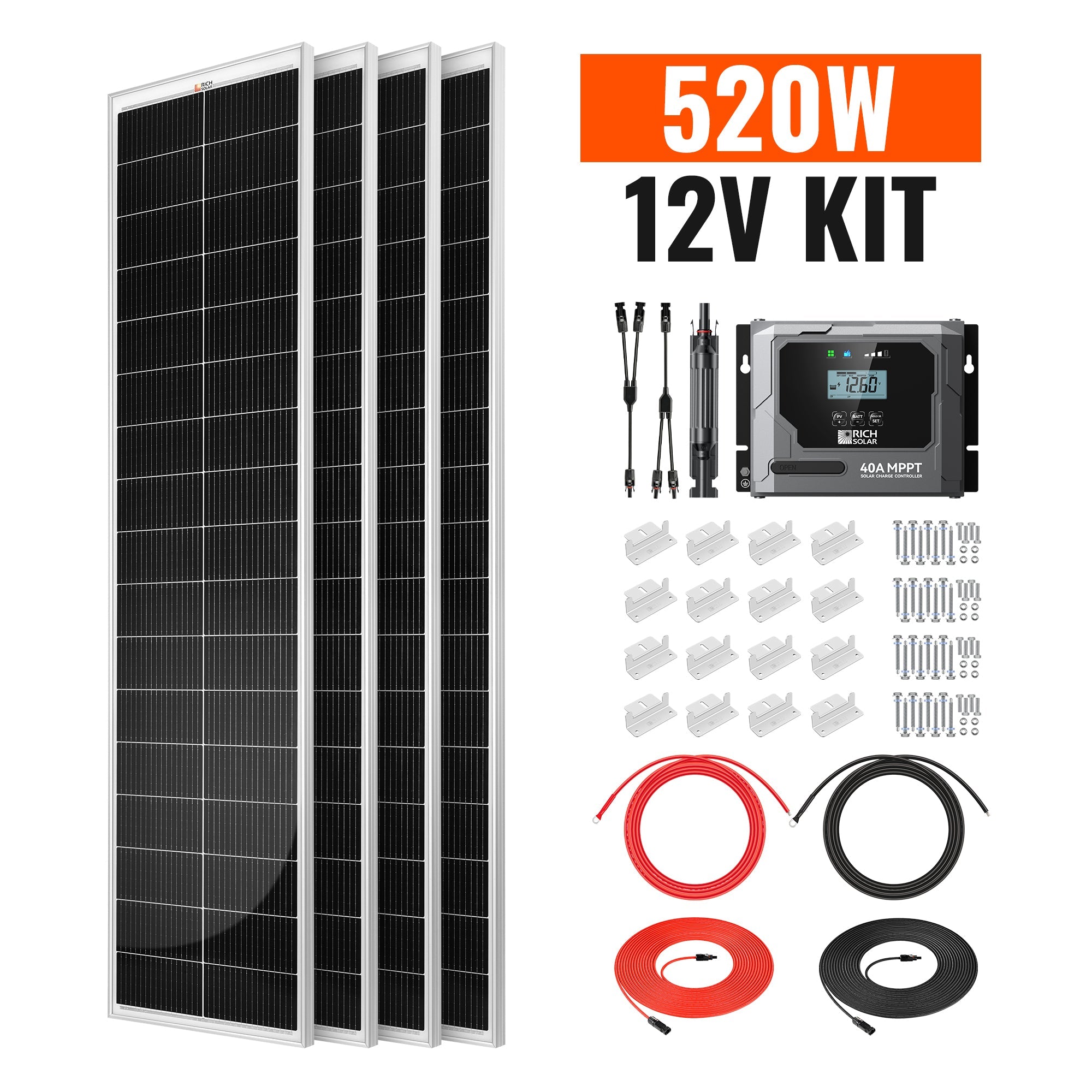

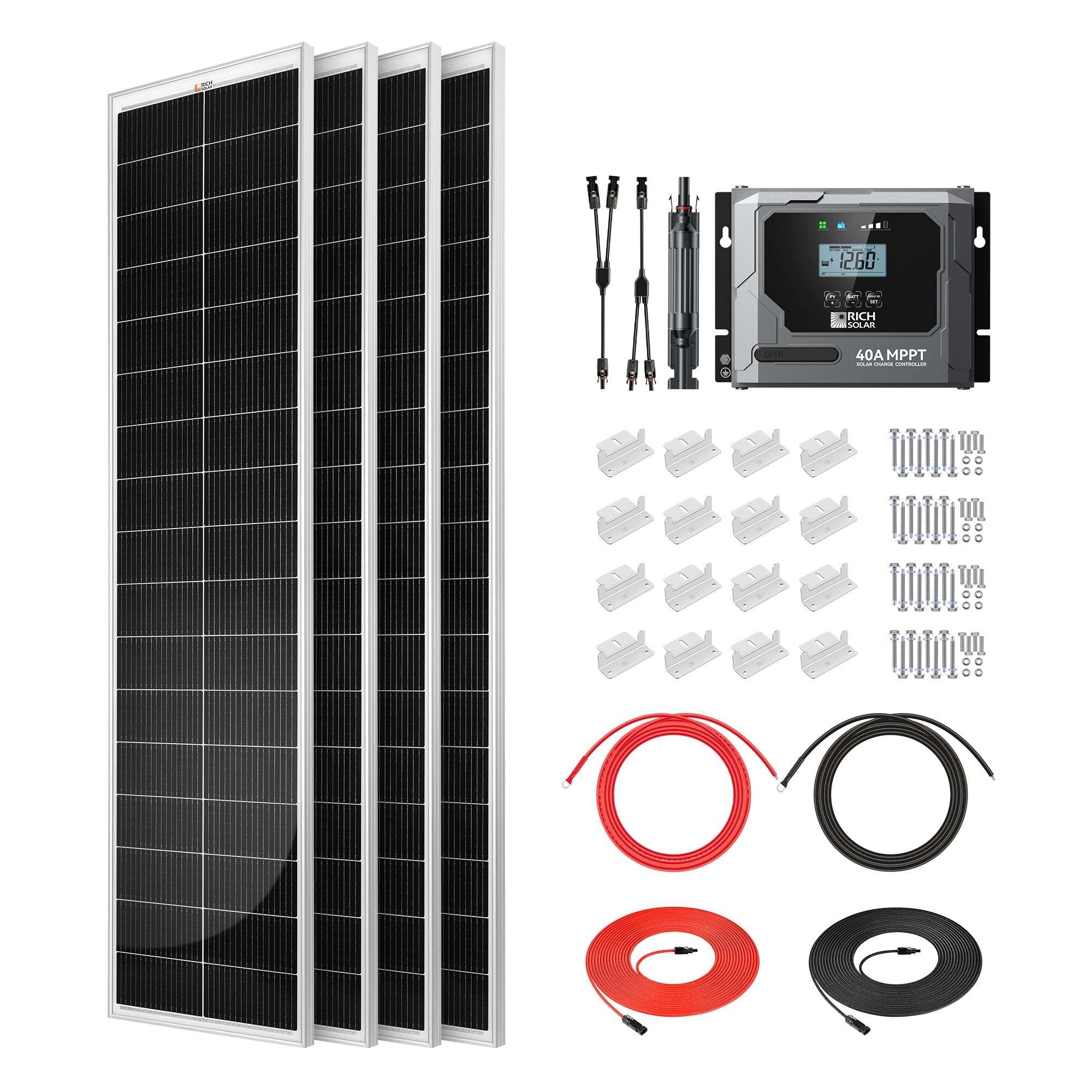

Comprehensive Kit Components

Every variation of the 520W master kit includes the premium core hardware required for a safe, code-compliant off-grid installation:

• Solar Panels: 4x MEGA 130W Slim Monocrystalline Solar Panels (Model: RS-M130SL)
• Down-Trunk Cabling: 1x 30-Foot 10AWG Solar Cable Set (Panel to Controller connection)
• Parallel Adapters: 1x Heavy-Duty Y-Branch Parallel Adapter Set
• Battery Leads: 1x 10-Foot 8AWG Battery Cable Set (Controller to 12V Battery Bank)
• System Protection: 1x 20A Inline Solar Fuse Holder
• Mounting Hardware: Full set of structural Z-Brackets for rigid roof security

Kit Architecture & System Variations

To fit your specific power demands, wire routing preference, and system component goals, we offer this master kit in multiple configuration levels. Choose your preferred charge controller option below:

Technical Specifications (Per Panel)

• Maximum Power (Pmax): 130W
• Cell Type: High-efficiency Monocrystalline
• Form Factor: Slimline narrow design optimized for van roofs
• System Fitment: Directly compatible with 12-Volt and 24-Volt lithium, AGM, or gel deep-cycle batteries

Design Note: Utilizing a parallel wiring configuration via the included Y-branch connectors ensures that if one solar panel is temporarily shaded by a roof box or tree branch, the remaining three panels continue pushing maximum amperage to your battery bank undisturbed.

Frequently Asked Questions

What are the physical dimensions of the 130W Slim panels?

The RICH SOLAR 130W Slim panel features a narrow-width architecture designed specifically to fit alongside roof infrastructure like camper vans vents or A/C systems, utilizing length rather than width to hit full capacity.

Can I use this 520W kit to charge a 24V or 48V battery bank?

The included 40A MPPT charge controller automatically detects and balances for 12V and 24V battery systems. For standard 48V residential or heavy commercial power stations, a step-up controller modification is required.

Is this system safe for Lithium (LiFePO4) batteries?

Yes. The included MPPT controller features built-in charging profiles explicitly configured for Lithium, AGM, Gel, and Flooded lead-acid batteries, protecting your cells from overcharging.

Why choose an MPPT controller over a standard PWM controller?

MPPT (Maximum Power Point Tracking) controllers extract roughly 15% to 30% more actual energy from your solar array than basic PWM controllers. They dynamically adjust voltage to match changes in solar intensity, ensuring your system captures every possible watt throughout the day.
