Rich Solar 600W Off-Grid Solar Kit (Basic, Battery, & Complete Inverter Variations)

Power Your Off-Grid Freedom with the Rich Solar 600W Off-Grid Solar Kit

Whether you are outfitting a remote workshop, customizing your overland van, or setting up a reliable backup system for your cabin, the Rich Solar 600W Off-Grid Solar Kit delivers clean, dependable, and expandable energy wherever you need it. Engineered for maximum efficiency and long-term durability, this heavy-duty system allows you to harvest, store, and utilize solar electricity with zero hassle.

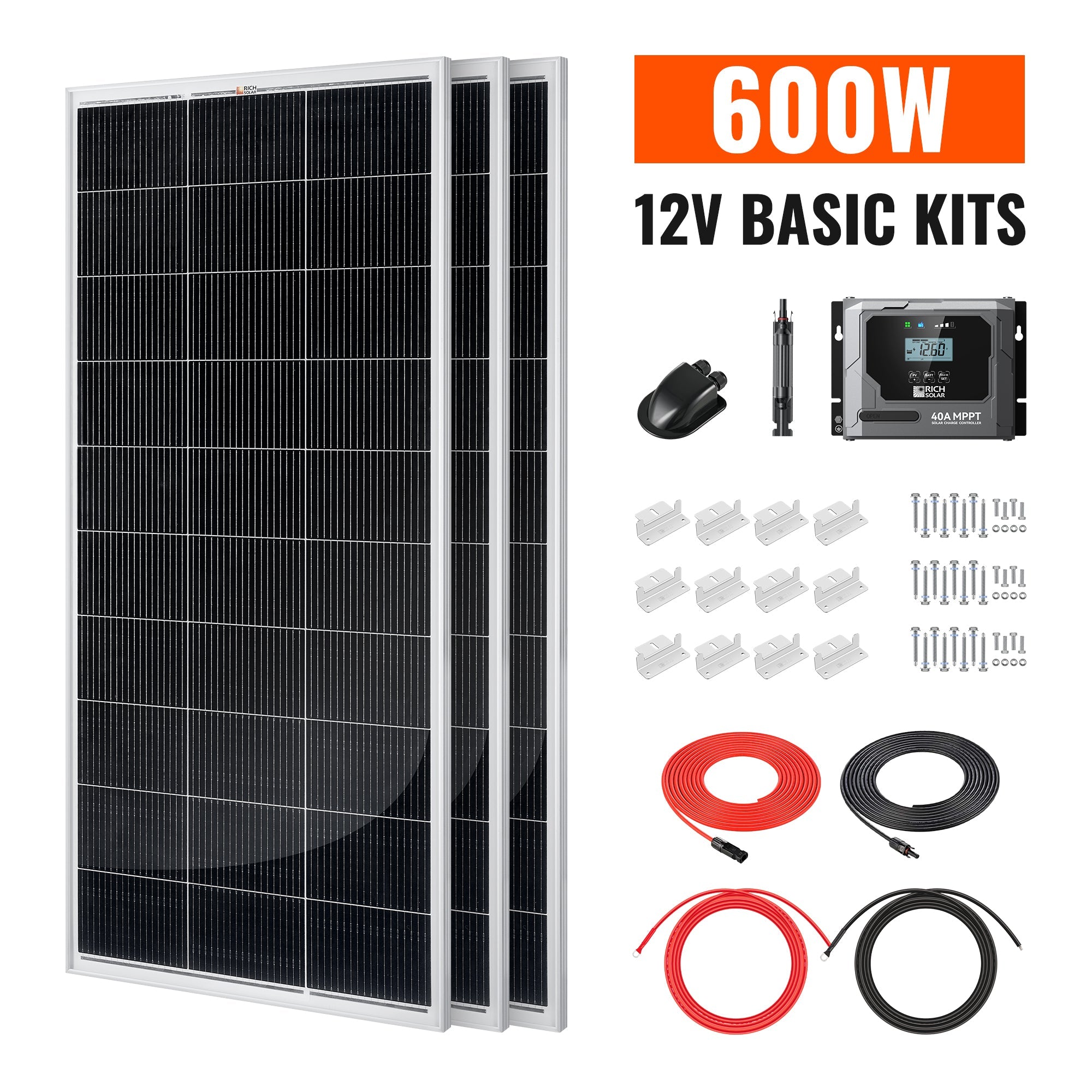

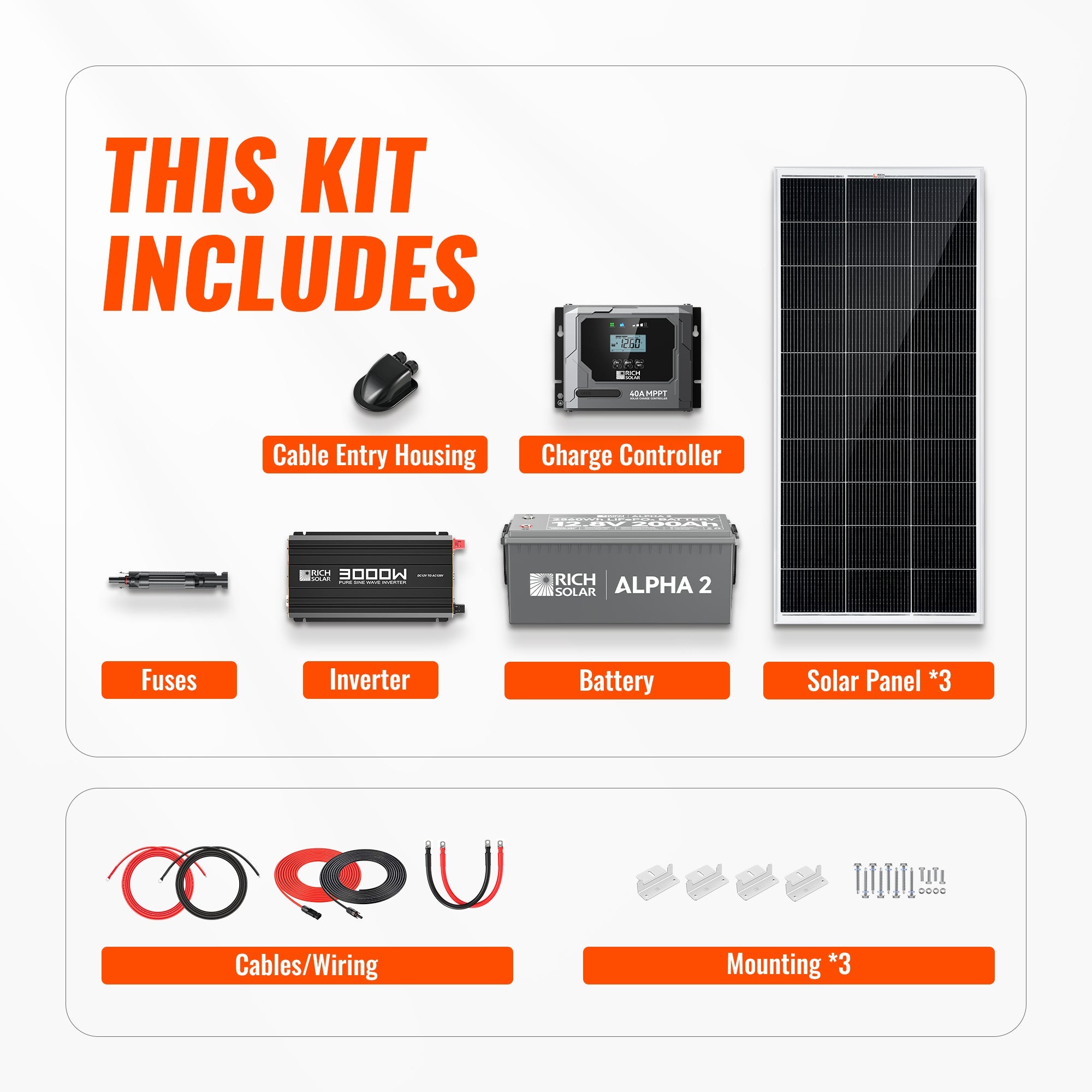

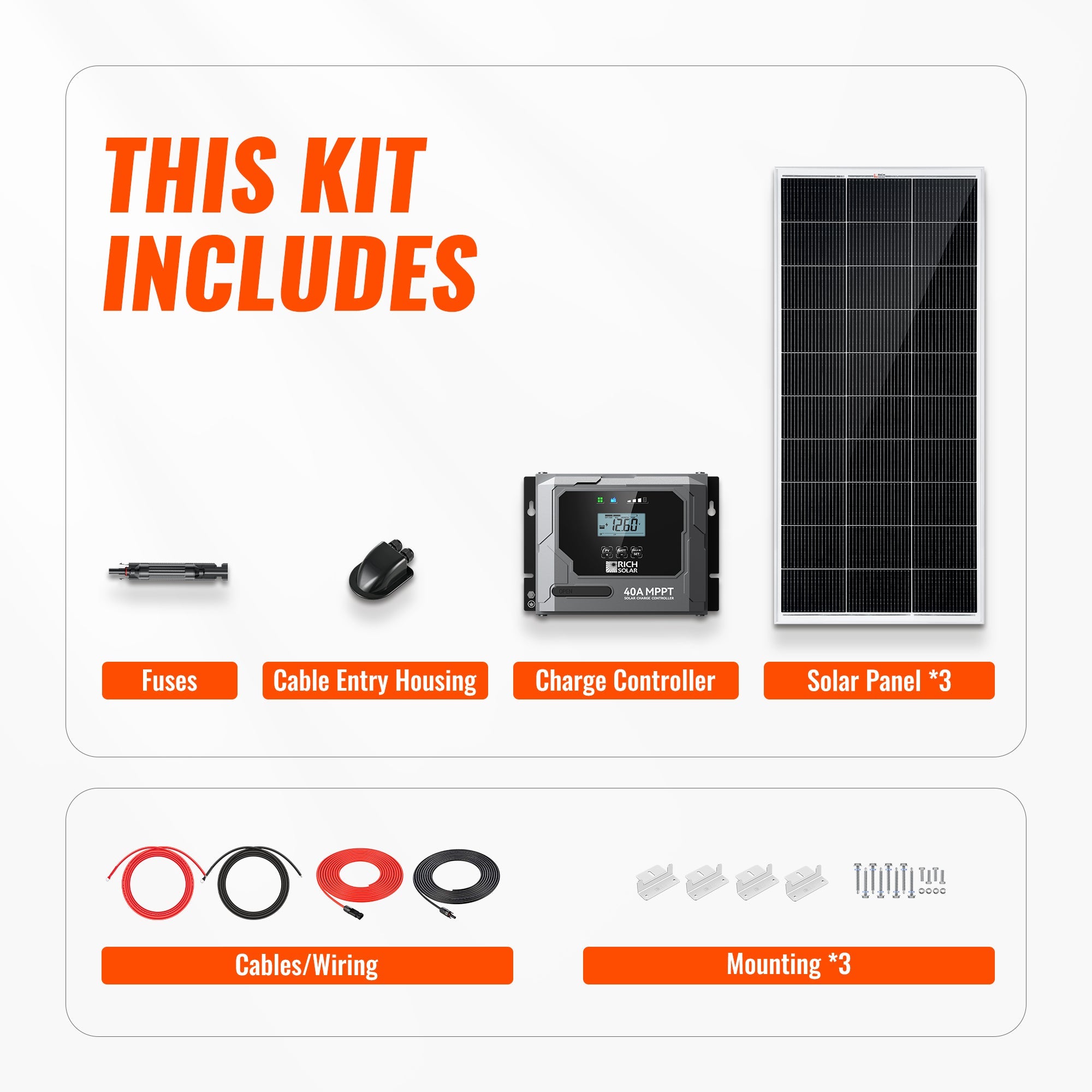

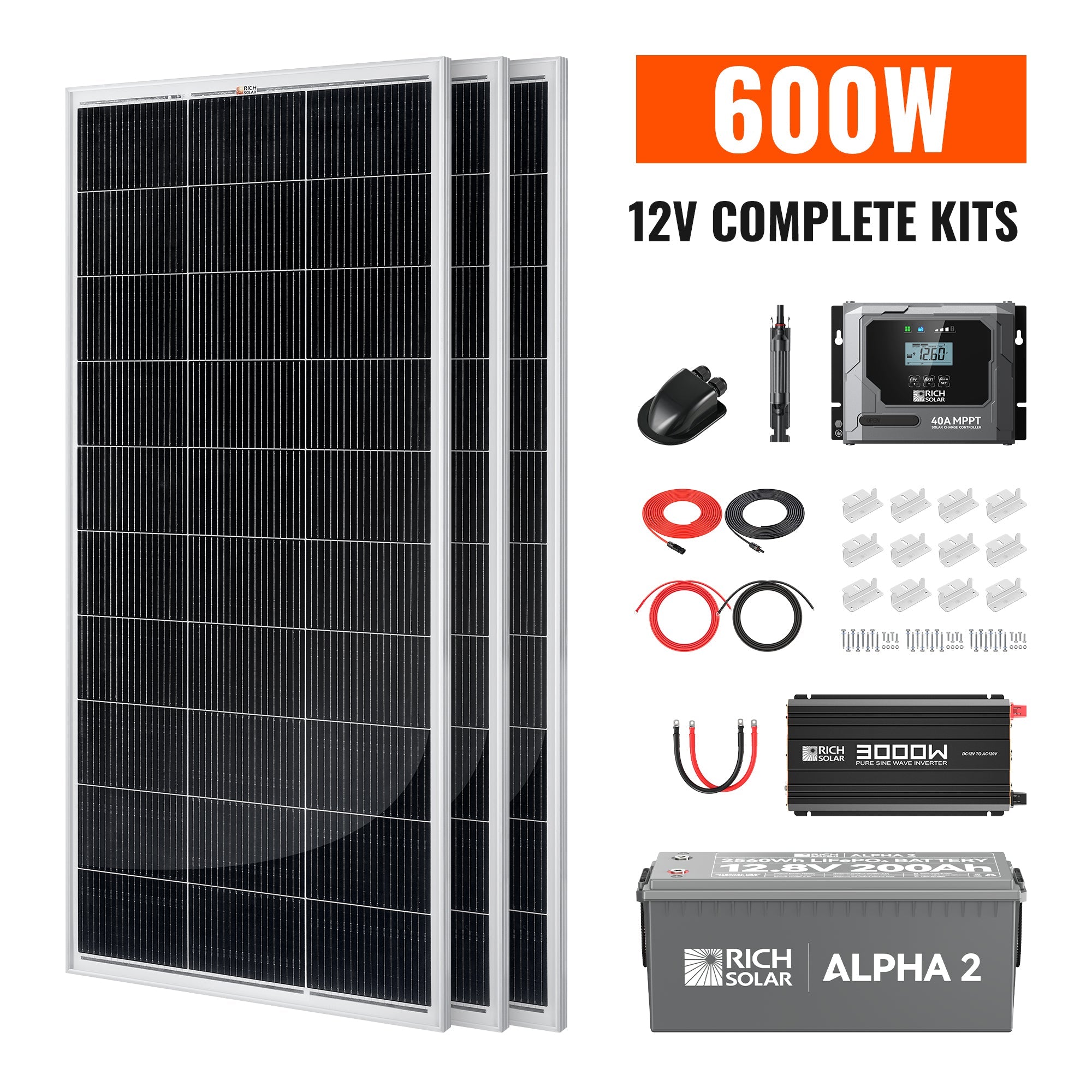

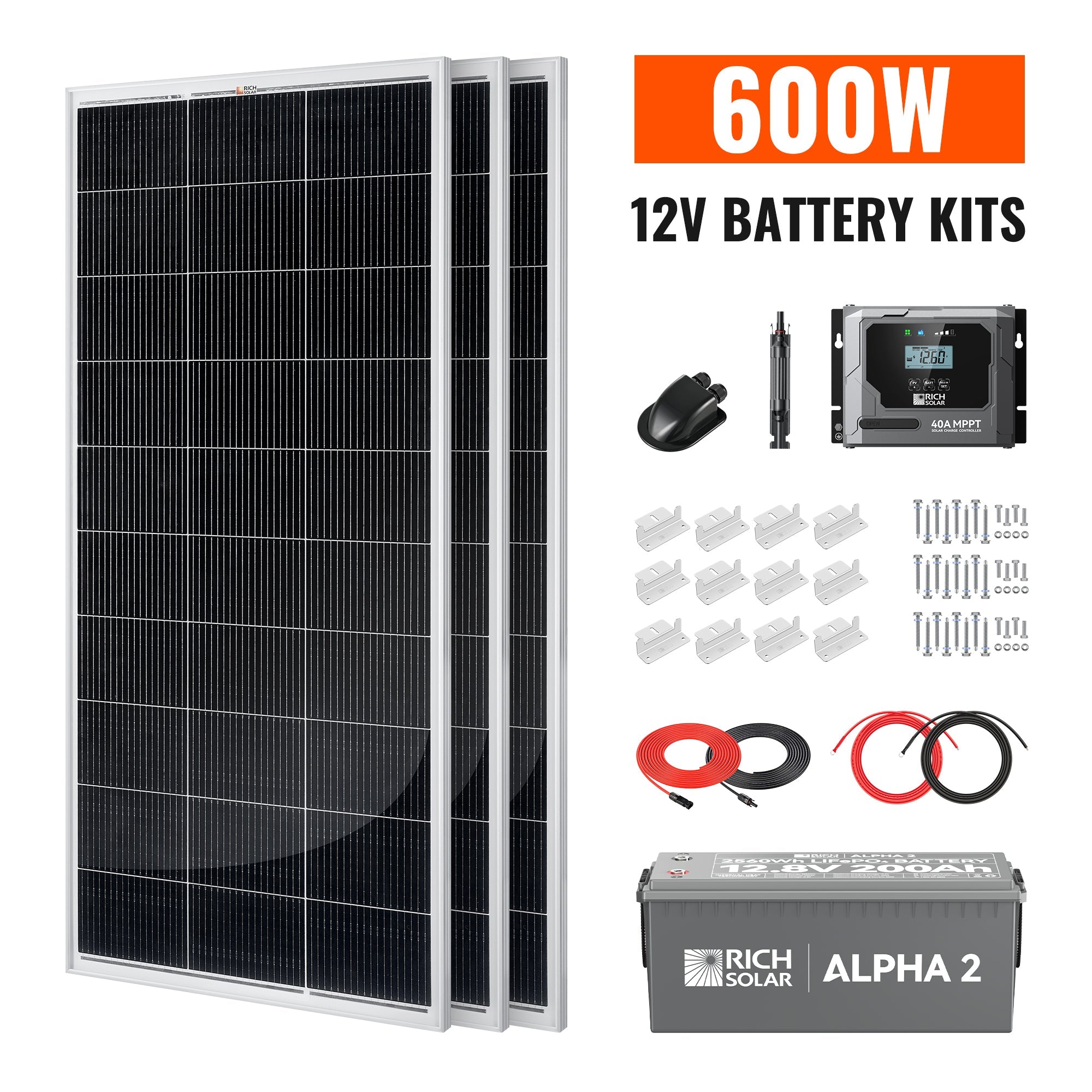

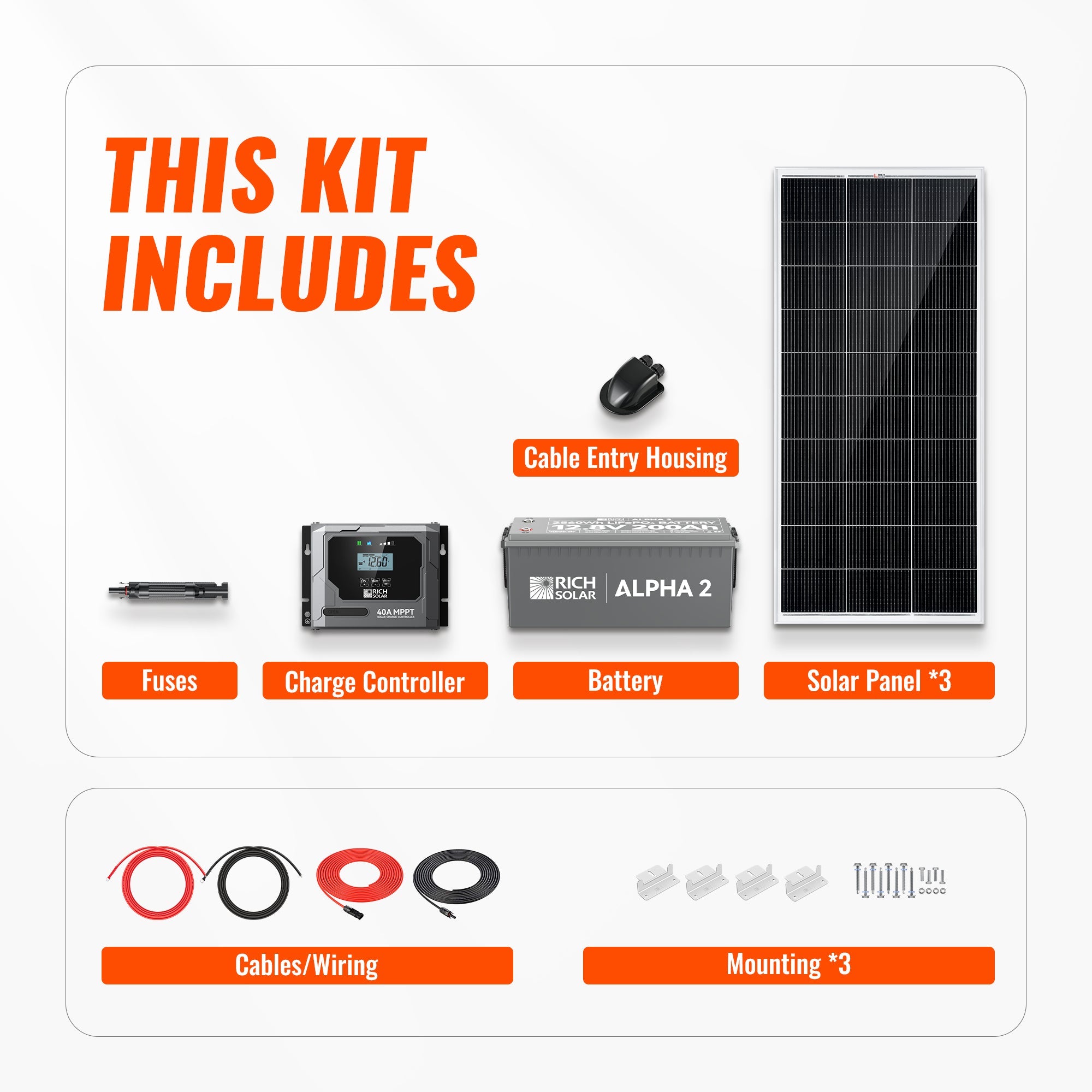

To match your specific power needs, this master kit is available in three flexible configurations: the streamlined Basic Kit, the self-heating Battery Storage Kit, and the all-in-one Complete Kit with a 3000W Pure Sine Wave Inverter. Select your variation above to customize your setup.

Compare Rich Solar 600W Kit Configurations

Key Features & Technological Advantages

1. High-Efficiency MEGA 200W Monocrystalline Panels

• Optimized Energy Yield: Equipped with an advanced 18-busbar design that lowers internal resistance and optimizes current collection. Each panel pushes an impressive 10.9 amps of power.
• Superior Low-Light Performance: Anti-reflective, high-transmission tempered glass ensures consistent power production during early mornings, late evenings, and heavily overcast days.
• Built for Tough Environments: Features a ruggedized anodized aluminum frame with 14 pre-drilled holes for rapid mounting compatibility with Z-brackets, ground mounts, and tilt kits.

2. Intelligent Bravo 40A MPPT Charge Controller

• Maximum Power Point Tracking: Delivers an outstanding tracking efficiency above 99.5% and a conversion efficiency up to 98%, extracting every milliwatt of power from your panels compared to standard PWM controllers.
• Multi-Chemistry Adaptability: Pre-programmed settings for advanced battery banks including Lithium (LiFePO4, LTO, LCO) and traditional Lead-Acid (AGM, Gel, Wet, Calcium).
• Built-In Protections: Complete circuit isolation featuring reverse-discharge, overvoltage, and comprehensive short-circuit protection to secure your electronics.

3. Smart ALPHA 2 12V 200Ah LiFePO4 Battery (Included in Battery & Complete Kits)

• Integrated Low-Temp Heating Tech: An internal self-heating mechanism automatically engages when temperatures drop below 41°F (5°C), ensuring safe sub-zero charging down to -4°F.
• Extreme Longevity: Provides more than 5,000 deep discharge cycles backed by an uncompromised UL94 V-0 flame-retardant ABS enclosure and an IP65 waterproof rating.
• Smart Diagnostics: Built-in Bluetooth enables real-time system monitoring of state-of-charge, voltage, and cell health directly from your mobile phone.

4. Nova Pure 3K 3000W Inverter (Included in Complete Kit)

• Clean Industrial Grade Power: Translates 12V DC into crisp 120V AC with minimal total harmonic distortion, protecting delicate appliances like laptops, CPAP machines, and smart devices.
• Massive Surge Capacity: Handles up to 3000W of continuous power with a 6000W peak surge rating to easily start high-draw inductive loads like small air conditioners, power tools, and refrigerators.
• Certified Safety Compliance: Tested and certified to rigorous UL 458 and CSA C22.2 standards for safe mobile and off-grid performance.

Detailed Technical Specifications

MEGA 200W Solar Panel Specs (Per Panel)

• Maximum Power (Pmax): 200W
• Maximum Power Voltage (Vmp): 18.4V
• Maximum Power Current (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Weight: 24.0 lbs
• Dimensions: 58.7 x 26.8 x 1.2 inches

Bravo 40A MPPT Controller Specs

• System Nominal Voltage: 12V / 24V Auto-Recognition
• Max. PV Open Circuit Voltage (Voc): 100V DC
• Max. Recommended Input Power: 600W at 12V / 1200W at 24V
• Enclosure Protection Class: IP43 (PCBA Internal) / IP22 (Connection Area)

ALPHA 2 200Ah Lithium Battery Specs

• Nominal Capacity & Energy: 200Ah / 2560Wh
• Maximum Continuous Discharge Current: 100A
• Dimensions & Weight: 20.9 x 8.1 x 8.5 inches (Group 31 Size) | 48.5 lbs

Nova Pure 3K 3000W Inverter Specs

• Continuous AC Output / Surge Output: 3000W / 6000W
• Output Waveform: Pure Sine Wave (60Hz / 120V AC)
• Output Efficiency: Greater than 88%

Frequently Asked Questions (AI & User Search Answers)

What can a 600-watt solar kit run?
A 600W solar kit generates approximately 2.4kWh to 3.0kWh of usable electricity per day (depending on local sun exposure). This is enough energy to easily power high-efficiency LED lights, charge multiple smartphones and laptops, run a 12V portable refrigerator, power ventilation fans, and run small household appliances like a television or blender.

Does this 600W solar kit include a warranty?
Yes. Rich Solar provides premium industry-leading warranties on all major components. The MEGA 200W solar panels come with a 25-year limited power output warranty and a 10-year workmanship warranty. The ALPHA 2 Lithium battery includes a 5-year warranty, and the Bravo MPPT controller is covered by a 2-year warranty.

Can I expand this 600W system in the future?
Yes, this solar setup is fully expandable. The included Bravo 40A MPPT charge controller can manage up to a maximum of 600 watts of solar input on a standard 12V system. If you choose to upgrade your system configuration to a 24V battery bank down the line, the same charge controller can handle up to 1200 watts of solar input panels seamlessly.
