Rich Solar 6560W Complete Off-Grid Hybrid Solar Kit | 6500W 48V Output

Never Lose Power: The Ultimate Heavy-Duty Off-Grid Solar Solution

The Rich Solar 6560W Complete Off-Grid Hybrid Solar Kit [KIT-SR0001] is an industrial-grade, residential-scale alternative power network engineered for complete energy independence. Designed to handle heavy startup surges and sustain long-duration continuous loads, this split-phase ready system perfectly matches the demanding energy profiles of home garages, workshops, remote properties, and critical backup systems.

This master kit bridges high-efficiency generation with expandable storage by combining 6,560 Watts of premium Mono PERC solar panel capacity, a smart 6,500W pure sine wave hybrid inverter, and a massive 15.36kWh Lithium Iron Phosphate (LiFePO4) server rack battery bank. It delivers stable, clean 120VAC power while managing inputs up to 8,000W to keep your equipment running effortlessly through extended outages.

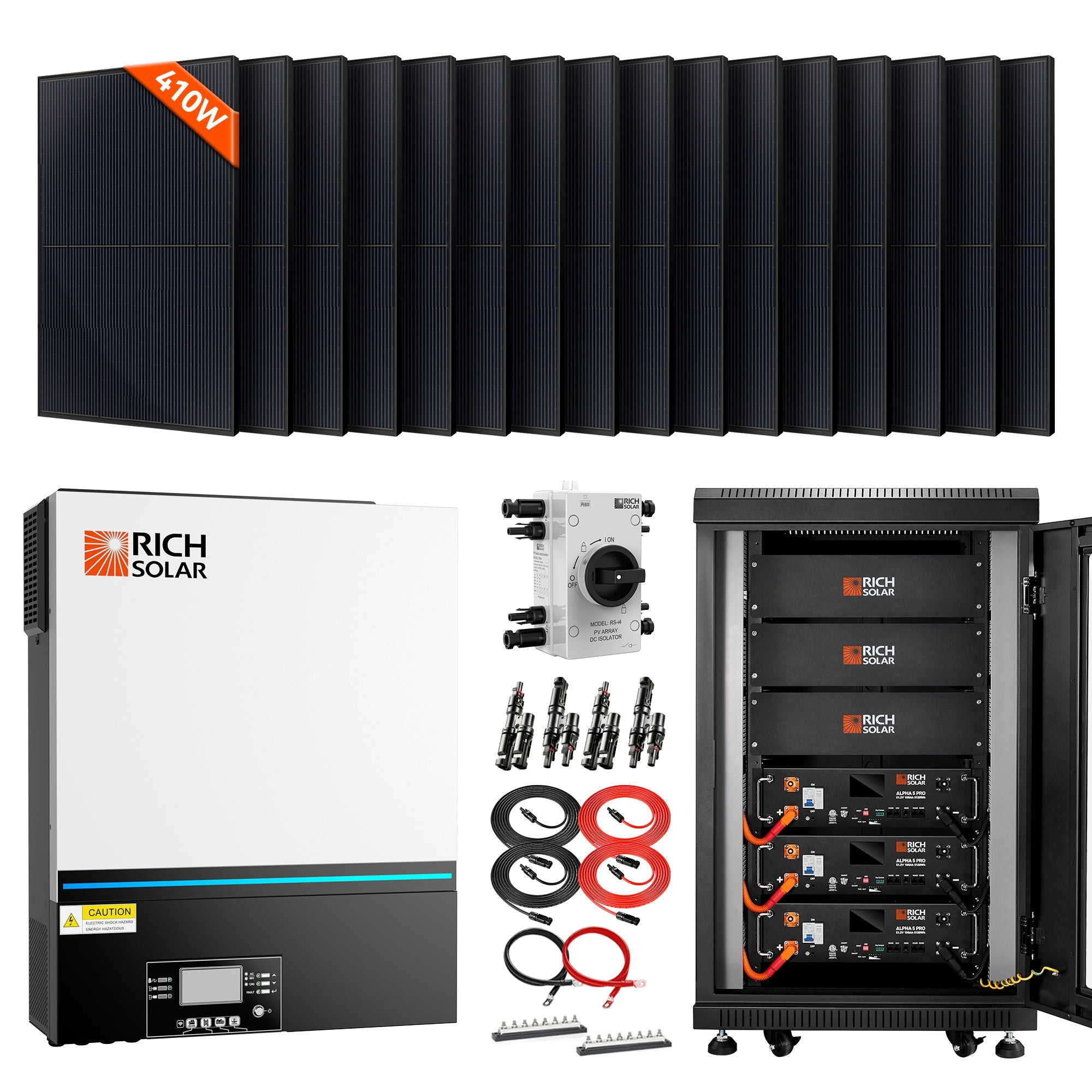

What Is Included in This Complete Kit?

Unlike partial bundles that require extra trips to the hardware store, this comprehensive kit includes all essential core architecture and heavy-gauge safety wiring:

• 16 x MEGA 410 Watt Monocrystalline Solar Panels (Model: RS-M410)
• 1 x NOVA 6548 Hybrid Solar Inverter (6500W Output / 8000W Max PV Input)
• 3 x ALPHA 5 PRO Server Rack LiFePO4 Batteries (5.12kWh each / 15.36kWh total)

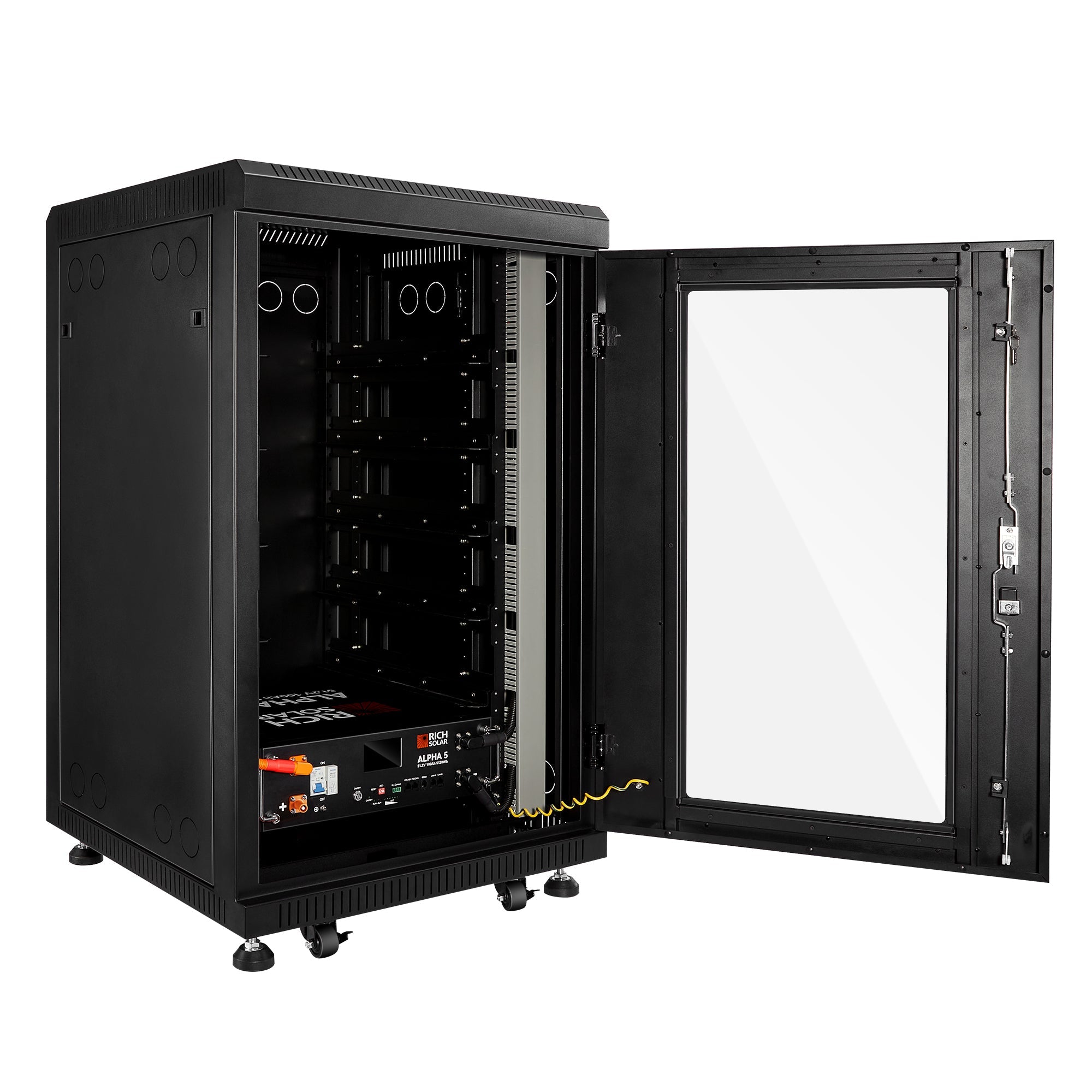

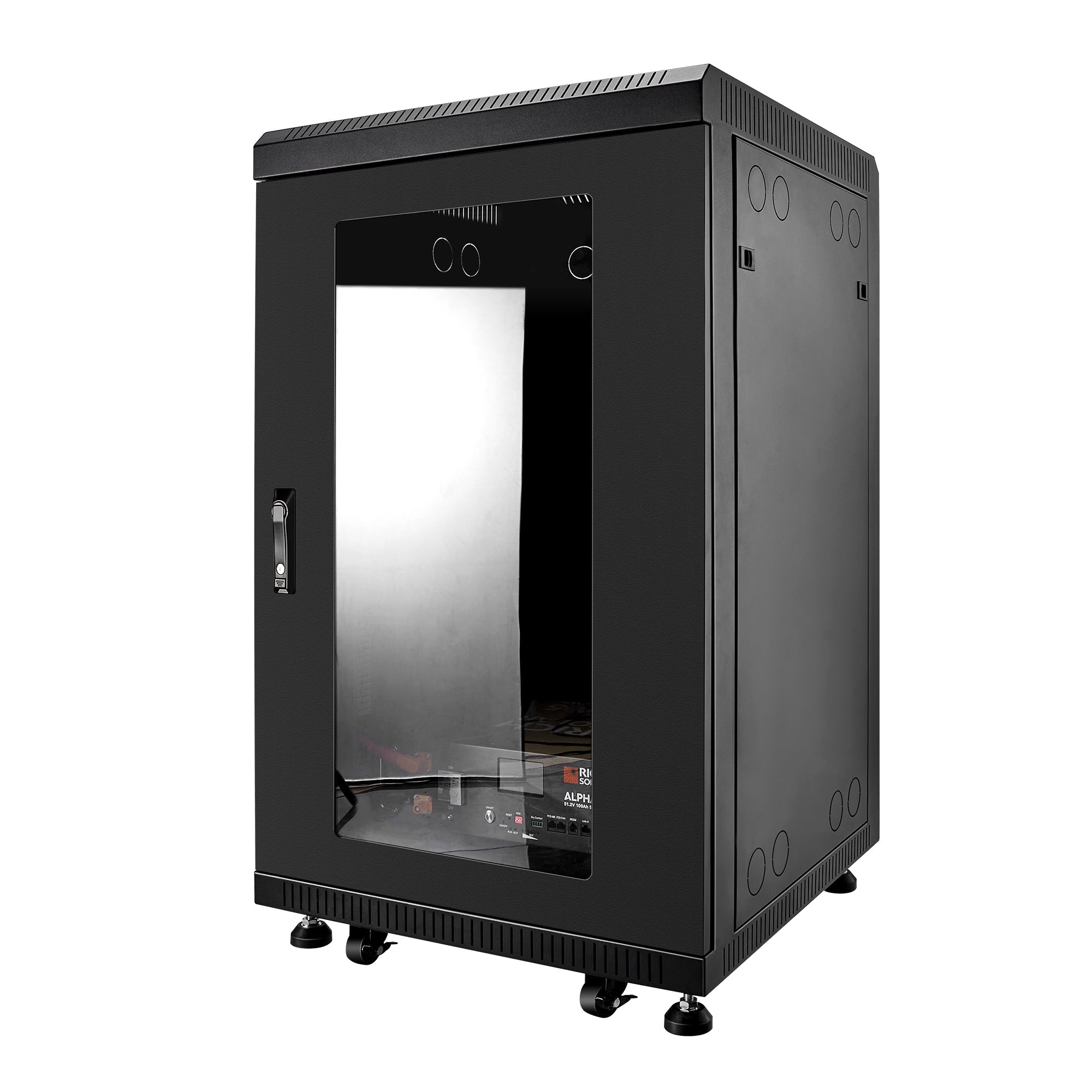

• 1 x Heavy-Duty Server Battery Rack (Model: RS-SRA5P)

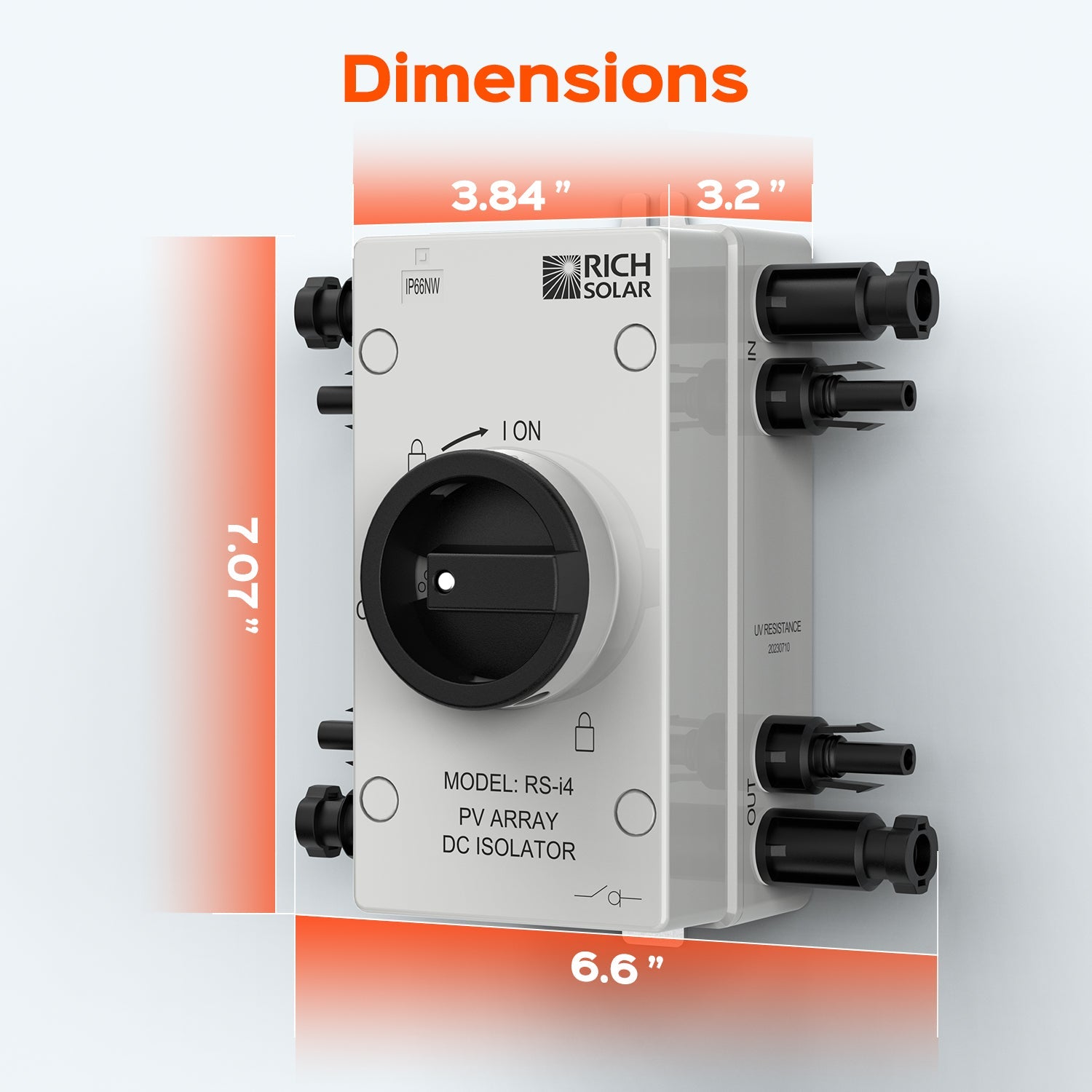

• 1 x Solar PV DC Quick Disconnect Switch (Model: RS-i4)

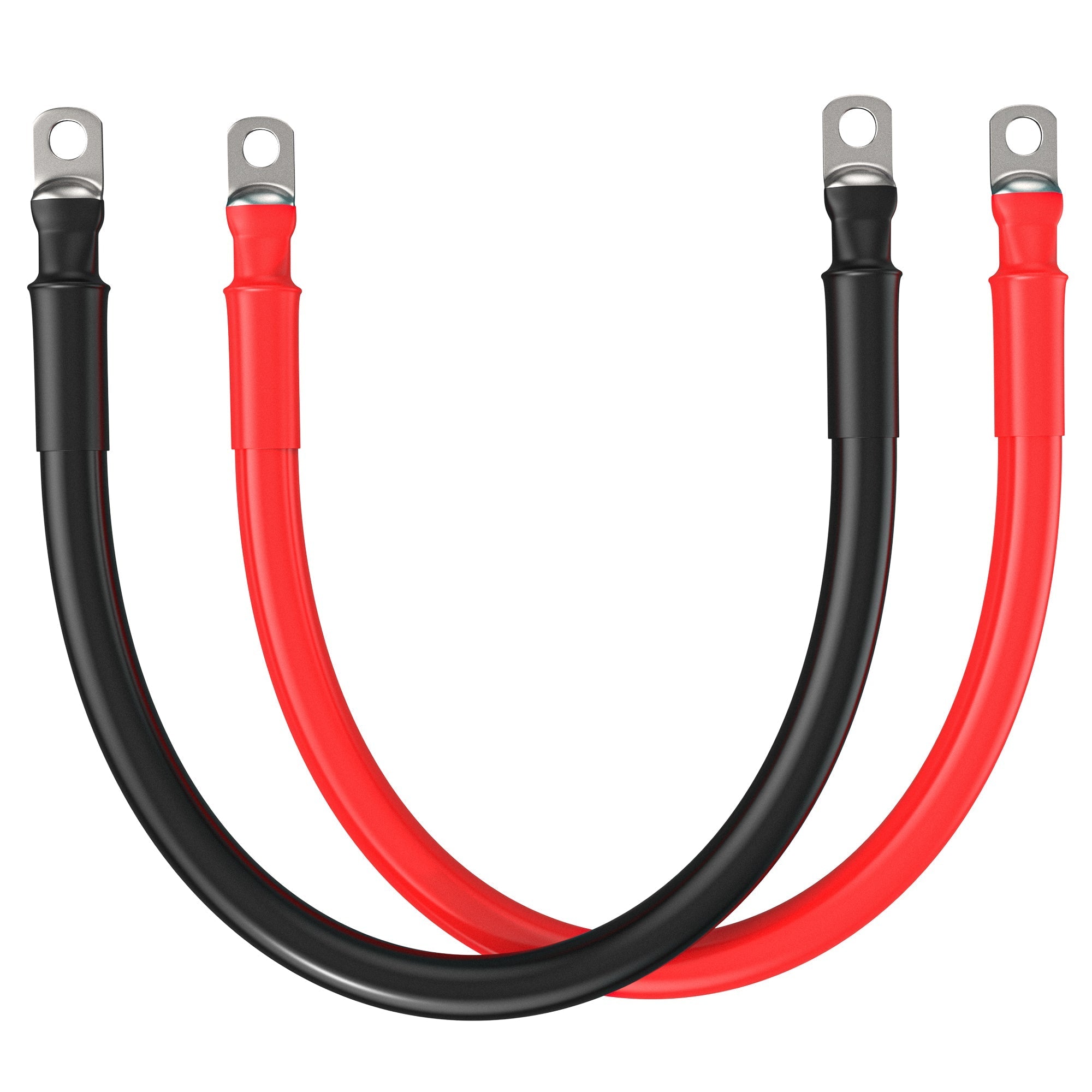

• 2 x 4-Foot 2/0 AWG Battery Wire Sets (3/8" lugs) for low-resistance connections

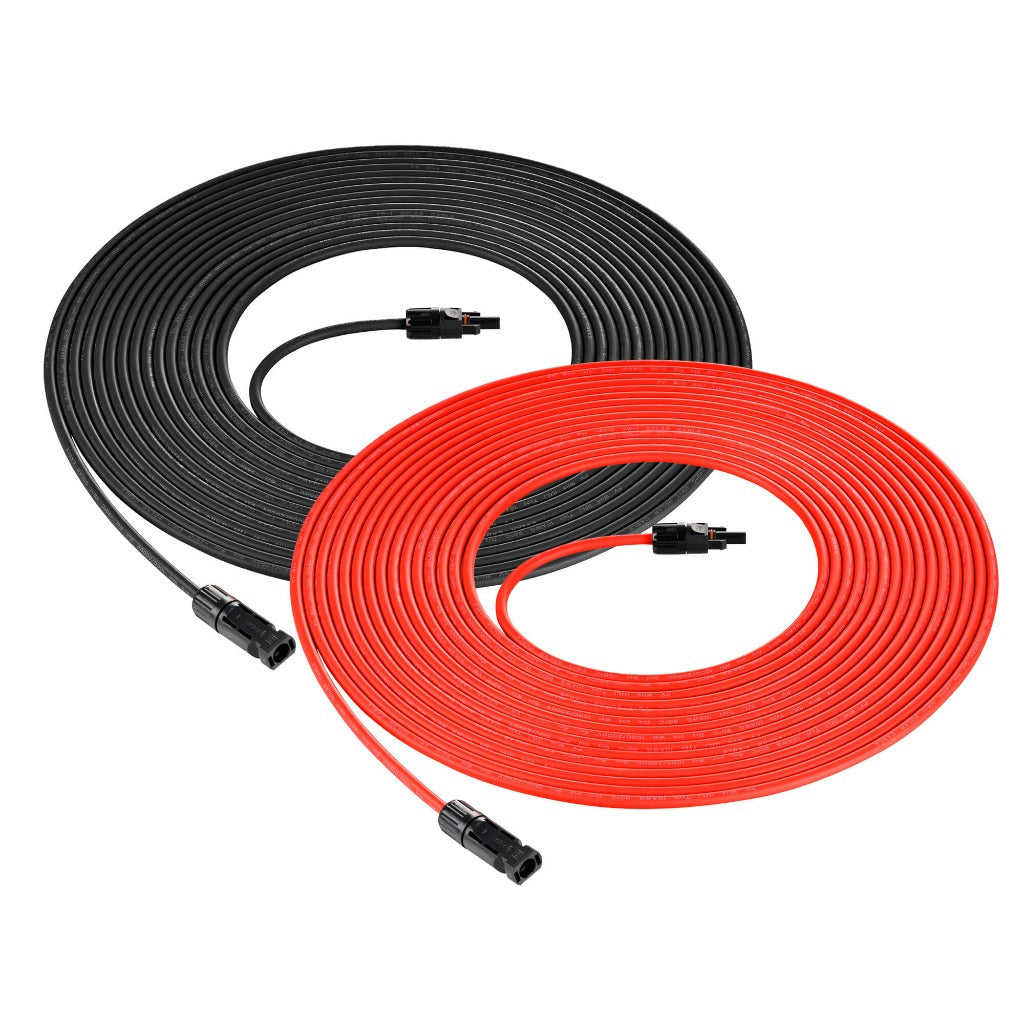

• 4 x 10 AWG 50-Foot Solar Extension Cables for flexible array layout

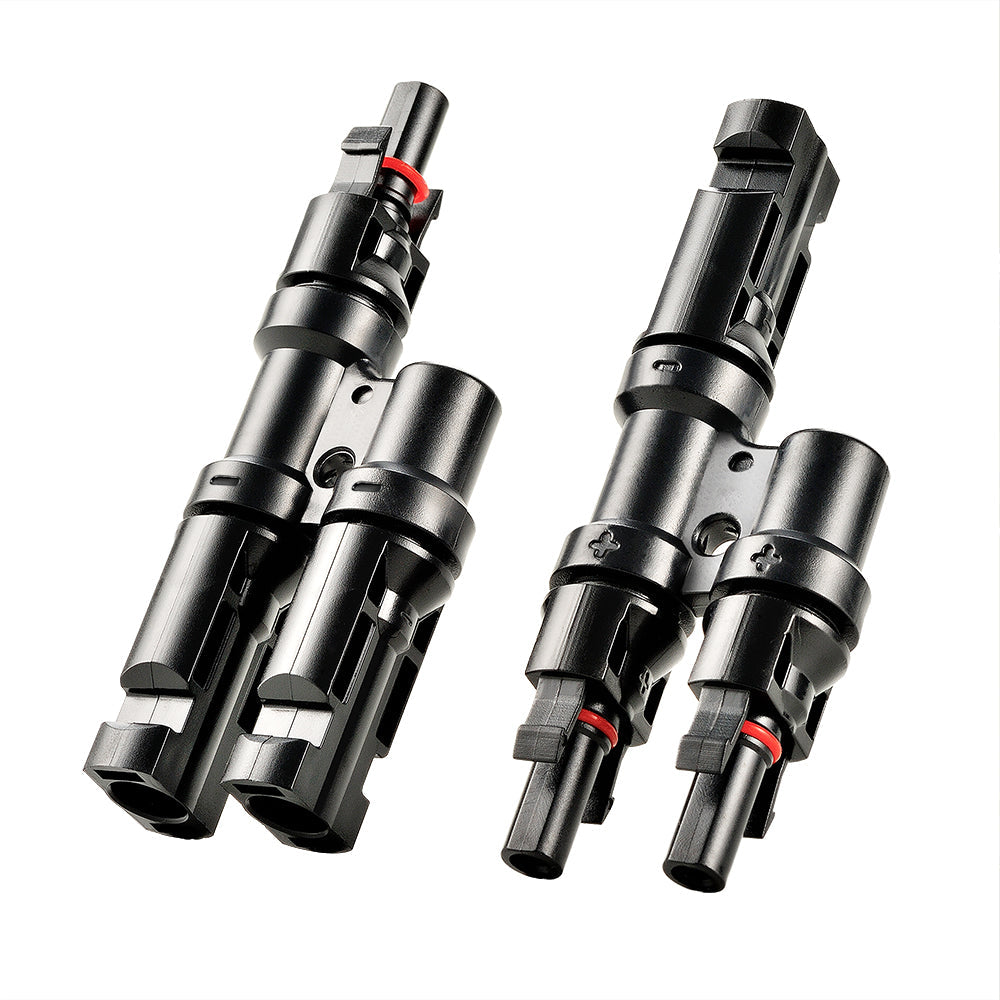

• 2 x Y-Branch Parallel Connectors (2-to-1)
• 2 x 600 AMP High-Capacity Busbars

Component Breakdowns & Full Technical Specifications

1. MEGA 410W Monocrystalline Solar Panels (6,560W Total Generation)

The foundation of your power generation consists of 16 cutting-edge Mono PERC solar panels. Built with a 10-busbar configuration, these panels optimize current pathways to dramatically minimize electron resistance and elevate conversion efficiency—even during low-light conditions like heavy overcast skies, early mornings, or late evenings.

• Advanced Durability: Housed in a lightweight, corrosion-resistant anodized aluminum frame with high-transmission, anti-reflective (AR) coated tempered glass capable of withstanding heavy snow and wind loads.
• Seamless Integration: Equipped with pre-drilled holes for rapid mounting to Z-brackets, ground configurations, pole mounts, or tilt kits. Plug-and-play junction boxes with industry-standard quick-connect cables permit hassle-free series or parallel wiring.
• Electrical Data (Per Panel): Max Power (Pmax): 410W | Max Voltage (Vmp): 31.3V | Max Current (Imp): 13.1A | Open Circuit Voltage (Voc): 37.5V | Short Circuit Current (Isc): 13.8A | Weight: 45.2 lbs | Dimensions: 67.8" x 44.7" x 1.2"
• Warranty Protection: Includes a 25-year linear power output warranty alongside a 10-year workmanship warranty.

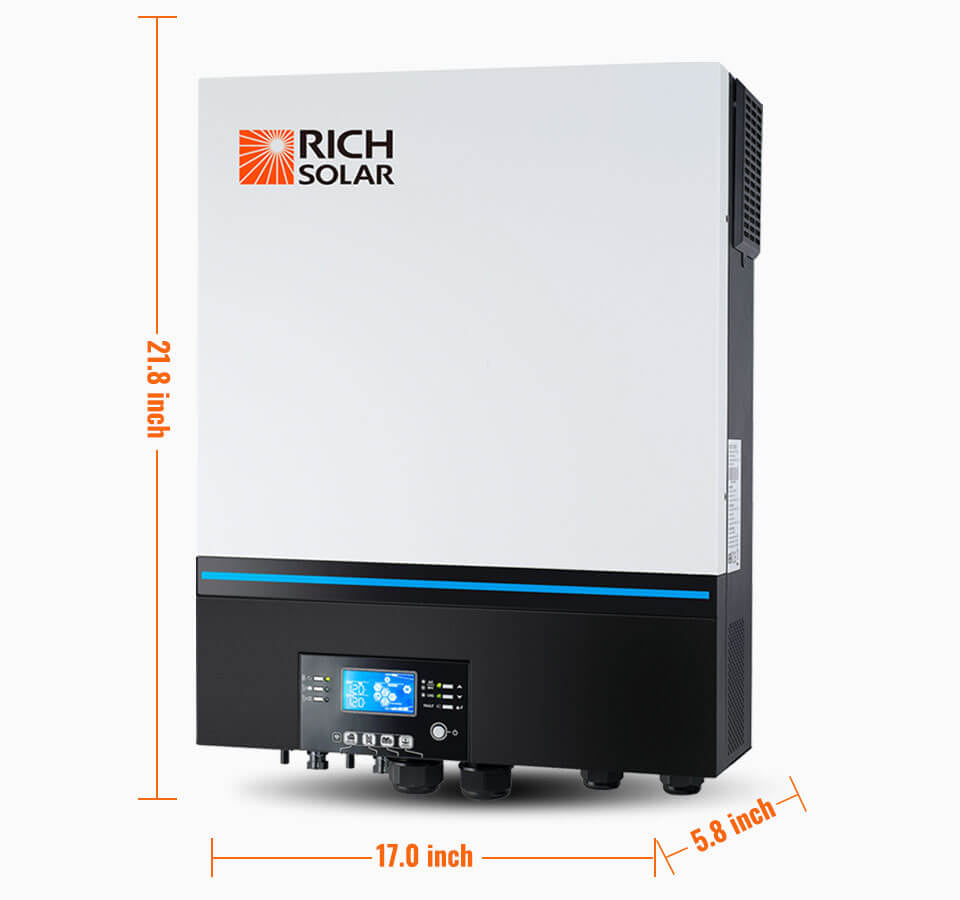

2. NOVA 6548 | 6500W 48V Off-Grid Hybrid Solar Inverter

The NOVA 6548 acts as the intelligent central command center for your entire energy ecosystem. This pure sine wave hybrid inverter seamlessly balances incoming solar generation, battery storage, and local utility or generator backup to supply continuous, clean electricity with zero distortion.

• Surge & Parallel Capacity: Delivers a 2x rated surge power capability for 5 seconds to effortlessly kickstart heavy-draw electric motors, air compressors, or tools. It supports parallel scaling for up to 6 units to scale your business or homestead over time.
• Advanced MPPT Tracking: Features a dual-input maximum power point tracking (MPPT) system handling up to 8,000 Watts of raw solar input (4,000W per channel) over a broad operating window of 90 to 450 VDC.
• Smart Controls & Safety: Outfitted with an anti-dust protection kit, integrated Wi-Fi for comprehensive mobile app tracking, a customizable RGB LED bar, and a detachable LCD interface communicating with the battery BMS via RS485, CAN-BUS, or RS232.
• Certifications & Specs: Safety compliant to UL 1741 standards by TUV. Output: 120 VAC ± 5% | Peak Efficiency: 91% | Transfer Time: 10ms (computers) / 20ms (appliances) | Dimensions: 5.8" x 17.0" x 21.8" | Weight: 40.6 lbs | Warranty: 3-Year Protection.

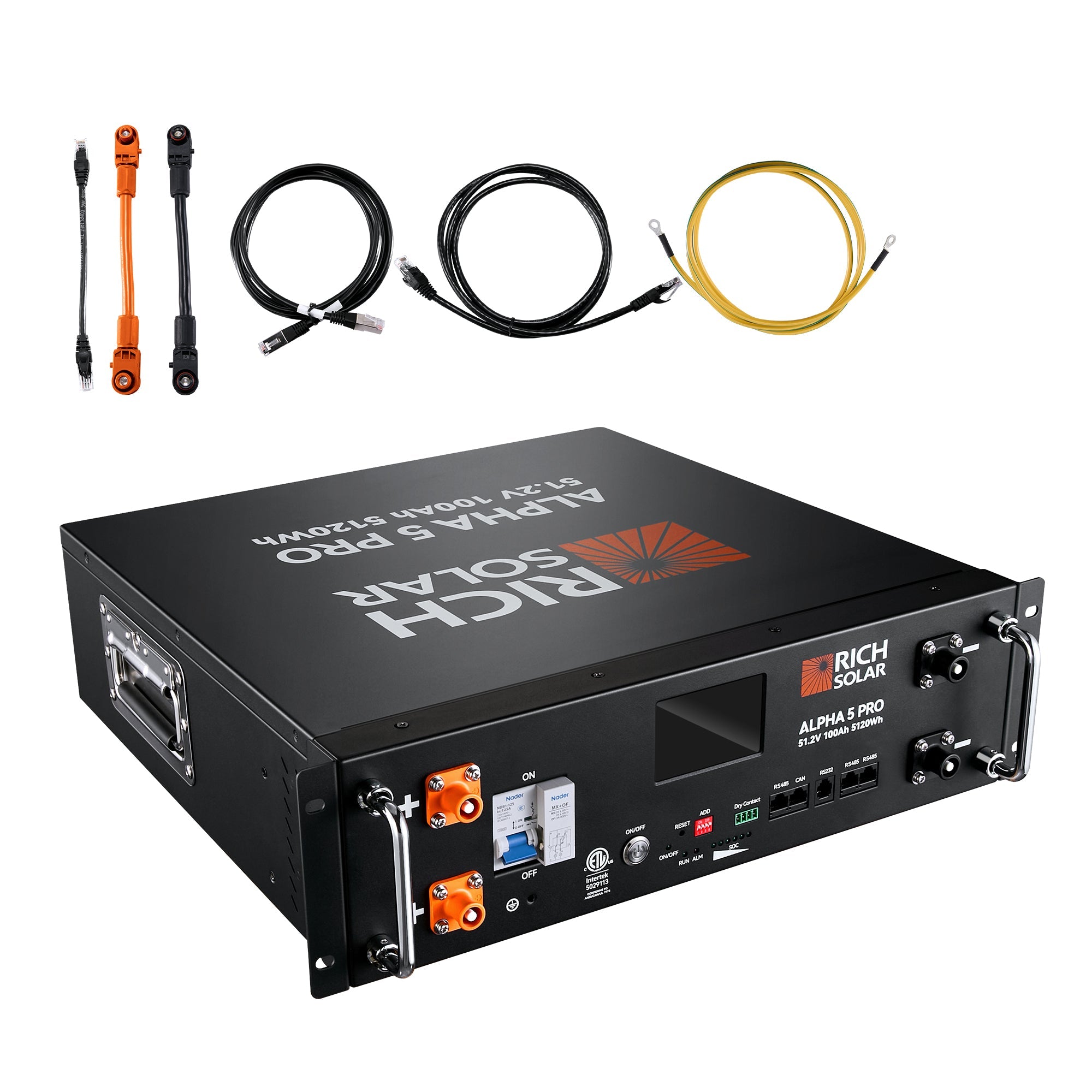

3. ALPHA 5 PRO | 15.36kWh LiFePO4 Server Rack Battery Bank

Energy storage is anchored by three ALPHA 5 PRO premium server-rack batteries, compiling 15,360 Watt-hours of safe, high-density Lithium Iron Phosphate storage. Supported by an included heavy-duty rack, this bank ensures you remain powered throughout the night or over multi-day storms.

• Long-Term Lifecycle: Engineered to provide more than 7,000 deep discharge cycles over a 10-year operational lifespan while maintaining a 100A continuous charge and discharge threshold.
• Intelligent BMS Protection: A sophisticated, internal Battery Management System guards against overcharging, deep cell discharging, overcurrent spikes, short-circuits, and thermal runaway. Expandable up to 15 modules in parallel without hardware conflicts.
• Certifications & Specs: Rigorously tested and certified to UL 1973, UL 9540A, and FCC standards. Nominal Voltage: 51.2V | Capacity: 100Ah per battery (300Ah total) | Operating Temperature: Charge (32°F to 140°F), Discharge (-4°F to 149°F) | Battery Weight: 99.2 lbs each | Warranty: 10-Year Manufacturer Defect Warranty.

Master System Integration Matrix

The table below displays how these core parts perform as a unified, cohesive energy network:

Frequently Asked Questions

Can this solar kit run a workshop or heavy garage tools?

Yes. With a robust 6,500W continuous output and an exceptional 13,000W surge threshold, this system easily handles inductive motor startup loads found in standard workshop tools, including air compressors, table saws, dust extractors, and battery charging hubs. Its pure sine wave architecture shields sensitive electronic equipment from voltage fluctuations.

What does split-phase power mean for this solar system?

While a single NOVA 6548 inverter yields clean, heavy-duty 120VAC single-phase power, this kit features an expandable design framework. Because the inverter supports parallel operations for up to six units, you can easily wire two inverters in parallel to establish a 120/240V split-phase electrical configuration to run massive 240V industrial equipment or central HVAC systems.

Are the batteries safe to store inside a home garage or utility closet?

Absolutely. The ALPHA 5 PRO server rack batteries utilize premium Lithium Iron Phosphate (LiFePO4) chemistry, widely recognized as the safest lithium-ion variants available. They are completely unpressurized, produce zero toxic fumes, emit no off-gassing, and are fully certified under strict UL 1973 and UL 9540A safety standards. The internal BMS monitors real-time safety metrics to block risks from overheating or overcharging.
