Power Freedom Redefined: Rich Solar 8000W 48V 120V/240VAC Complete Hybrid Solar Kit
Achieve true energy independence with the Rich Solar 8000W 48V Hybrid Solar Kit. Engineered specifically for heavy-duty residential setups, off-grid cabins, workshops, and backup emergency configurations, this comprehensive solar kit seamlessly provides simultaneous 120V/240V split-phase power right out of the box. Run high-draw appliances like well pumps, central air conditioning units, and heavy workshop equipment without a stutter.
By coupling 8,200 Watts of high-efficiency solar generation with a massive 40.96kWh server rack lithium battery reserve, this turnkey package guarantees reliable, uninterrupted backup storage through extended periods of zero sunlight.

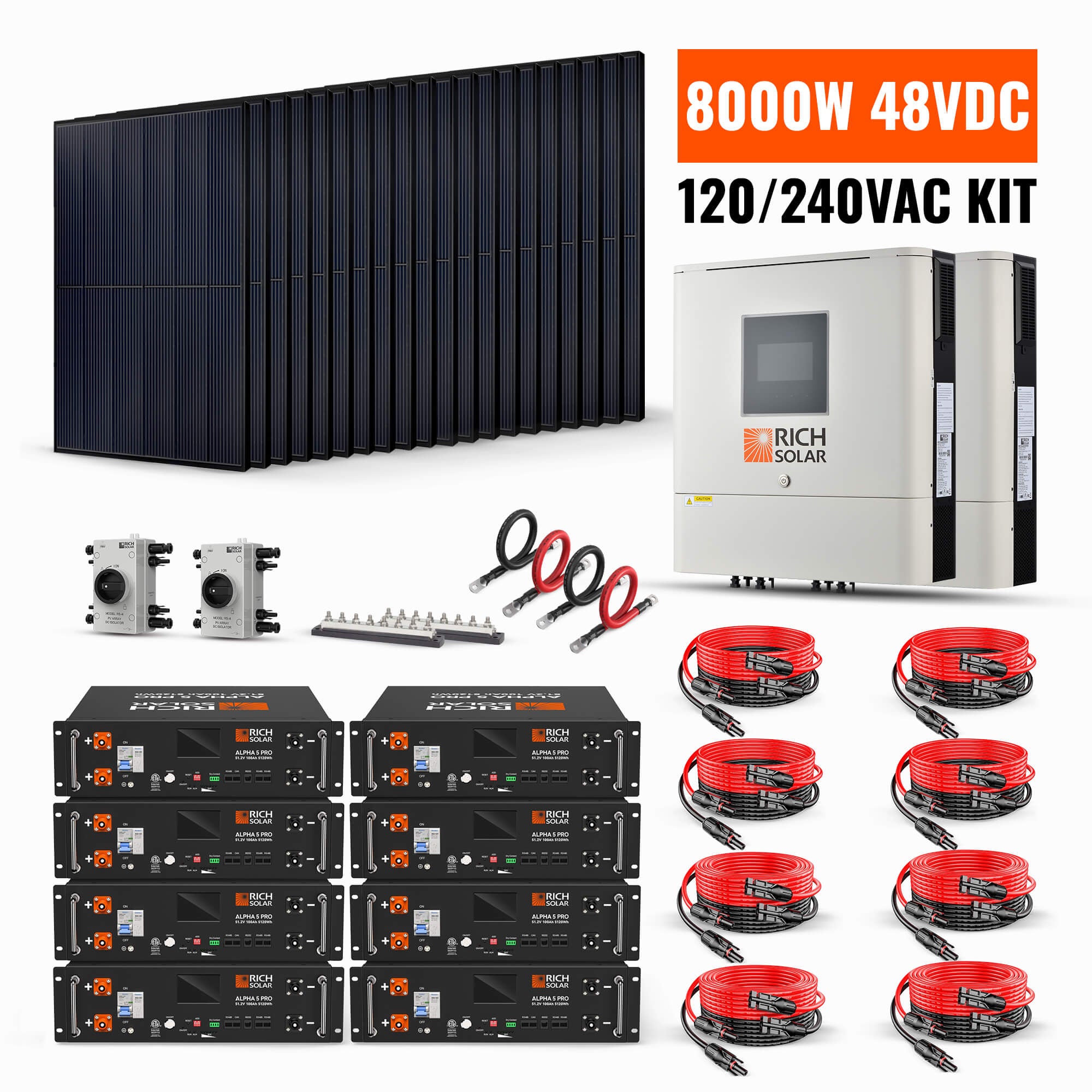

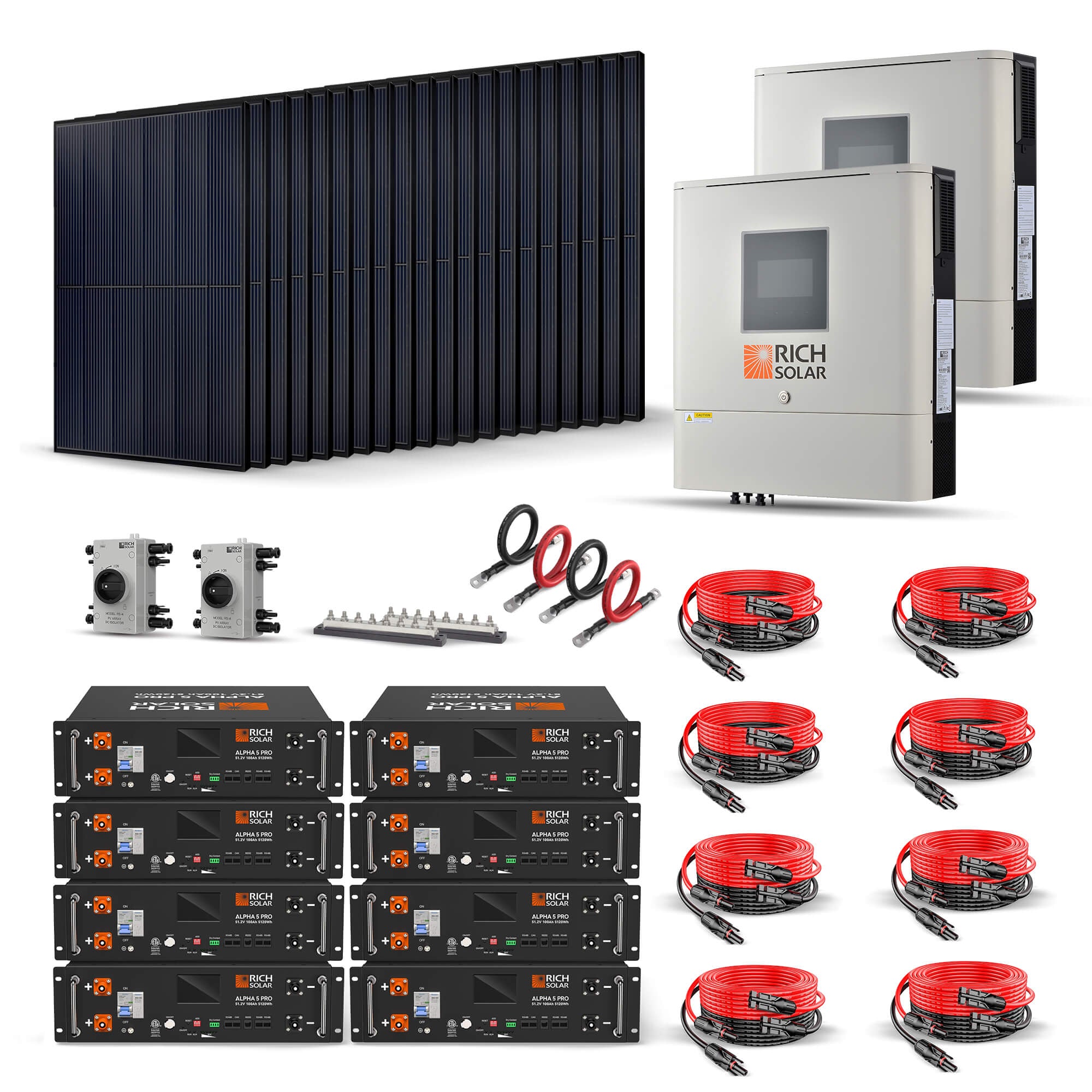

What Is Included In This Complete Kit?
- 2 x 6500W 48V Off-Grid Hybrid Inverters (Model: NOVA 6500S / RS-H6548S)
- 20 x MEGA 410W Mono PERC Solar Panels (Model: RS-M410)
- 8 x ALPHA 5 PRO 5.12kWh LiFePO4 Server Rack Batteries (Total Storage: 40.96kWh)
- 2 x Heavy-Duty 600 AMP Busbars
- 4 x 10AWG 30FT Solar PV Extension Cables
- 4 x 10AWG 10FT Solar PV Extension Cables
- 2 x PV DC Quick Disconnect Switches (RS-i4)
- 2 x 4/0 AWG 5FT Heavy-Duty Battery Cables
Core Component Deep Dive & Performance Data
1. High-Yield Generation: MEGA 410W Mono PERC Panels
The system anchors onto twenty premium MEGA 410W Solar Panels, driving a combined array total of 8,200W of solar capacity. Designed with multi-busbar technology and advanced Mono PERC cells, these panels provide top-tier performance on cloudy, low-light days. Encased in high-transmission anti-reflective tempered glass and a lightweight anodized aluminum frame, they withstand severe wind and snow loads seamlessly.
- 25-Year Output Warranty & 10-Year Workmanship Warranty.
- Pre-drilled mounting holes compatible with ground mounts, Z-brackets, and tilt configurations.
2. Resilient Backup: ALPHA 5 PRO Server Rack Batteries
Energy storage is powered by eight ALPHA 5 PRO 51.2V 100Ah LiFePO4 Batteries, packing 40,960 Watt-hours (40.96kWh) of total raw energy capacity. This rack-mountable array features a sophisticated Battery Management System (BMS) with built-in short circuit, overcurrent, and temperature defense safety mechanisms.
- 7,000+ Deep Cycles Life providing a solid 10-year reliable operational lifespan.
- Certified to rigorous industrial standards: UL1973, UL9540A, and FCC.
- Expandable flexibility to scale up to 15 parallel batteries for future capacity demands.
3. Smart Management: Dual NOVA 6500S Hybrid Inverters
The muscle of the conversion comes from two synchronized 6500W 48V Hybrid Solar Inverters running parallel to effortlessly split phase outputs to run massive 240V tools alongside standard 120V household appliances. With a built-in MPPT controller and advanced Wi-Fi tracking tools, you can actively optimize your home energy balance remotely.
- 13,000W Surge Capacity to start high-induction compressor motors without grid dependency.
- Fully operational with or without an active battery configuration.
- UL-compliant protection with customizable AC/PV prioritizations via an onboard screen.
Technical Specifications Comparison Table
| System Metric / Component | Technical Specifications & Output Values |
|---|---|
| Total Array Solar Power | 8,200 Watts (20x 410W Mono PERC Panels) |
| Total Battery Bank Capacity | 40.96 kWh (8x 5.12kWh 51.2V 100Ah Storage Packs) |
| Inverter Continuous Output Power | 8,000W Standard Rated System Output (Up to 13,000W Stacked Capacity) |
| AC Output Voltages | 120V / 240VAC Split-Phase Output |
| Inverter Efficiency & Type | 91% Peak Efficiency; Pure Sine Wave Conversion |
| Solar Charger Configuration | Dual MPPT Controller; Maximum 250 VDC Array Open Circuit Input |
| Battery Life Cycles | 7,000 Deep Cycles to 80% Capacity; 10-Year Lifespan Warranty |
| Safety Regulatory Certifications | Inverter: UL Compliant | Battery Cells: UL1973, UL9540A, FCC |
Frequently Asked Questions
Can this Rich Solar 8000W Kit power a whole house simultaneously?
Yes. With a continuous capability of 8,000W and a 120V/240V split phase build, it can concurrently power your 240V appliances (well pumps, clothes dryers, electric stoves) alongside standard 120V circuits. Check your total concurrent appliance wattage draw to ensure it fits within the 8kW operational limits.
What are the benefits of the Alpha 5 Pro server rack LiFePO4 batteries over traditional lithium batteries?
The Alpha 5 Pro server rack battery uses safe Lithium Iron Phosphate chemistry that lasts up to 7,000 cycles (roughly 10+ years of daily use). They are natively built for safe racking configurations, possess direct digital communication protocols with the NOVA 6500S inverters, and carry UL1973 and UL9540A protective safety certifications.
Does this hybrid system work if the public utility grid goes completely down?
Absolutely. This system operates as a true off-grid hybrid system. In an emergency power outage event, the system transitions in less than 20 milliseconds to pull clean power exclusively from your panels and server rack batteries to keep your home running uninterrupted.
What's included in this 8000W complete kit?
This kit bundles Rich Solar solar panels totaling 8000W, a LiFePO4 battery bank (see capacity in the specifications above), an MPPT charge controller, and a pure sine wave inverter for AC output — check the specifications and product images above for the exact component list and quantities.
How do I tell whether this will run a specific appliance?
Two numbers decide it. The appliance's running watts must sit inside the inverter's continuous rating, and its startup surge — often several times running watts on anything with a compressor or motor — must sit inside the surge rating. Then divide the bank's watt-hours by running watts for runtime.
How many hours of power does this system actually give me?
There is no single figure, because it scales with draw. A 100 W load runs roughly ten times longer than a 1,000 W load on the same bank. Total your appliance wattages, divide the bank's watt-hours by that number, and treat daytime solar as extending the result rather than as part of it.
Is this system fully off-grid, or does it need a grid connection?
It is built to run off-grid. The panels charge the battery, and some models additionally accept AC input to top up from a generator or wall outlet when sun is short. No utility connection is required for it to operate.
Can I add more solar panels or battery capacity later?
Usually yes. Controllers and inverters generally ship with headroom above what the base kit uses. The limits that matter are the controller's maximum input voltage and current, and the documented maximum parallel or series battery configuration — both are in the specifications above.
Is professional installation required?
Not for the DC portion, which is designed to be assembled without special tools. It becomes a job for a licensed electrician the moment you tie AC output into a building's wiring, which is a permitting and code question as much as a technical one.
Is there any way to see what the system is doing without walking out to it?
Where the model includes Bluetooth or Wi-Fi monitoring, an app gives you state of charge, live power draw and health warnings remotely. It is genuinely useful for spotting a failing charge cycle early. The specifications above confirm whether this unit has it.
