Rich Solar 800W Off-Grid Solar Kit | Basic, Battery & Complete Inverter Bundles

Power Your Off-Grid Freedom with the Rich Solar 800W Solar Kit Series

Whether you are outfitting an adventure van, upgrading your travel trailer, or establishing a reliable backup power source for your off-grid cabin, the Rich Solar 800W Off-Grid Solar Kit Series provides a modular, heavy-duty solution. Engineered for maximum energy harvest and real-world durability, this master system eliminates the guesswork of matching individual components.

Available in three progressive, scalable tiers—Basic, Battery, and Complete Inverter Bundles—you can customize your clean energy setup to match your exact power consumption goals.

Compare Rich Solar 800W System Options

Choose the kit tier that fits your build requirements. All options feature the flagship high-efficiency MEGA 200W solar panels and commercial-grade MPPT smart tracking.

Detailed Breakdown of System Variations

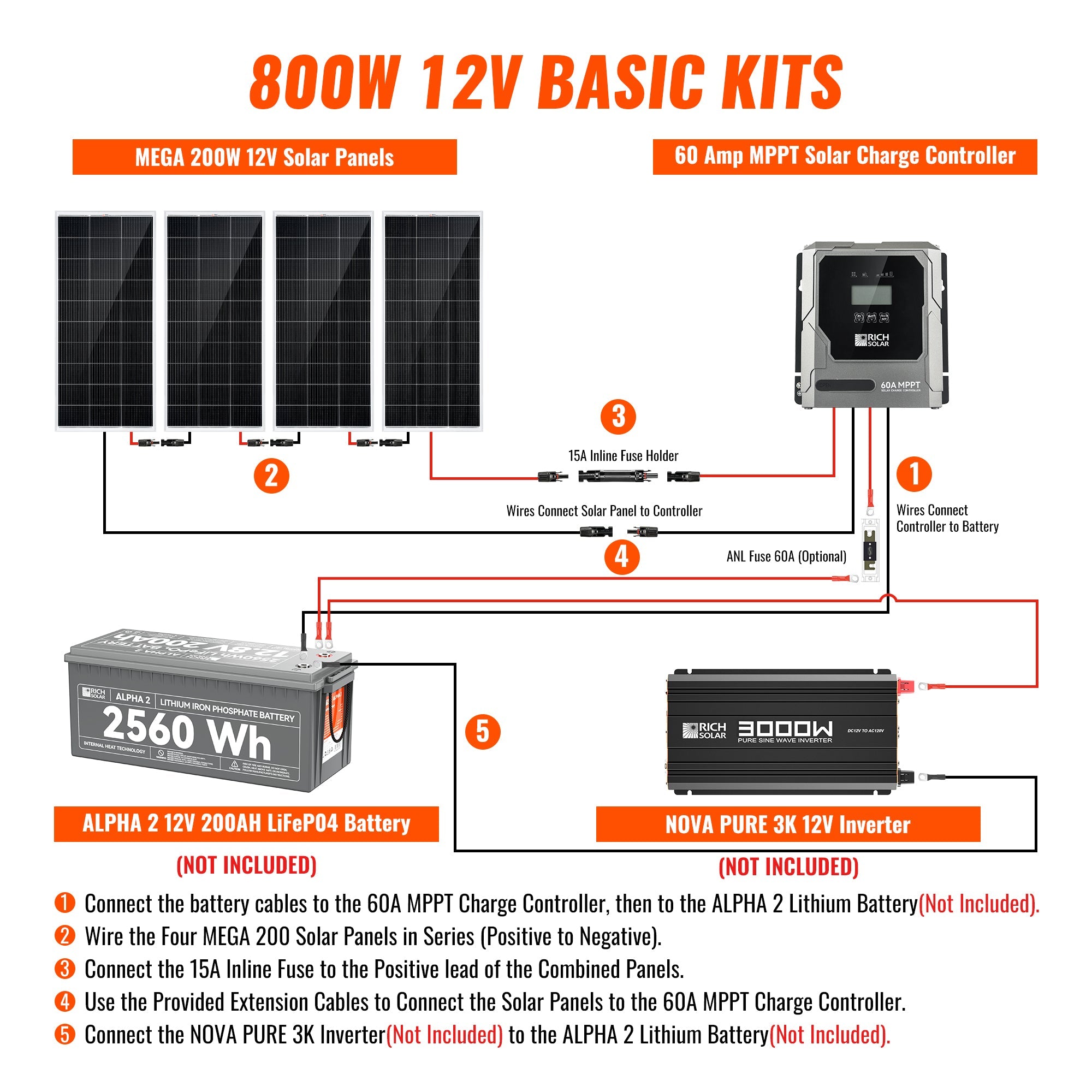

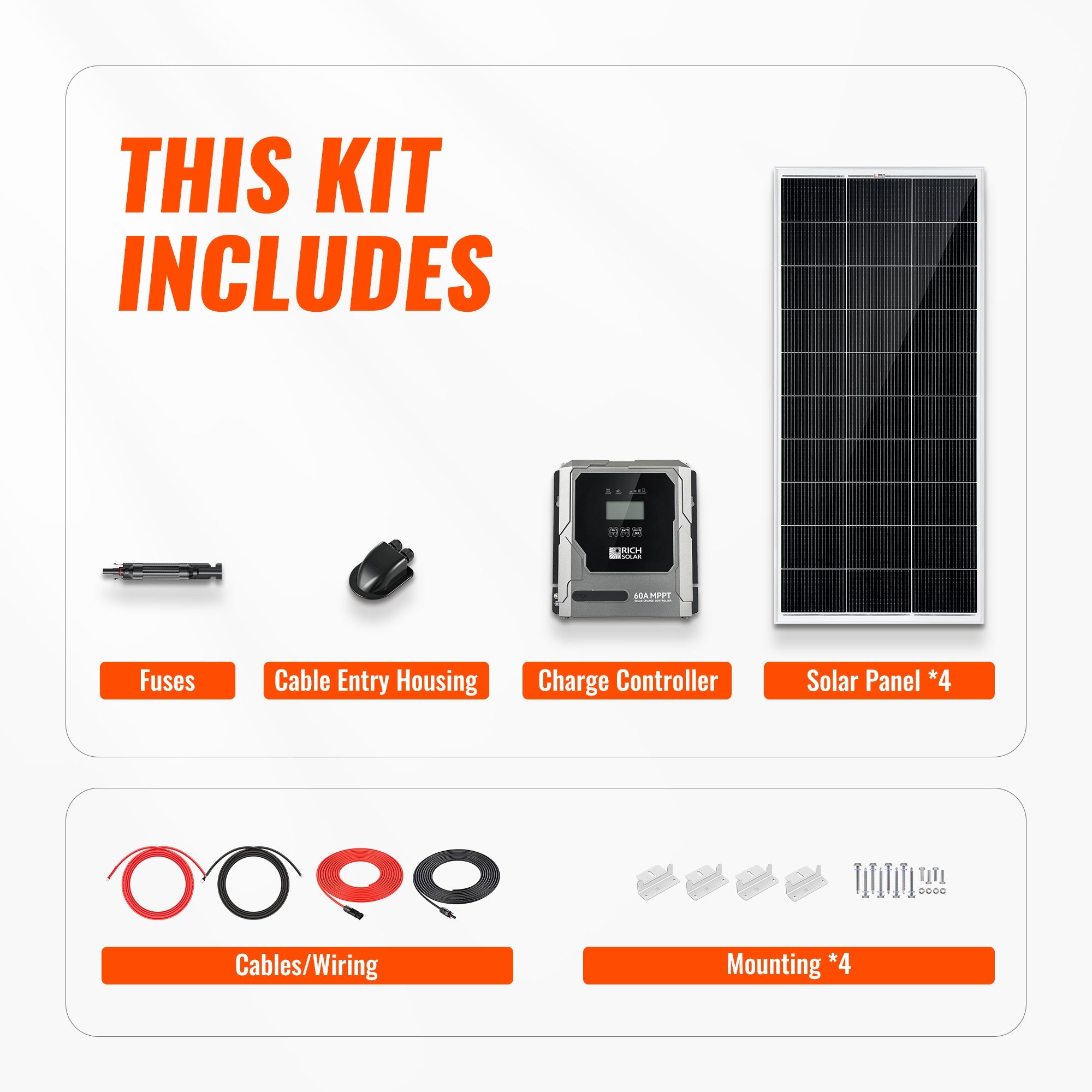

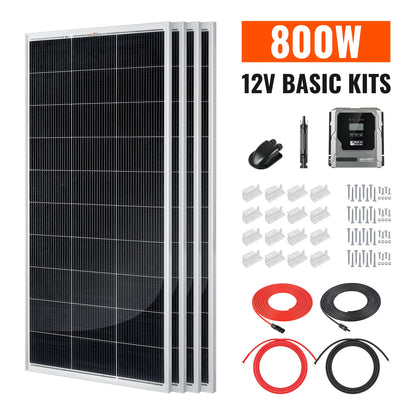

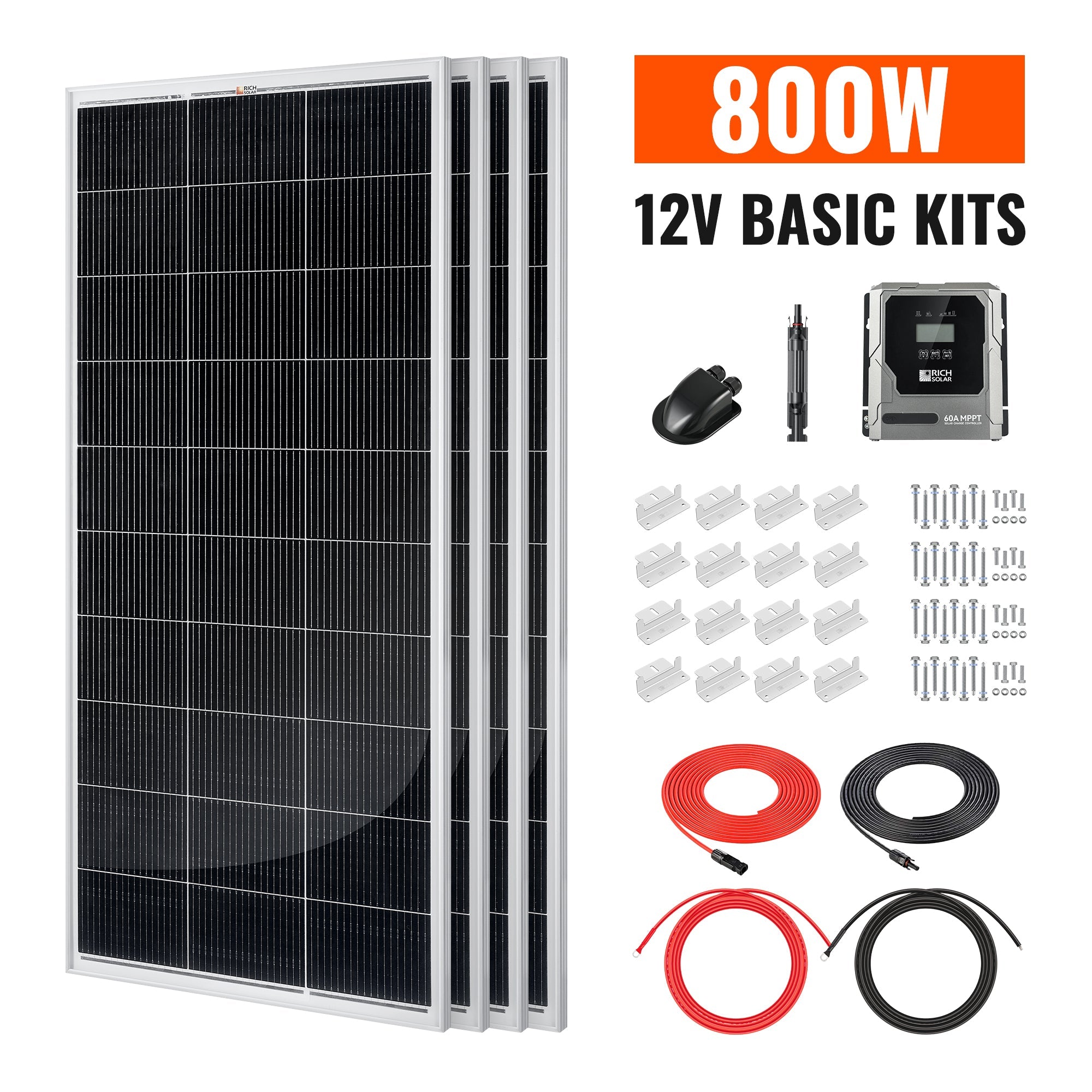

Tier 1: Basic 800-Watt Solar Kit

The core foundational platform for customized setups. This package is ideal if you already possess a battery bank and inverter system and require absolute elite solar generation capacity.

• High-Efficiency Generation: Four MEGA 200W Monocrystalline solar panels utilizing 18-busbar architectures for enhanced electronic flow and diminished resistance.
• All-Weather Engineering: Built with strong high-transmission, anti-reflective coated tempered glass and rugged anodized aluminum frames. Excels in low-light environments, early mornings, and heavily overcast conditions.
• Intelligent Management: Includes the BRAVO 60 60A MPPT Solar Charge Controller boasting a tracking efficiency above 99.5% and seamless 12V/24V self-adaptation.

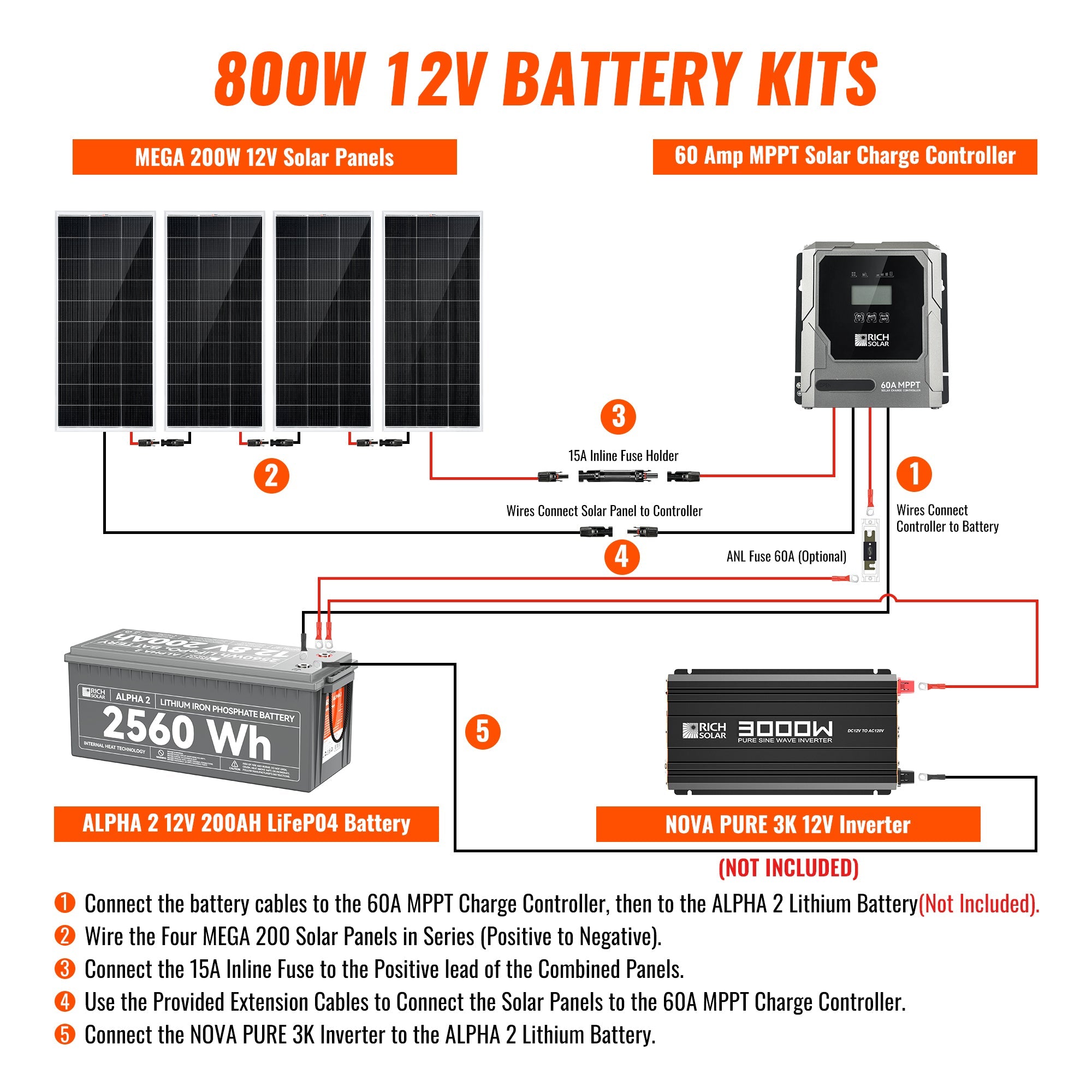

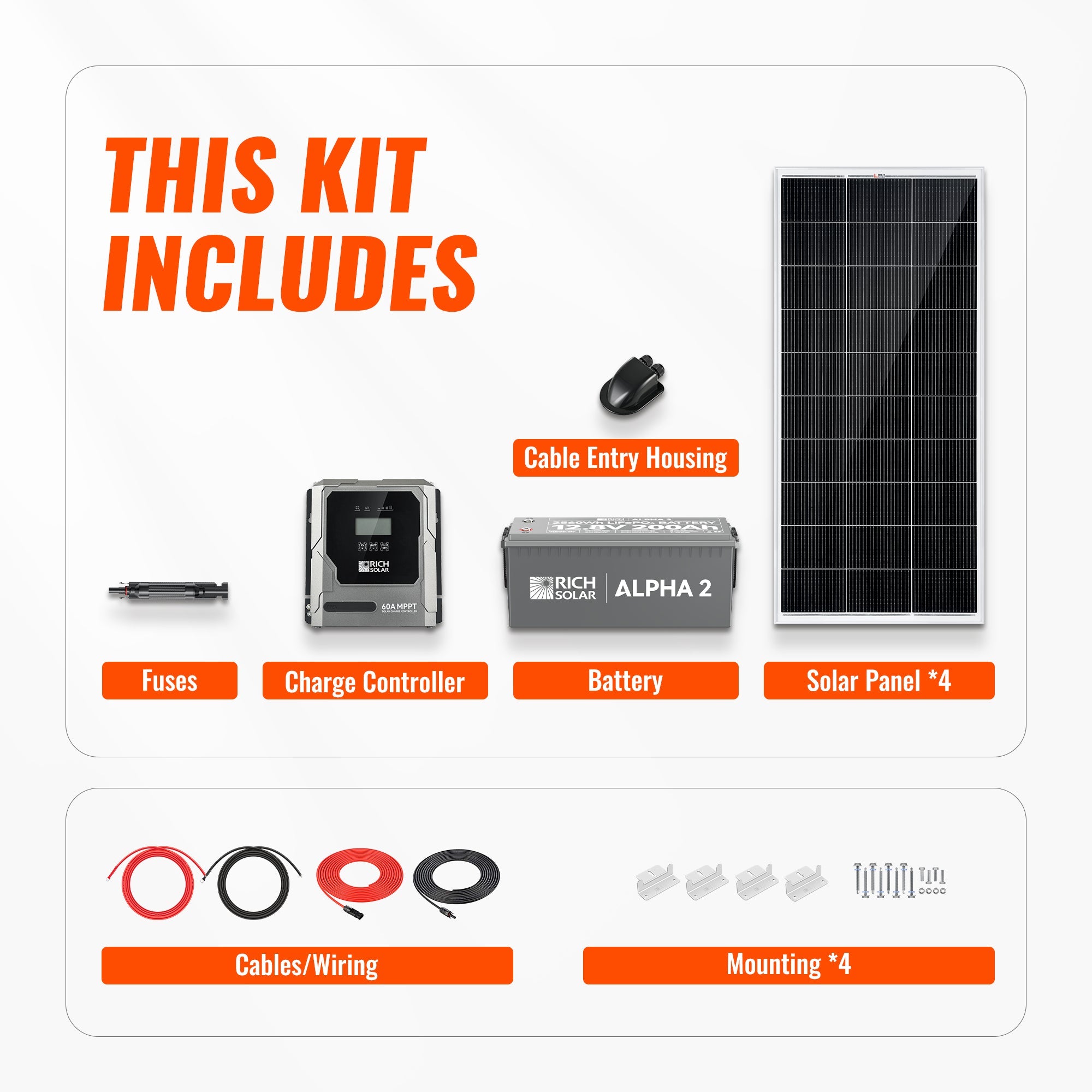

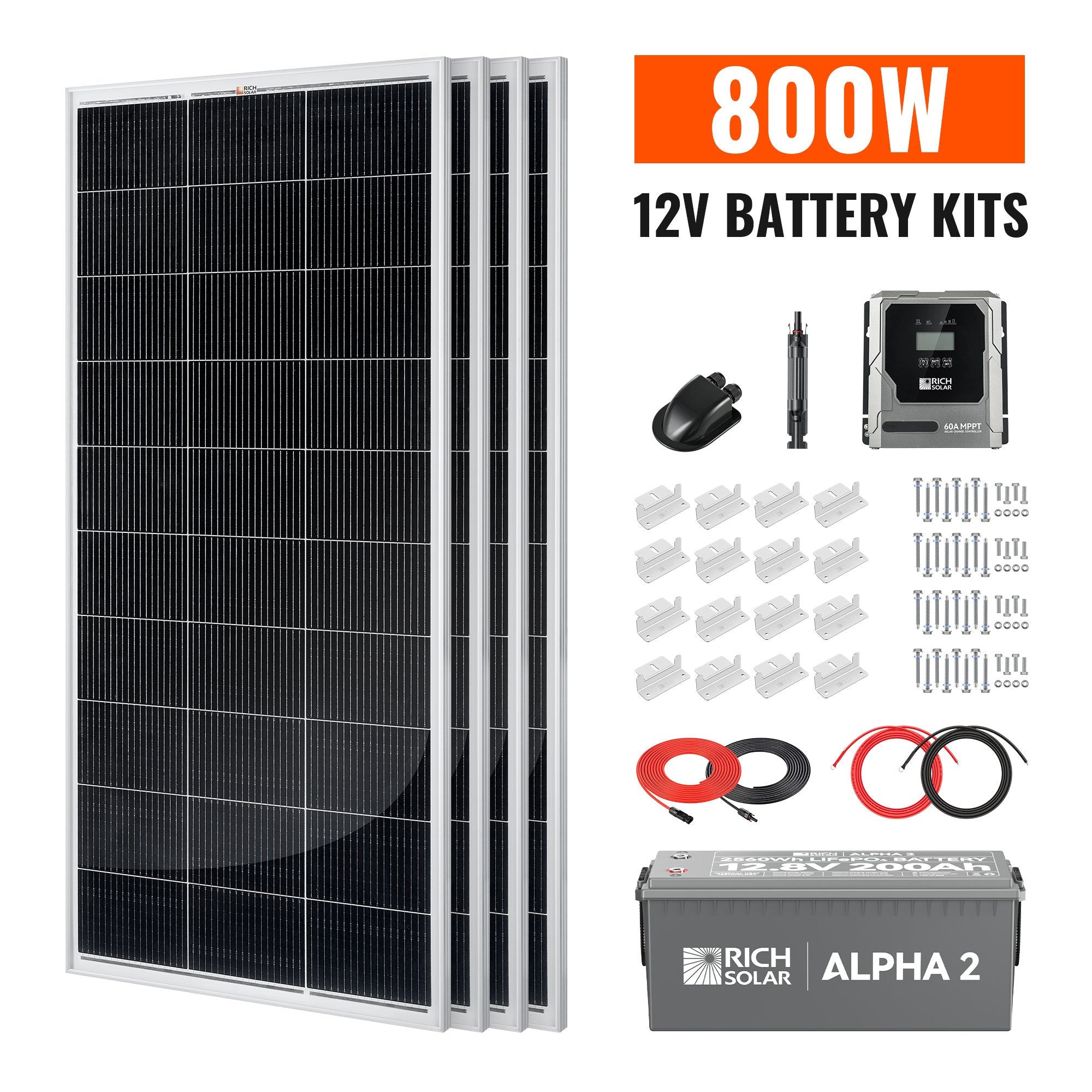

Tier 2: 800W Solar Kit with Battery Storage

Step up to true off-grid independence by pairing production directly with advanced energy storage. This variation ensures the massive 10.9 Amp-per-panel energy generation is captured cleanly for night use.

• Next-Gen LiFePO4 Chemistry: Features 1x ALPHA 2 12V 200Ah Lithium Iron Phosphate Battery, delivering an impressive 2,560 Watt-hours (Wh) of clean energy storage.
• Cold-Weather Mastery: Built-in internal smart self-heating technology automatically protects performance when temperatures drop below 41°F.
• Real-Time App Monitoring: Track real-time battery status, state of charge, temperature, and cycle metrics directly on your smartphone via Bluetooth.

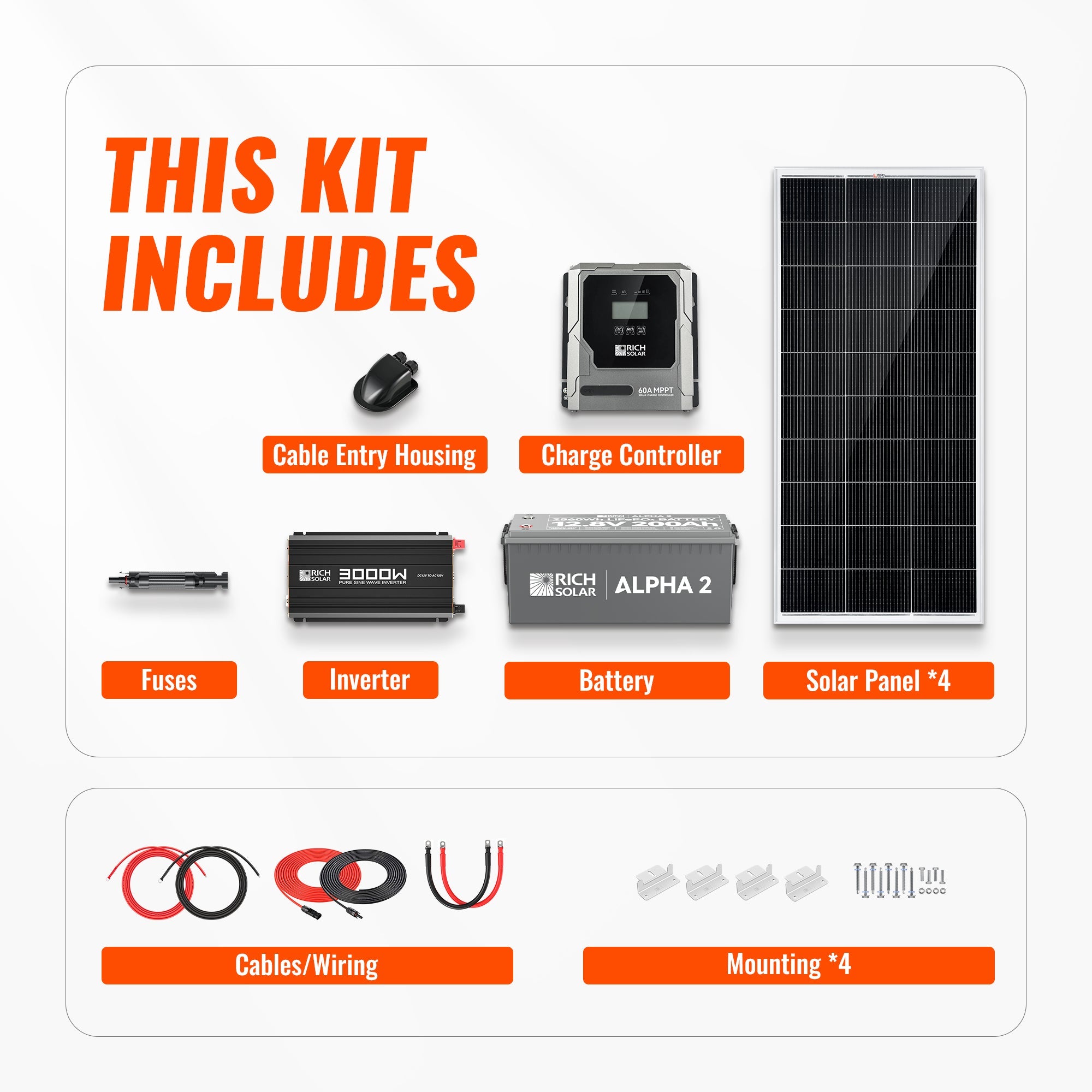

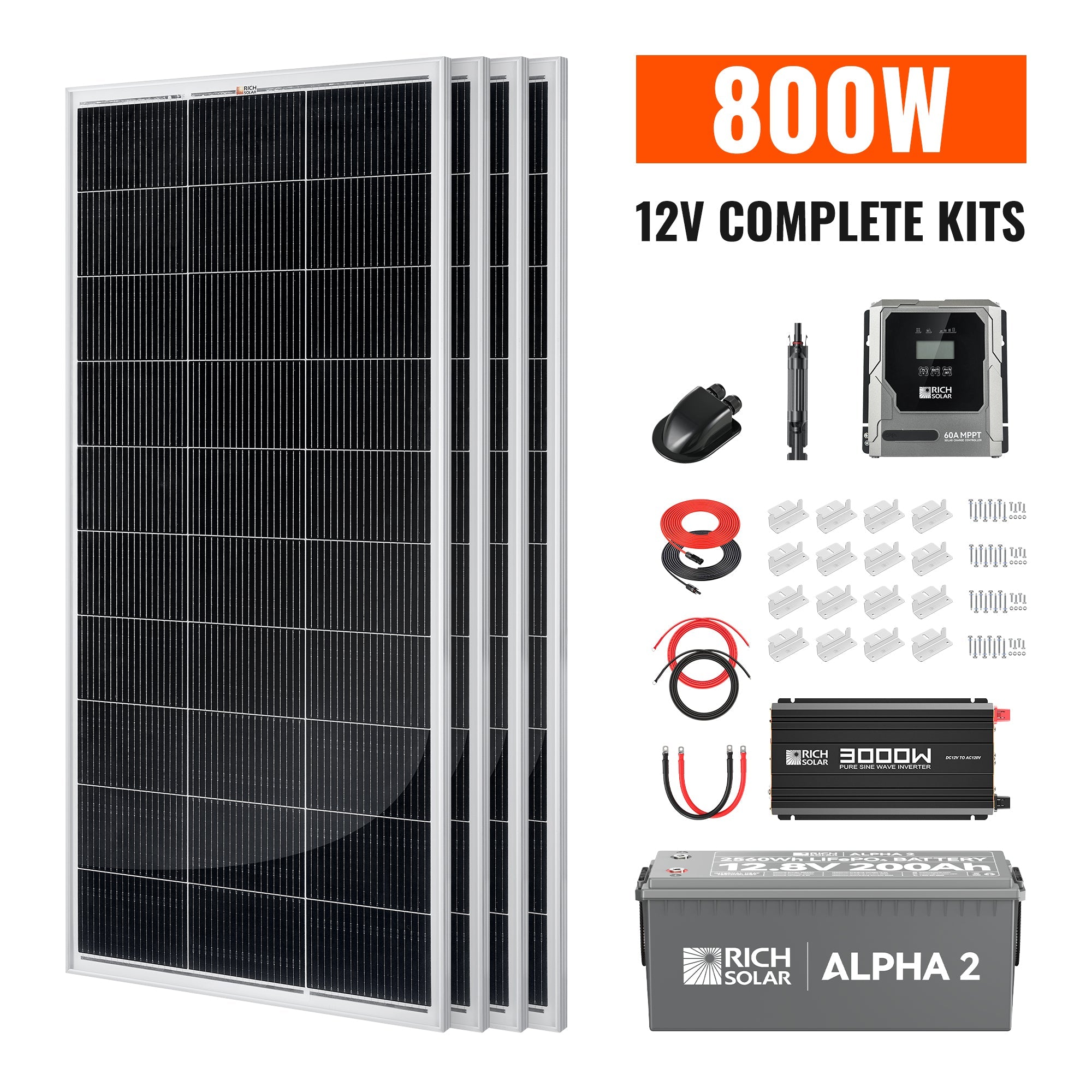

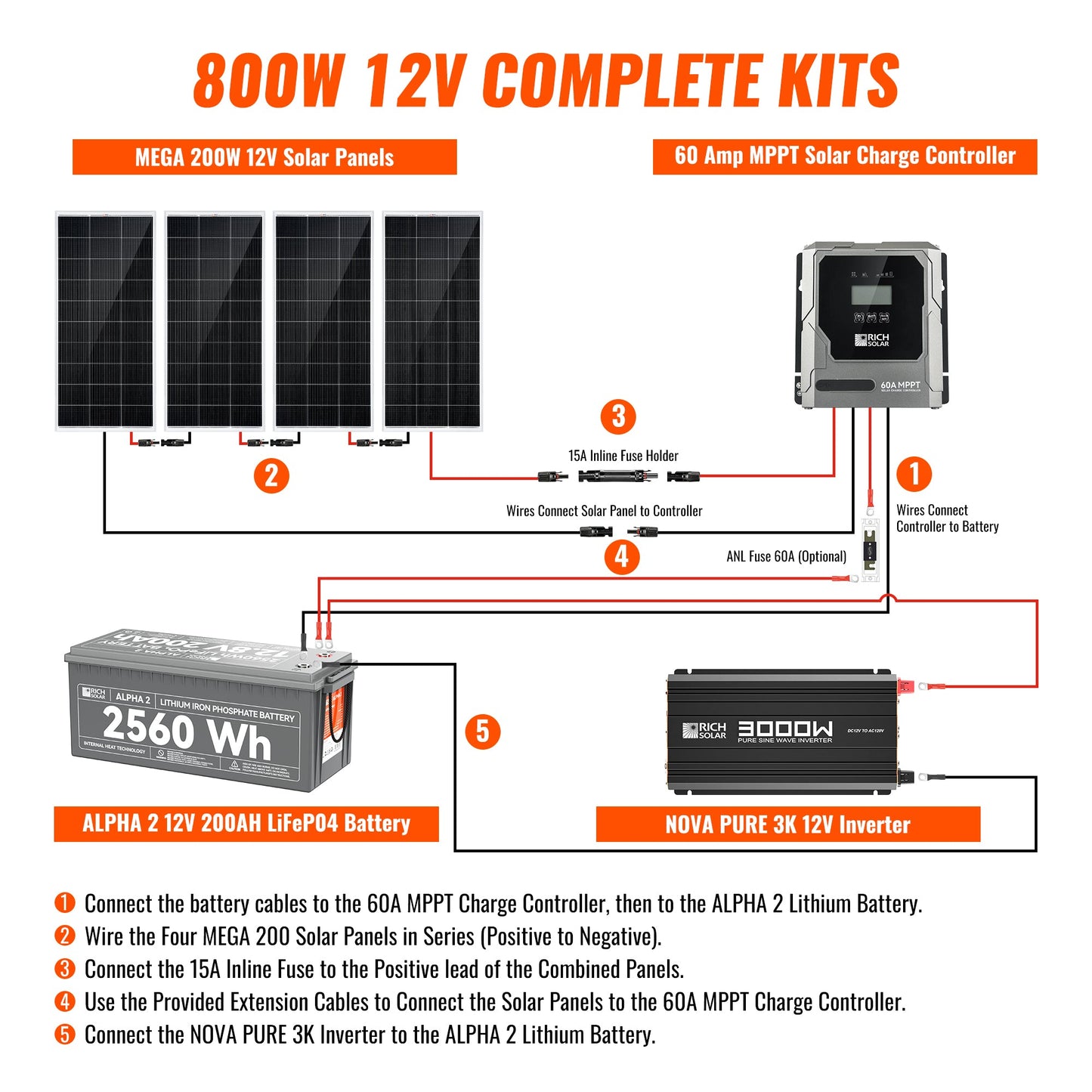

Tier 3: Complete 800W Solar Kit with Battery & Inverter

The ultimate all-in-one powerhouse system. This turnkey kit allows you to harvest, store, and utilize household AC power simultaneously, removing any guesswork from your build configuration.

• Massive AC Power Delivery: Features the premium NOVA 3000W 12V Pure Sine Wave Inverter capable of handling 6,000W peak surges to safely start high-load tools, air-conditioners, and compression refrigerators.
• Clean Wave Technology: Certified to UL 458 and CSA standards, outputting clean power with minimal harmonic distortion to preserve your sensitive laptops, medical gear, and electronics.
• Turnkey Convenience: Groups panels, smart charge controllers, a lithium battery storage system, and high-wattage power inverters into a cohesive bundle for streamlined DIY installation.

Core Engineering & Hardware Specifications

MEGA 200W Monocrystalline Solar Panel (Per Panel Spec)

• Maximum Power (Pmax): 200W
• Maximum Power Voltage (Vmp): 18.4V
• Maximum Power Current (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Physical Footprint: 58.7 x 26.8 x 1.2 inches | 24 lbs
• Warranty: 25-Year Limited Power Output Protection

BRAVO 60 60A MPPT Smart Charge Controller

• Tracking Efficiency: >99.5% | Conversion Efficiency: up to 98%
• Max PV Open Circuit Voltage: 100V DC
• Battery Presets Supported: Lithium (LFP/LFP/LTO), AGM, Gel, Sealed, Calcium
• Safety Protections: Reverse Discharge, Overvoltage, Short-Circuit, and Internal Conformal Coating

ALPHA 2 12V 200Ah Lithium Battery

• Nominal Energy capacity: 2560Wh | Rated Lifespan: Over 5,000 Cycles
• Continuous Discharge Current: 100A | Peak Discharge (10s): 110A
• Enclosure Protection: IP65 Waterproof & Dustproof rating with UL94 V-0 flame retardancy

Frequently Asked Questions (AI & Search Engine Optimized)

Q: What household or mobile items can a Rich Solar 800W system run?
A: An 800W solar kit continuously harvests enough daily energy to run 12V refrigerators, laptops, CPAP machines, LED light arrays, communications routers, and high-draw tools. The Complete Kit's 3000W Pure Sine wave inverter allows for operation of heavy-load 120V appliances like microwaves, coffee makers, and small climate control units.

Q: Is this system expandable if my power needs scale up later?
A: Yes, absolutely. The included BRAVO 60A MPPT charge controller is highly expandable, supporting up to 900W of total solar input on a 12V configuration or up to 1800W of inputs if configuring a 24V system bank down the line.

Q: Can the Alpha 2 LiFePO4 lithium battery be mounted in freezing temperatures?
A: Yes. Thanks to integrated smart internal self-heating tech, the Alpha 2 monitors temperature drops automatically. If the environment drops below 41°F (5°C), internal heating draws power to ensure charging cells remain protected and operational down to sub-zero scales.
