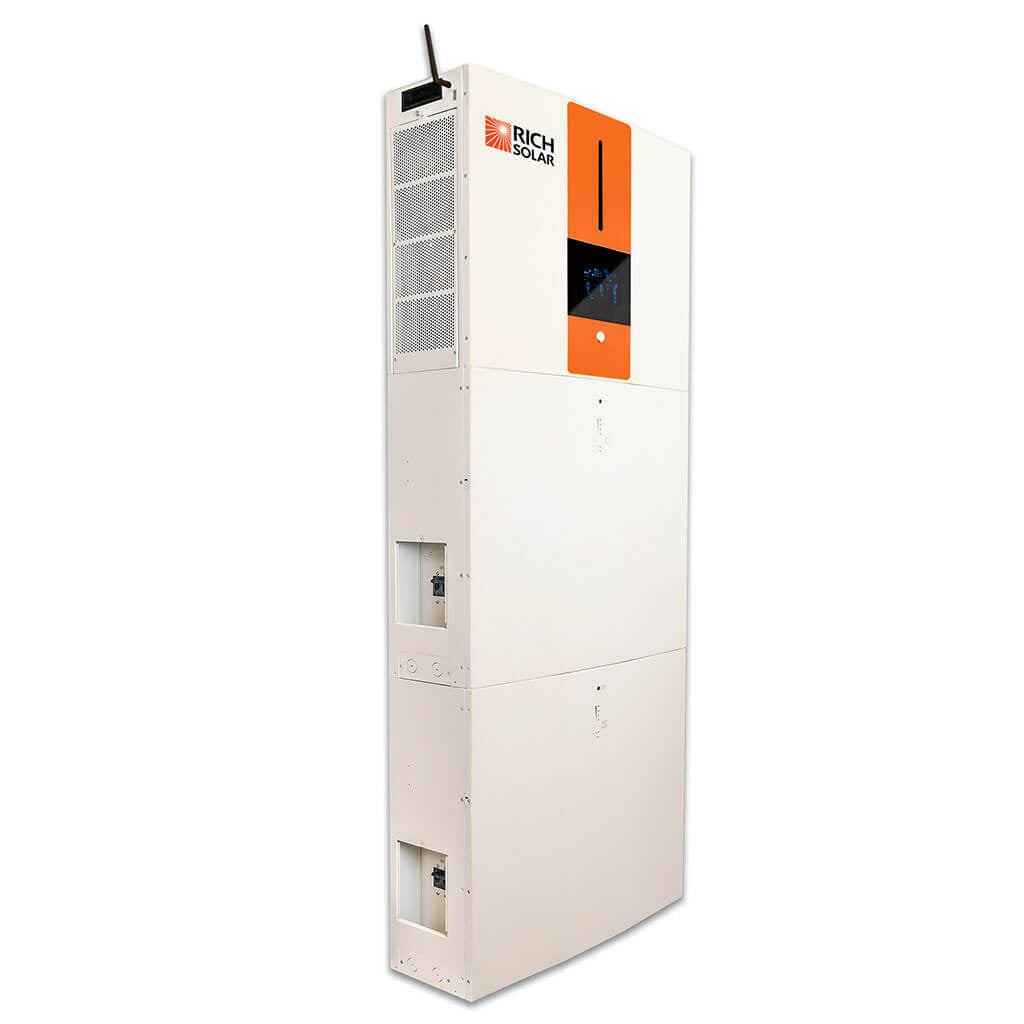

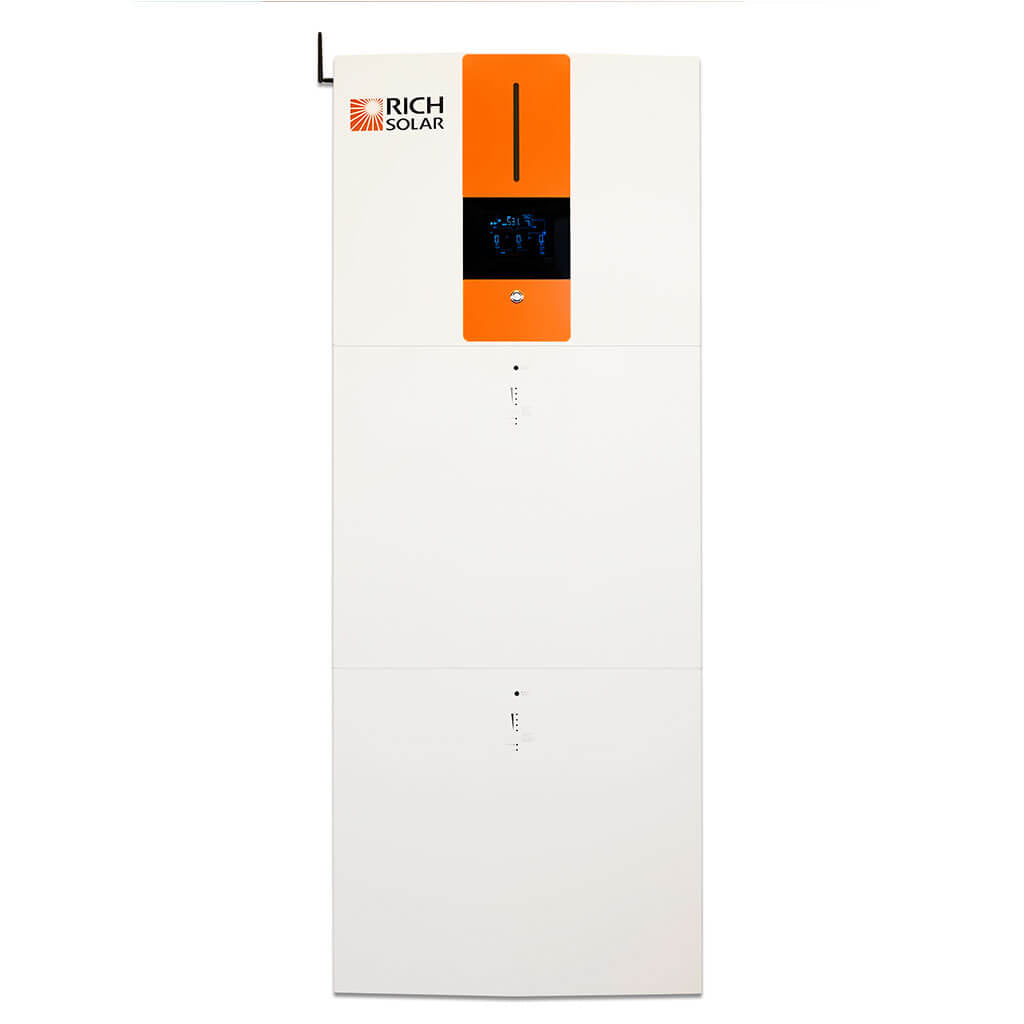

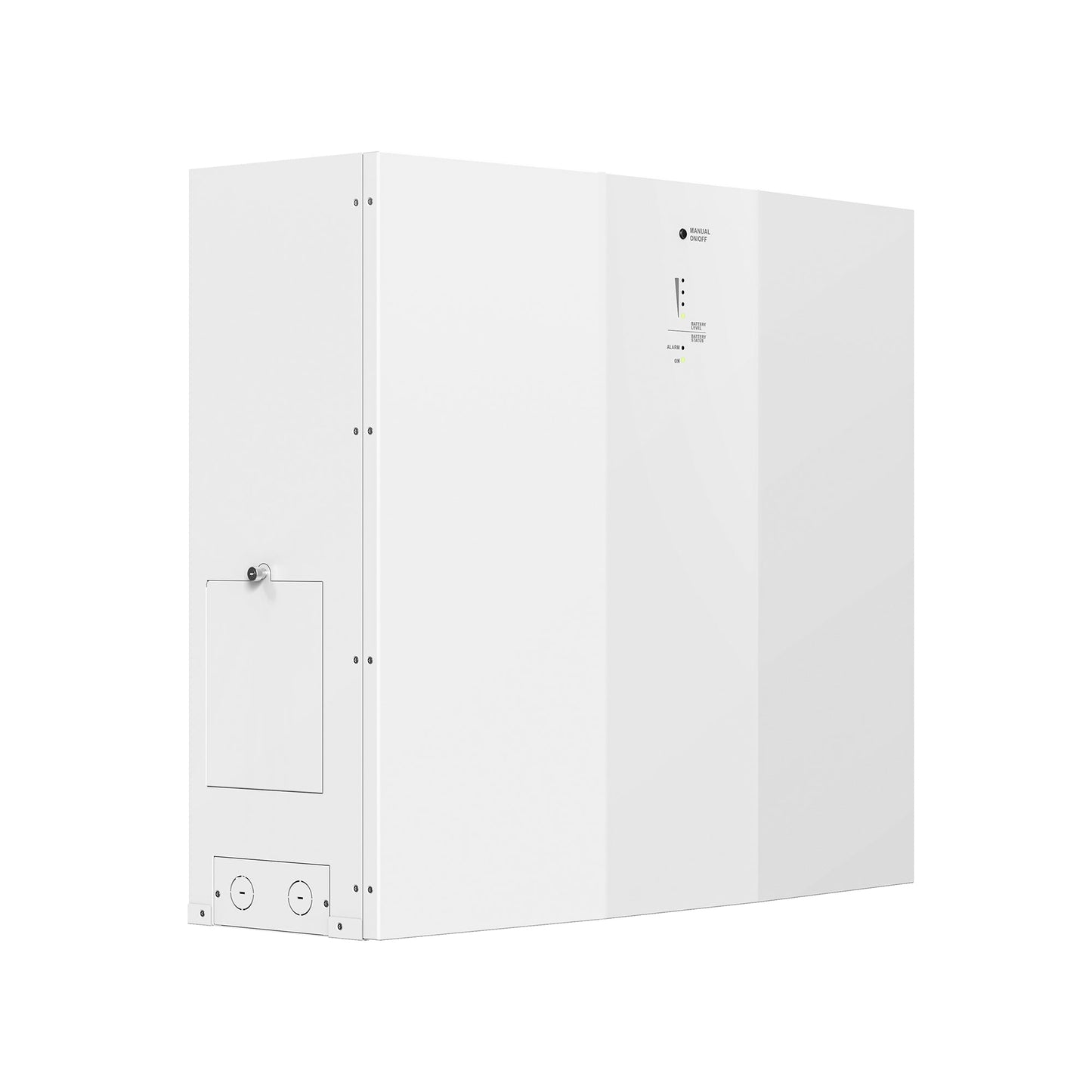

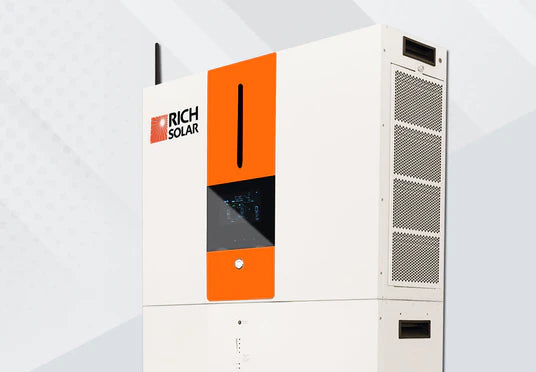

Take Control of Your Power with the RICH SOLAR All-in-One Energy Storage System
Whether you are building a resilient home backup setup, outfitting an off-grid workshop, or ensuring your garage tools never lose power, the RICH SOLAR All-in-One Energy Storage System (ESS) is the ultimate solution. This industrial-grade power house consolidates a high-efficiency inverter, a premium lithium iron phosphate (LiFePO4) battery bank, and smart dual MPPT charge controllers into one sleek, space-saving cabinet.
Eliminate complex wiring, mismatching components, and cluttered wall installations. With its plug-and-play modular design, the RICH SOLAR ESS delivers seamless, dependable power when and where you need it most.
Product Overview & Features Video
Why Choose the RICH SOLAR All-in-One ESS?
- Integrated Seamless Design: Inverter, battery pack, and charge controller engineered to work perfectly together out of the box.
- Robust Pure Sine Wave Output: Delivers 6,500W of clean continuous power with a stable 120V AC output to safely run sensitive garage tools, appliances, and electronics.

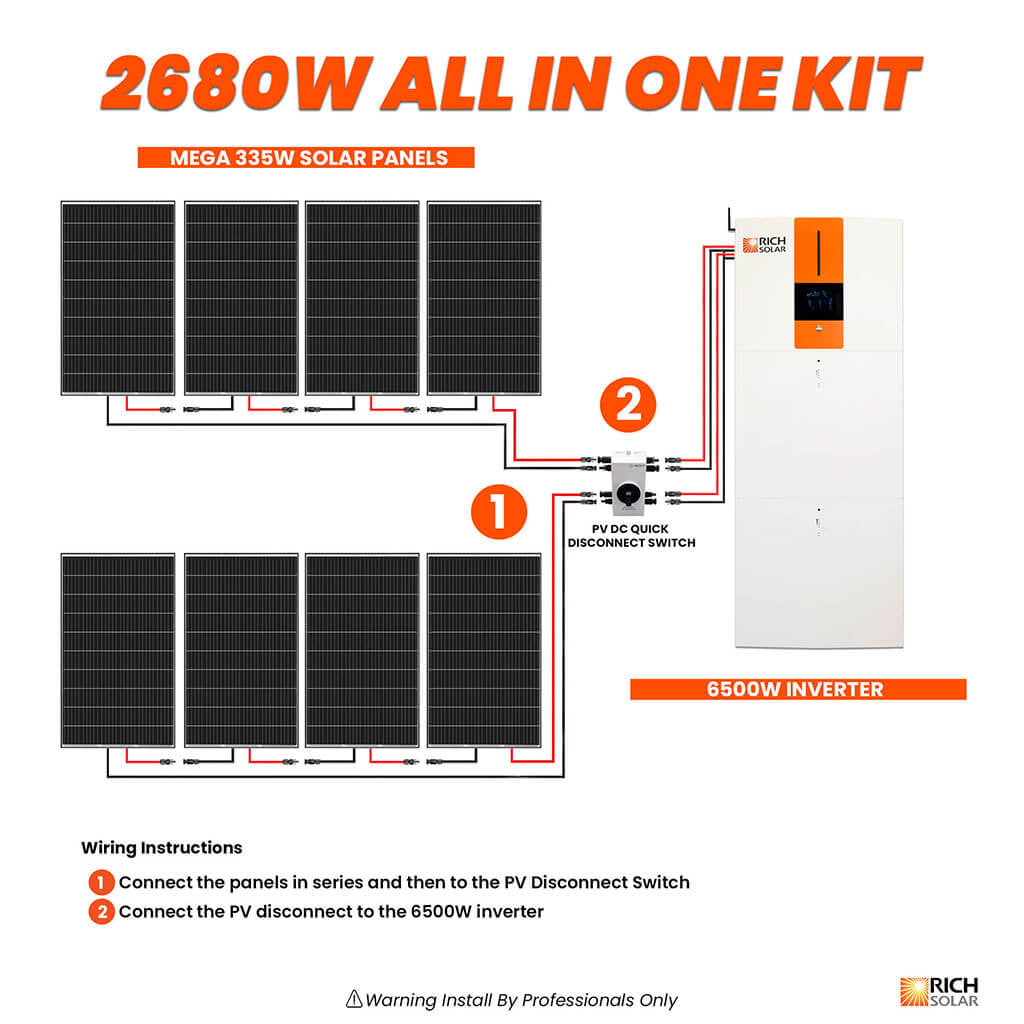

- Advanced Dual MPPT Trackers: Supports up to 8,000W of maximum PV solar input, maximizing energy harvest even during variable weather or partial shading.

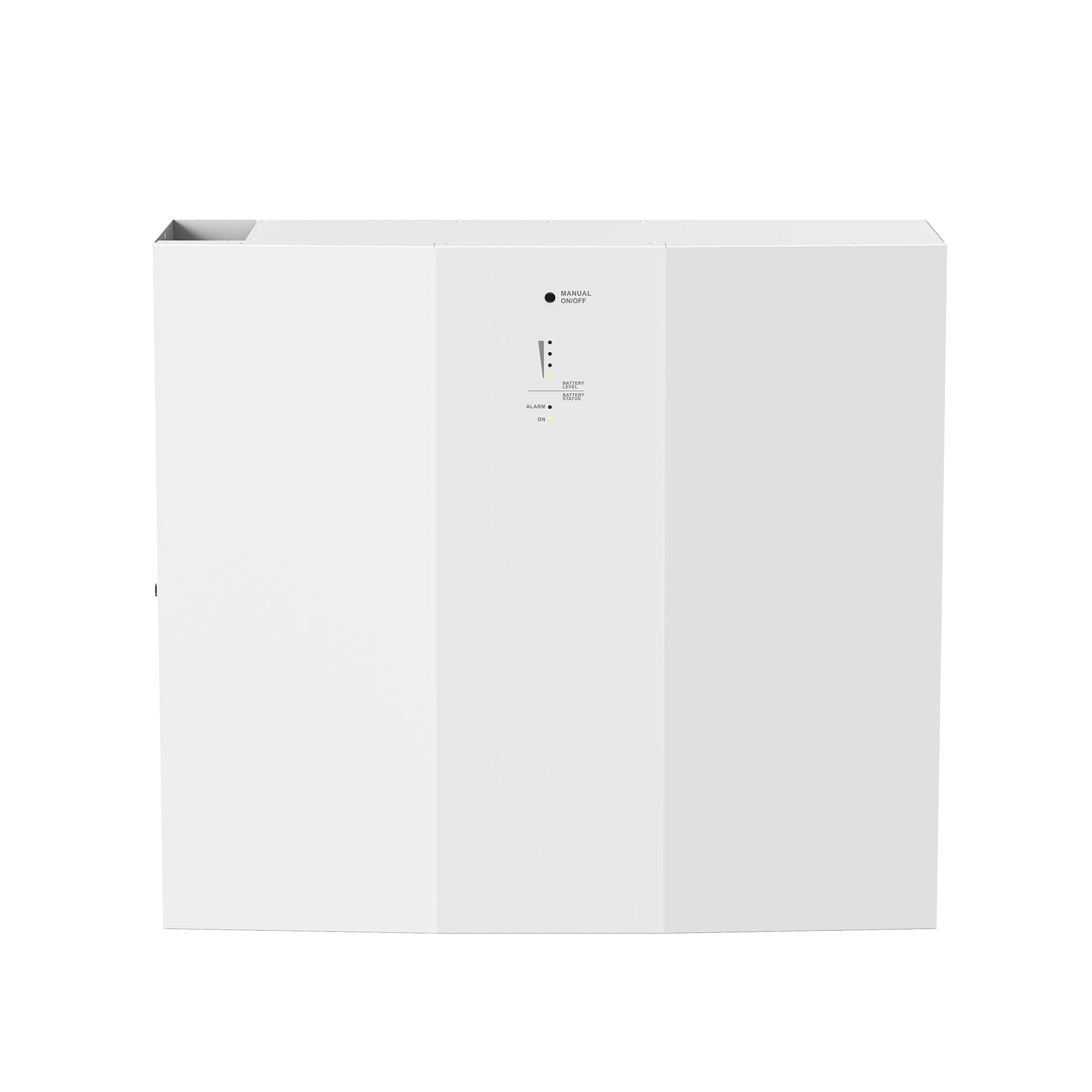

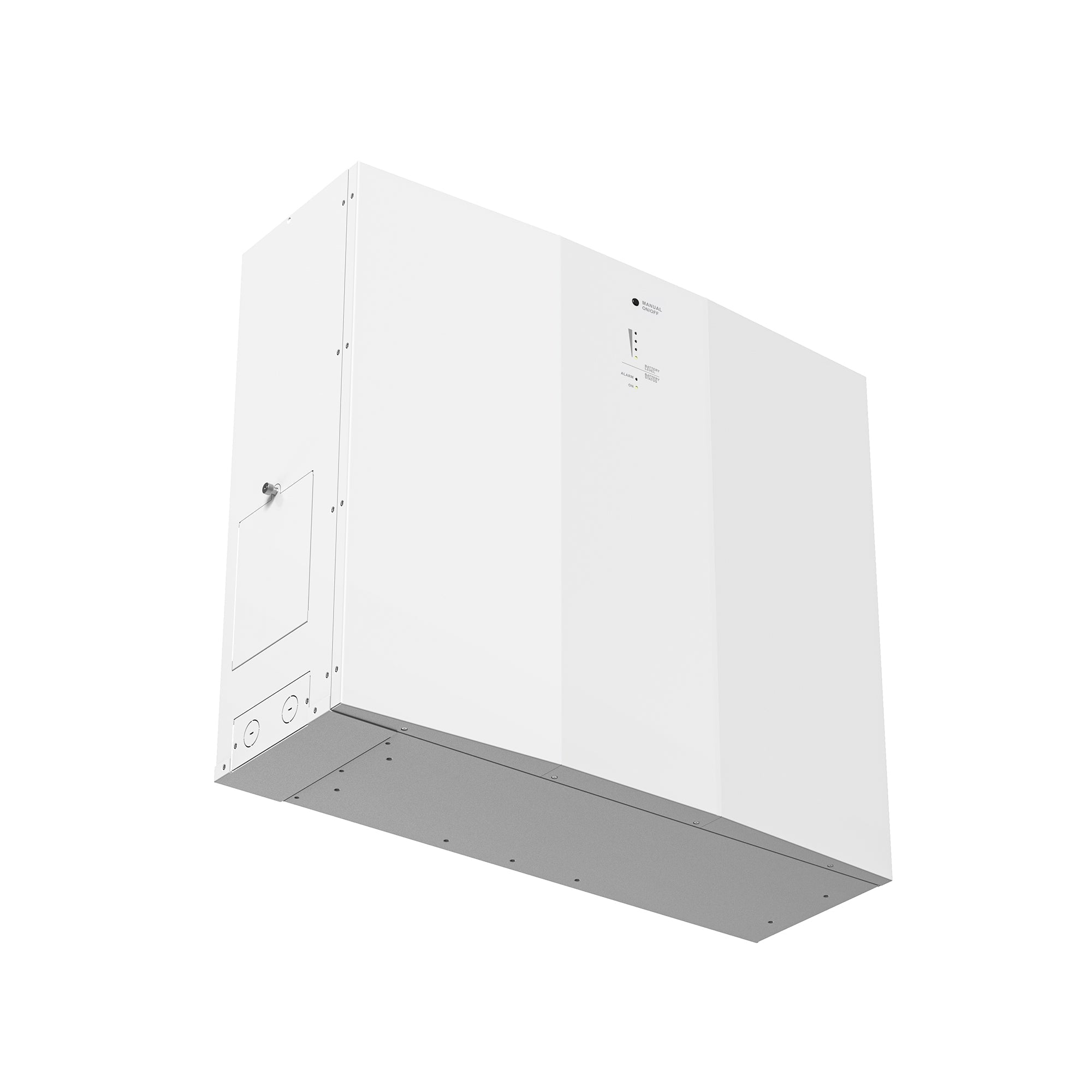

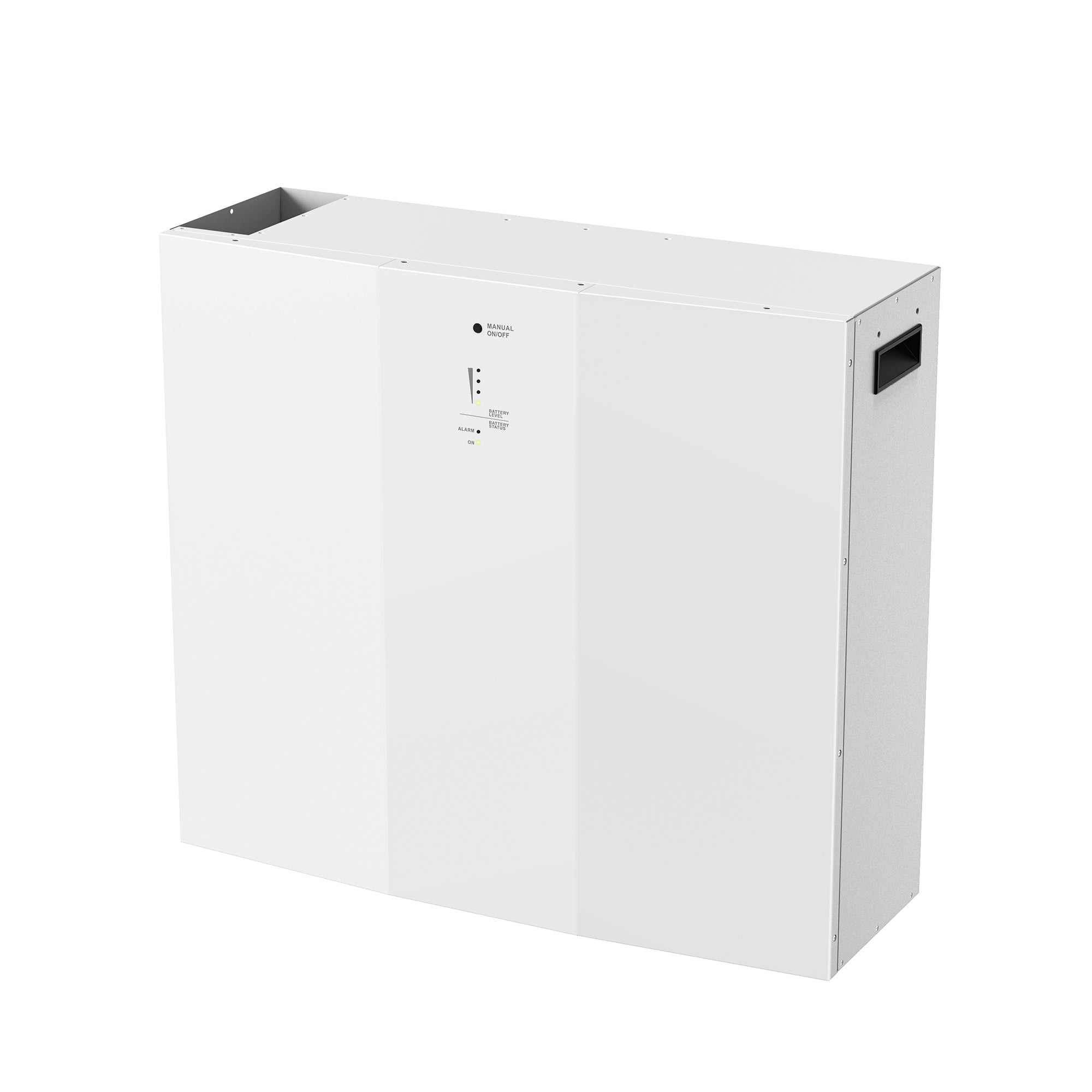

- Expandable Lithium Storage: Comes standard with a heavy-duty 5,120Wh (51.2V 100Ah) LiFePO4 battery array, built for long cycle life and extreme reliability.
- Intelligent Priority Programming: Easily customize power supply priorities between Solar (PV), Battery, or Utility Grid/Generator depending on your energy needs.
Comprehensive System Specifications
| System Parameter | Technical Configuration |
|---|---|
| System Model | RICH SOLAR RS-A10 |
| Rated AC Output Power | 6,500W Continuous / 120 VAC Nominal |
| Maximum PV Solar Input | 8,000W Max Power / 250 VDC Open Circuit Voltage |
| MPPT Operating Range | 90V ~ 230 VDC (2 Trackers / 2 x 18A Max Input) |
| Battery Storage Capacity | 5,120Wh (51.2V DC / 100Ah Typical Capacity) |
| Max Discharging Current | 120A Continuous / 192A Peak (up to 1 minute) |
| Maximum Charging Current | 120A (Combined Solar + AC Charger) |
| Total System Weight | 287 lbs (Cabinet Setup) |
| Physical Dimensions | 19.7" × 26.0" × 49.2" (D × W × H) |
| Safety Certifications | UL 1741, CSA C22.2, IEC 62619, FCC Part 15B, UN38.3 |
Smart Connectivity & Monitoring

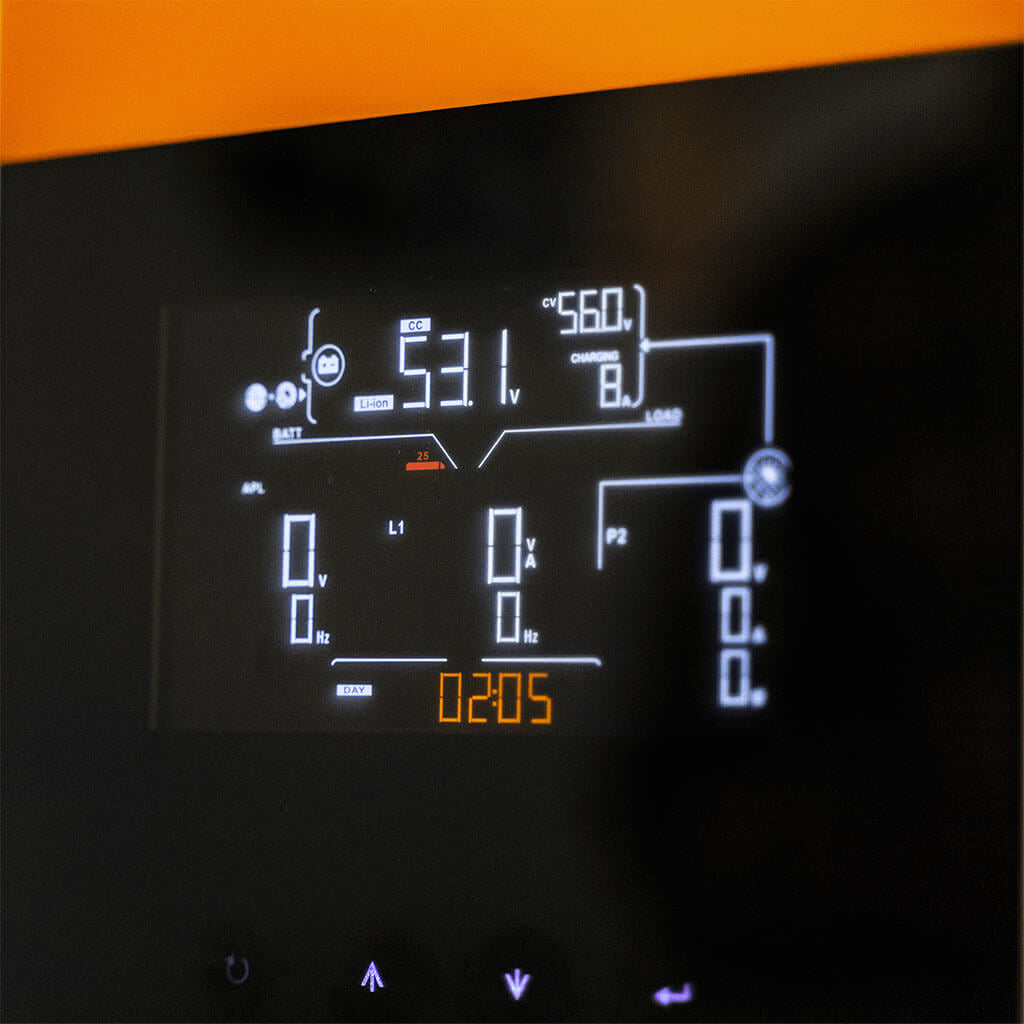

Stay informed with advanced diagnostic capabilities. The system supports multiple communication protocols including USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi. Download the dedicated monitoring app for iOS and Android to view real-time solar harvest, state of charge (SoC), operational status, and customize configuration settings remotely.
Frequently Asked Questions
Can this system be used completely off-grid?

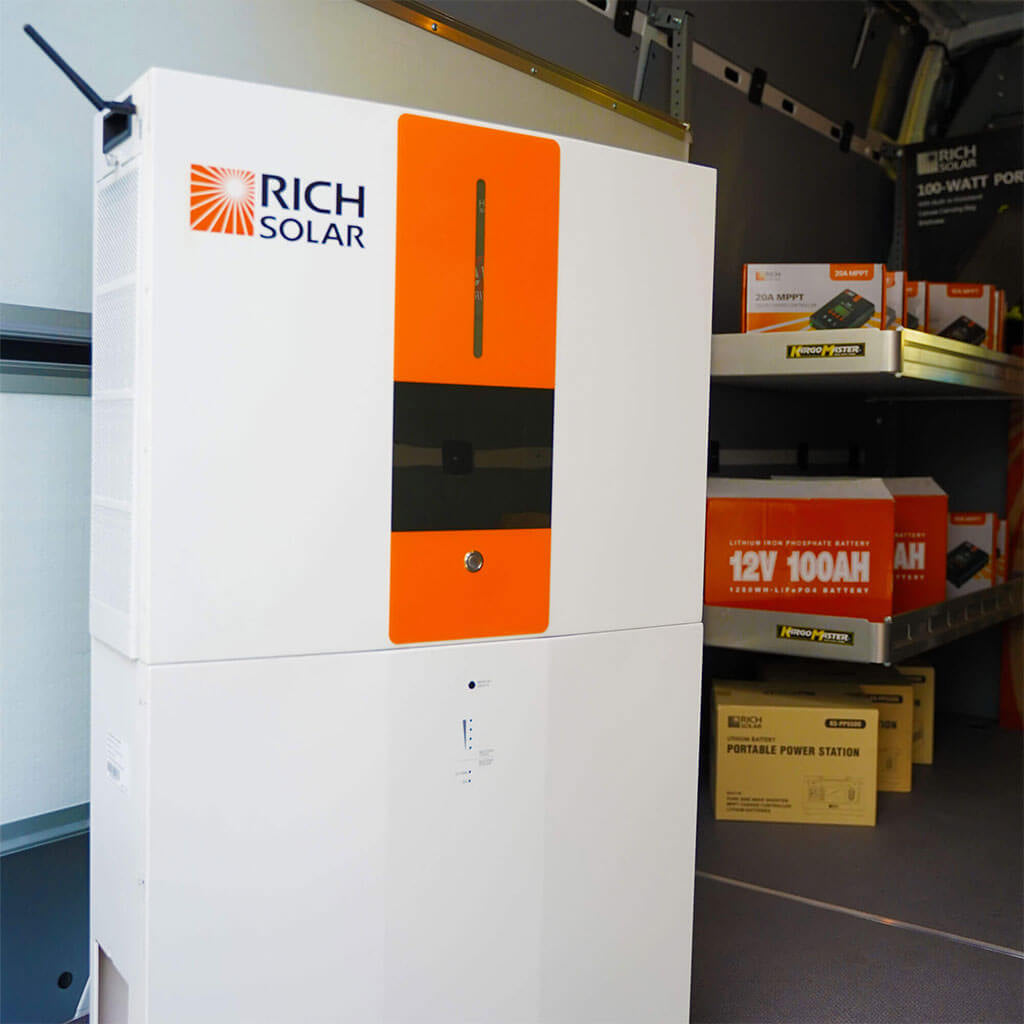

Yes. The RICH SOLAR All-in-One Energy Storage System is specifically optimized for off-grid applications, emergency backups, or isolated garage installations. It handles inputs from solar arrays, fuel generators, and standard utility hookups seamlessly.
What kind of batteries does the system use?

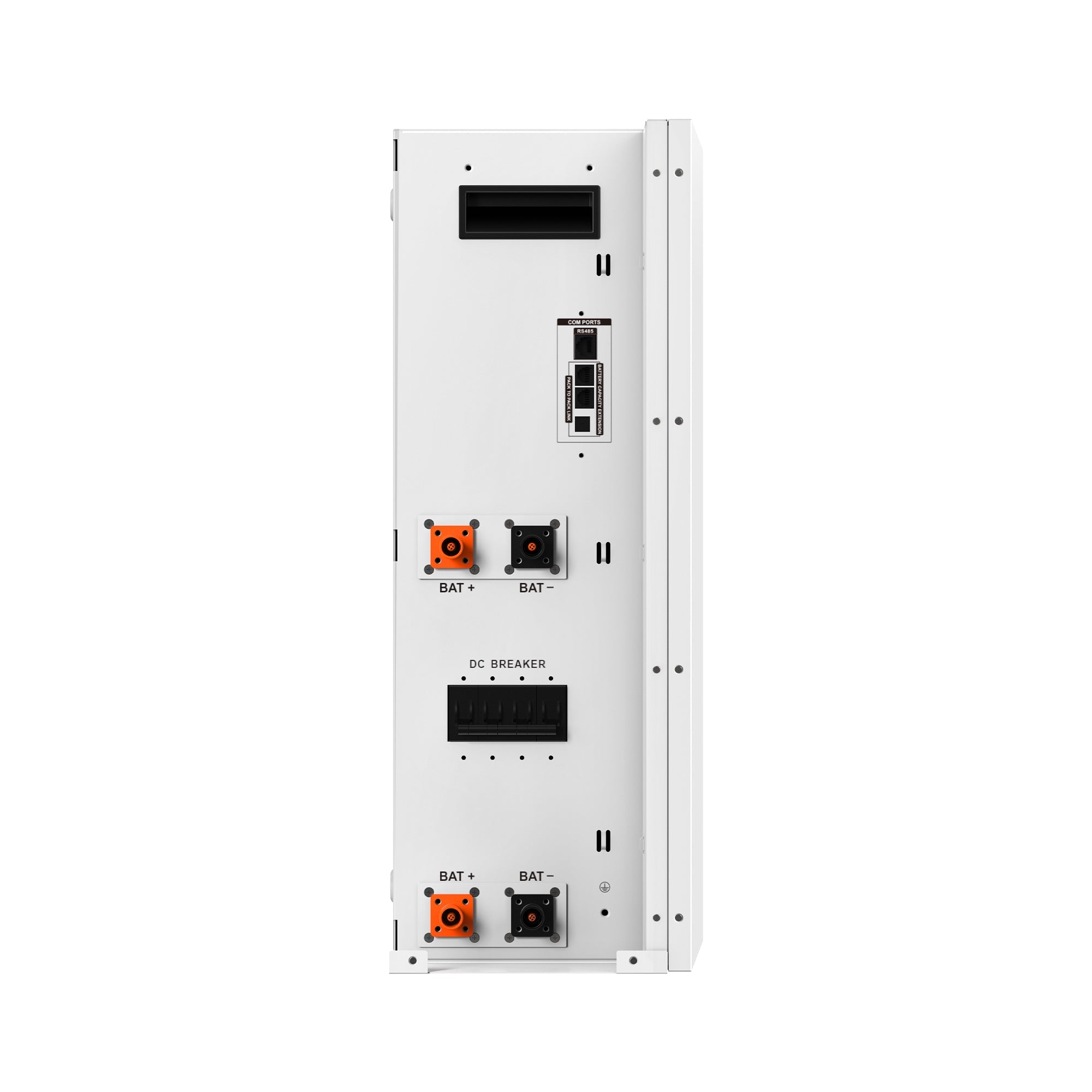

The system is built around high-safety Lithium Iron Phosphate (LiFePO4) battery chemistry. It offers a massive 5.12kWh capacity at 51.2V nominal, managed by an integrated smart Battery Management System (BMS) and dynamic circuit breakers for comprehensive protection.
Is the system expandable if my power needs grow?

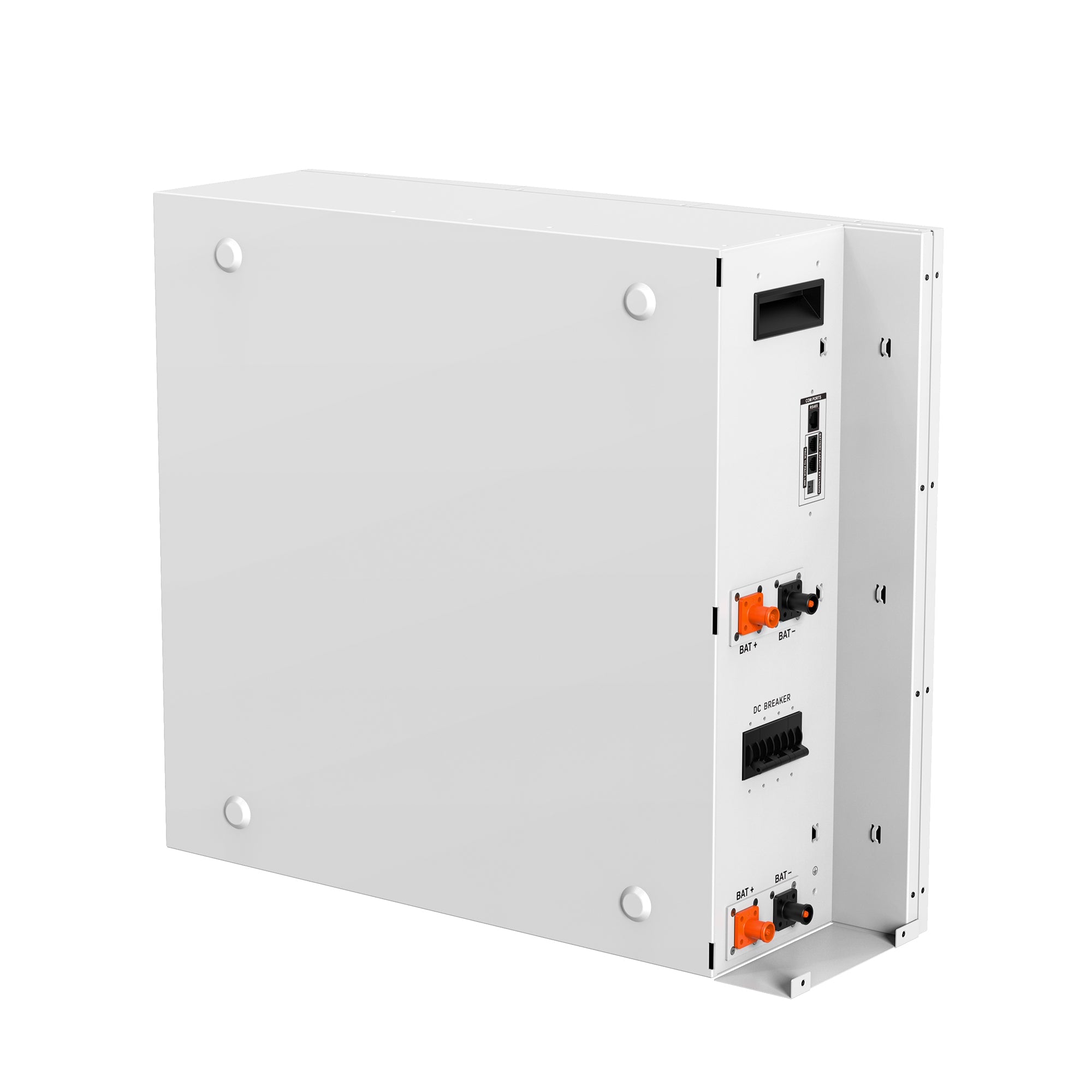

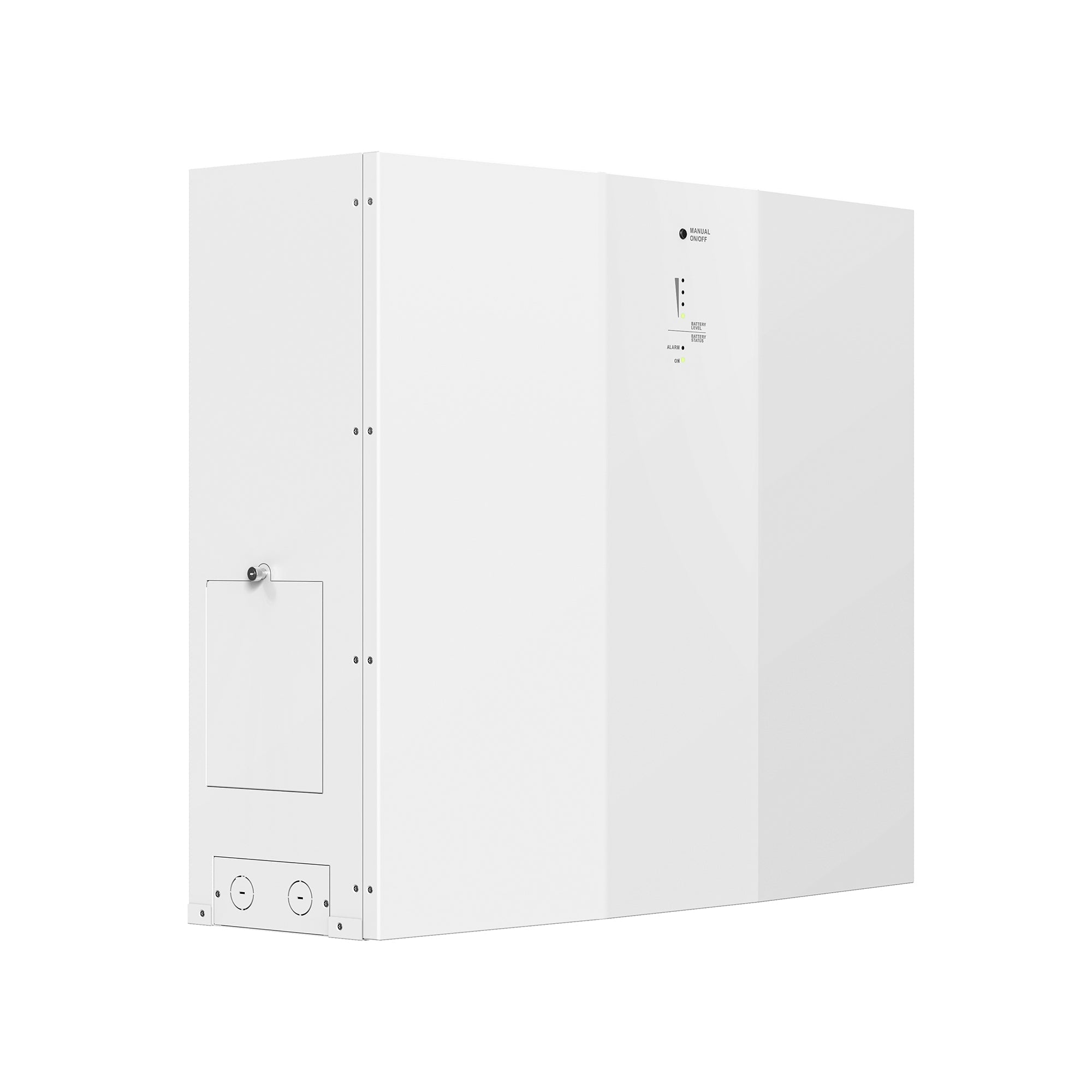

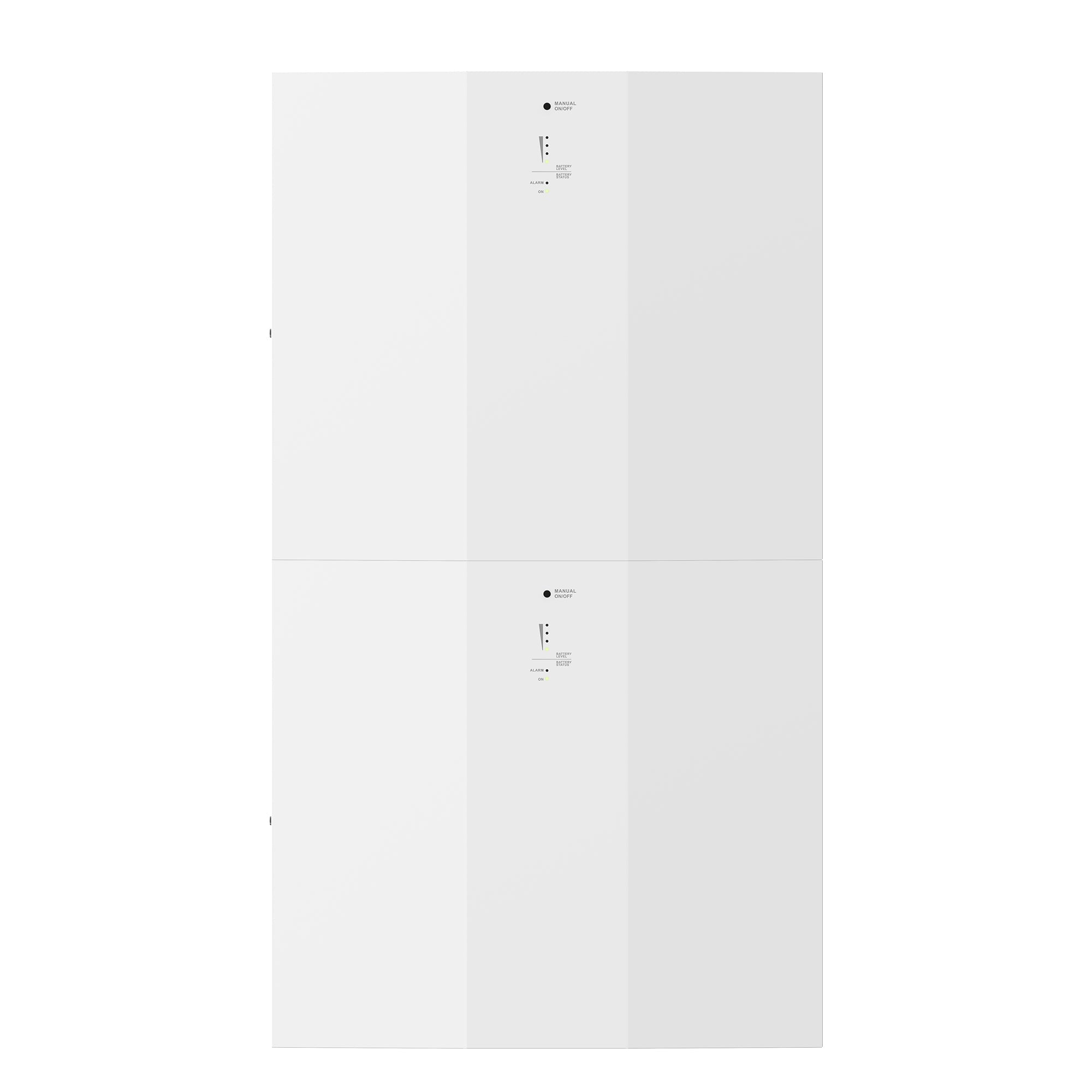

Yes. The modular design features a scalable Li-ion battery expansion layout. You can integrate additional compatible battery modules over time to expand your storage capacity as your garage shop or home setup expands.
Can it run high-surge tools or appliances?
With its true 6,500-watt pure sine wave output efficiency rating reaching up to 93%, it can easily run air compressors, power tools, refrigerators, and heavy workshop machinery. It features a peak temporary discharge rating of 192A for up to 1 minute to easily clear startup surges.
What is an all-in-one energy storage system, and how is it different from a solar kit?
An all-in-one system houses the battery, inverter, and charge controller together in a single enclosure (5.12kWh capacity, 6500W rated output), rather than shipping as separate components you wire together yourself. It's a more turnkey setup than a panel-and-battery kit, and solar panels can be added to charge it.
Can I charge it with solar panels, or is it AC-charge only?
Most Rich Solar all-in-one systems accept both solar panel input and AC wall/generator charging, so you can recharge it from the sun during the day or plug it in when solar isn't available — check the specifications above for this model's accepted charging inputs.
Does this system need professional installation?

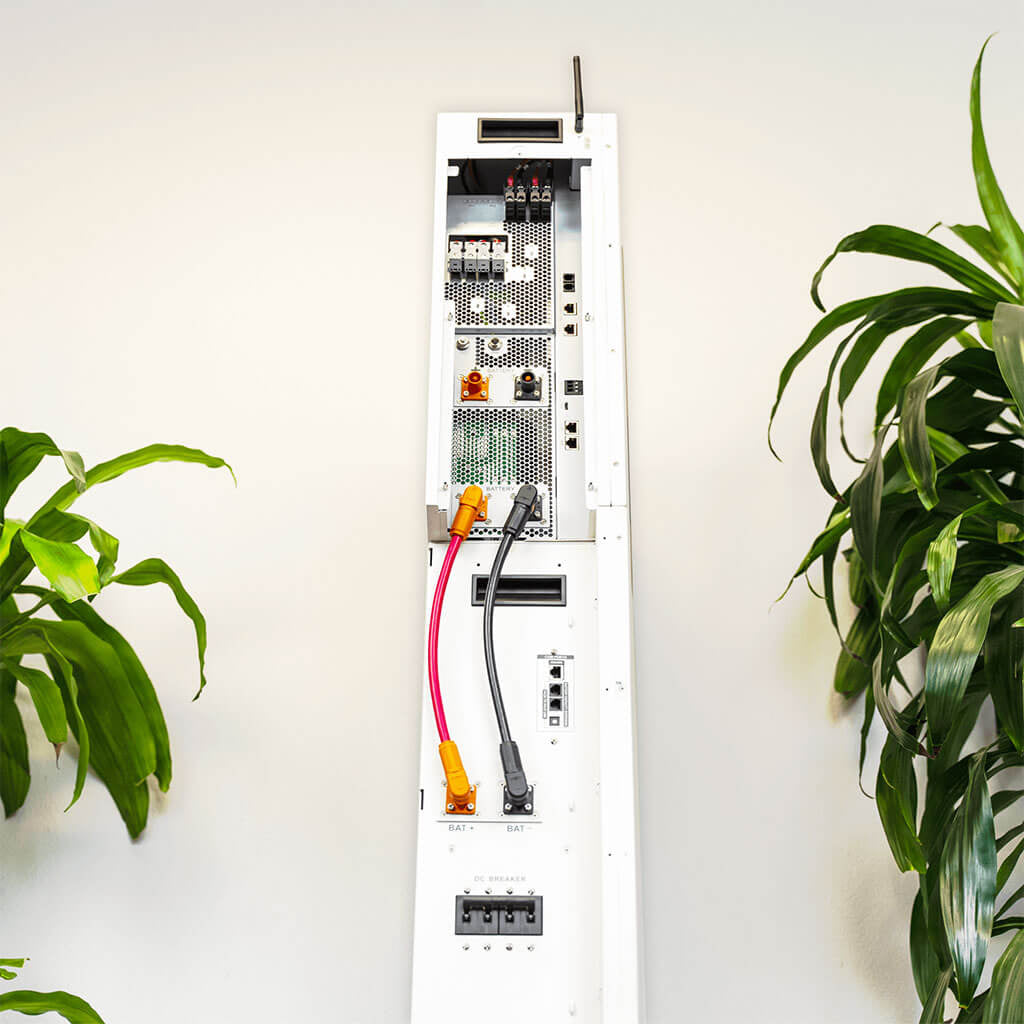

Many owners set these up themselves for portable or standby use, since the battery, inverter, and controller are pre-wired inside the cabinet. If you're hard-wiring it into your home's electrical panel as a whole-home backup source, we recommend a licensed electrician for that connection.
What monitoring or app features does it have?
Rich Solar's all-in-one systems typically include a built-in display plus Bluetooth or Wi-Fi app monitoring so you can track state of charge, input/output power, and system health remotely — see the specifications above to confirm this model's monitoring options.
What's the warranty on this system?
Warranty terms vary by component (battery, inverter, and enclosure), typically ranging from 5 to 10+ years depending on the part — see the specifications above for the exact terms for this model.
Where can I install this system — garage, indoors, or outdoors?
These systems are generally designed for indoor or covered installation (garage, utility room, basement) rather than direct outdoor weather exposure — check the enclosure rating in the specifications above before planning an outdoor install.
